We use a new generation of upgraded high-performance injection molding machines:
01-Opening Stroke
Increased by up to 15%
02-Ejector stroke
Increased by up to 20%
03-Mould thickness
Increased by up to 15%
04-Max. Daylight
Increased by up to 55%
05-Ejector Force
Increased by up to 40%

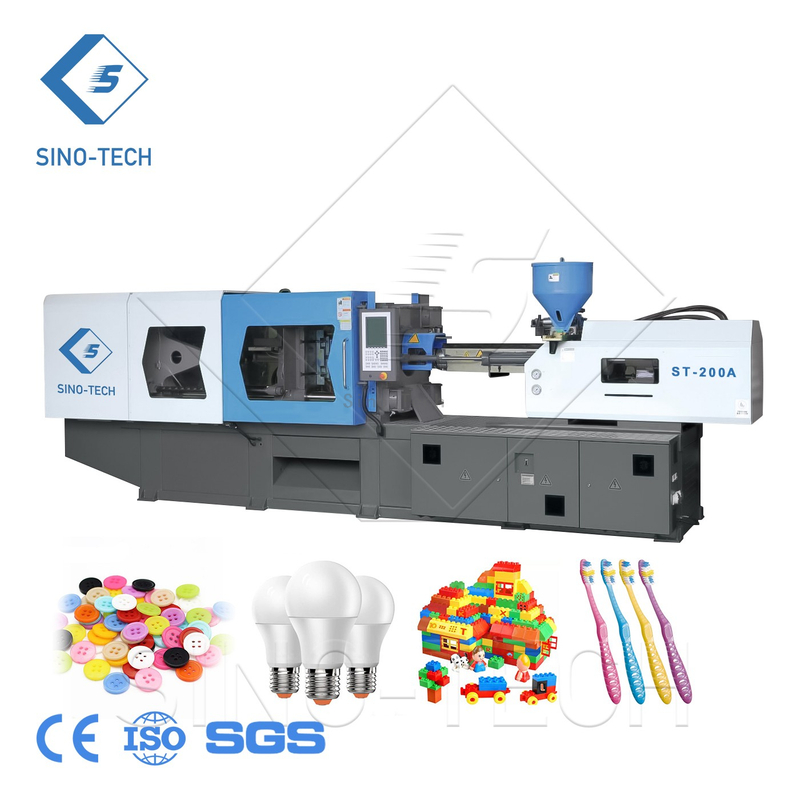

The injection molding machine uses Sellll upgraded components to achieve additional durability through an optimized clamping structure, a new and optimized injection unit design to meet various production needs, and uses an efficient and stable servo hydraulic system and high-performance European B&R control system.
Features
01-30% higher energy saving than using traditional variable pump
02-Stable and smooth movement supported by AC servo motor
03-Effective reduction of energy consumption due to reduced oil and cooling water attained by hydraulic system
04-High performance European B&R control system Item | | 200SElll |
Screw diameter | mm | 45 | 50 | 60 |
Theoretical shot volume | cc | 398 | 491 | 707 |
Shot weight (PS) | g | 362 | 447 | 643 |
Shot weight (PS) | oz | 12.8 | 15.8 | 22.7 |
Length/Diameter ratio | L/D | 24 | 21.6 | 18 |
Injection pressure | MPa | 219 | 177 | 123 |
Injection rate | cm⊃3;/sec | 150 | 185 | 266 |
Injection stroke | mm | 250 |
Max. Screw speed | rpm | 185 |
Plasticizing capacity (PS) | g/s | 22.5 | 28 | 34.2 |
Injection unit force | Ton | 9.1 |
Carriage stroke | mm | 350 |
Clamping force | Ton | 200 |
Max. daylight | mm | 1090 |
Clamping stroke | mm | 540 |
Distance btwn. Tie bars | mm | 535*535 |
Min mould dimension | mm | 370*370 |
Mould thickness range | mm | 175-550 |
Ejector force | Ton | 7.7 |
Ejector stroke | mm | 150 |
No. of ejector pins | unit | 9 |
Max. motor power | kW | 16.4 |
System pressure | MPa | 17.5 |
Hydraulic pump capacity | L/min | 112.5 |
No. of heater zones | unit | 4+1+1 |
Heater input power | kW | 14.25 |
Ultimate capacity | kw | 31.65 |
Current | A | 43.3 |
Net weight | Ton | 6.97 |
Oil filling capacity | L | 360 |
