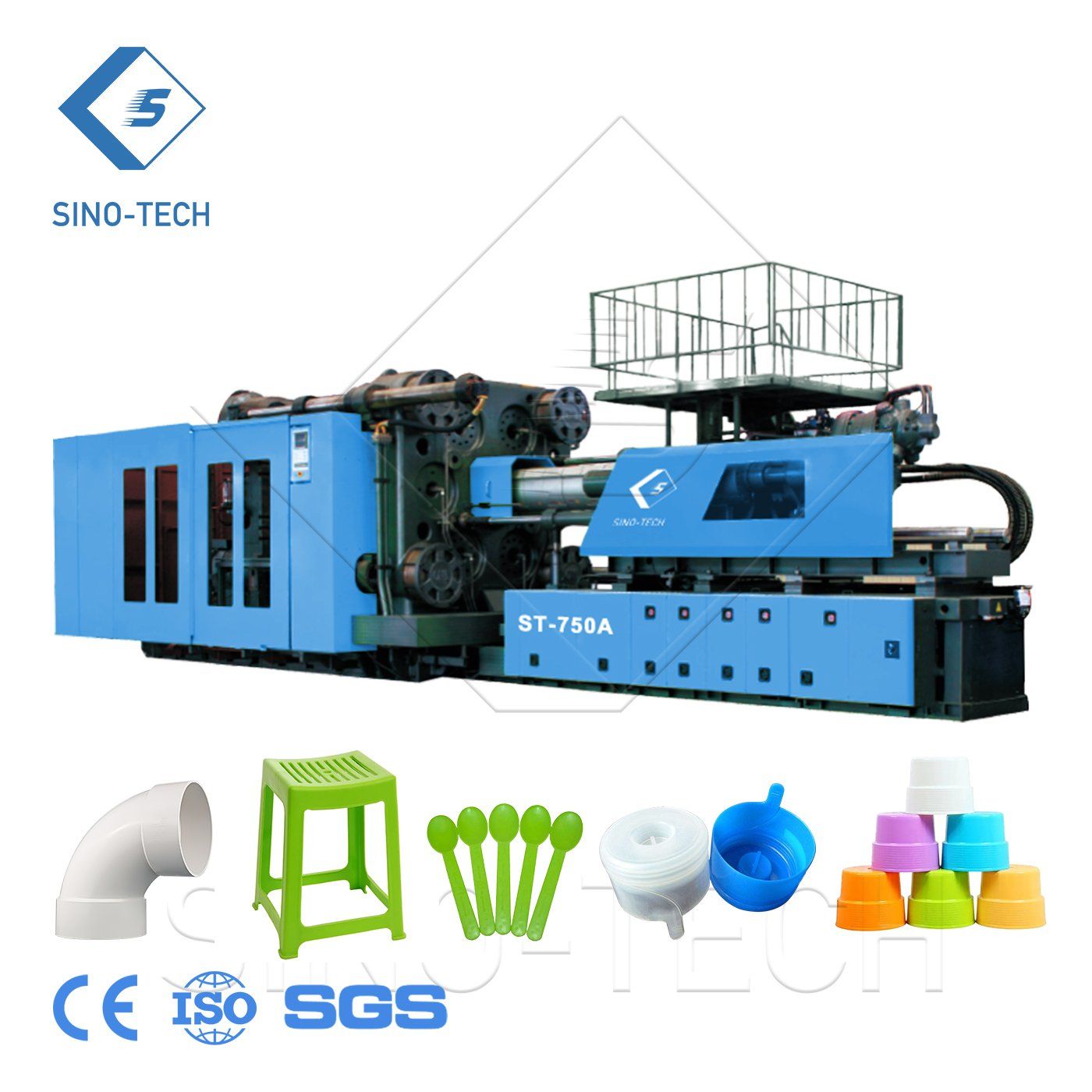

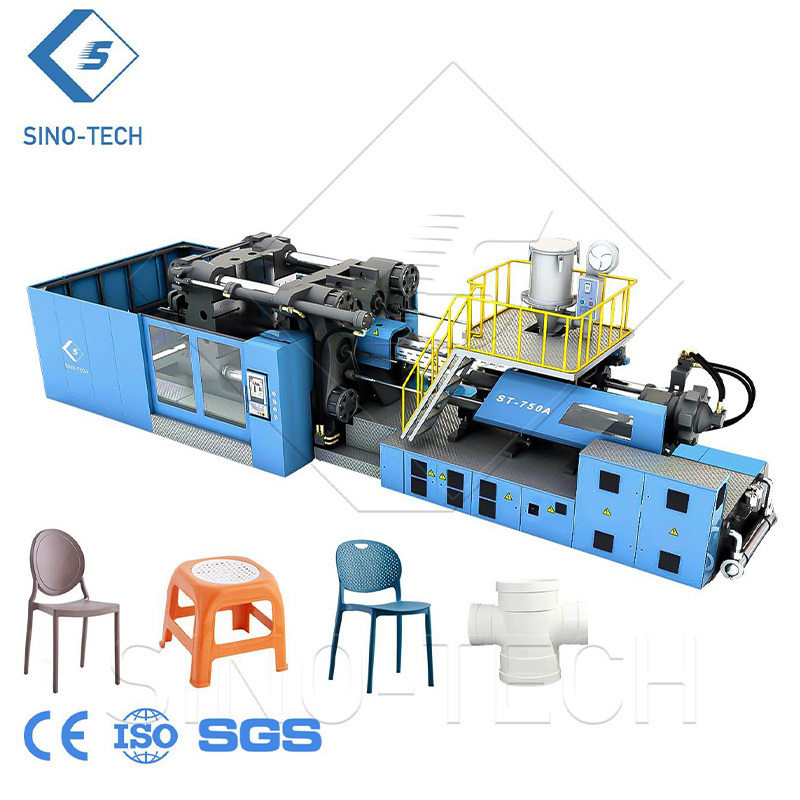

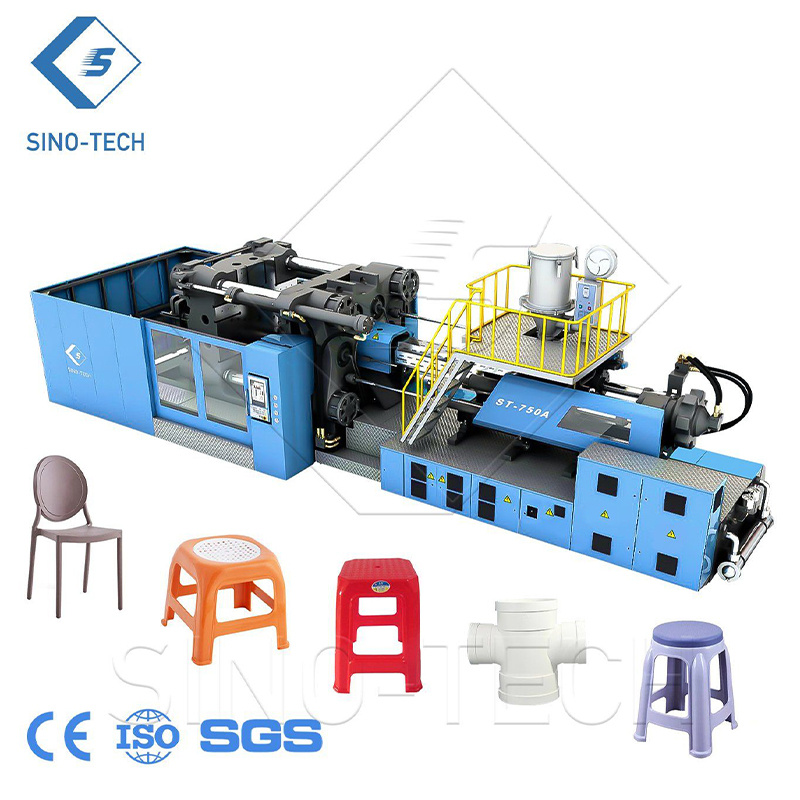

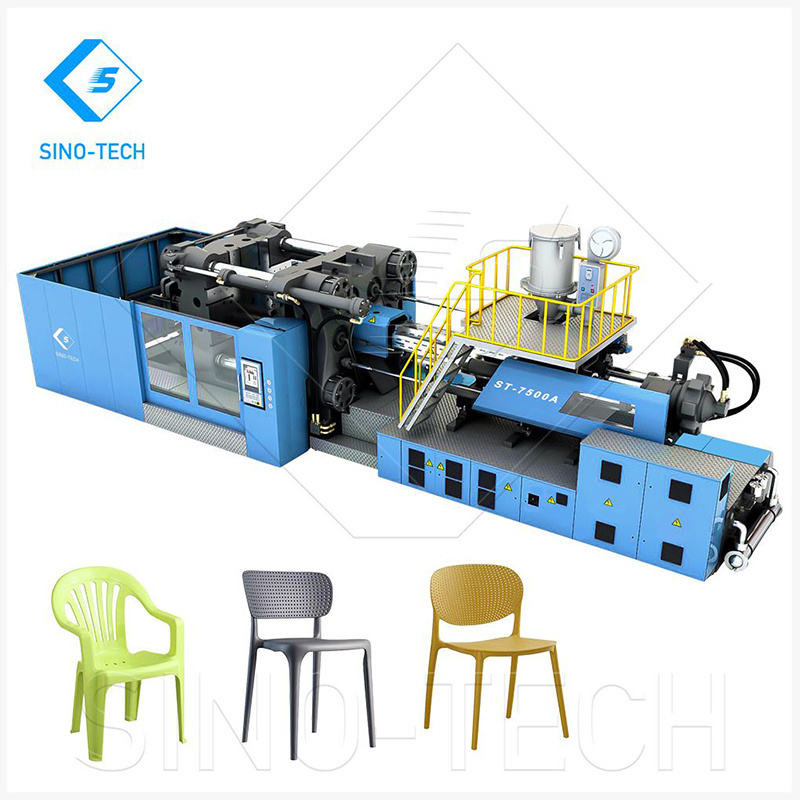

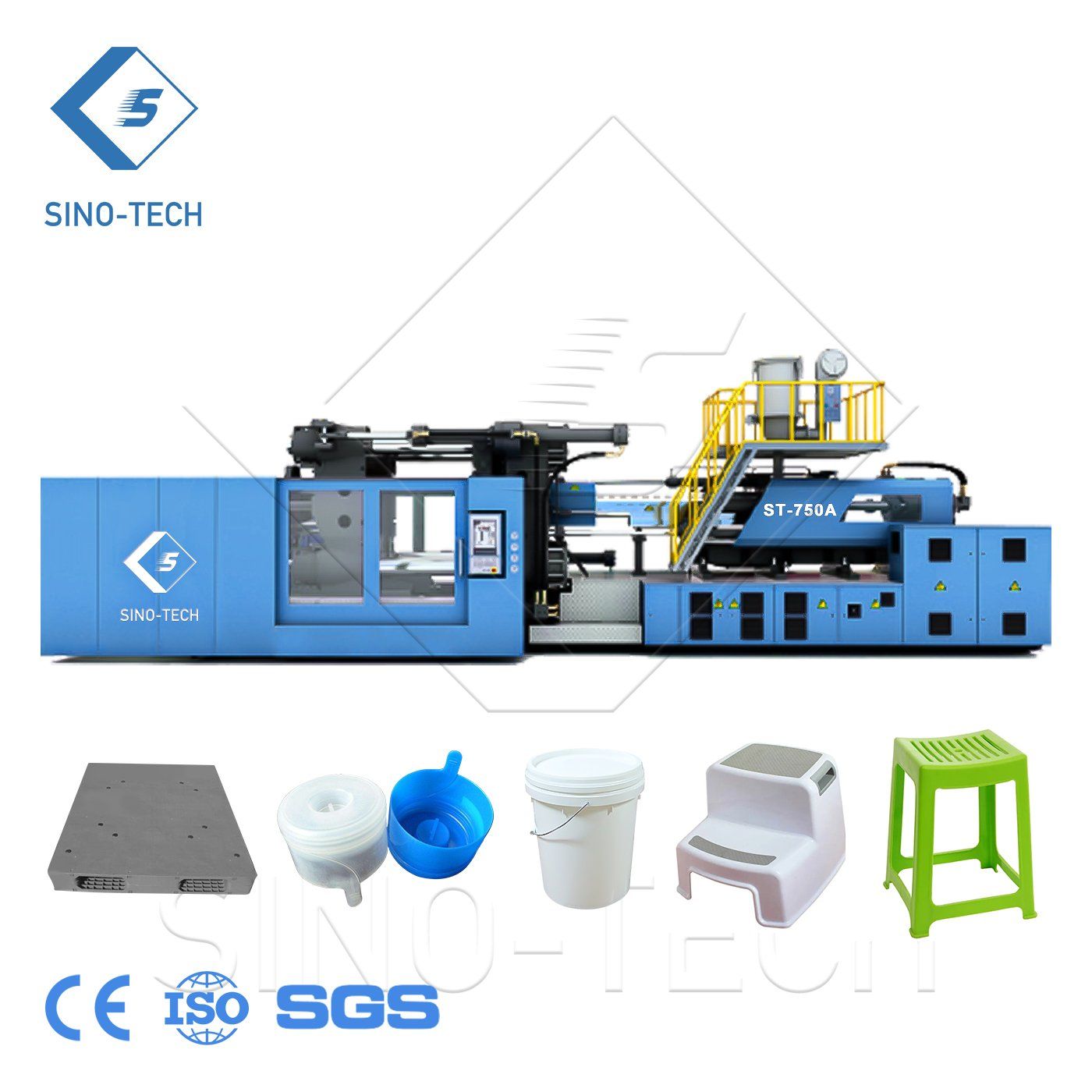

We use a new generation of upgraded high-performance injection molding machines:
01-Opening Stroke
Increased by up to 15%
02-Ejector stroke
Increased by up to 20%
03-Mould thickness
Increased by up to 15%
04-Max. Daylight
Increased by up to 55%
05-Ejector Force
Increased by up to 40%
The injection molding machine uses Sellll upgraded components to achieve additional durability through an optimized clamping structure, a new and optimized injection unit design to meet various production needs, and uses an efficient and stable servo hydraulic system and high-performance European B&R control system.
Features
01-30% higher energy saving than using traditional variable pump
02-Stable and smooth movement supported by AC servo motor
03-Effective reduction of energy consumption due to reduced oil and cooling water attained by hydraulic system
04-High performance European B&R control system | Item |
| 1000JSell |
| Screw diameter | mm | 100 | 110 | 125 |
| Theoretical shot volume | cm⊃3; | 3848 | 4657 | 6013 |
| Shot weight (PS) | g | 3646 | 4191 | 5412 |
| Length/Diameter ratio | L/D | 22.3 | 20.0 | 17.7 |
| Injection pressure(high pressure and low speed) | MPa | 215 | 178 | 138 |
| Injection pressure(low pressure and high speed | MPa | 156 | 129 | 100 |
| Injection rate(high pressure and low speed) | cm⊃3;/sec | 671 | 812 | 1048 |
| Injection rate(low pressure and high speed) | cm⊃3;/sec | 925 | 1119 | 1445 |
| Plasticizing capacity (PS) | g/s | 93 | 118 | 154 |
| Injection stroke | mm | 490 |
| Screw speed | rpm | 115 |
| Injection unit force | Ton | 20.0 |
| Carriage stroke | mm | 920 |
| Clamping force | Ton | 1000 |
| Opening force | Ton | 106.1 |
| Opening force | Ton | 34.7 |
| Max. daylight | mm | 2400 |
| Clamping stroke | mm | 1200-1800 |
| Distance btwn. Tie bars | mm | 1210*1060 |
| Min mould dimension | mm | 840*740 |
| Mould thickness range | mm | 600-1200 |
| Ejector force | Ton | 21.5 |
| Ejector stroke | mm | 300 |
| No. of ejector pins | unit | 21 |
| Dry Cycle(Euromap 6) | S | 5.7 |
| Major motor | kW | 105.2 |
| System pressure | MPa | 17.5 22.1 |
| No. of heater zones | unit | 5+1 |
| Heater input power | kW | 56 |
| Ultimate capacity | kw | 162.2 |
| Current | A | 197.2 |
| Net weight | Ton | 45.5 |
| Oil filling capacity | L | 1800 |
