| Quantity: | |
|---|---|
ST-200SElll
SINOTECH
8474809090

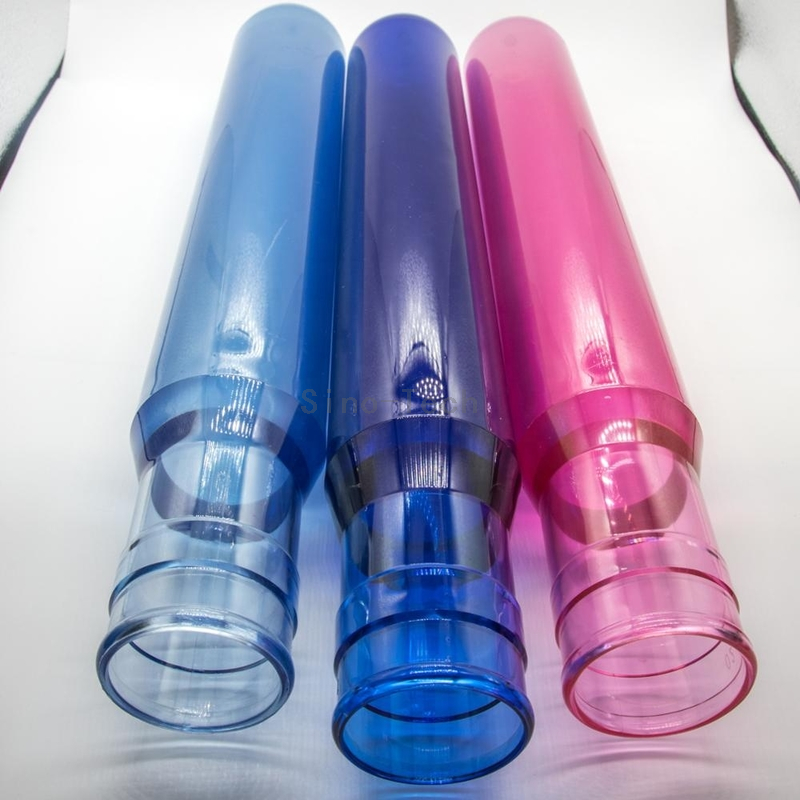

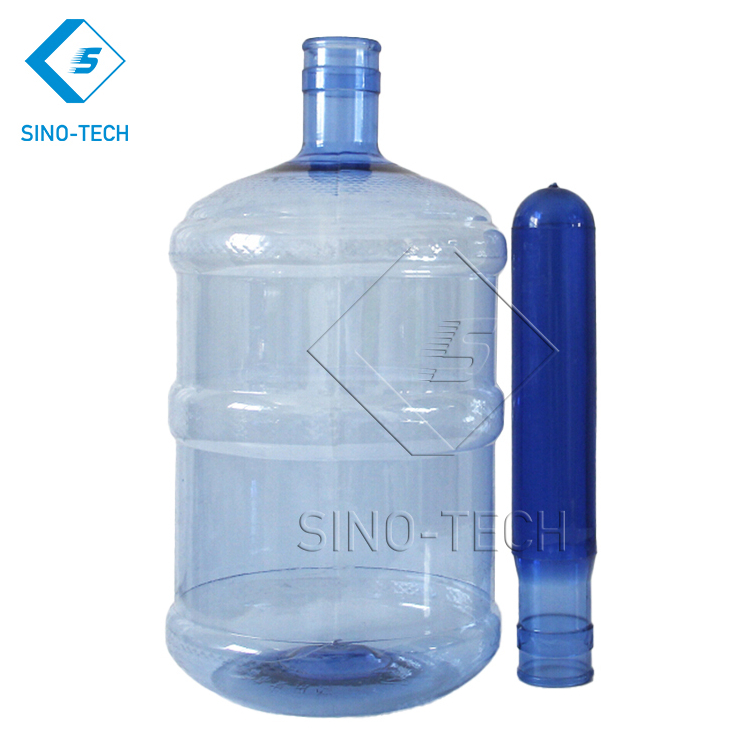

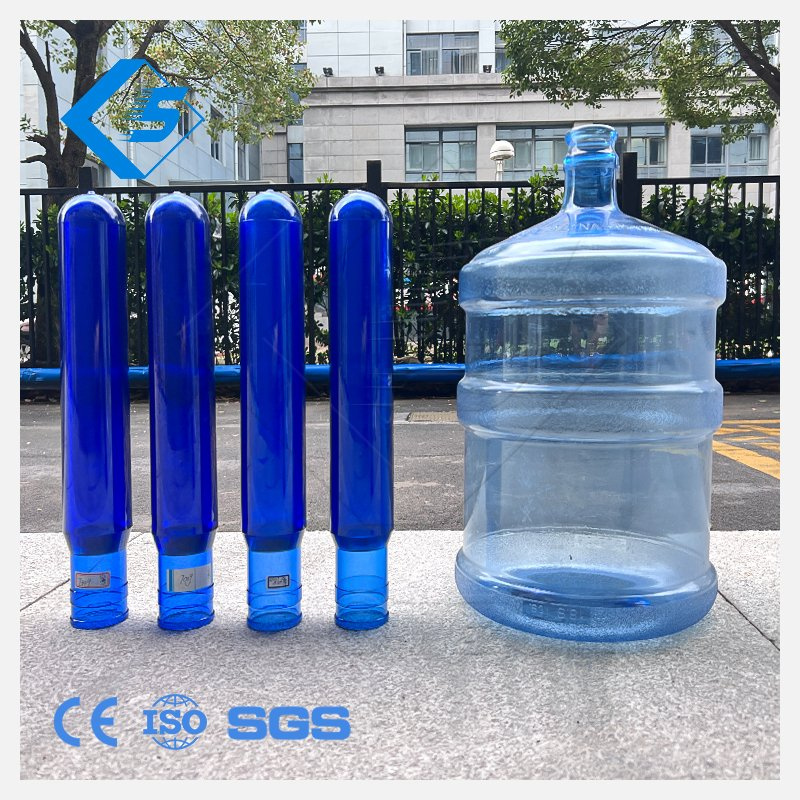

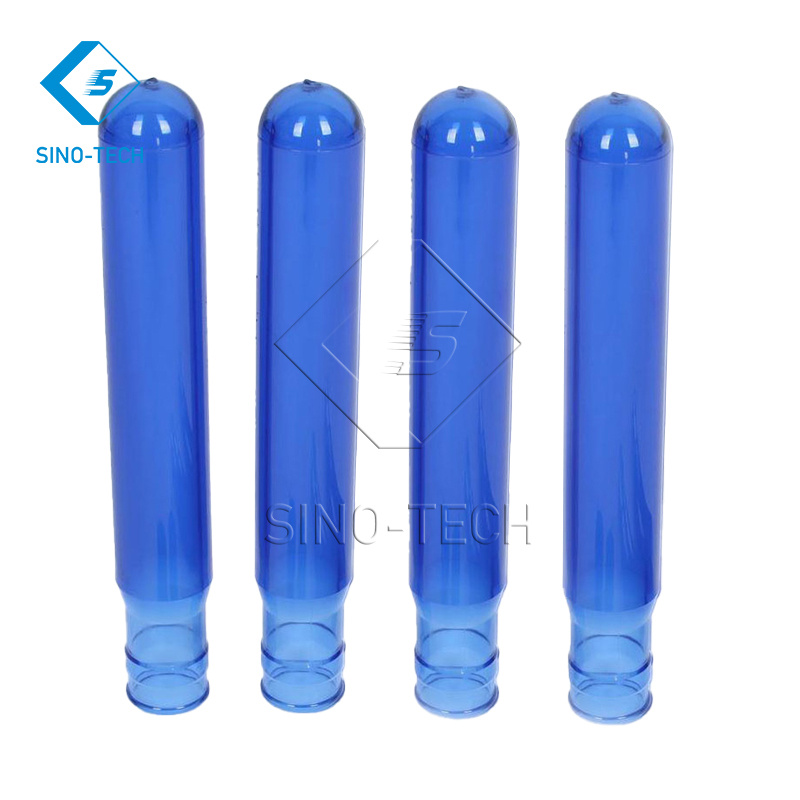

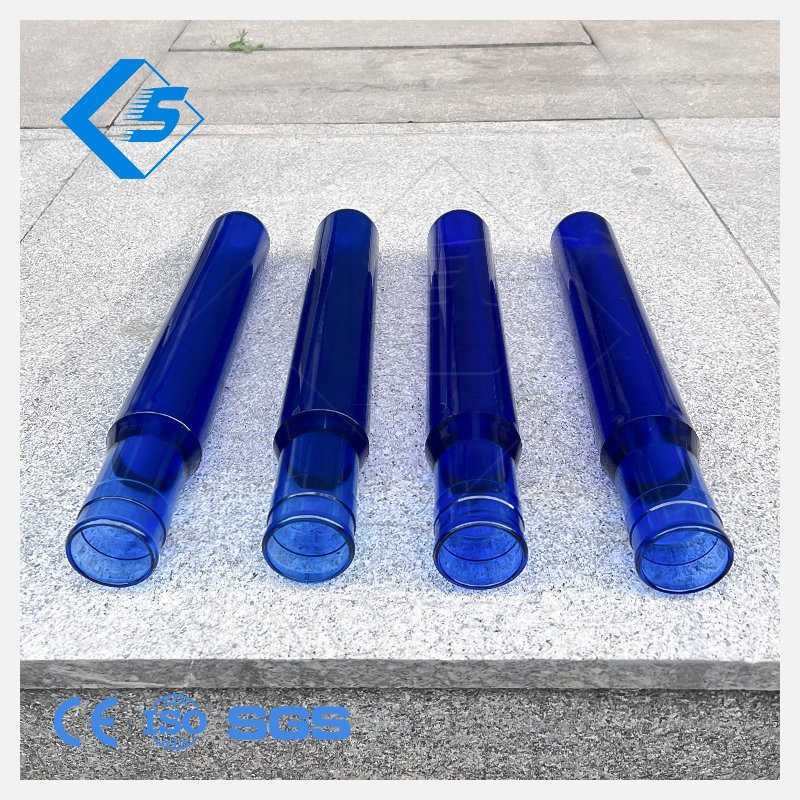

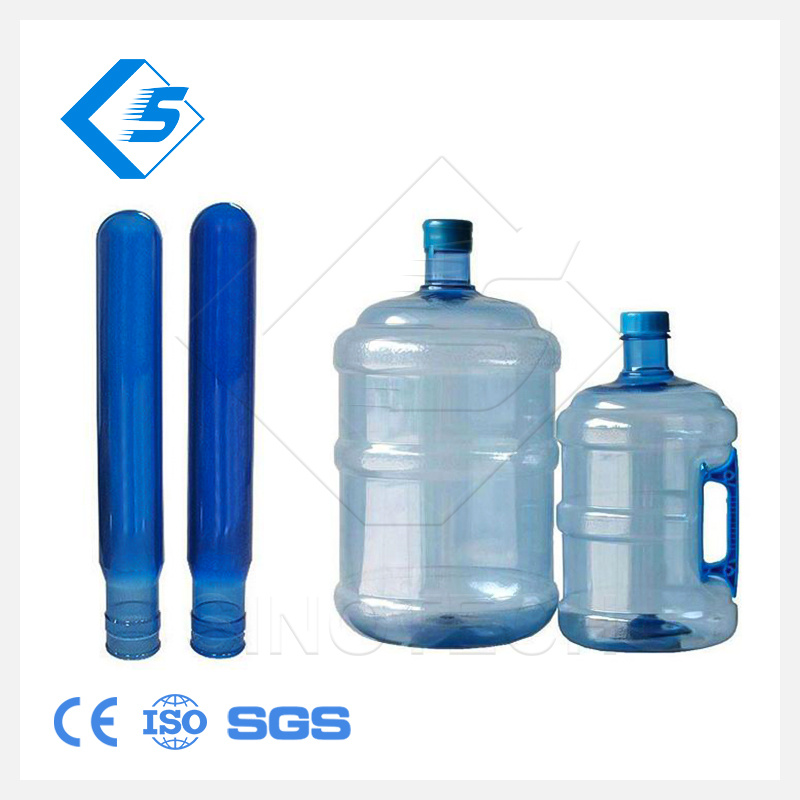

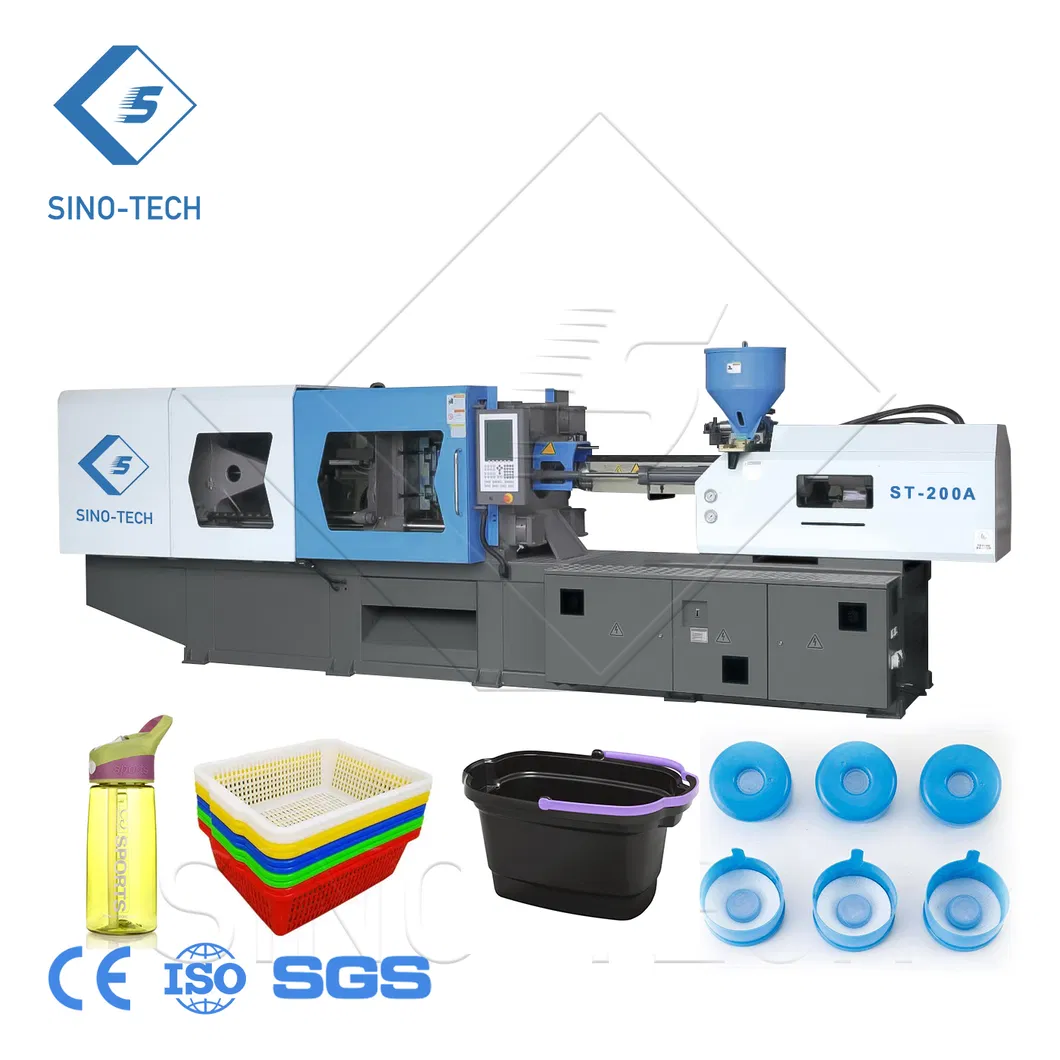

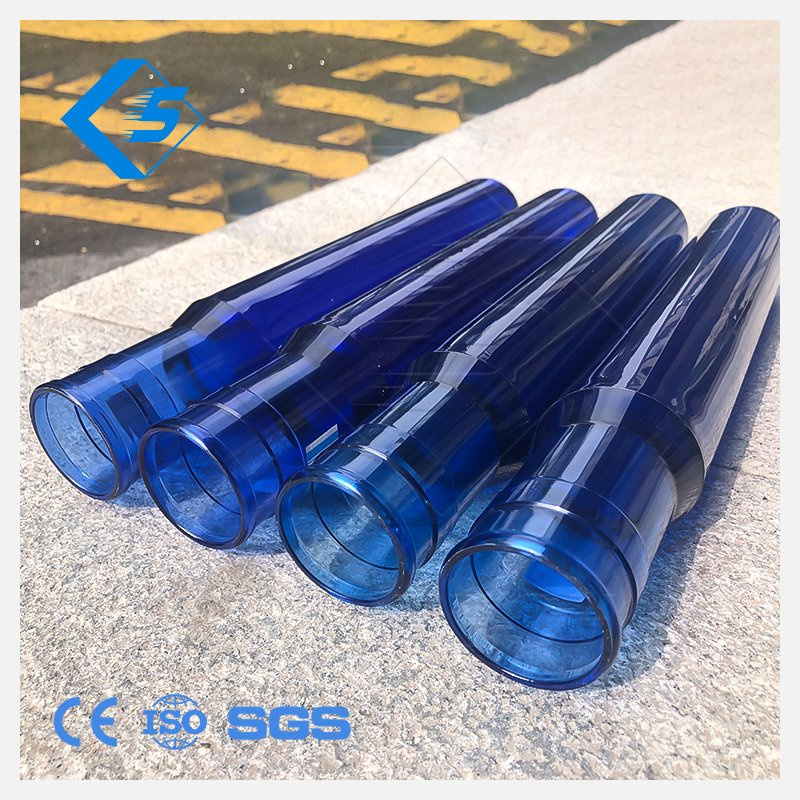

Automatic 5 Gallon Bottle Preform Injection Moulding Making Machine
We use a new generation of upgraded high-performance injection molding machines:
| Item | 200SElll | |||
| Screw diameter | mm | 45 | 50 | 60 |
| Theoretical shot volume | cc | 398 | 491 | 707 |
| Shot weight (PS) | g | 362 | 447 | 643 |
| Shot weight (PS) | oz | 12.8 | 15.8 | 22.7 |
| Length/Diameter ratio | L/D | 24 | 21.6 | 18 |
| Injection pressure | MPa | 219 | 177 | 123 |
| Injection rate | cm³/sec | 150 | 185 | 266 |
| Injection stroke | mm | 250 | ||
| Max. Screw speed | rpm | 185 | ||
| Plasticizing capacity (PS) | g/s | 22.5 | 28 | 34.2 |
| Injection unit force | Ton | 9.1 | ||
| Carriage stroke | mm | 350 | ||
| Clamping force | Ton | 200 | ||
| Max. daylight | mm | 1090 | ||
| Clamping stroke | mm | 540 | ||
| Distance btwn. Tie bars | mm | 535*535 | ||
| Min mould dimension | mm | 370*370 | ||
| Mould thickness range | mm | 175-550 | ||
| Ejector force | Ton | 7.7 | ||
| Ejector stroke | mm | 150 | ||
| No. of ejector pins | unit | 9 | ||
| Max. motor power | kW | 16.4 | ||
| System pressure | MPa | 17.5 | ||
| Hydraulic pump capacity | L/min | 112.5 | ||
| No. of heater zones | unit | 4+1+1 | ||
| Heater input power | kW | 14.25 | ||
| Ultimate capacity | kw | 31.65 | ||
| Current | A | 43.3 | ||
| Net weight | Ton | 6.97 | ||
| Oil filling capacity | L | 360 | ||
