Plastic Caps Making Machine for Bottle Closures

SINO-TECH injection molding machine is designed for plastic dustbin, chairs, car bump pallet etc. It is with demoulding linkage which shorten the plastic parts cycle time. Machines with high speed, stable performance and it is energy-saving. Our customers can get higher production with same labor and cost.

Quantity:



Inquire Add to Basket

Model:
ST-200SElll
Brand:
SINOTECH
Code:
8474809090
Screw diameter:
60mm
Plasticizing capacity (PS):
34.2g/s
Max. Screw speed:
185rpm
Max. daylight :
1090mm
Clamping stroke:
540mm
Max. motor power:
16.4kW
Ultimate capacity :
31.65kw
Oil filling capacity :
360L

Product Description

We use a new generation of upgraded high-performance injection molding machines:

01-Opening Stroke

Increased by up to 15%

02-Ejector stroke

Increased by up to 20%

03-Mould thickness

Increased by up to 15%

04-Max. Daylight

Increased by up to 55%

05-Ejector Force

Increased by up to 40%

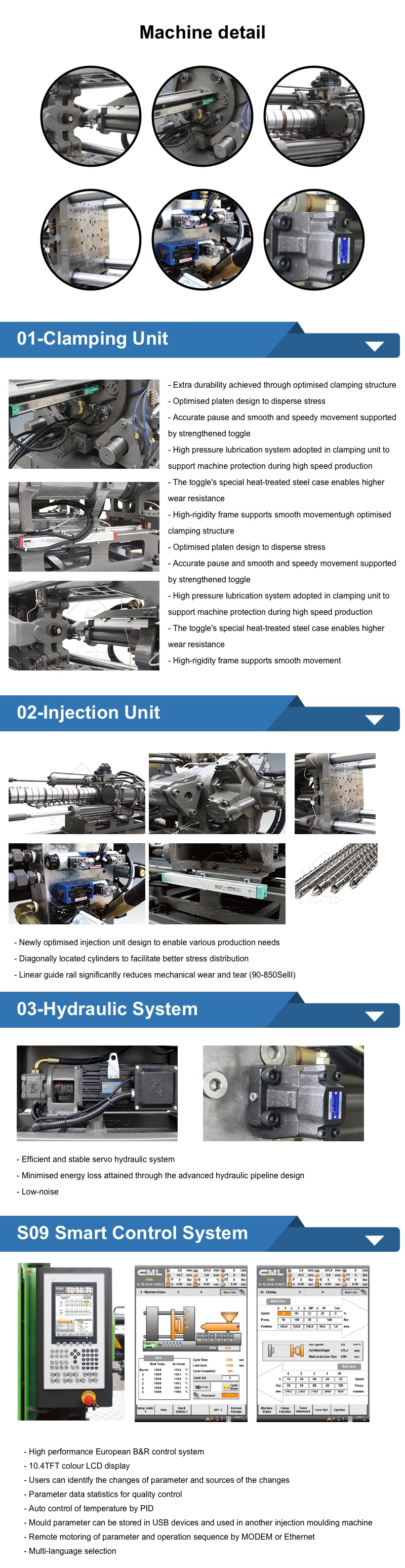

The injection molding machine uses Sellll upgraded components to achieve additional durability through an optimized clamping structure, a new and optimized injection unit design to meet various production needs, and uses an efficient and stable servo hydraulic system and high-performance European B&R control system.

Features

01-30% higher energy saving than using traditional variable pump

02-Stable and smooth movement supported by AC servo motor

03-Effective reduction of energy consumption due to reduced oil and cooling water attained by hydraulic system

04-High performance European B&R control system

Item		200SElll
Screw diameter	mm	45	50	60
Theoretical shot volume	cc	398	491	707
Shot weight (PS)	g	362	447	643
Shot weight (PS)	oz	12.8	15.8	22.7
Length/Diameter ratio	L/D	24	21.6	18
Injection pressure	MPa	219	177	123
Injection rate	cm⊃3;/sec	150	185	266
Injection stroke	mm	250
Max. Screw speed	rpm	185
Plasticizing capacity (PS)	g/s	22.5	28	34.2
Injection unit force	Ton	9.1
Carriage stroke	mm	350
Clamping force	Ton	200
Max. daylight	mm	1090
Clamping stroke	mm	540
Distance btwn. Tie bars	mm	535*535
Min mould dimension	mm	370*370
Mould thickness range	mm	175-550
Ejector force	Ton	7.7
Ejector stroke	mm	150
No. of ejector pins	unit	9
Max. motor power	kW	16.4
System pressure	MPa	17.5
Hydraulic pump capacity	L/min	112.5
No. of heater zones	unit	4+1+1
Heater input power	kW	14.25
Ultimate capacity	kw	31.65
Current	A	43.3
Net weight	Ton	6.97
Oil filling capacity	L	360
