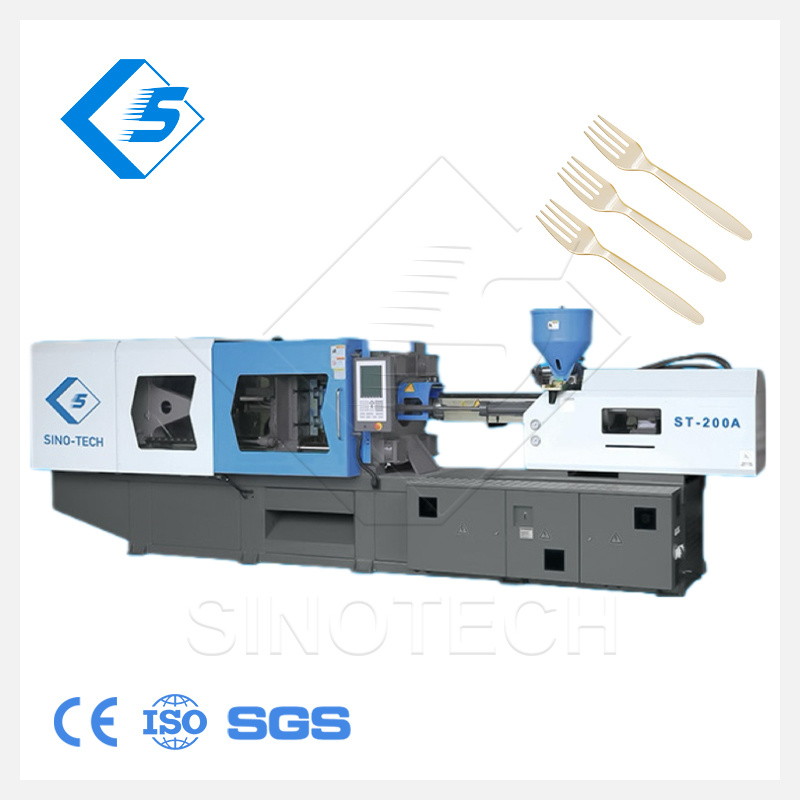

High Quality Plastic Kitchen Knife Forks Spoons Injection Molding Machine

SINO-TECH injection molding machine is designed for plastic dustbin, chairs, car bump pallet etc. It is with demoulding linkage which shorten the plastic parts cycle time. Machines with high speed, stable performance and it is energy-saving. Our customers can get higher production with same labor and cost.

Quantity:



Inquire Add to Basket

Model:
ST-750
Brand:
SINOTECH
Code:
8474809090
Screw diameter:
110mm
Plasticizing capacity (PS):
121g/s
Hydraulic pump capacity:
440L/min
Max. daylight :
2050mm
Clamping stroke:
1025mm
Max. motor power:
83.8kW
Ultimate capacity :
132.8kw

Product Description

We use a new generation of upgraded high-performance injection molding machines:

01-Opening Stroke

Increased by up to 15%

02-Ejector stroke

Increased by up to 20%

03-Mould thickness

Increased by up to 15%

04-Max. Daylight

Increased by up to 55%

05-Ejector Force

Increased by up to 40%

The injection molding machine uses Sellll upgraded components to achieve additional durability through an optimized clamping structure, a new and optimized injection unit design to meet various production needs, and uses an efficient and stable servo hydraulic system and high-performance European B&R control system.

Features

01-30% higher energy saving than using traditional variable pump

02-Stable and smooth movement supported by AC servo motor

03-Effective reduction of energy consumption due to reduced oil and cooling water attained by hydraulic system

04-High performance European B&R control system

Item	Unit	750SElll
Screw diameter	mm	90	100	110
Theoretical shot volume	cc	2990	3691	4467
Shot weight (PS)	g	2691	3322	4020
Shot weight (PS)	oz	95	117	142
Length/Diameter ratio	L/D	22.6	20.0	18.0
Injection pressure	MPa	212	171	142
Injection rate	cm⊃3;/sec	572	706	854
Plasticizing capacity(PS)	G/s	73	90	121
Injection stroke	mm	470
Max. Screw speed	rpm	124
Injection unit force	Ton	19.8
Carriage stroke	mm	600
Clamping force	Ton	750
Max. daylight	mm	2050
Clamping stroke	mm	1025
Distance btwn. Tie bars	mm	1000*1000
Min mould dimension	mm	700*700
Mould thickness range	mm	350-1025
Ejector force	Ton	25
Ejector stroke	mm	350
No. of ejector pins	unit	21
Max. motor power	kW	83.8
System pressure	MPa	17
Hydraulic pump capacity	L/min	440
No. of heater zones	unit	5+1
Heater input power	kW	50
Ultimate capacity	kw	132.8
Current	A	161.4
Net weight	Ton	39.1
Oil filling capacity	L	1500
