| Quantity: | |
|---|---|
SNBL-12L
Sino-Tech
84774010

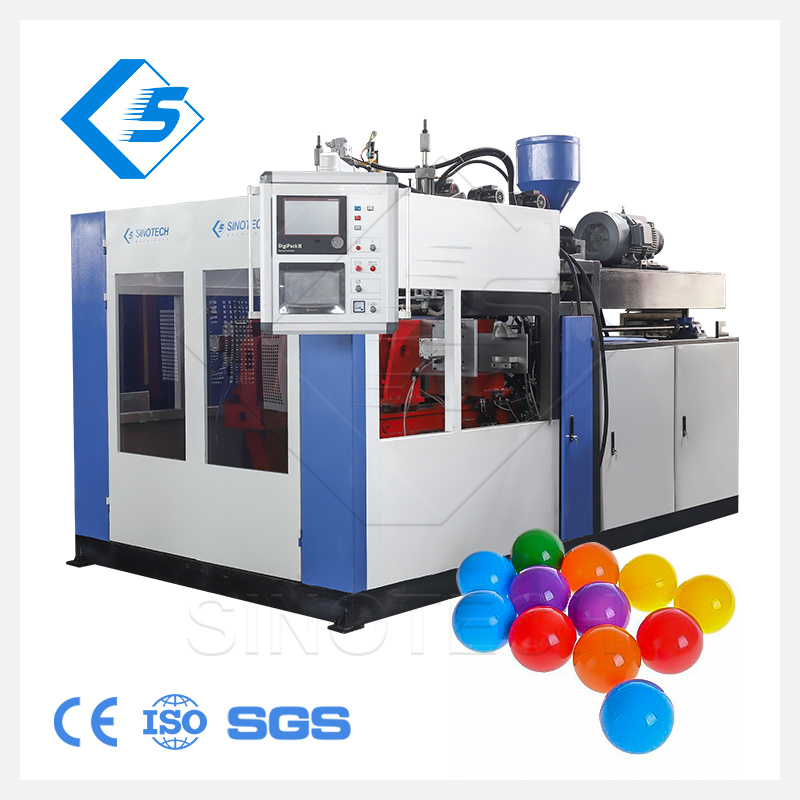

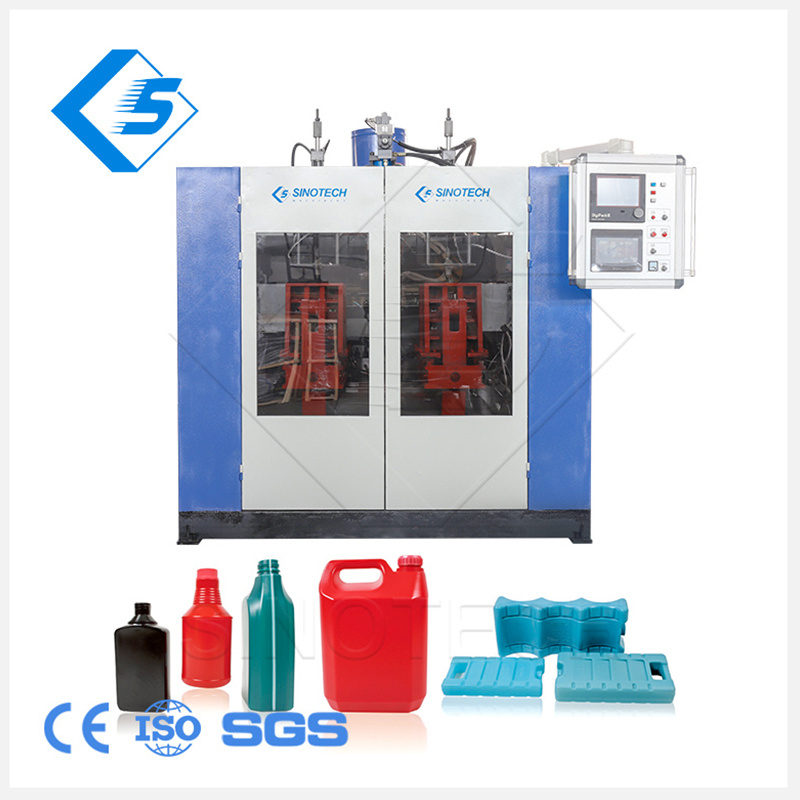

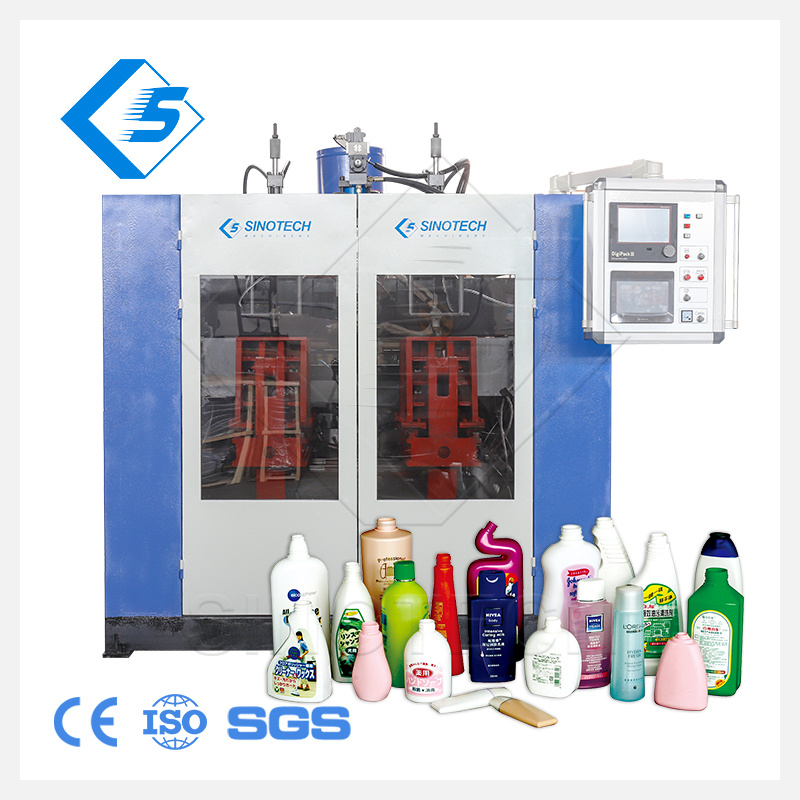

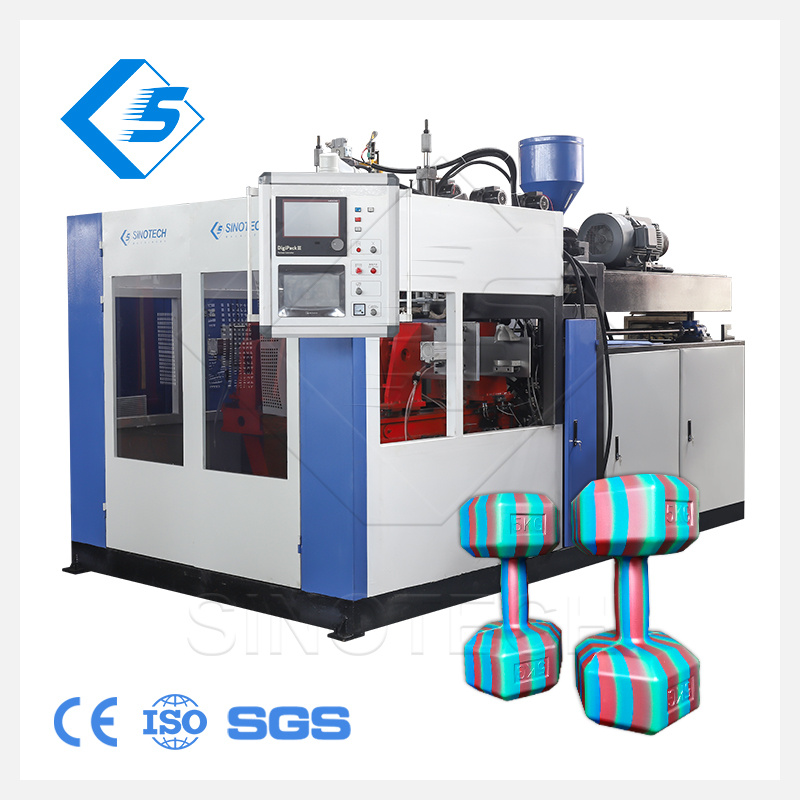

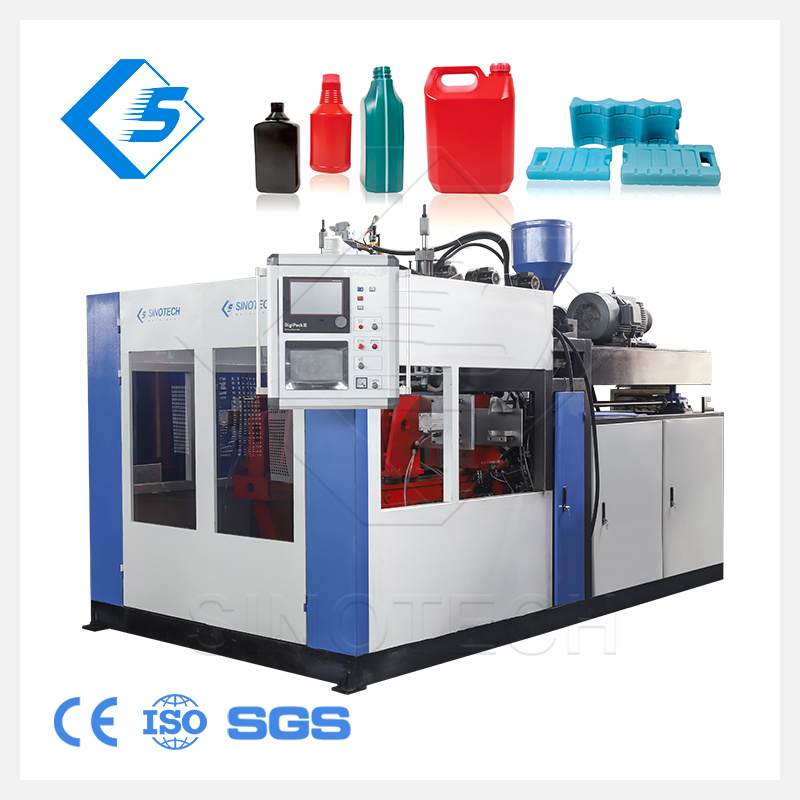

12L Automatic extrusion blowing mold machine
Automatic Extrusion Blow Molding Machine is used toproduce all kinds of the hollow plastic containers for foods, toys, beverages, medicines,chemical products, pesticides&detergents, water bottles,milk bottles,medical bottles,oil bottles,plastic balls,cosmetic bottles,lubricant bottles,plastic containers.
The high level of reliability, excellent efficiency and flexibility to meet varied customer requirements. The machines process a variety of materials, including HDPE, LDPE, PP, PVC, TPU, PETG and other materials. it has faster production rate in an hour. it can cover the complete production scope starting from the smallest ampoule or tube to beverage packaging, cosmetic containers, large mouth containers and multiple layers with view stripe line containers.
| unit | item | specification | discription | note |
| Extruding | Screw diameter | φ90mm | Mixing model | |
| Max. product volume | 5L | Double station & double head | ||
| Screw L/D | 25：1 | |||
| Material of screw and barrel | 38CrMoALA | |||
| Plasticizing capacity | 130KG/H | Based on HDPE 5502, changed with material density | ||
| Extruding method | Invertors motor, hardness tooth surface gear box | |||
| Driving power | 37KW | |||
| Screw revolution | 10—90V/min | |||
| Heating zones | 4 | Temperature module, Mitsubishi | ||
| Heating power | 3φ7.3KW | |||
| Blowers | 4 | Power 120W | ||
| Cooling | Yes | Cooling water for feeding zone and gear box | ||
| Clamping unit (double) | Structure | Large arm and joint operation type, with large and average clamping force | ||
| Idle cycle time | 700*2 pc/h | |||
| Platen dimension | 450×500mm | W * H | ||
| Platen distance | 240~620mm | |||
| Clamping force | 110KN | |||
| Mold thickness scope | 245~320mm | |||
| Stroke | 550mm | |||
| Die head | Structure | Continuous | Central feeding | |
| Material | 38CrMoALA inner mirror | |||
| Die mouth | Φ40~Φ145 mm | |||
| Heating method | Stainless steel band | |||
| Heating zones | 5 | |||
| Die head blowing | Yes | |||
| Parison thickness controlling | Available | MOOG 100-point | ||
| Parison adjustment method | Outer mandrel | |||
| Adjustment | ±2mm | |||
| Up blowing unit | Use multi-function bottom blowing device | |||
| Controlling system | Temperature | Module | Mitsubishi, Japan | |
| Programmer | Mitsubishi | Japan | ||
| Human interface screen | HITECH | Taiwan | | |
| Hydraulic | Oil motor power | 15KW | ||
| Brand | HYTEK | Taiwan | ||
| Controlling | Proportional | |||
| Max. working pressure | 140 kg/cm2 | |||
| Pneumatics | Direction | AIRTAC | Taiwan | |
| Pressure controlling | Separate two adjusters for high and low pressure | |||
| Max. Pressure | 8kg/cm2，1m3/min | |||
| Other information | Lubricities method | Auto lubricate oil pump | ||
| Oil Pressure cooling | Oil Pressure cooling machine | |||
| Overall dimension | L * W * H | 4300*2900*3100mm | ||
| Weight | TON | 11.0T |
Final Product
Company Profile
FAQ
Q: Can we visit your factory?
Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong
International Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by
video.
Q: How can we get the exact price of plastic machine?
Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with
quotation.
Q: Do you provide any spare parts with machine?
Yes, we offer all necessary spare parts before shipment.(contact us for packing list )
Q: How about your after-sale service ?
We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical
support or field installation assist.
Q: What is the lead time?
For customized machine, it takes about 45-60 days after deposit. For stock machine, fast shipment. ( The actual production cycle
will vary according to the degree of customization.)
Q: What is the warranty period for your machine ?
12 months warranty for components and technical support .
Q: Do you provide custom machines?
Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers
products to meet customer' needs.
Q: How can we install the machine when it arrives?
We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the
customer's employees.
Q: What's the advantage of SINOTECH?
We provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can
source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.
