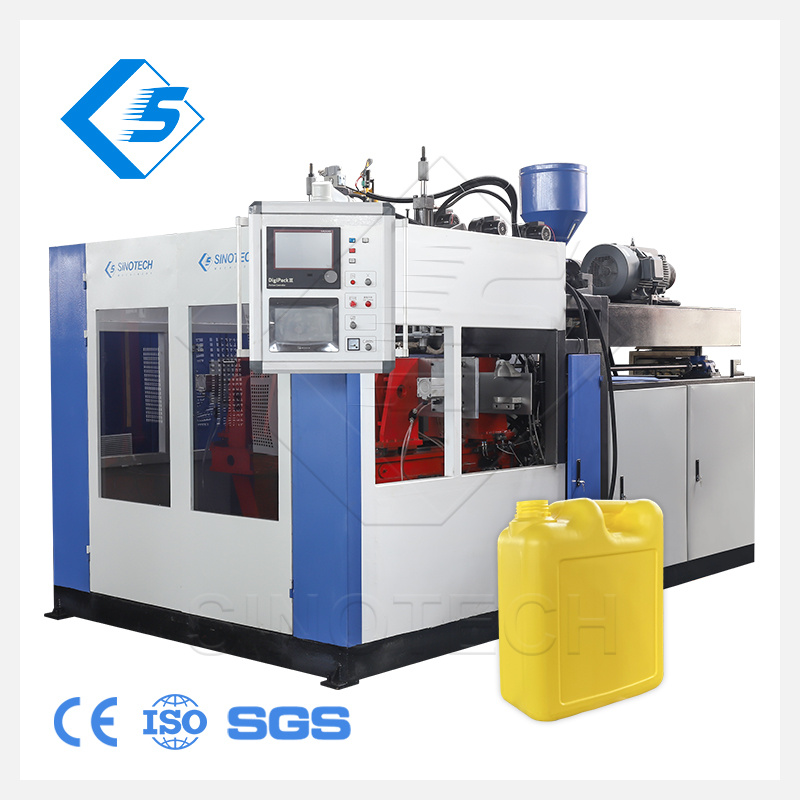

STBII-30L Continous Extrusion Blow Molding Machine
Machine Features:

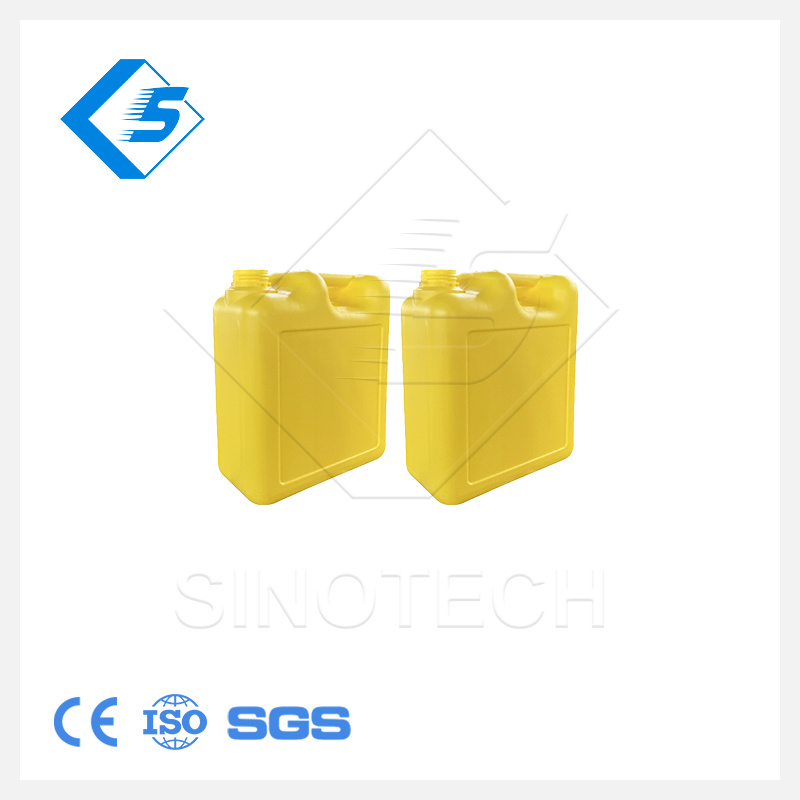

●Special design for 15-30L HDPE/PE/PP stacking barrels, bottles...
●High Speed with 50-60pcs/hr.
●Hydraulic and electric hybrid power design, it makes the machine running more speed and more energy saving
●Full Servo system control.
●Simple structure in linear type, easy in installation and maintenance.
●With robot arm take out the finished product.
●Single die-head Single station.
Detailed Description
Clamping System ●Latest toggle type clamping system. ●Big platen size capable to carriage more bigger size moulds. ●Strong enough clamping force can make the bottles joint line more perfect and smooth. All casting process ensure the clamping system longer life and more precision. ●More precision carriage stroke and easy to adjust. | ![]() |
Core Control System ●Latest Wisetech control system. ●Intelligent man-machine system easy operation. ●Parison control MOOG 100 points precision to control the wall thickness. ●Production tectonics and parameter saving for 20 moulds. ●Professional engineer setting pages for problem diagnosis. ●Short-cut key board & emergency stop for safety production. ●Aluminum cantilever operation box and easy adjustment. Remote technical support & program updating. | ![]() |
Electrical System ●All our electrical components are using international top brands. Such as Japan Mitsubishi,France Schneider, ABB from Europe, Omron reply, Taiwan delta servo drive controller, Italian Gefran transducer,.. ●Electrical cabinet equipped with cooling fans for temperature adjust. CE standard. | ![]() |
Extrusion&Heating System ●High quality hardness bimetallic screw &barrel for PP,PE,HDPE,PVC,PC... high plasticizing and longer life. ●The extrusion motor adopt famous brand Germany Siemens to ensure the heating result. ●Pre-heating with intelligent protection for screw and motor. ●Heater is adopting high quality ceramic heating technology. ●Screen filter is optional for small or light weight bottles. ●Reasonable head runner design for color change quickly. ●MITSUBISHI Invertor controlling frequency of screw and reducer Hydraulic System ●Latest hydraulic oil tank design for smooth running of all hydraulic parts ●Hydraulic motor we choose to use servo motor. Servomotor energy saving 50% more than normal motor and Low noise and increase working life of hydraulic units. ●We choose SUMITOMO pump and YUKEN valve as the key part of hydraulic system to ensure the performance reliable and running smooth of the machines. ●Composed of motor, pump, pressure regulating valve block,reversing valve blocks, cylinders and oil chillers. ●Optimized hydraulic design to adopt pressure, flow and time3 factors to control action precision and smoothness. ●Platen moving cylinders with mechanical shuttle valve to reduce impact force at end position. ●High stationary and reliability, accurate operation, longevity and quick response. | ![]() |
Hydraulic System ●Latest hydraulic oil tank design for smooth running of all hydraulic parts ●Hydraulic motor we choose to use servo motor. Servomotor energy saving 50% more than normal motor and Low noise and increase working life of hydraulic units. ●We choose SUMITOMO pump and YUKEN valve as the key part of hydraulic system to ensure the performance reliable and running smooth of the machines. ●Composed of motor, pump, pressure regulating valve block,reversing valve blocks, cylinders and oil chillers. ●Optimized hydraulic design to adopt pressure, flow and time3 factors to control action precision and smoothness. ●Platen moving cylinders with mechanical shuttle valve to reduce impact force at end position. High stationary and reliability, accurate operation, longevity and quick response. | ![]() |
STBII-30L Continous Extrusion Blow Molding Machine
Machine Features:
●Special design for 15-30L HDPE/PE/PP stacking barrels, bottles...
●High Speed with 50-60pcs/hr.
●Hydraulic and electric hybrid power design, it makes the machine running more speed and more energy saving
●Full Servo system control.
●Simple structure in linear type, easy in installation and maintenance.
●With robot arm take out the finished product.
●Single die-head Single station.
Detailed Description
Clamping System ●Latest toggle type clamping system. ●Big platen size capable to carriage more bigger size moulds. ●Strong enough clamping force can make the bottles joint line more perfect and smooth. All casting process ensure the clamping system longer life and more precision. ●More precision carriage stroke and easy to adjust. | ![]() |
Core Control System ●Latest Wisetech control system. ●Intelligent man-machine system easy operation. ●Parison control MOOG 100 points precision to control the wall thickness. ●Production tectonics and parameter saving for 20 moulds. ●Professional engineer setting pages for problem diagnosis. ●Short-cut key board & emergency stop for safety production. ●Aluminum cantilever operation box and easy adjustment. Remote technical support & program updating. | ![]() |
Electrical System ●All our electrical components are using international top brands. Such as Japan Mitsubishi,France Schneider, ABB from Europe, Omron reply, Taiwan delta servo drive controller, Italian Gefran transducer,.. ●Electrical cabinet equipped with cooling fans for temperature adjust. CE standard. | ![]() |
Extrusion&Heating System ●High quality hardness bimetallic screw &barrel for PP,PE,HDPE,PVC,PC... high plasticizing and longer life. ●The extrusion motor adopt famous brand Germany Siemens to ensure the heating result. ●Pre-heating with intelligent protection for screw and motor. ●Heater is adopting high quality ceramic heating technology. ●Screen filter is optional for small or light weight bottles. ●Reasonable head runner design for color change quickly. ●MITSUBISHI Invertor controlling frequency of screw and reducer Hydraulic System ●Latest hydraulic oil tank design for smooth running of all hydraulic parts ●Hydraulic motor we choose to use servo motor. Servomotor energy saving 50% more than normal motor and Low noise and increase working life of hydraulic units. ●We choose SUMITOMO pump and YUKEN valve as the key part of hydraulic system to ensure the performance reliable and running smooth of the machines. ●Composed of motor, pump, pressure regulating valve block,reversing valve blocks, cylinders and oil chillers. ●Optimized hydraulic design to adopt pressure, flow and time3 factors to control action precision and smoothness. ●Platen moving cylinders with mechanical shuttle valve to reduce impact force at end position. ●High stationary and reliability, accurate operation, longevity and quick response. | ![]() |
Hydraulic System ●Latest hydraulic oil tank design for smooth running of all hydraulic parts ●Hydraulic motor we choose to use servo motor. Servomotor energy saving 50% more than normal motor and Low noise and increase working life of hydraulic units. ●We choose SUMITOMO pump and YUKEN valve as the key part of hydraulic system to ensure the performance reliable and running smooth of the machines. ●Composed of motor, pump, pressure regulating valve block,reversing valve blocks, cylinders and oil chillers. ●Optimized hydraulic design to adopt pressure, flow and time3 factors to control action precision and smoothness. ●Platen moving cylinders with mechanical shuttle valve to reduce impact force at end position. High stationary and reliability, accurate operation, longevity and quick response. | ![]() |
Model. No | Unit | STB-30 |
Available Material | PE、PP、ABS... | |
Max. Product Volume | L | 30 |
Dry Cycle | PC/h | 650 |
Plasticizing Capacity | Kg/hr | 120-140 |
Screw Diameter | mm | 80 |
Screw L/D Ration | L/D | 24 |
Screw Heating Power | Kw | 15.6 |
No.Of Heating Zone | Zone | 4 |
Screw Fan Power | Kw | 0.5 |
Extruder Motor Power | Kw | 30(700) |
Platen Opening Stroke | mm | 350-850 |
Platen Moving Stroke | mm | 370 |
Mould Platen Size(WxH) | mm | 750×860 |
Max. Mold Size(W×H) | mm | 520×860 |
Oil Pump Driver Power | Kw | 15 |
Clamping Force | KN | 200 |
Max. Die-Pin Diameter | mm | 250 |
Die Heating Power | Kw | 22.8 |
Blowing Pressure | Mpa | 0.8 |
Air Volume | M³/min | 0.7 |
Cooling Water Pressure | Mpa | 0.3 |
Water Consumption | L/min | 70 |
Weight Of Machine | Ton | 12 |
Size Of Machine | m | 4.8×3.4×4 |
