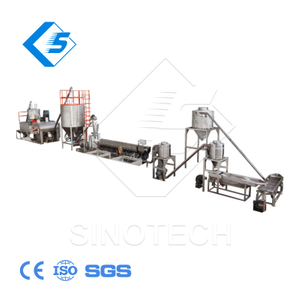

PVC Granulation Extrusion Production Line
Products Description
Detailed Images
| ||
1 | Equipment Rack Requirements | 1 square steel thickness: 5mm 2 square steel upper steel plate 10mm 3 motor/gearbox/barrel base plate thickness: 25mm 4 There are two beams under the base steel plate of the motor/reducer |
2 | main motor | Siemens motor with strong cooling fan (non-Beide motor) 55KW |
3 | Gearbox | 315 |
4 | Screw barrel | Used for the production of soft transparent PVC , the surface needs to be chrome-plated |
5 | Feeder | Screw feeder |
6 | Host feeding | Stainless steel hopper |
7 | heater | Cast Aluminum Heating Ring |
8 | Barrel cooling fan | S ANYUE 0.55kw |
Production Process
Material→Heating Cooling Mixer→Material Feeding→Conical Twin Screw Extruder→Extrusion Die Head and Die Face Cutting→Air Cooling→Storage Silo
1. Weighing: Raw materials shall be weighed according to the process. The higher the accuracy, the better.
2. Mixing: Mix the raw materials evenly according to the formula of plastic products.
3. Raw material are fed into the barrel of the extruder through the hopper.
4. The screw rotates continuously, and then the plasticized material is extruded from the twin screw extruder and cut into granules in the hot cutter.
5. After air cooling and forming, the plastic products is completed.
6. Granules are sent to the storage silo.
