No. | project | configuration |
1 | Voltage frequency | 380V /50HZ |
2 | device color | 9007 silver gray |

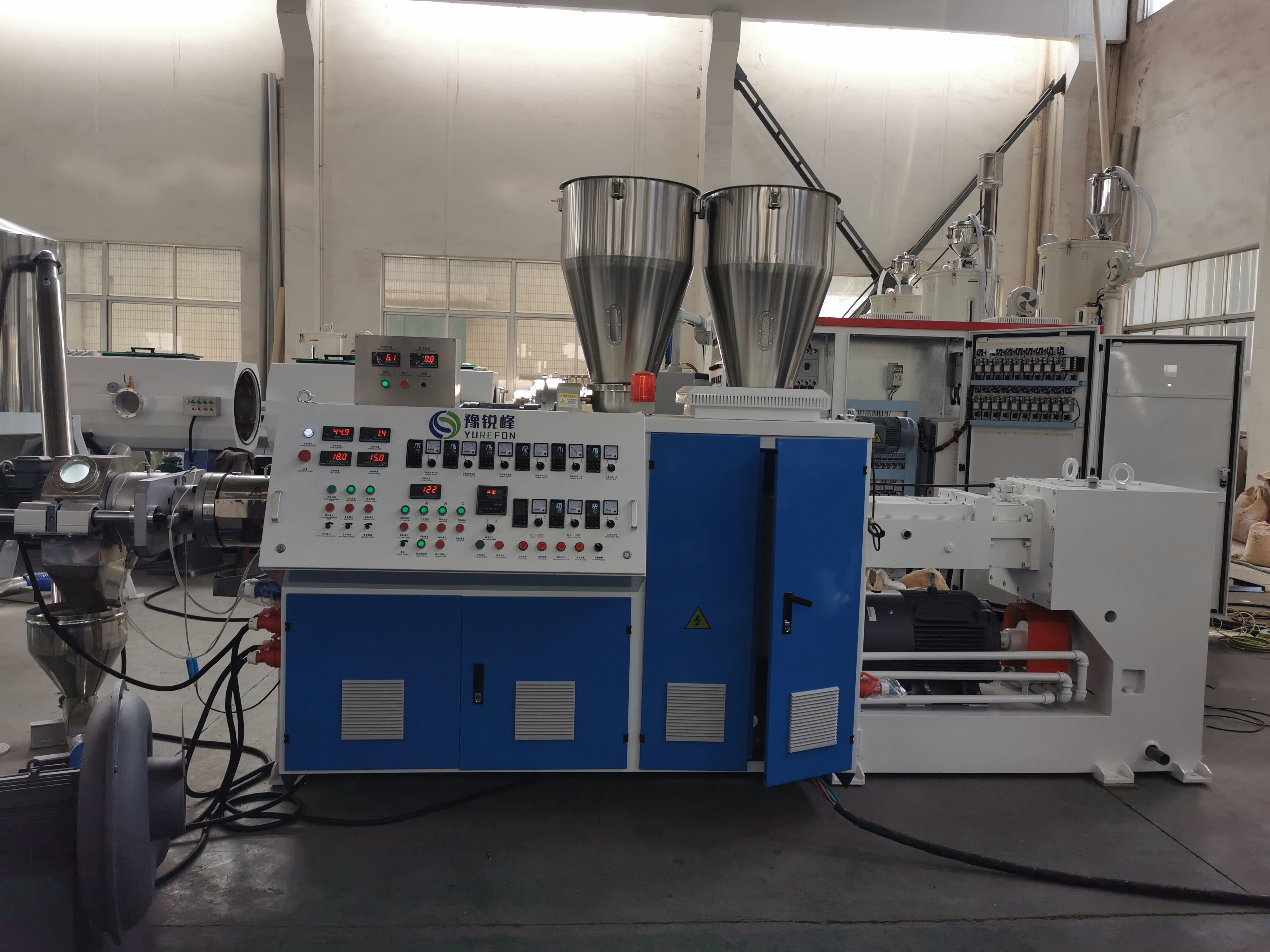

120/25 Single Screw Extrusion Machine | ||
1 | Equipment Rack Requirements | 1 square steel thickness: 5mm 2 square steel upper steel plate 10mm 3 motor/gearbox/barrel base plate thickness: 25mm 4 There are two beams under the base steel plate of the motor/reducer |
2 | main motor | Siemens motor with strong cooling fan (non-Beide motor) 55KW |
3 | Gearbox | 315 |
4 | Screw barrel | Used for the production of soft transparent PVC , the surface needs to be chrome-plated |
5 | Feeder | Screw feeder |
6 | Host feeding | Stainless steel hopper |
7 | heater | Cast Aluminum Heating Ring |
8 | Barrel cooling fan | S ANYUE 0.55kw |
Electrical control system | ||
1 | Contactor/Relay | Schneider brand (standard model) |
2 | breaker | CHNT brand of large circuit breaker for incoming power Other small circuit breakers Schneider brand |
3 | overload protection | All motors/fans/pumps need to be equipped with Schneider overload protectors |
4 | switch/button/knob | Schneider brand |
5 | aviation plug | Weipu brand |
6 | Temperature table | R KC RH400 |
7 | Inverter | A BB ACS580 series |
8 | Electric cabinet air conditioner | 2000W |
9 | Electric cabinet sealing | The electrical cabinet needs to be well sealed |
10 | Terminals | European standard |
1 | Granulator head | Inner runner: chrome-plated Granulation template: 38 C rMo AlA material Hole diameter: 3.2 mm , 3 circles, about 200 holes |

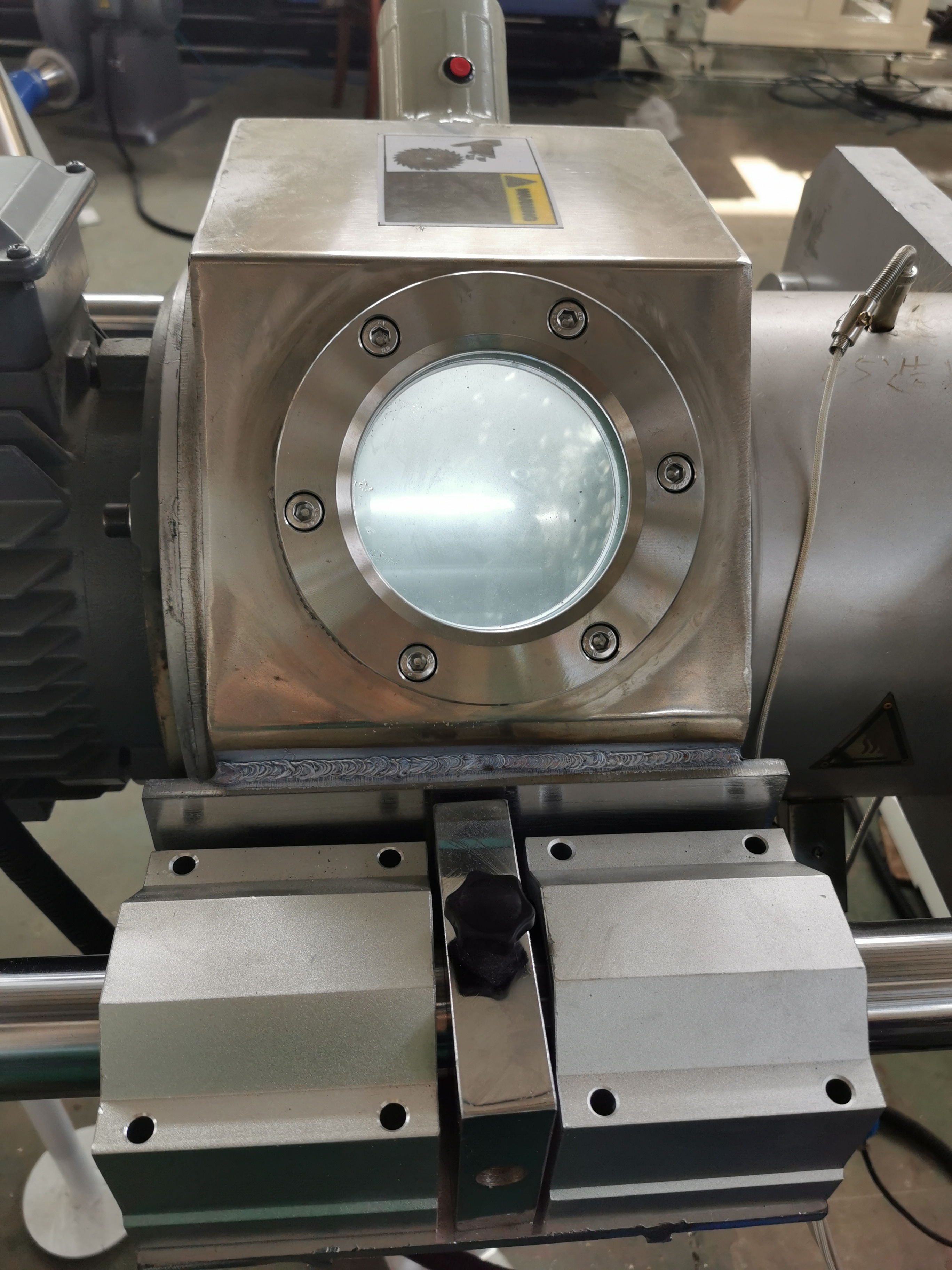

2 | Granulator | Pelletizing motor: 0.75 KW Speed control: A BB inverter controls ACS580 The granulator can move on the guide rail |

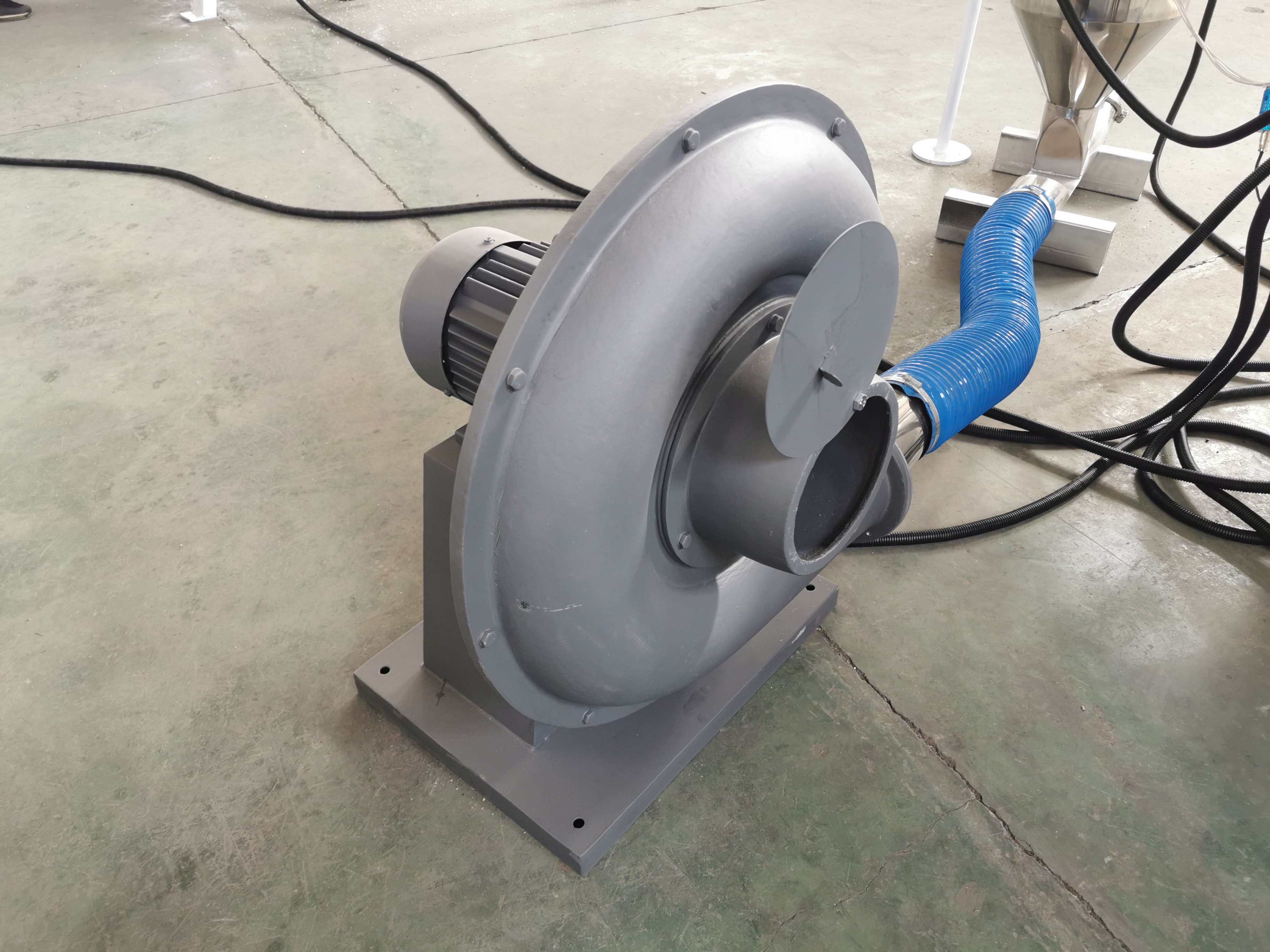

3 | Air blower | 2 levels of air delivery Blower 3KW* 2 The diameter of the air supply pipe is 112mm, with the first section of water cooling One cyclone separator/aggregate silo each, made of 304 stainless steel |
