SJZ 51/105 55/113 65/132 80/156 92/188
Sino-Tech
84772010

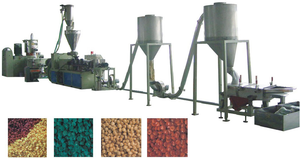

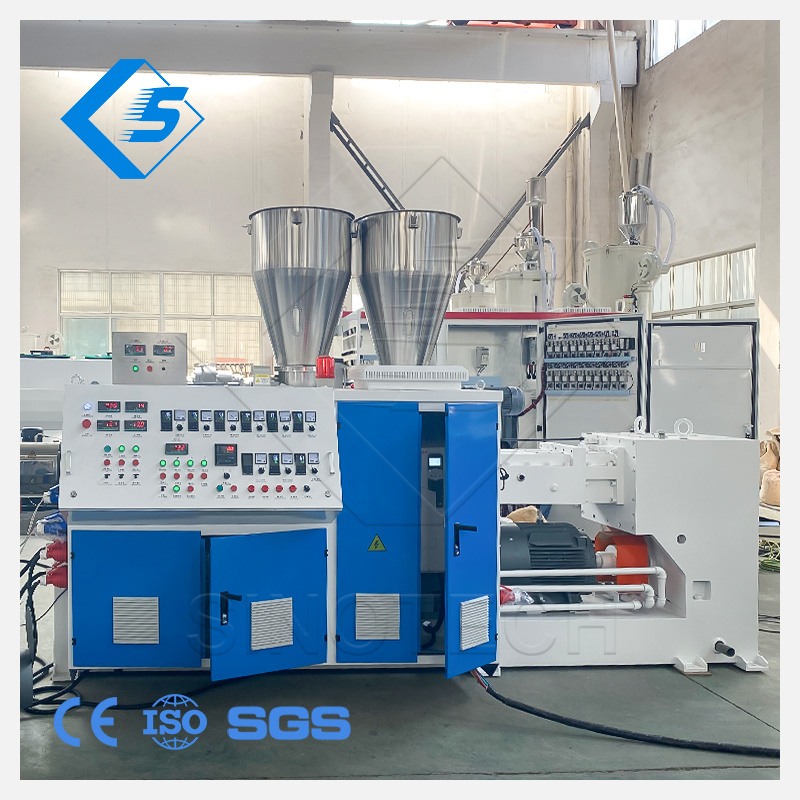

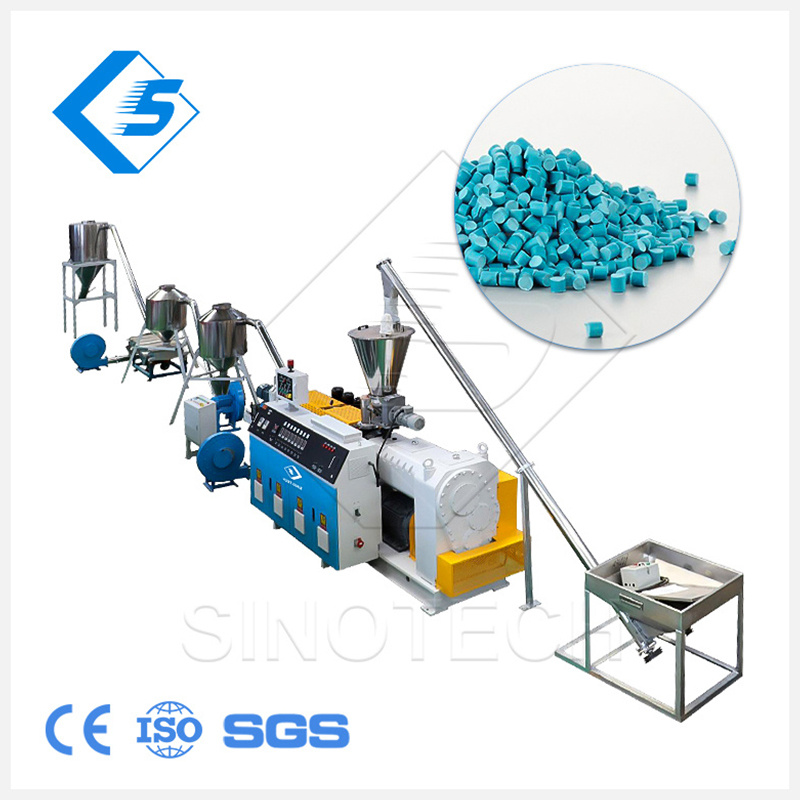

PVC Compounding Granulating Extrusion Machine
Features of PVC Granulating machine:
1. Advanced equipment, precise pelletizing and high producing capacity.
2. Conical double-screw extruder, very suitable to process PVC powder with high capacity
3. Pelletizing style: Hot-cutting die face, even cutting ensures good shape.
4. Auxiliary machine: Pellets cooling & classifying.

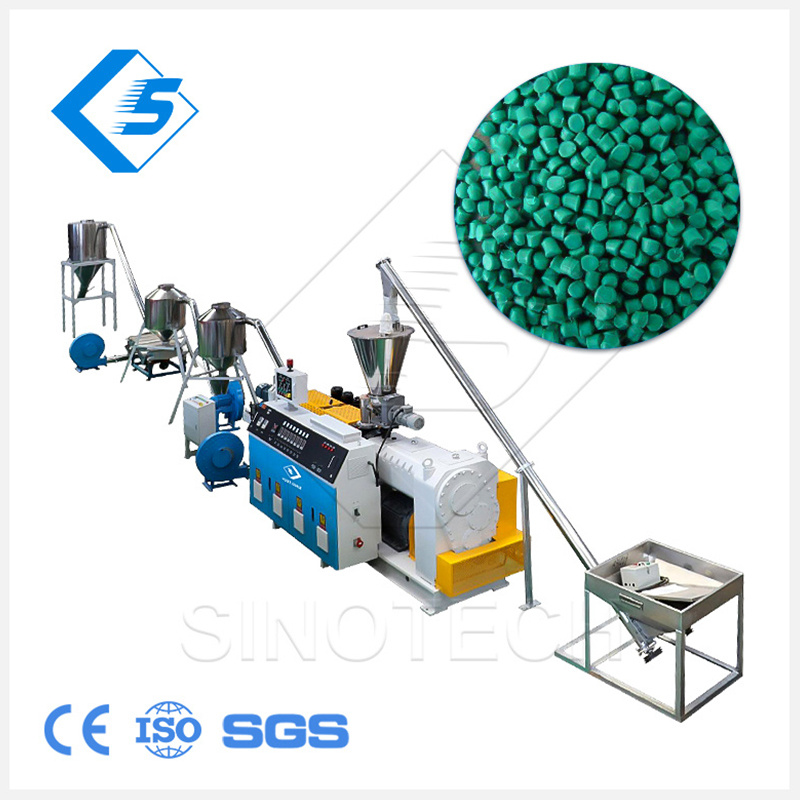

Process Flow of PVC Granule Making Machine:

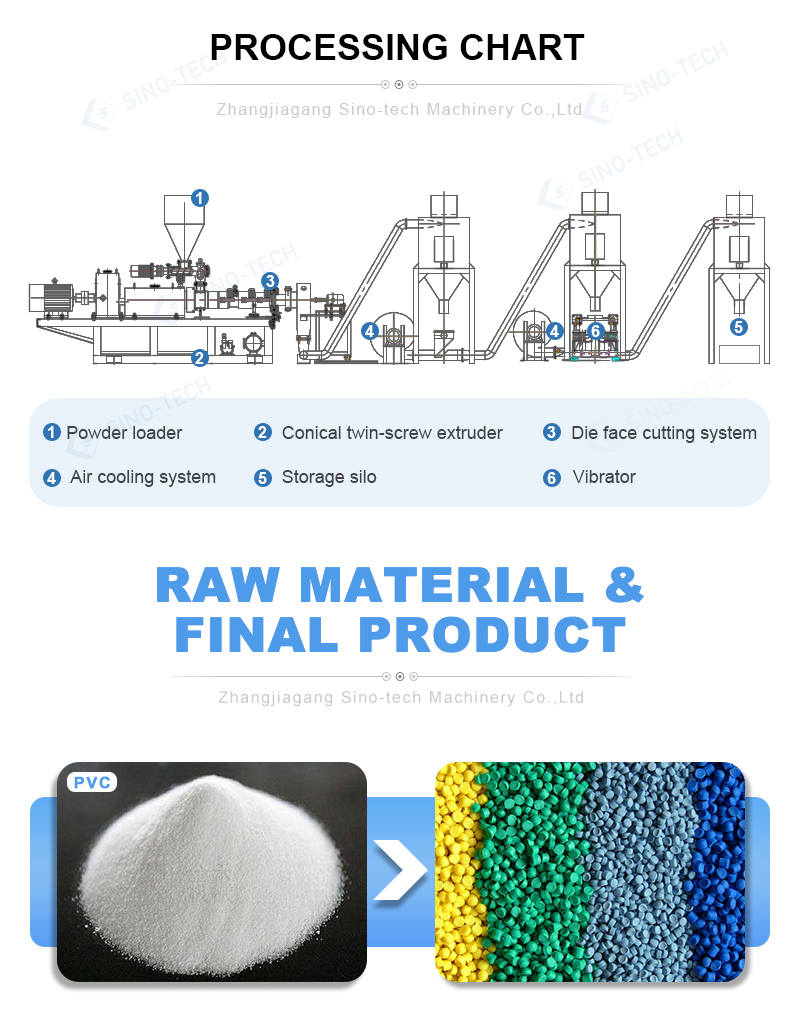

Raw material+ additive →heating and cooling Mixing → Conveying feeding → Force feeding → Conical twin screw extruder → Blowing hot-cutting mould → Cyclone separator → Vibrating screener → Blowing system → Storage hopper → Finished product packing
Main Model parameter
| Model SJSZ45/90 SJSZ51/105 SJSZ55/110 SJSZ65/132 SJSZ80/156 SJSZ92/188 Power of drive motor(mm) 15 18.5 22 37 55 110 Screw diameter(mm) 45/90 51/105 55/110 65/132 80/156 92/188 NO. of screw 2 2 2 2 2 2 Rotational speed 45 40 38 38 37 36 Torsional moment of screw (nm) 3148 6000 7000 10000 14000 32000 Capacity pvc , powder (kg/h) 70 100 150 250 400 750 Central height(mm) 1000 1000 1000 1000 1100 1200 diamentions 3360*1290*2127 3360*1290*2127 3620*1050*2157 3715*1520*2450 4750*1550*2460 6725*1550*2814 |
Material→Heating Cooling Mixer→Material Feeding→Conical Twin Screw Extruder→Extrusion Die Head and Die Face Cutting→Air Cooling→Storage Silo
1. Weighing: Raw materials shall be weighed according to the process. The higher the accuracy, the better.
2. Mixing: Mix the raw materials evenly according to the formula of plastic products.
3. Raw material are fed into the barrel of the extruder through the hopper.

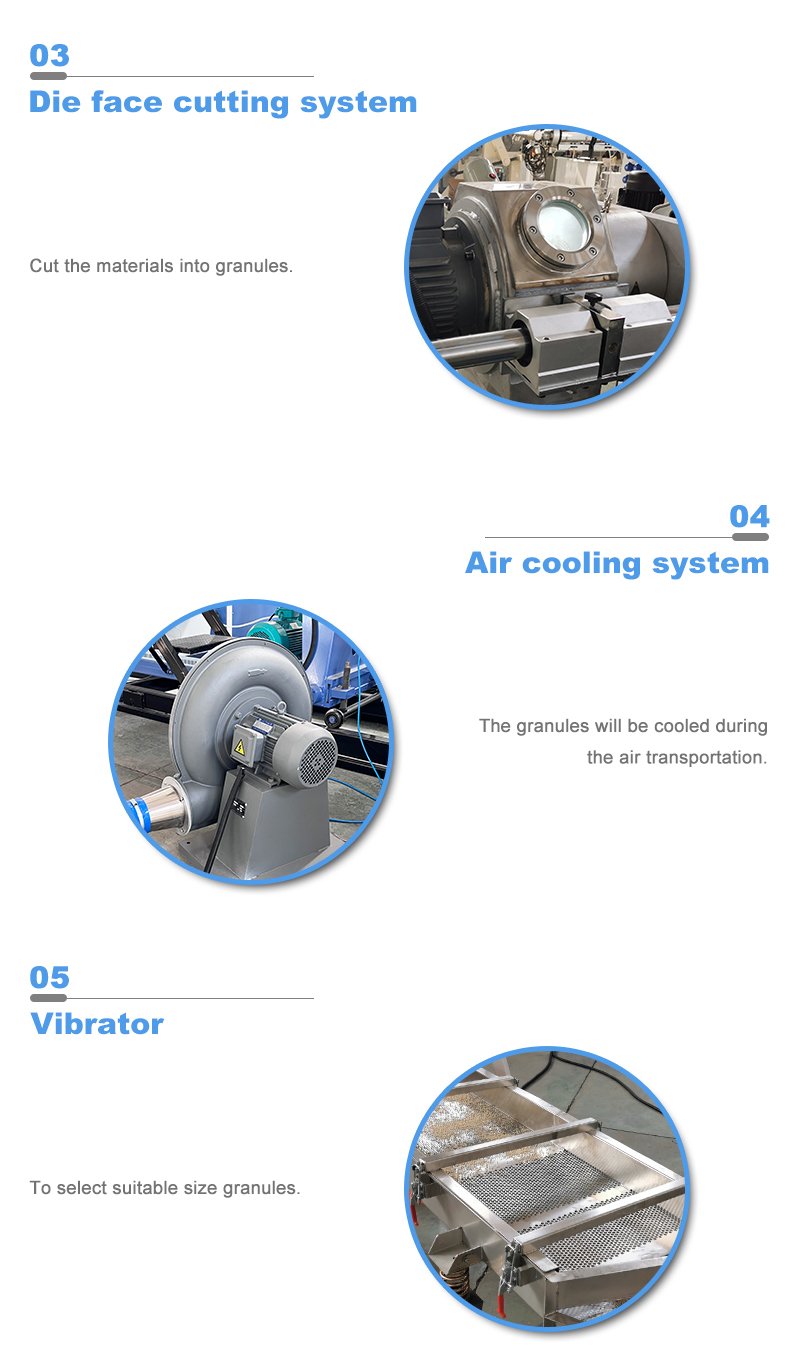

4. The screw rotates continuously, and then the plasticized material is extruded from the twin screw extruder and cut into granules in the hot cutter.
5. After air cooling and forming, the plastic products is completed.

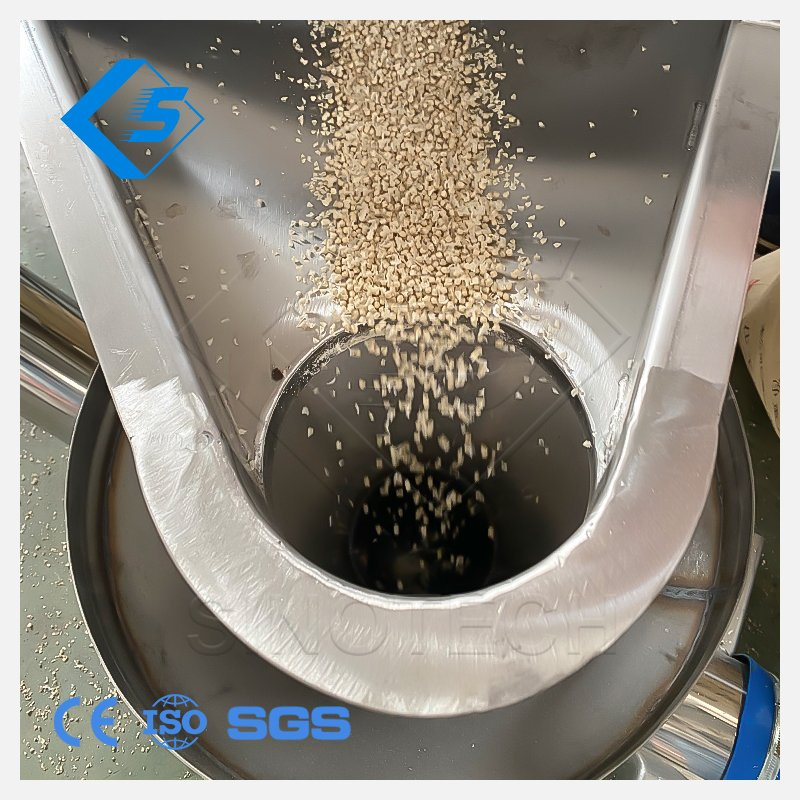

6. Granules are sent to the storage silo.
