SNBL48
SinoTECH
84778000
Sinotech SNBL48 Fully Automatic PVC Pipe Bending&Belling Socketing Machine
Hydraulic Full Automatic Plastic 16-48MM PVC Tube Pipe Bending Bender Machine
SNBL48 Full automatic PVC Pipe Bending Machine is mainly used for PVC pipes with bending and socketing. It can bend 22°or 45°or 60° or 90°. It can't work with pipe extrusion line. Before use this machine you should cut the pipes first. This machine is easy to operate.It can bend pipes with range Φ16-48mm in pipe.
Our Advantages
Application
New fully automatic Plastic PVC Pipe Bending Machine On the basis of internation advanced technology form the developed countries, we produced the PVC pipe bending machine independently. This machine can be used to instead of traditional PVC fitting injection machines. And this machine can save cost about 50% than injection machines. We aims to make high quality machines with reasonable price.Final Product
Product Parameters
| Item | SNBL48 |
| Suitable pipe size | 16mm-48mm in pipe |
| Pipe length | According to customer' request |
| Pipe thickness | 1.0-4.0mm |
| Pipe material | PVC |
| Air Pressure | 0.4-0.6 Mpa |
| Pump motor | 5.5KW |
| Max.heating temperature | 300ºC |
| Heating Method | Ceramic infrared heating |
| Heating power | 10KW |
| Heating station | 2 |
| Cooling method | Air cooling and water cooling |
| hydrailic oil | 46# wear resistance hydraulic oil |
| Required water pressure | 0.2-0.3 Mpa |
| Socket type | U type and R type |
| Production capacity | 360-480pcs/hr |
| Socketing | One side/both side |
| Socketing station | 6 |
| PLC Control | Siemens/Mitsubishi |
| Machine type | Full automatic(pneumatic) |
| Machine size(LxWxH) | 3000mmx2300mmx2300mm |
| Machine weight | 4.5 Ton |
| Bending angle | 22°or 45°or 60° or 90° |
| Bending speed | 360-480pcs/hr |
This machine can bend 4pcs of pipe each time | |

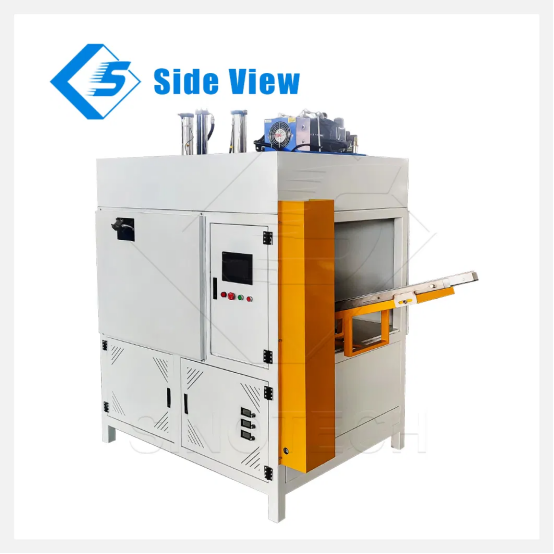

Detailed Photos
Floor Plan
Company Profile
FAQ
Q: Can we visit your factory?
Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.
