plastic PVC electrical conduit pipe extrusion production line

Diameter 16mm-63mm series PVC electrical conduit pipe production line is mainly used in the manufacture of plastic PVC pipes with various diameters and wall thickness used in the industried such as agriculture and constructional plumbing, cable laying etc.
  • SJSZ51/105

  • Sino-Tech

  • 84772090

  • PVC Conduit Pipe Extrusion Machine/Making Machine

  • 16-50mm

  • double screw extruder

  • Bimetalic

  • Siemens

  • ABB

  • Siemens And Schneider

  • 18months

  • Engineer Avaiable Overseas Installation Service

plastic pvc electrical conduit pipe manufacturing machine

Description of  PVC electrical conduit pipes extrusion production line:
PVC pipe extruder machine / PVC pipe making machine/PVC pipe extrusion line is mainly used in the manufacture of  the  UPVC and PVC pipes with various tube diameters and wall thickness such as the agricultural and constructional plumbing, water supply and drain etc.

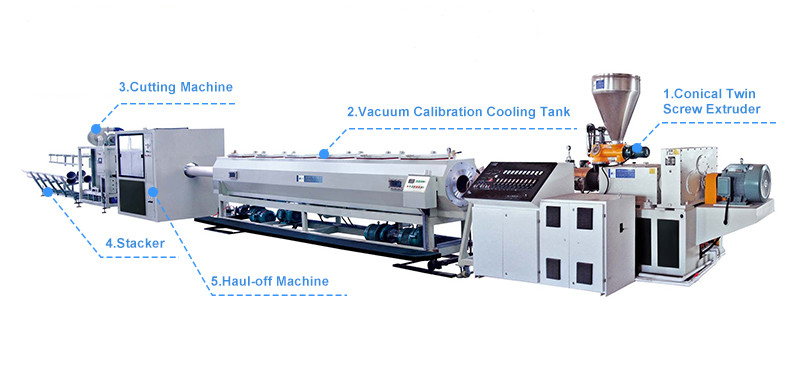

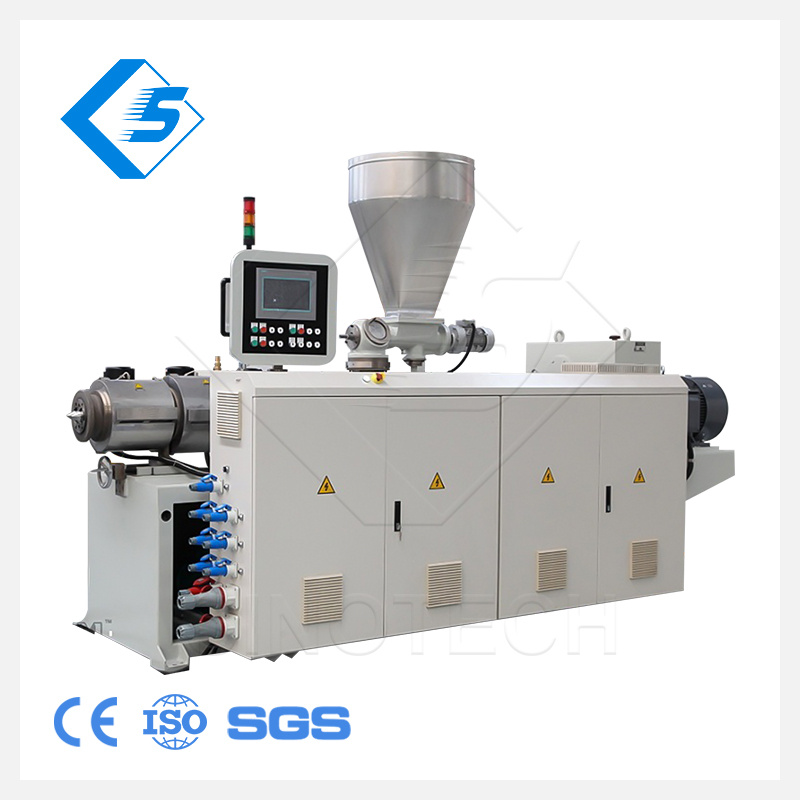

This PVC Electric Conduit Pipe manufacturing machine is composed of conical twin-screw extrude, vacuum calibration tank, haul-off machine, cutter, stacker etc. The screw extruder and traction machine adopt imported AC frequency control device. The vacuum pump and traction motor both adopt advanced products. The haul-off machine has many models, such as two-claw, three-claw, four-claw, six-claw etc. It may choose visual blade or cutting type.The unit is of reliable performance and high production efficiency.

Characteristics of extrusion line for PVC electrical conduit:
1. one die four output, it greatly increase the productivity, meantime, it reduce the cost of machine, power consumption, save space of workshop
2. Speed of extruding, haul off are controlled by variable frequency inverter, stepless adjusting speed and save power consumption
3. Water cooling tank are made of high qulity stainless steel, no rusty, longer lifetime.
4. Temperature controlled by intelligent temperature controller, high precision, automatic control, save labor and easy to operate.
Equipment List Of PVC electrical conduit production line :
SJZ-65/132 conical twin screw extruder+four-outlet mould+four-outlet downstream, mainly used for PVC four-outlet pipe production.
Features of double PVC pipe production line:
1) Producing PVC four-outlet pipe diameter range:16-32mm
2) Production with four-outlet at the same time. It takes full advantage of the extruder capacity, and greatly improves the production effciency.
3) Excellent combination of automatic separate control of four-outlet of hauler&cutter with four-outlet calibration tank, which makes the operation more flexible and convenient.
4) Separate hauling and cutting for each pipe outlet; it effectively reduces the percentage of waste pipes
5) Integrated hauler and cutter overall design, which achieves the perfect combination of the quality and appearance, and energy saving evidently

Main part of PVC Electric Conduit Pipe Making Machine
Parts No. Name Brand
1 Screw and barrel 1 Design German design
2 Main materials 38CrMoALA
3 Screw heating Silicon oil heating
4 Barrel heater Cast aluminum heater
5 Barrel has vacuum exhausting system

2 Driving parts 1 Main motor Siemens Brand

2 Gear box Top brand in China

3 Electric parts 1 Inverter ABB brand
2 Contactor Schneider brand
3 Relay Schneider brand
4 Breaker Delixi brand
5 Temperature meter RKC brand
6 Hauling motor Densen brand
7 Hauling gear box Hard surface gear box
8 Vacuum pump Yvhuang brand
9 Water pump Yvhuang brand
10 Cutting motor Siemens brand
11 PLC Schneider brand

4 Mechanical parts We use CNC machines to ensure the precision of our mechanical parts

5 Protection system We have a whole set of protection system for our machines, such as:
1 Current overload protection
2 Torque overload protection
3 Oil path blocking alarm
4 Vacuum overload alarm, and so on.
For more technical information please contact us by email.
