| Quantity: | |
|---|---|
SJ90 SJ100 SJ120 SJ150
Sino-Tech
84778000

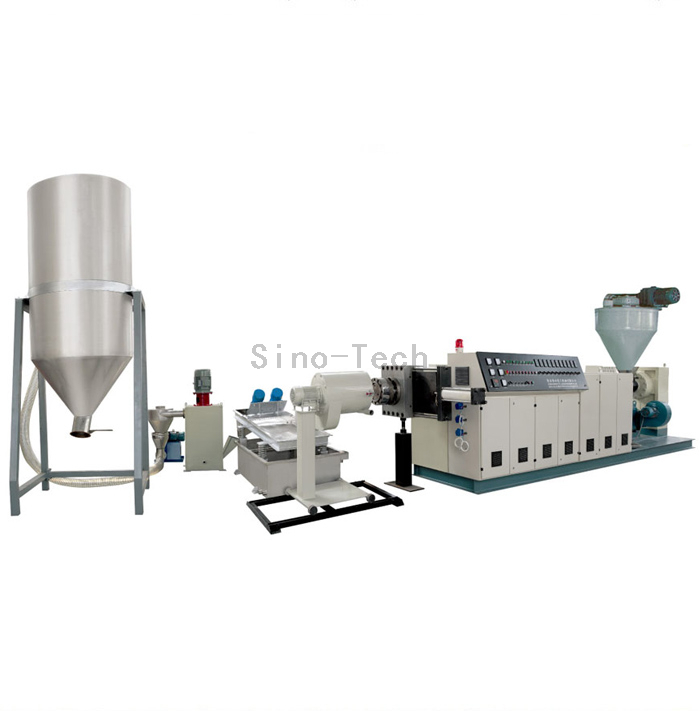

Hard plastic pp pe pelletizing machine line
Function of PE recycling pelletizing line:
Through films Sefl Rubbing in the compactor, and cutting blades,to increase the temperture of films and make flims to balls shape so to increase the production capacity of granulating lines.
1. Motor: AC Motor, 380V, 50HZ, 3Phase
2. Material of Knife: Alloy Steel
3. There is a temperature check point inside the machine.
4. The compressing system with one glass window to see inside
5. The compressing system with one well closed door which is used to clear inside of film compressing system
6. This compressing system with hydraulic system which is used to open the cover on the top.
7. Cooling system for compactor including air cooling and water cooling, the cooling air blower with the power of motor: the blade was cooling by chilling water
We have series of recycling line with different production capacity,
100kg/h, 200kg/h, 300kg/h, 500kg/h, 600kg/h,800kg/h and so on.
Our customer have a wide options, we can design lines according to customer's demands.
Main model of the Plastic pelletizing machine:
| el | SJ-100/100 | SJ-120/120 | SJ-150/150 | SJ-200/200 |
| Screw Dia. | 100 | 120 | 150 | 200 |
| L/D | 28-30 | 28-30 | 28-30 | 28-30 |
| 10-15 | 10-15 | 10-15 | 10-15 | |
| Capacity | 120-180kg/h | 220-300kg/h | 300-400kg/h | 500-600kg/h |
Products Description
Detailed Images
Production Process

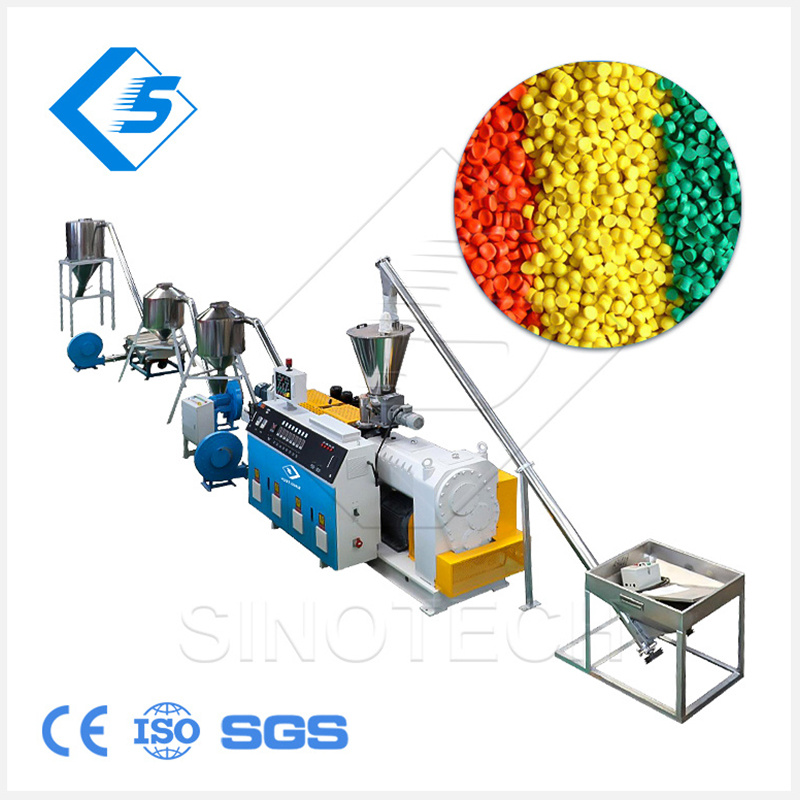

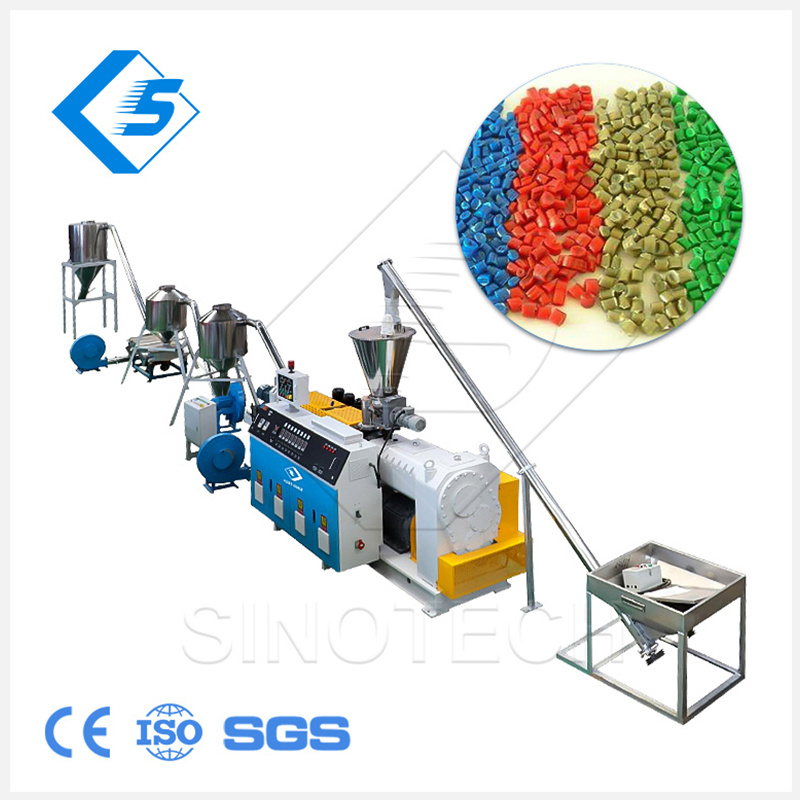

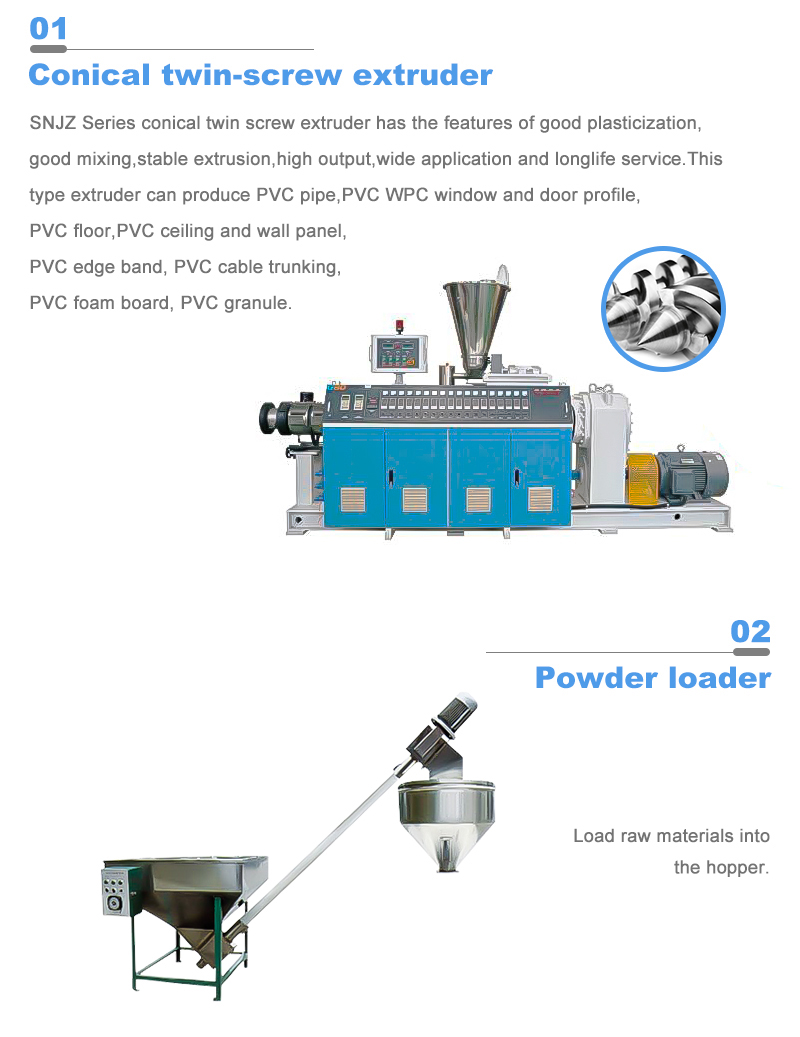

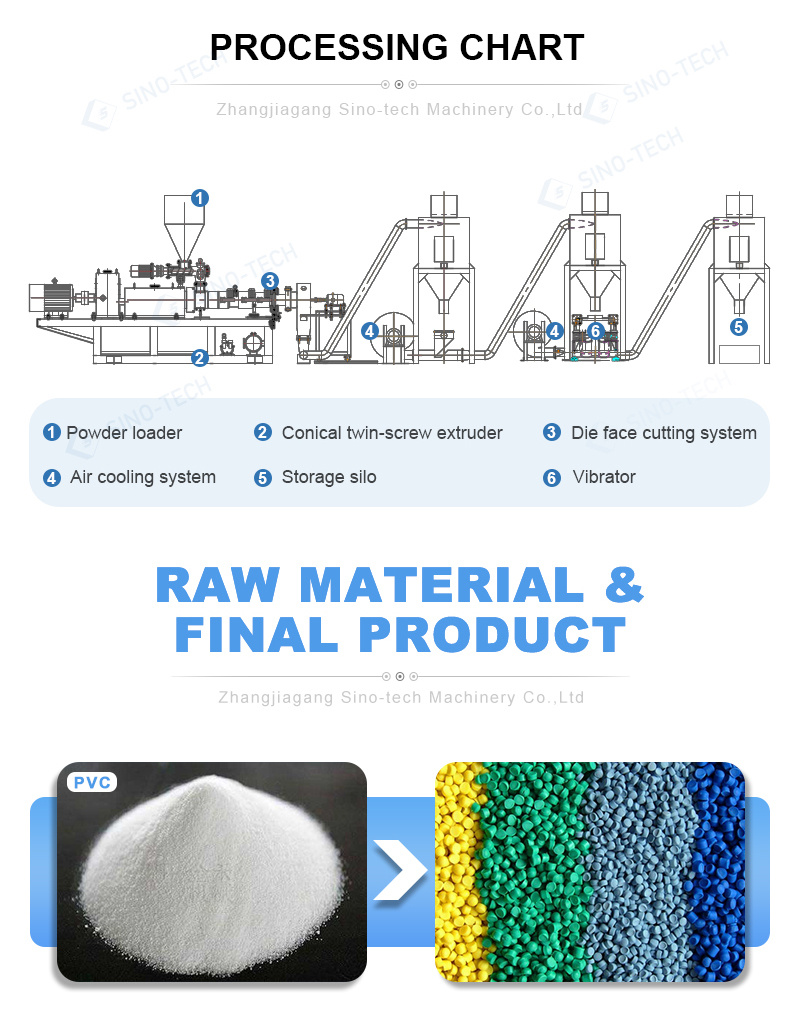

Material→Heating Cooling Mixer→Material Feeding→Conical Twin Screw Extruder→Extrusion Die Head and Die Face Cutting→Air Cooling→Storage Silo
1. Weighing: Raw materials shall be weighed according to the process. The higher the accuracy, the better.
2. Mixing: Mix the raw materials evenly according to the formula of plastic products.
3. Raw material are fed into the barrel of the extruder through the hopper.

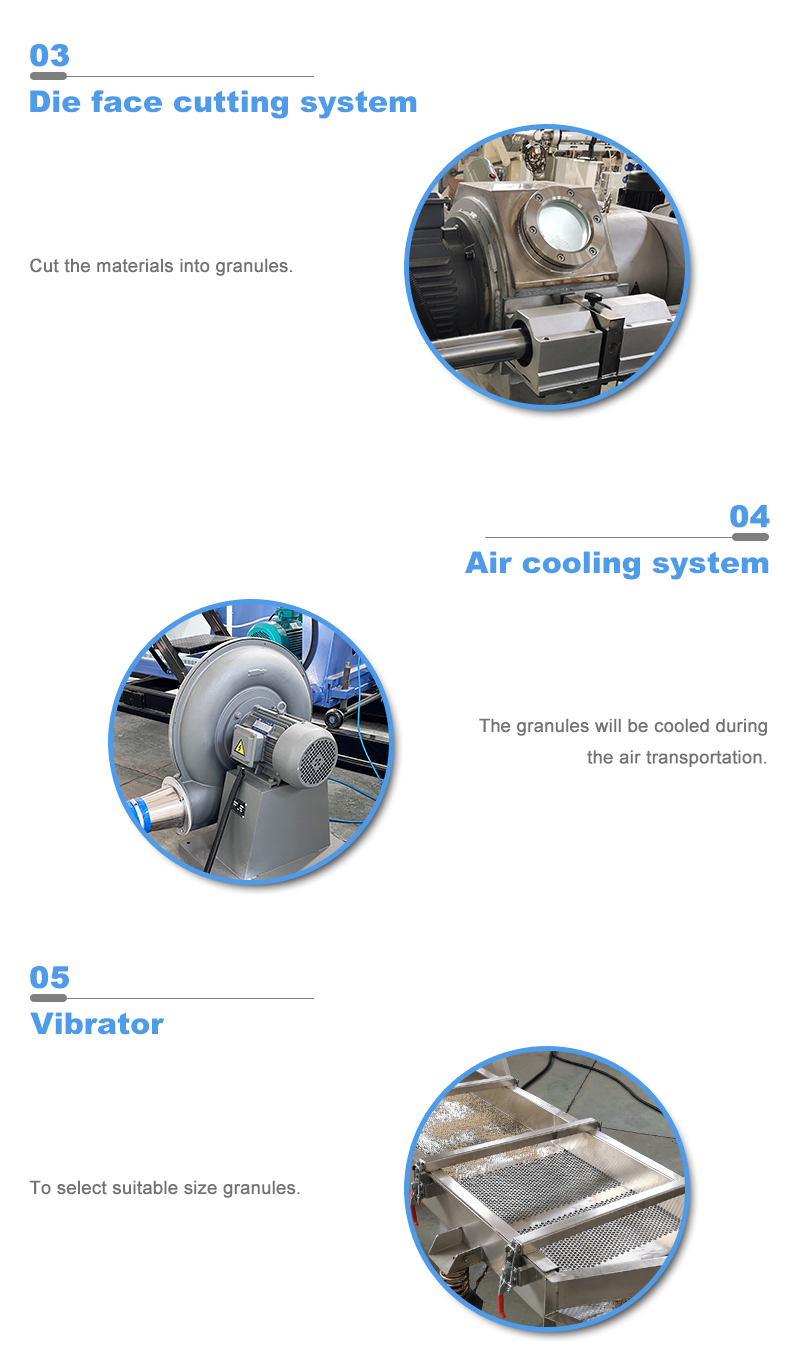

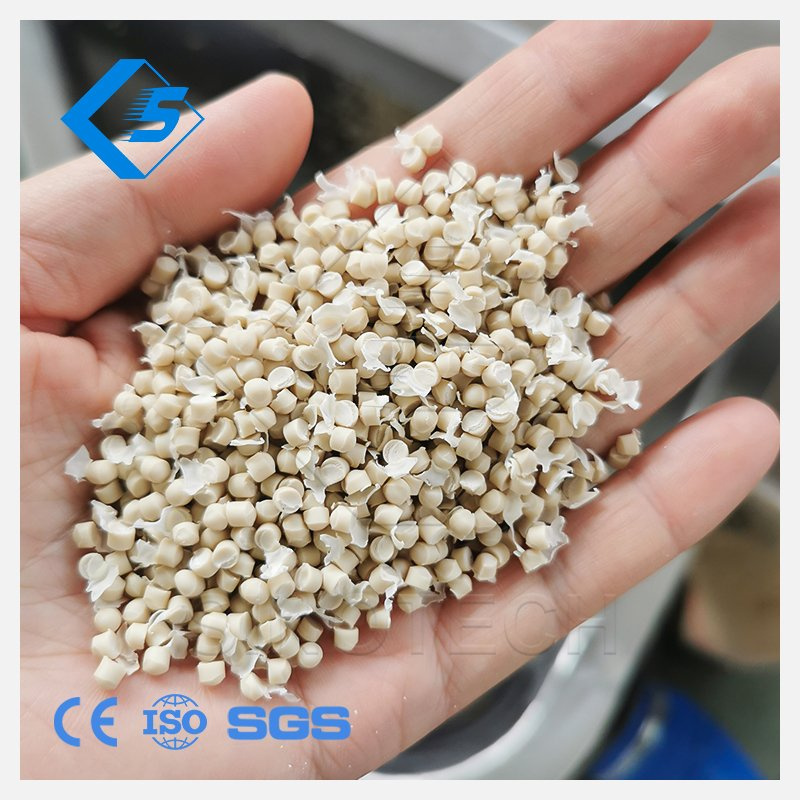

4. The screw rotates continuously, and then the plasticized material is extruded from the twin screw extruder and cut into granules in the hot cutter.
5. After air cooling and forming, the plastic products is completed.

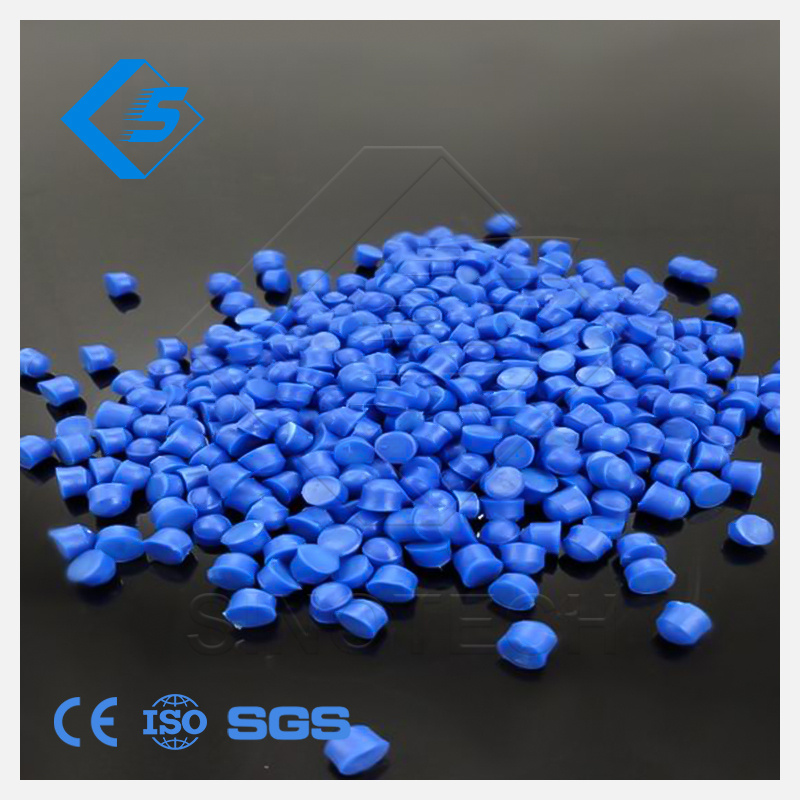

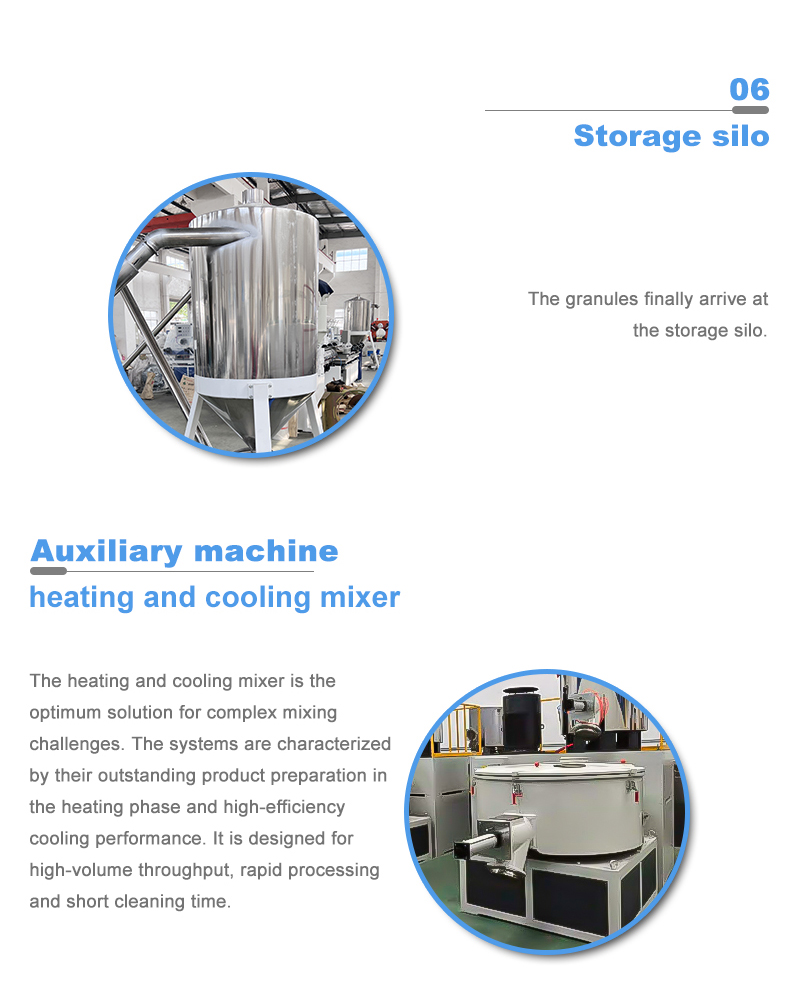

6. Granules are sent to the storage silo.
