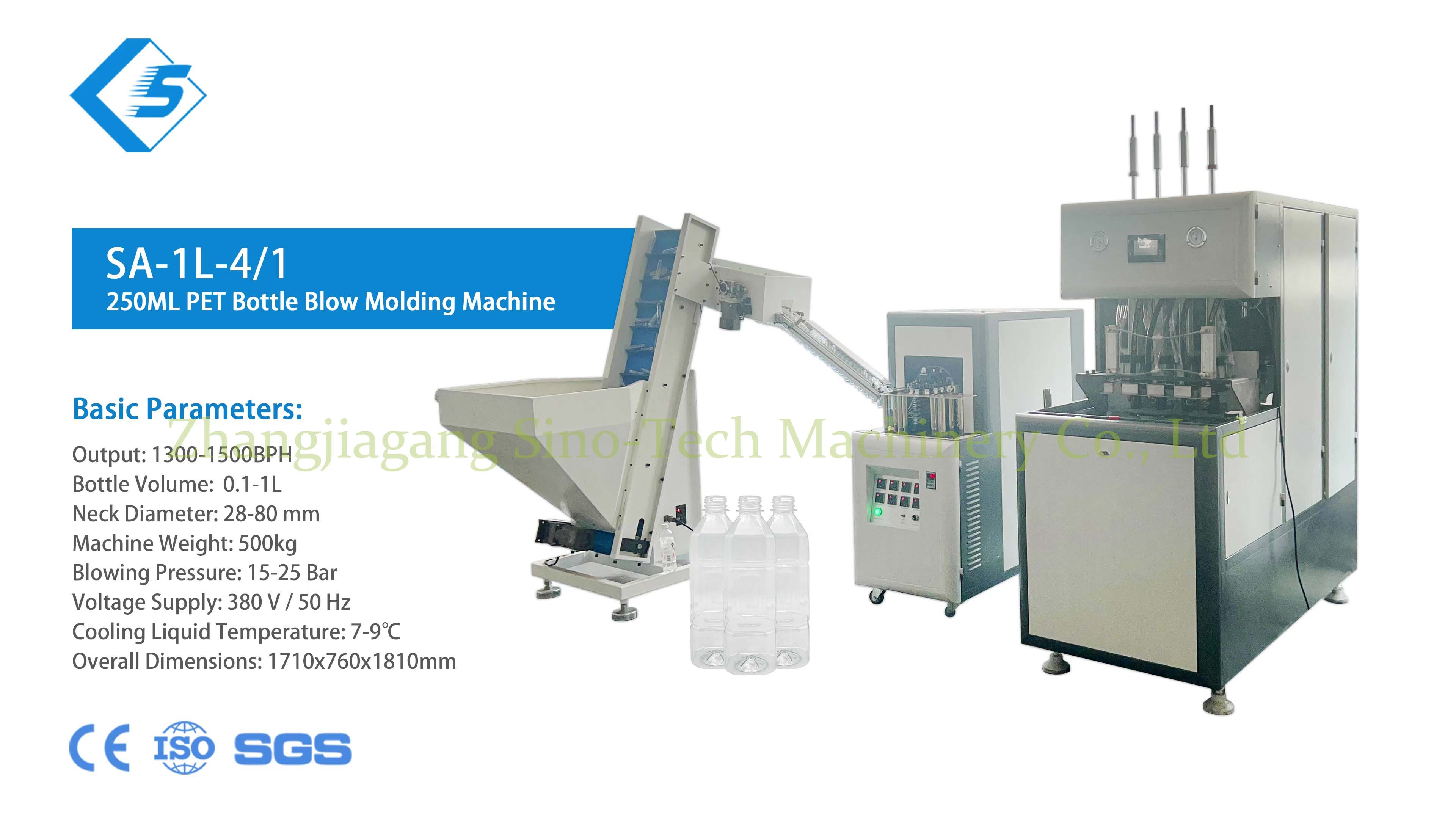

SA-1L-4/1 250ML Semi automatic PET Bottle Blow Molding Machine
Semi-automatic PET bottle-blowing machines are widely used in food, beverage, cosmetics, medicine, and other industries. In the food industry, it can be used to produce mineral water bottles, beverage bottles, edible oil bottles, etc. In the cosmetics industry, it can be used to produce lotion bottles, cream jars, etc. In the pharmaceutical industry, it can be used to produce medicine bottles, infusion bottles, etc. Semi auto PET bottle blow moulding machine have become a powerful assistant for many companies in the production of plastic bottles due to their easy operation, high cost-effectiveness, strong flexibility, and reliable quality.
The characteristics of 4 Cavities semi auto PET Preform Blowing Machine

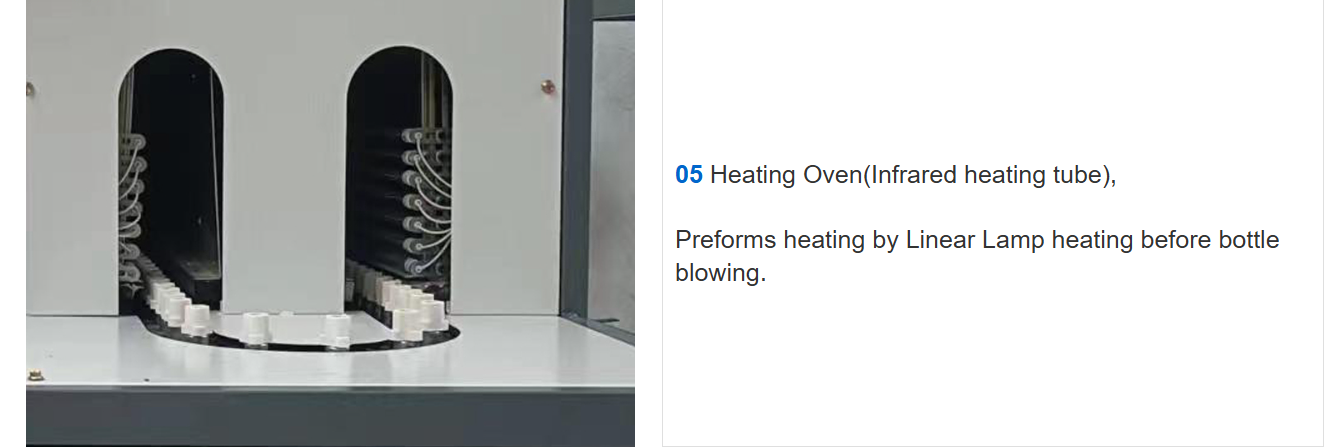

●Adopting double crank to adjust mold, heavy locking mold, stable and fast, Adopt an infrared oven to heat the perform, the perform rotated and heated equally.
●The air system has been divided into two parts: a pneumatic action part and a bottle blow part to meet the different requirements for the action and blow. It can provide sufficient and steady high pressure for blowing large irregularly shaped bottles.
●Sinotech Semi auto PET Jar making machine is also equipped with a muffler and oiling system to lubricate the mechanical part of the machine.
Appliance
Semi-automatic Plastic Bottle Blower is suitable for producing PET plastic containers and bottles. It is widely used to produce carbonated bottles, mineral water bottles, carbonated drink bottles, pesticide bottles, juice bottles, oil bottles, cosmetics bottles, wide-mouth bottles, etc. This machine is equipped with a high-efficiency auto preform feeding system.
Production Process
SA-1L-4/1 250ML Semi automatic PET Bottle Blow Molding Machine
Semi-automatic PET bottle-blowing machines are widely used in food, beverage, cosmetics, medicine, and other industries. In the food industry, it can be used to produce mineral water bottles, beverage bottles, edible oil bottles, etc. In the cosmetics industry, it can be used to produce lotion bottles, cream jars, etc. In the pharmaceutical industry, it can be used to produce medicine bottles, infusion bottles, etc. Semi auto PET bottle blow moulding machine have become a powerful assistant for many companies in the production of plastic bottles due to their easy operation, high cost-effectiveness, strong flexibility, and reliable quality.
The characteristics of 4 Cavities semi auto PET Preform Blowing Machine
●Adopting double crank to adjust mold, heavy locking mold, stable and fast, Adopt an infrared oven to heat the perform, the perform rotated and heated equally.
●The air system has been divided into two parts: a pneumatic action part and a bottle blow part to meet the different requirements for the action and blow. It can provide sufficient and steady high pressure for blowing large irregularly shaped bottles.
●Sinotech Semi auto PET Jar making machine is also equipped with a muffler and oiling system to lubricate the mechanical part of the machine.
Appliance
Semi-automatic Plastic Bottle Blower is suitable for producing PET plastic containers and bottles. It is widely used to produce carbonated bottles, mineral water bottles, carbonated drink bottles, pesticide bottles, juice bottles, oil bottles, cosmetics bottles, wide-mouth bottles, etc. This machine is equipped with a high-efficiency auto preform feeding system.
Production Process
Technical Parameters Of PET bottle Stretch Blow Molding Machine
ITEM | SA-1L-4/1 |
Output | 1300-1500BPH |
Bottle volume | 0.1 - 1L |
Neck diameter | 28-80 mm |
Low pressure | 10 bar |
Blowing pressure | 15 (up to 25) bar |
Low and high pressure air demand | 1.2m³/min for bottle 3L 1.6m³/min for bottle 7L |
Cooling liquid temperature | 7-9 °С |
Voltage supply | 380 V / 50 Hz |
Installed power | 14kw(22 kW) |
Overall dimensions | 1870x720x1560mm(1pc) 1710x760x1810mm(1pc) |
Weight | ~ 500 + 220 kg |
Technical Parameters Of PET bottle Stretch Blow Molding Machine
ITEM | SA-1L-4/1 |
Output | 1300-1500BPH |
Bottle volume | 0.1 - 1L |
Neck diameter | 28-80 mm |
Low pressure | 10 bar |
Blowing pressure | 15 (up to 25) bar |
Low and high pressure air demand | 1.2m³/min for bottle 3L 1.6m³/min for bottle 7L |
Cooling liquid temperature | 7-9 °С |
Voltage supply | 380 V / 50 Hz |
Installed power | 14kw(22 kW) |
Overall dimensions | 1870x720x1560mm(1pc) 1710x760x1810mm(1pc) |
Weight | ~ 500 + 220 kg |
