| Quantity: | |
|---|---|
ST-1000JSell
SINOTECH
8474809090

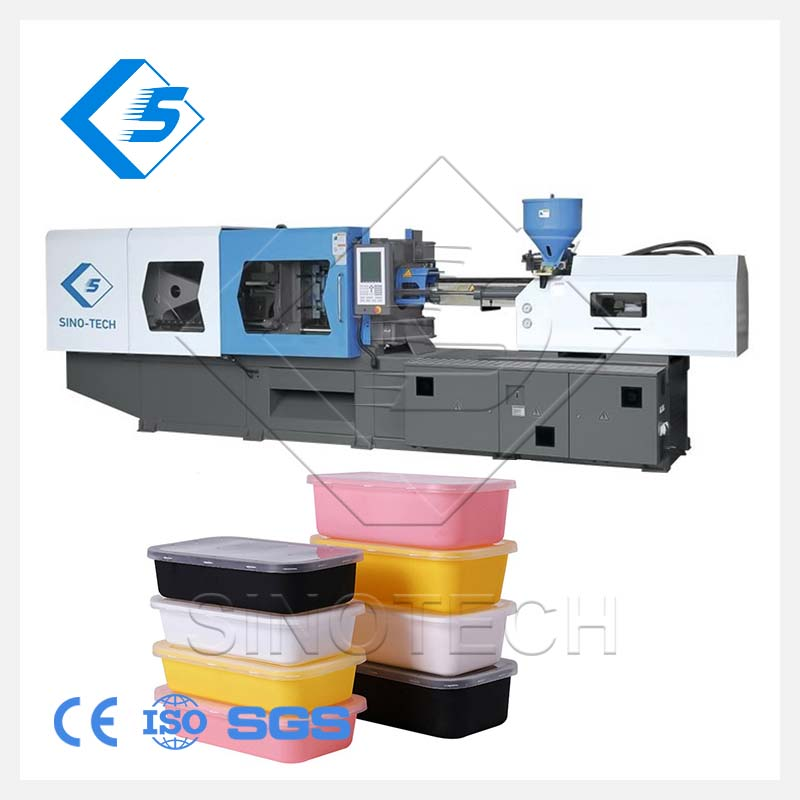

The ST-1000JSell Plastic Injection Molding Machine is designed to meet the demands of manufacturers producing large volumes of high-precision plastic products. With state-of-the-art injection molding technology, this machine ensures exceptional quality, consistent performance, and high-speed production, making it ideal for various industries, including automotive, electronics, and consumer goods.
The ST-1000JSell offers unmatched versatility and reliability, combining powerful performance with energy-efficient operation. Whether producing complex components or simple parts, this machine delivers superior results in a shorter cycle time, making it the ideal solution for businesses aiming to scale production while maintaining high standards.
High Clamping Force: The machine features a clamping force of 1000 tons, which allows it to mold large and complex plastic parts with exceptional precision.
High-Speed Injection: With an injection pressure of 1400 MPa and high injection rates, the machine ensures rapid mold filling and efficient production cycles.
Versatile and Customizable: The ST-1000JSell can handle a wide variety of plastic resins and product designs, offering flexibility for businesses that need to meet varying customer demands.
Energy Efficiency: The machine is equipped with servo-driven hydraulic systems, which reduce energy consumption while maintaining high output, making it a cost-effective solution for large-scale operations.
| Item | 1000JSell | |||
| Screw diameter | mm | 100 | 110 | 125 |
| Theoretical shot volume | cm³ | 3848 | 4657 | 6013 |
| Shot weight (PS) | g | 3646 | 4191 | 5412 |
| Length/Diameter ratio | L/D | 22.3 | 20.0 | 17.7 |
| Injection pressure(high pressure and low speed) | MPa | 215 | 178 | 138 |
| Injection pressure(low pressure and high speed | MPa | 156 | 129 | 100 |
| Injection rate(high pressure and low speed) | cm³/sec | 671 | 812 | 1048 |
| Injection rate(low pressure and high speed) | cm³/sec | 925 | 1119 | 1445 |
| Plasticizing capacity (PS) | g/s | 93 | 118 | 154 |
| Injection stroke | mm | 490 | ||
| Screw speed | rpm | 115 | ||
| Injection unit force | Ton | 20.0 | ||
| Carriage stroke | mm | 920 | ||
| Clamping force | Ton | 1000 | ||
| Opening force | Ton | 106.1 | ||
| Opening force | Ton | 34.7 | ||
| Max. daylight | mm | 2400 | ||
| Clamping stroke | mm | 1200-1800 | ||
| Distance btwn. Tie bars | mm | 1210*1060 | ||
| Min mould dimension | mm | 840*740 | ||
| Mould thickness range | mm | 600-1200 | ||
| Ejector force | Ton | 21.5 | ||
| Ejector stroke | mm | 300 | ||
| No. of ejector pins | unit | 21 | ||
| Dry Cycle(Euromap 6) | S | 5.7 | ||
| Major motor | kW | 105.2 | ||
| System pressure | MPa | 17.5 22.1 | ||
| No. of heater zones | unit | 5+1 | ||
| Heater input power | kW | 56 | ||
| Ultimate capacity | kw | 162.2 | ||
The ST-1000JSell is perfect for producing a wide variety of plastic products, including:
Automotive Components: Essential for manufacturing high-quality plastic parts used in the automotive industry.
Consumer Goods: Ideal for creating durable plastic products for everyday use, such as containers, packaging, and household items.
With decades of experience in injection molding, SINOTECH offers reliable, high-performance machines that enhance your production capabilities. The ST-1000JSell is designed to help businesses increase efficiency, reduce energy consumption, and maintain consistent quality while lowering production
