| Quantity: | |
|---|---|
SNBL48
SinoTECH
84778000
Sinotech SNBL48 Fully Automatic PVC Pipe Bending&Belling Socketing Machine
Hydraulic Full Automatic Plastic 16-48MM PVC Tube Pipe Bending Bender Machine
SNBL48 Full automatic PVC Pipe Bending Machine is mainly used for PVC pipes with bending and socketing. It can bend 22°or 45°or 60° or 90°. It can't work with pipe extrusion line. Before use this machine you should cut the pipes first. This machine is easy to operate.It can bend pipes with range Φ16-48mm in pipe.
Our Advantages
Application
New fully automatic Plastic PVC Pipe Bending Machine On the basis of internation advanced technology form the developed countries, we produced the PVC pipe bending machine independently. This machine can be used to instead of traditional PVC fitting injection machines. And this machine can save cost about 50% than injection machines. We aims to make high quality machines with reasonable price.Final Product
Product Parameters
| Item | SNBL48 |
| Suitable pipe size | 16mm-48mm in pipe |
| Pipe length | According to customer' request |
| Pipe thickness | 1.0-4.0mm |
| Pipe material | PVC |
| Air Pressure | 0.4-0.6 Mpa |
| Pump motor | 5.5KW |
| Max.heating temperature | 300ºC |
| Heating Method | Ceramic infrared heating |
| Heating power | 10KW |
| Heating station | 2 |
| Cooling method | Air cooling and water cooling |
| hydrailic oil | 46# wear resistance hydraulic oil |
| Required water pressure | 0.2-0.3 Mpa |
| Socket type | U type and R type |
| Production capacity | 360-480pcs/hr |
| Socketing | One side/both side |
| Socketing station | 6 |
| PLC Control | Siemens/Mitsubishi |
| Machine type | Full automatic(pneumatic) |
| Machine size(LxWxH) | 3000mmx2300mmx2300mm |
| Machine weight | 4.5 Ton |
| Bending angle | 22°or 45°or 60° or 90° |
| Bending speed | 360-480pcs/hr |
This machine can bend 4pcs of pipe each time | |
Detailed Photos
Floor Plan
Company Profile
WELCOME TO VISIT US

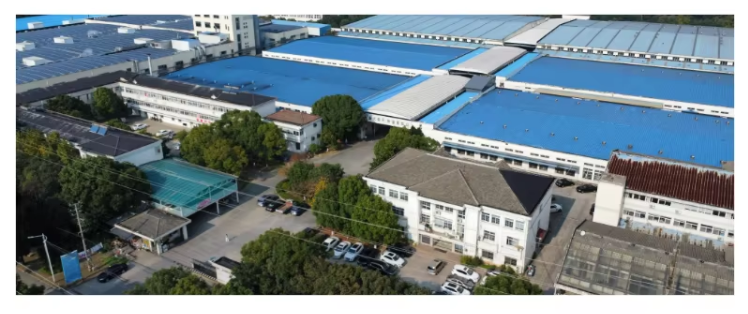

Zhangjiagang Sino-tech Machinery Co.,Ltd is a professional manufacturer of extrusion blow molding machine, pet bottle blow molding machine, plastic extrusion line,Waste plastic recycling and pelletizing line. Factory is closed to Shanghai About half an hour by high-speed rai. We're a wonderful and largest group company with over 20 years' research and production experience. Our company covers an area of 15,000 square meters and has standard workshop of 13,000 square meters. We have over 20 engineers in researching department and over 60 staff for machine manufacturing in workshop along with sales team and after-sales team.
We Own large CNC milling machine, drilling machine,CNC machining center,laser cutting machine,insure the high precise of parts with IS09001 quality control system.Our machine annual output over 1000 sets, widely use in food and beverage,dalily use, transportation,construction material and textile. Electric components adopt famous brand,like FESTO, MITSUBISHI, SCHNEIDER, SIEMENS. Every set of machine will be strictly tested and inspection by our engineer and run it at least 24 hours in our factory before delivery. Reasonable price, good quality, fast delivery and immediately engineer oversea on spot service and online service, long time technical support help our machine widely exported to North America, South America, Middle East, Europe and Africa. we do our best service well for our customer, welcome to contact with us, we sure our machine will be your best choice. We will develop strong with our customer together.
FAQ
Q: Can we visit your factory?
Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.
