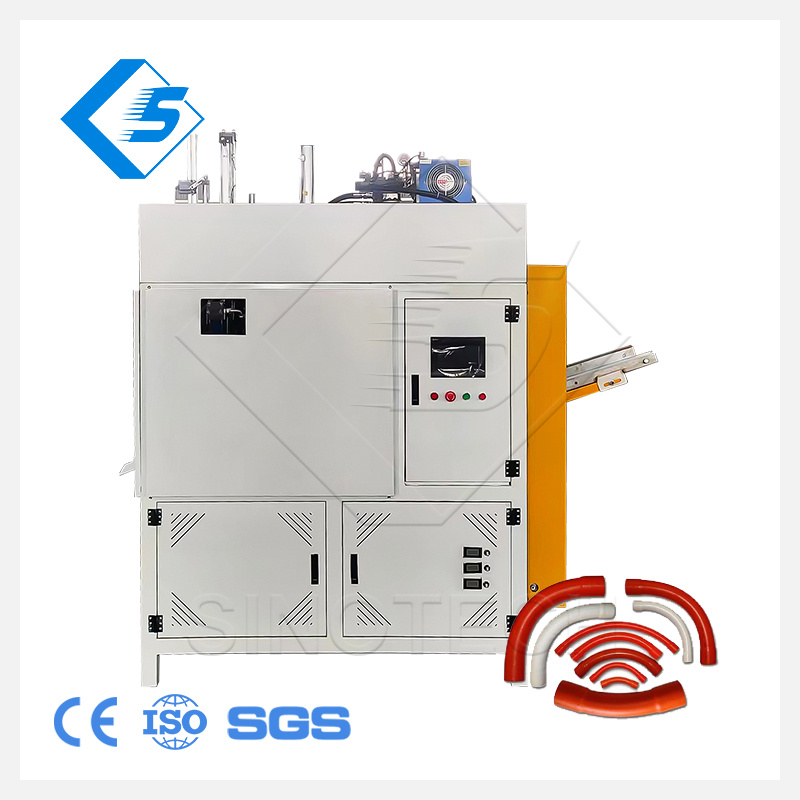

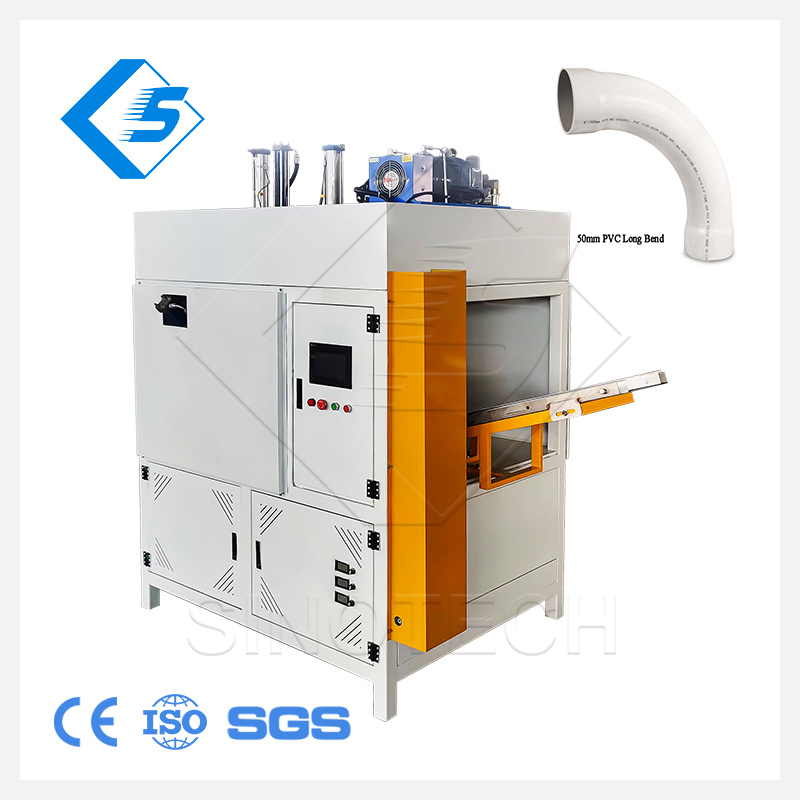

New Standard sizes full automatic electrical pvc conduit pipe 16mm 20mm 25MM 32MM PVC pipe tube bending machine

Quantity:
  • ST-32

  • Sinotech

Application
New fully automatic Plastic PVC Pipe Bending Machine On the basis of internation advanced technology form the developed countries, we produced the PVC pipe bending machine independently. This machine can be used to instead of traditional PVC fitting injection machines. And this machine can save cost about 50% than injection machines. We aims to make high quality machines with reasonable price.
This machine can bend the pipes at the same time of making socket.
Function
- Bend PVC pipes.
- Bend and socketing PVC pipe in one end.
- Bend and socketing PVC pipes in both ends
Main advantages:
- PERFECT ROUNDNESS of the entire bend;
- HIGH OUTPUT;

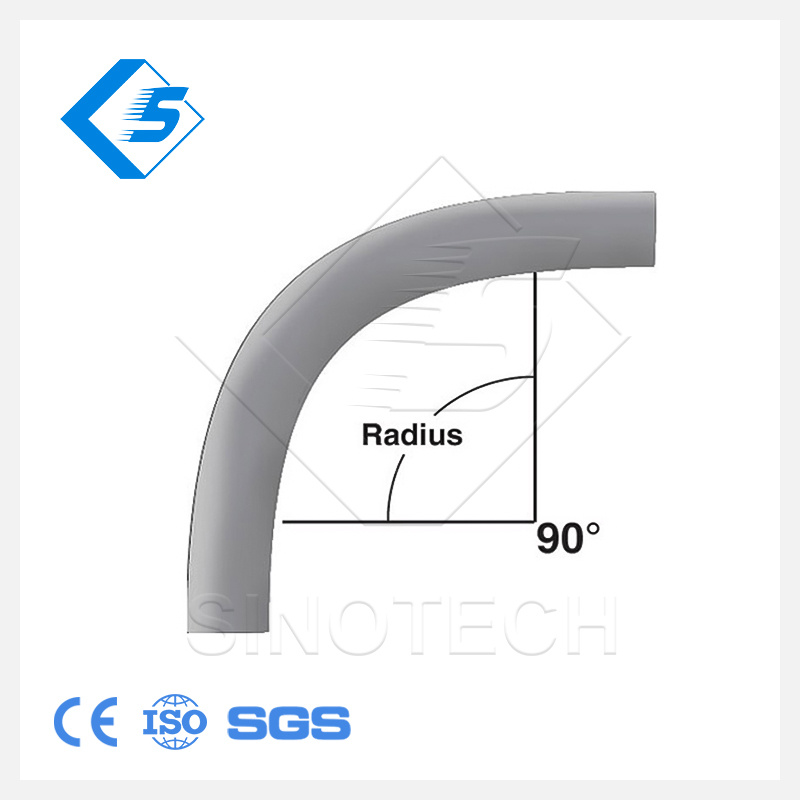

- Length, angle and radius of the bends are variables;
- High level of technology;
- User-friendly machine;
- Reliability, efficiency, low maintenance;
- Compact machine - small size.


Main Technical Parameter
Main Technical Parameters
Suitable pipe size
16mm-32mm
Pipe length
According to customer' request
Pipe material
PVC
Air Pressure
0.4-0.6Mpa
Oil Pump motor
3.75KW
Max.heating temperature
300ºC
Heating Method
Ceramic infrared heating
Heating power
17.5KW
Heating station
2
Cooling method
Air cooling and water cooling
Socketing station
3x2/4x2/5x2
hydrailic oil
46# wear resistance hydraulic oil
Required water pressure
0.2-0.3Mpa
Socket type
U type and R type
Machine size(LxWxH)
3050x2300x2080mm
Machine weight
4.8T
Bending angle
45degree/60degree/90degree/120degree
This machine can bend 3 pcs-6pcs of pipe each time

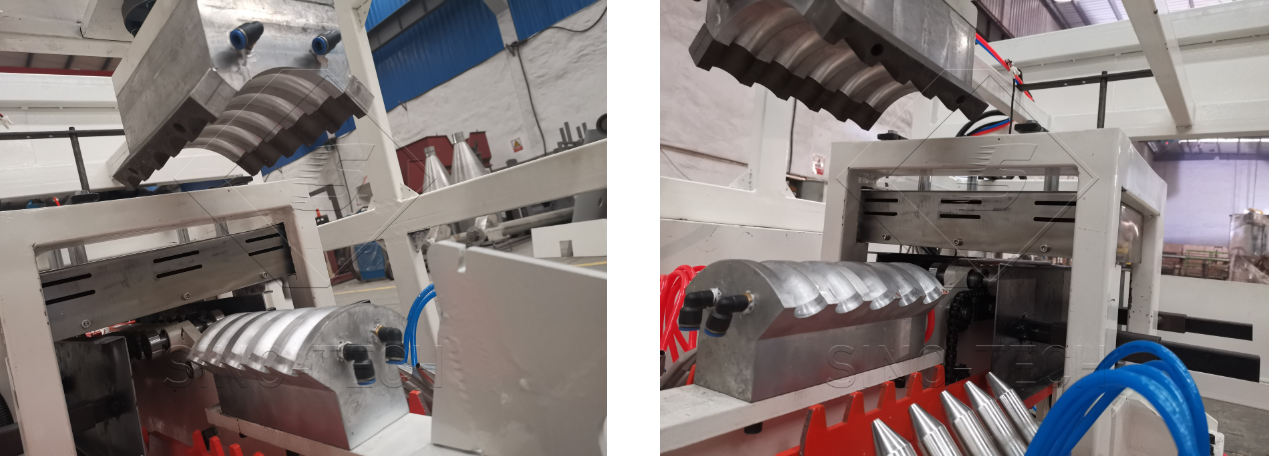

Detailed images



1.The special energy-saving and heat insulation device of the pipe bender of our company can increase the heat utilization rate by more than 40% compared with the machines of other manufacturers. Domestic infrared barium-plated vacuum heater, heating temperature equalization, at the same time, can make the heat radiation upward, than the ordinary machine to save more than 40% of the heat energy, automatic bending at the same time, the heater shift and power off, so that the pipe cooling design, energy saving, reasonable operation, humanization.

2. The special multifunctional positioning protractor made by Sinotech makes the bending Angle adjustable, controllable, accurate and convenient.

3. The equipment is easy to operate and high working efficiency. The table of the equipment is made of thickened stainless steel mold, which ensures that the bending machine will not be worn or scratched in the production process. Mold pressure bar is equipped with pneumatic device, accurate positioning and high working efficiency. The equipment is designed with automatic mold propulsion, which is convenient and simple to bend. Control air pressure system, stable performance, durable
