Full-Automatic 16-48mm PVC Plastic Water Pipe Bending Elbow Machine

Sinotech PGF48 Fully Automatic PVC Pipe Bending&Belling Socketing Machine

PGF48 Full automatic PVC Pipe Bending Machine is mainly used for PVC pipes with bending and socketing. It can bend 22°or 45°or 60° or 90°. It can't work with pipe extrusion line. Before use this machine you should cut the pipes first. This machine is easy to operate.It can bend pipes with range Φ16-48mm in pipe.

​

​

​

Our Advantages

Application

New fully automatic Plastic PVC Pipe Bending Machine On the basis of internation advanced technology form the developed countries, we produced the PVC pipe bending machine independently. This machine can be used to instead of traditional PVC fitting injection machines. And this machine can save cost about 50% than injection machines. We aims to make high quality machines with reasonable price.
This machine can bend the pipes at the same time of making socket.
Function
- Bend PVC pipes.
- Bend and socketing PVC pipe in one end.
- Bend and socketing PVC pipes in both ends
Main advantages:
- PERFECT ROUNDNESS of the entire bend.
- HIGH OUTPUT;
- Length, angle and radius of the bends are variables.
- High level of technology.
- User-friendly machine.
- Reliability, efficiency, low maintenance.
- Compact machine - small size.

Final Product

​

  ​



Product Parameters



Item	PGF48
Suitable pipe size	16mm-48mm in pipe
Pipe length	According to customer' request
Pipe thickness	1.0-4.0mm
Pipe material	PVC
Air Pressure	0.4-0.6 Mpa
Pump motor	5.5KW
Max.heating temperature	300ºC
Heating Method	Ceramic infrared heating
Heating power	10KW
Heating station	2
Cooling method	Air cooling and water cooling
hydrailic oil	46# wear resistance hydraulic oil
Required water pressure	0.2-0.3 Mpa
Socket type	U type and R type
Production capacity	360-480pcs/hr
Socketing	One side/both side
Socketing station	6
PLC Control	Siemens/Mitsubishi
Machine type	Full automatic(pneumatic)
Machine size(LxWxH)	3000mmx2300mmx2300mm
Machine weight	4.5 Ton
Bending angle	22°or 45°or 60° or 90°
Bending speed	250-1440 pcs/hr
This machine can bend 3 pcs-6pcs of pipe each time

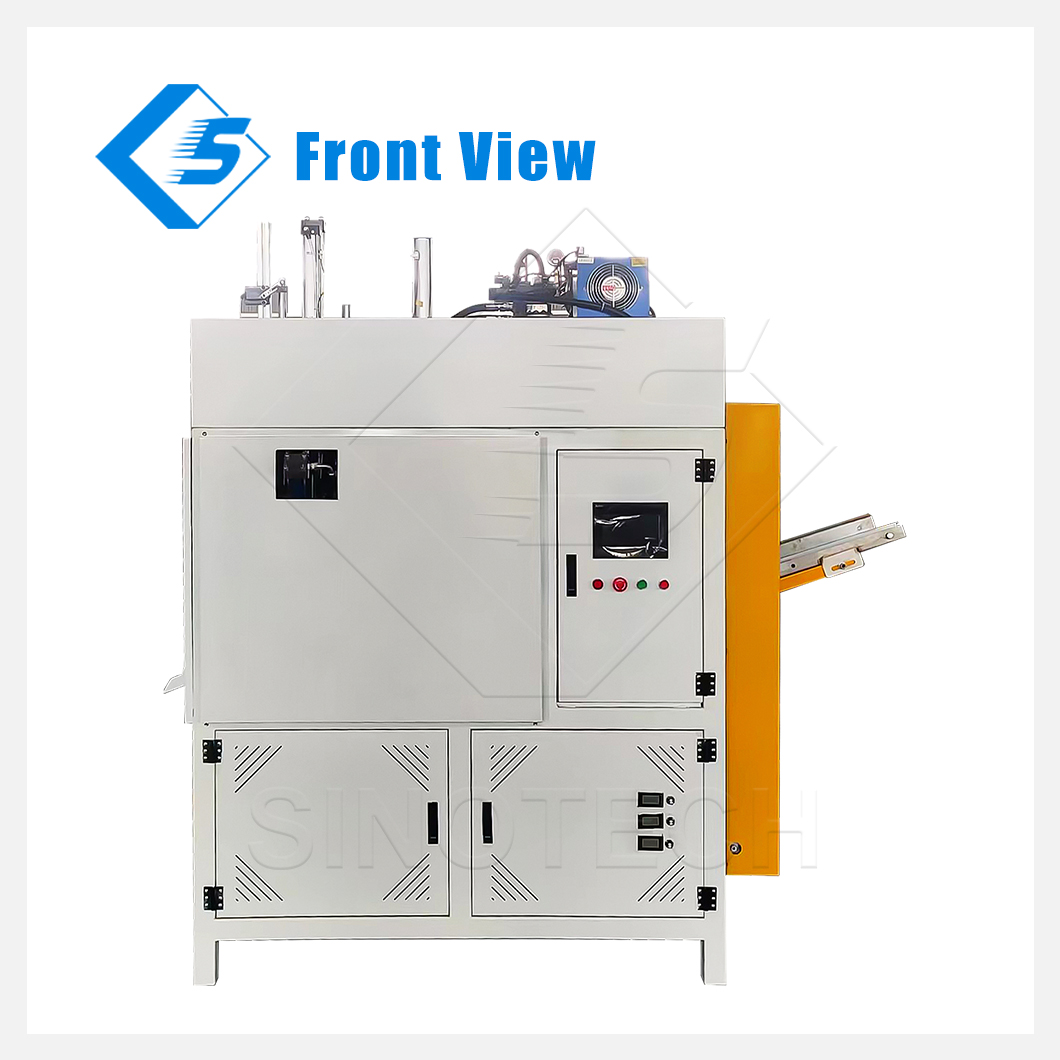

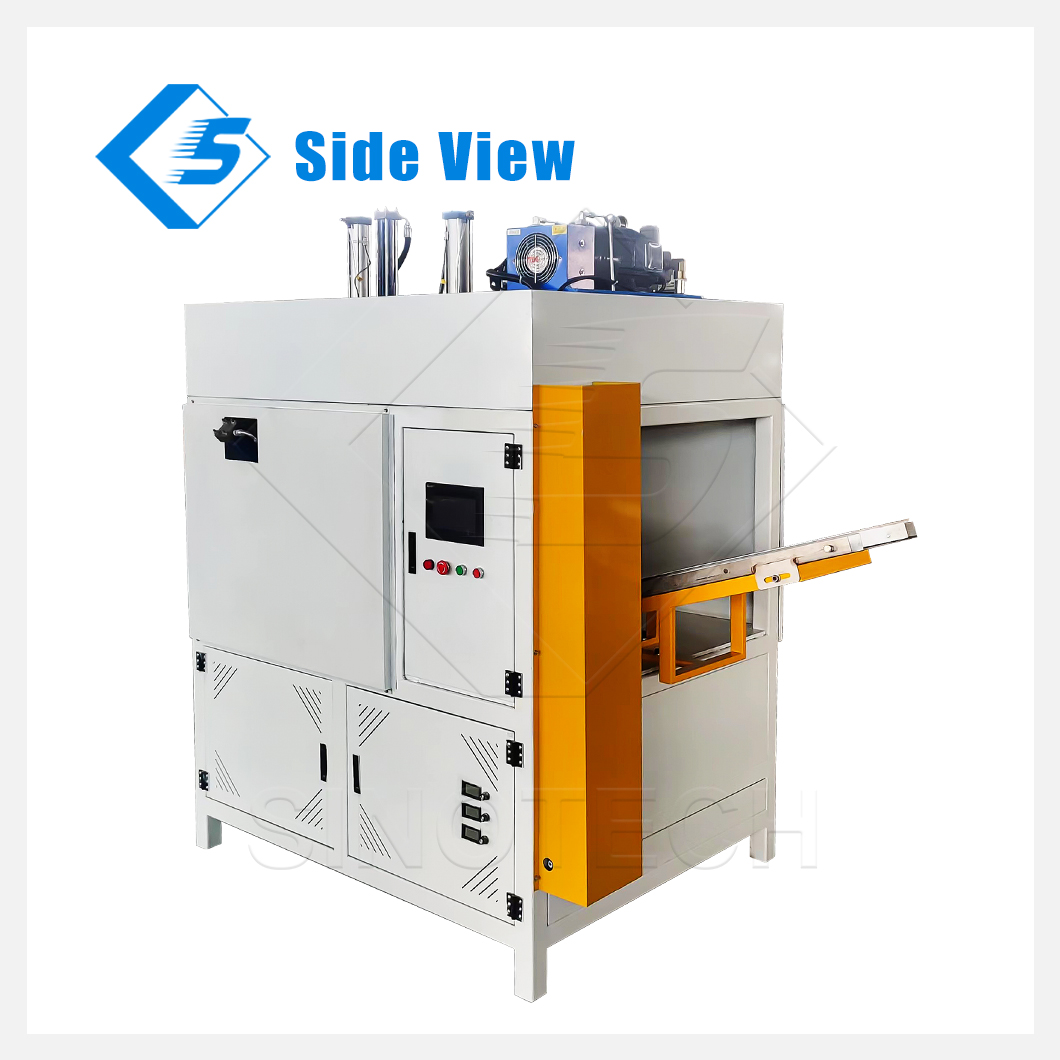

Detailed Photos

1.The special energy-saving and heat insulation device of the pipe bender of our company can increase the heat utilization rate by more than 40% compared with the machines of other manufacturers. Domestic infrared barium-plated vacuum heater, heating temperature equalization, at the same time, can make the heat radiation upward, than the ordinary machine to save more than 40% of the heat energy, automatic bending at the same time, the heater shift and power off, so that the pipe cooling design, energy saving, reasonable operation, humanization.

2. The special multifunctional positioning protractor made by Sinotech makes the bending Angle adjustable, controllable, accurate and convenient.

3. The equipment is easy to operate and high working efficiency. The table of the equipment is made of thickened stainless steel mold, which ensures that the bending machine will not be worn or scratched in the production process. Mold pressure bar is equipped with pneumatic device, accurate positioning and high working efficiency. The equipment is designed with automatic mold propulsion, which is convenient and simple to bend. Control air pressure system, stable performance, durable
