SJZ45/90 51/105 55/113 65/132 80/156 92/188
Sino-Tech
84772090
PVC Pipe Extrusion Production Line

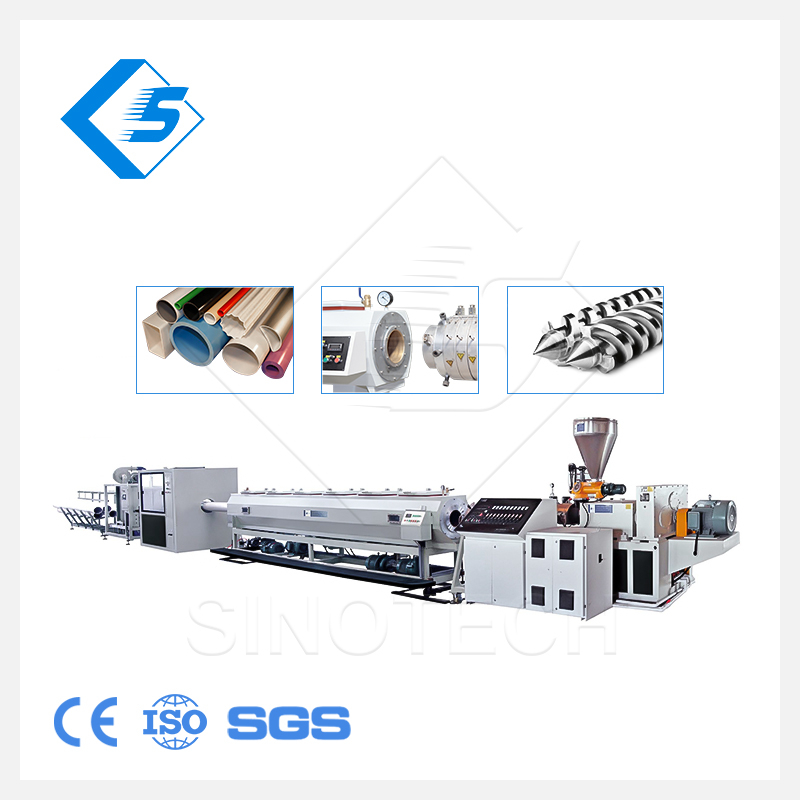

This PVC Pipe Extrusion Line is composed conical twin-screw extruder, vacuum calibration tank, haul off, cutter and stake etc. The extruder and haul off adopt imported AC frequency control device, vacuum pump and haul off motors adopt high-quality products. The haul off methods are two-claw, three -claw, four-claw, and six-claw etc. You may choose saw blade cutting type or planetary cutting type. It is additionlly attached with length counter and intensifying device. This line is of reliable performance and high production effeciency
Features Of PVC Pipe Making Machine:
1. Model SJZ series conical twin screw extruder is a kind of special equipment for extruding PVC compound. With different kinds of molds and auxiliary machines, it can produce all sorts of PVC plastic pipe, profile, plate material, sheet material, bar material and granulation.
2. The conical twin screws have applied oil cooling system. Barrel is cooled by special wind cooling system.
3. The conical twin screw extruder system has applied special computer control. According to customers requirements, most reasonable structure of conical twin screw can be made so as to achieve best plasticity performance and material quality.
4. The conical twin screw is made by high precision special digital screw miller; extruding property can be highly harmonized. It has firstly introduced advanced technique of producing screw with variable pitch and depth, so that the material can be more softly sheared and cut.
5. The distribution box is specially designed, pull force bearing is fully imported, and the drive life span can be prolonged. It can bear larger extruding pressure.
6. The electrical system has mainly applied imported parts, it has multiple alarm system, and there are few problems which can be easily eliminated. The cooling system has applied special design, heat emission area is enlarged, the cooling is rapid, and temperature control tolerance can be ± 1degree.

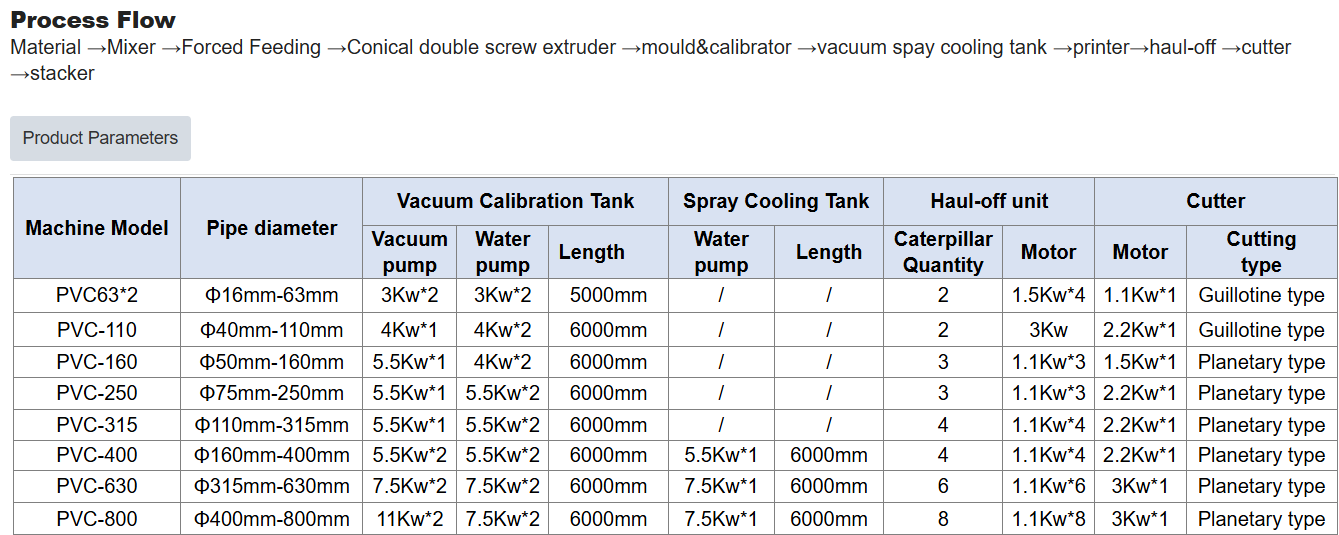

Main Parameter Reference( Pvc Pipe Machine Line )
| Model number | PVC-16/63 | PVC-20/110 | PVC-50/160 | PVC-75/250 | PVC-110/315 | PVC-200/450 | PVC-315/630 | PVC-500/800 |
| Pipe diameter | 16-63mm | 20-110mm | 50-160mm | 75-250mm | 110-315mm | 200-450mm | 315-630mm | 500-800mm |
| Max output | 120kg/h | 120kg/h | 180kg/h | 300kg/h | 450kg/h | 650kg/h | 800kg/h | 1400kg/h |
| Production rate | 1.5-15m/min | 0.8-8m/min | 0.5-5m/min | 0.4-4m/min | 0.3-2m/min | 0.1-1m/min | 0.07-0.7m/min | 0.05-1 m/min |
| Extruder model | SJZ-50/105 | SJZ-50/105 | SJZ-55/110 | SJZ-65/132 | SJZ-80/156 | SJZ-92/188 | SJZ-92/188 | SJZ-105/220 |
| Motor power | 45kw | 45kw | 55kw | 75kw | 105kw | 160kw | 205kw | 305kw |
| Center height | 1000mm | 1000mm | 1000mm | 1000mm | 1100mm | 1100mm | 1200mm | 1350mm |
| Installation area | 22*2.5*2.0m | 24*2.8*2.0m | 24*2.8*2.0m | 30*2.8*2.2m | 35*3.0*2.4 m | 36*3.0*2.4 m | 38*3.2*2.8 m | 42*3.5*3.2 m |
Technical information:
| Parts | No. | Name | Brand |
| 1 Screw and barrel | 1 | Design | German design |
| 2 | Main materials | 38CrMoALA | |
| 3 | Screw heating | Silicon oil heating | |
| 4 | Barrel heater | Cast aluminum heater | |
| 5 | Barrel has vacuum exhausting system | ||
| 2 Driving parts | 1 | Main motor | Siemens Brand |
| 2 | Gear box | Top brand in China | |
| 3 Electric parts | 1 | Inverter | ABB brand |
| 2 | Contactor | Schneider brand | |
| 3 | Relay | Schneider brand | |
| 4 | Breaker | Delixi brand | |
| 5 | Temperature meter | RKC brand | |
| 6 | Hauling motor | Densen brand | |
| 7 | Hauling gear box | Hard surface gear box | |
| 8 | Vacuum pump | Yvhuang brand | |
| 9 | Water pump | Yvhuang brand | |
| 10 | Cutting motor | Siemens brand | |
| 11 | PLC | Schneider brand | |
| 4 Mechanical parts | We use CNC machines to ensure the precision of our mechanical parts | ||
| 5 Protection system | We have a whole set of protection system for our machines, such as: 1 Current overload protection 2 Torque overload protection 3 Oil path blocking alarm 4 Vacuum overload alarm, and so on. | ||
| For more technical information please contact us by email. | |||
Diameter 16mm-800mm series PVC pipe extrusion production line is mainly used in the manufacture of plastic PVC pipes with various diameters and wall thickness used in the industried such as agriculture and constructional plumbing, cable laying etc, it also named PVC Pipe Production Line, PVC Pipe making machine.
