Double Layer Superior Quality Soft Pipe Pvc Garden Pipe Hose Making Extruding Manufacturing Line Equipment

Double Layer Superior Quality Soft Pipe Pvc Garden Pipe Hose Making Extruding Manufacturing Line Equipment

PVC Fiber reinforcing hose production line/PVC soft Pipe making machine/pvc garden hose production line Application: This line is designed to produce PVC fiber reinforced hose ,the wall of which is three layers, outer and inner layer are soft PVC hose ,middle layer is Terylene fiber network, which has good chemical and physical property .It is mainly used for the transportation of high pressure or corrosive gas,and is widely used in the machinery,coal mine, oil, chemical, agriculture irrigation,gas and building. Machine Advantage 1. High efficiency single screw extruder 2. It can produce PVC garden hose or pvc soft hose 3. The thickness is from 2mm to 6mm, diameter is from 10mm to 50mm 4. This pvc hose is mostly used as home, garden, farm, lawn and so on. Flow Process : layer extrusion inner-- mould die → spray cooling→ haul off→ fiber winding→ oven dryness→ outer layer extrusion→ mould die → spray cooling→ haul-off→ printer→ winder

Quantity:




Inquire Add to Basket

Model:
SN-PVCH25
Brand:
Sinotech

Name:
PVC Garden Hose Production Extrusion Line
After-sales Service Provided:
Engineers available to service machinery overseas
Motor Brand:
Siemens
Inverter:
ABB
Cooling Tank:
3m
Single Screw Extruder:
2 set
Co-Extruder:
1 set
Haul off Machine:
2 Belt
Hose Diameter Range:
1/2, 5/8,3/4,1inch
Color:
Customers' Require

Product Description

PVC garden hose extrusion/making machine

PVC Garden/Fiber Reinforced Hose Extrusion/Making Machine

PVC fibre reinforced hose extrusion/making machine, PVC reinforced garden hose extrusion machine, PVC hose machinery
PVC garden hose machine nowdays is widely used in many fields. i. e., pipe for cooking, conveying air, water, gas, oil and other kind of fluid. PVC garden hose machine recent years interest many customers due to its own special features.

PVC garden hose machine has a good market in worldwide. We can supply PVC fibre reinforced hose production line with competitive price and high quality. PVC fibre reinforced garden hose extrusion machine is the special product developed by our company. PVC garden hose extrusion/production line is mainly used to manufacture fiber-reinforced hose for fluid conveying.

PVC garden hose machinery mainly consists of extruder, spray water tank, traction engine, kinttng machine and reeling machine. PVC fibre hose extrusion/production line is suitable for PVC fibre abraided reinforced transparent hose machine as well.

The most important is that, We are responsible for technology, manufacturing, installing, training, adjusting, commissioning and maintance in the whole process about PVC fibre reinforced hose extrusion machine.

Main Features

PVC Fiber reinforcing hose production line/PVC soft Pipe making machine/pvc garden hose production line
Application:
This line is designed to produce PVC fiber reinforced hose ,the wall of which is three layers, outer and inner layer are soft PVC hose ,middle layer is Terylene fiber network, which has good chemical and physical property .It is mainly used for the transportation of high pressure or corrosive gas,and is widely used in the machinery,coal mine, oil, chemical, agriculture irrigation,gas and building.
Machine Advantage
1. High efficiency single screw extruder
2. It can produce PVC garden hose or pvc soft hose
3. The thickness is from 2mm to 6mm, diameter is from 10mm to 50mm
4. This pvc hose is mostly used as home, garden, farm, lawn and so on.

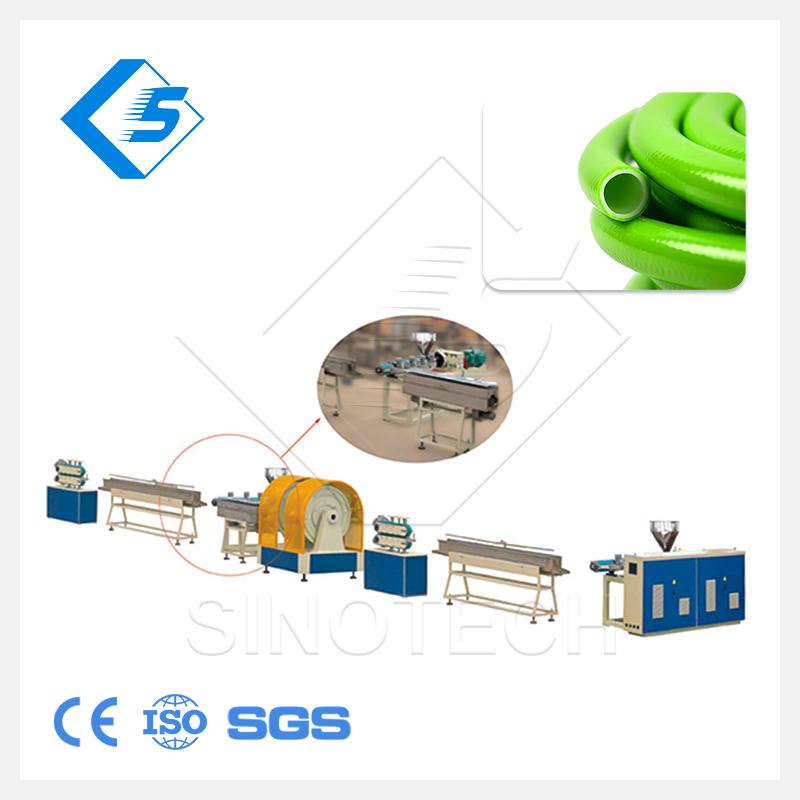

Flow Process :
layer extrusion inner-- mould die → spray cooling→ haul off→ fiber winding→ oven dryness→ outer layer extrusion→ mould die → spray cooling→ haul-off→ printer→ winder

Main Technical Parameter
PVC garden hose extrusion machine has its own main technical specifications as follows.

model	Long diameter ratio	Screw structure	Material	Screw diameter (mm)	Main frame power (kw)	Total power (kw)	Center height (mm)	Production Scale (mm)	Practical Area (m)
45/30	30: 1	Separative style	38crmnal	45	11	26	1000	Φ 6-16	11*3.5
65/30	30: 1	Separative style	38crmnal	65	18.5	36	1000	Φ 16-50	12*4

Details

Floor Plan

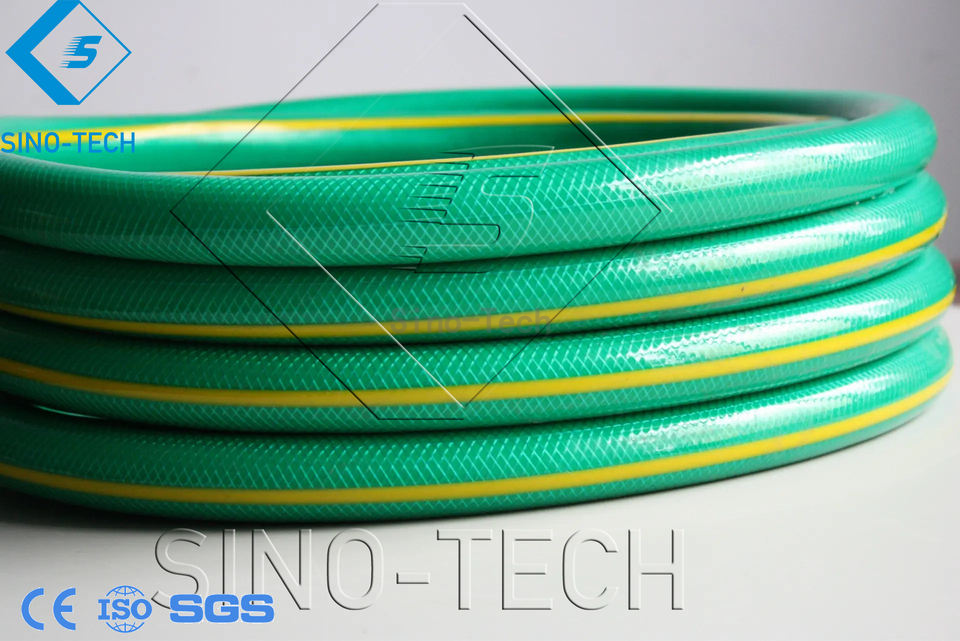

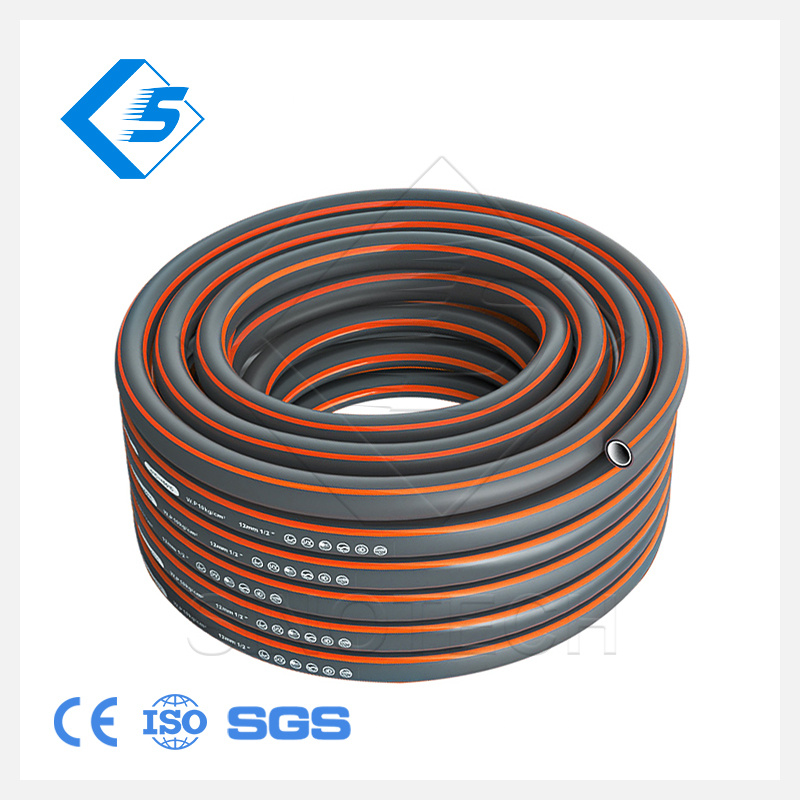

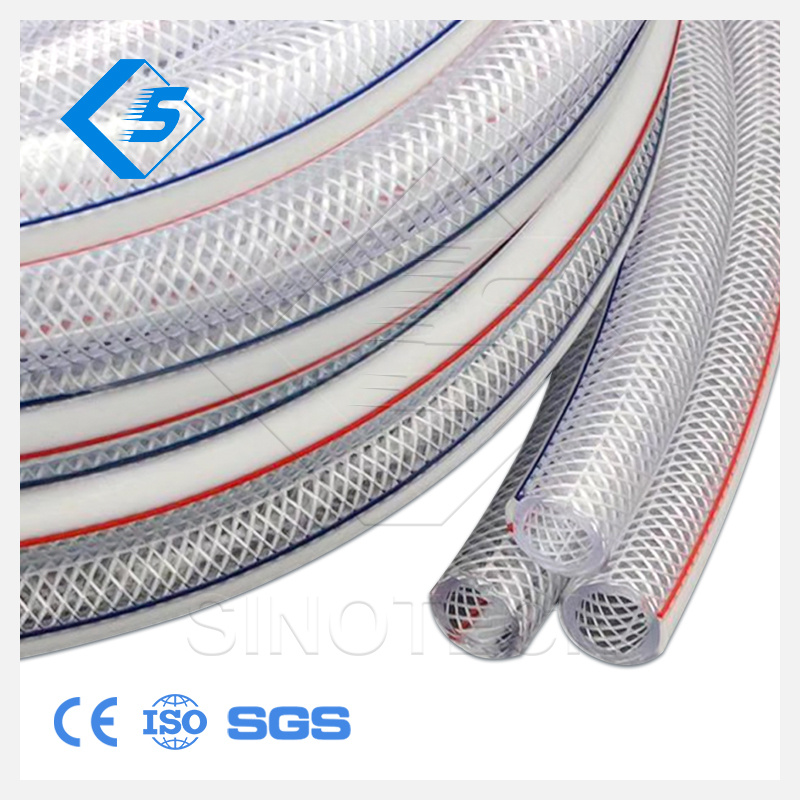

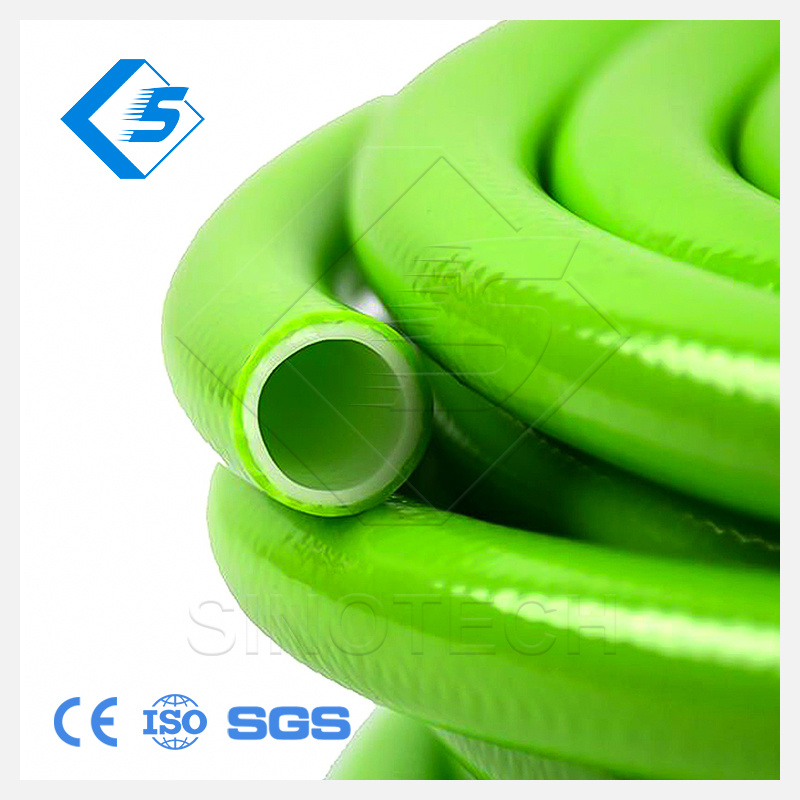

Final Product

Our Company

Packaging and Shipping

FAQ
1. who are we?
We are based in Jiangsu, China, start from 2011,sell to North America(30.00%),South America(20.00%),Western Europe(16.00%),Oceania(10.00%),Mid East(10.00%),Eastern Europe(5.00%),Southeast Asia(5.00%),Africa(4.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Extrusion Blow Molding Machine,Pet Blow Molding Machine,IBC Cage Production Line,Plastic Extrusion Line,Waste Plastic Recycling And Pelletizing Line

4. why should you buy from us not from other suppliers?
Our company have the strict system from the material purchase,machine part processing and inspect. We have the detailed Assemble prcess according to the machine Assemble structure. We test not one time before the machine delivery to the customer factory.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
