| Quantity: | |
|---|---|
SNPE-800
Sino-Tech
84772090
HDPE Pipe Extrusion Making Machine
16-1200mm
Shuguang
50-1000kg/H
Bimetalic
Siemens
ABB
Siemens Schneider
16months
Engineer Overseas Service
HDPE Pipe Extruder Making Machine

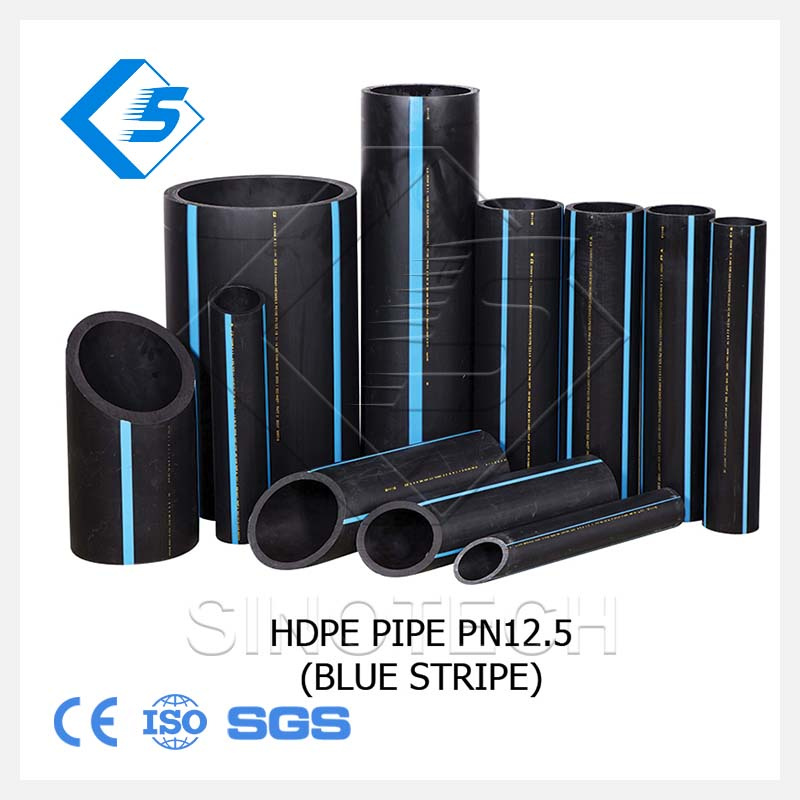

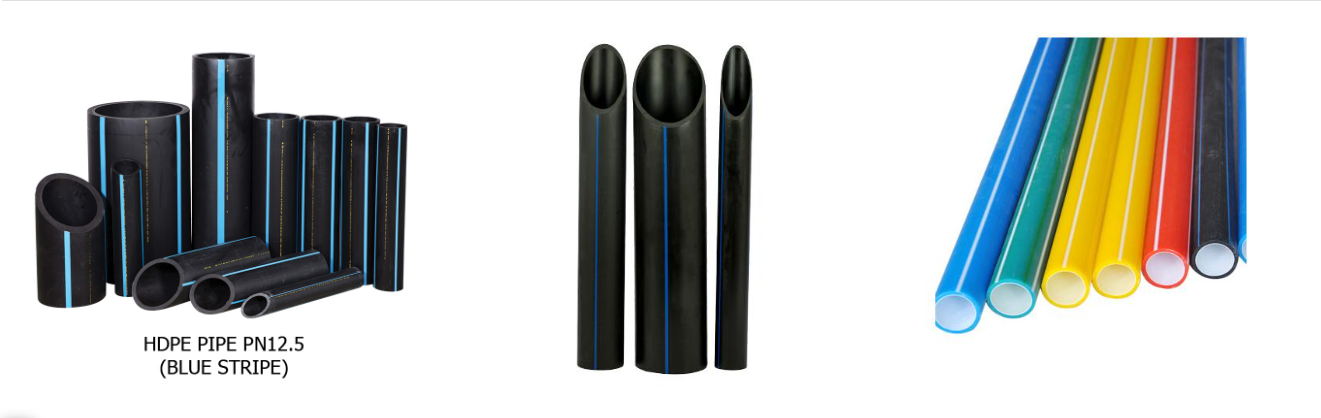

HDPE Pipe Making Machine Application:
1.for HDPE pipe production used in Urban tap water pipe network system
Large diameter PE pipe, health non-toxic, not fouling, more suitable for urban water supply main conduit and buried tube, safety, hygiene, convenient construction.
2. Agricultural irrigation pipe
PE pipe inside sleek, great flow, cross road construction, good impact resistance, it is the ideal tool for agricultural irrigation.
3.Industrial materials duct
Chemical industry, chemical fiber, food, forestry, pharmacy, light industry and papermaking, metallurgical and other industrial raw material conveying pipe.
4.Landscaping water supply network
Landscaping need lots of water pipe, PE pipe toughness and low cost, make it become the best choice.
5.Sewage discharge pipes
PE pipe have unique corrosion resistance, can be used in industrial wastewater, sewage discharged pipe,low costs and maintenance costs .
HDPE Pipe Machine Extrusion Process flow:

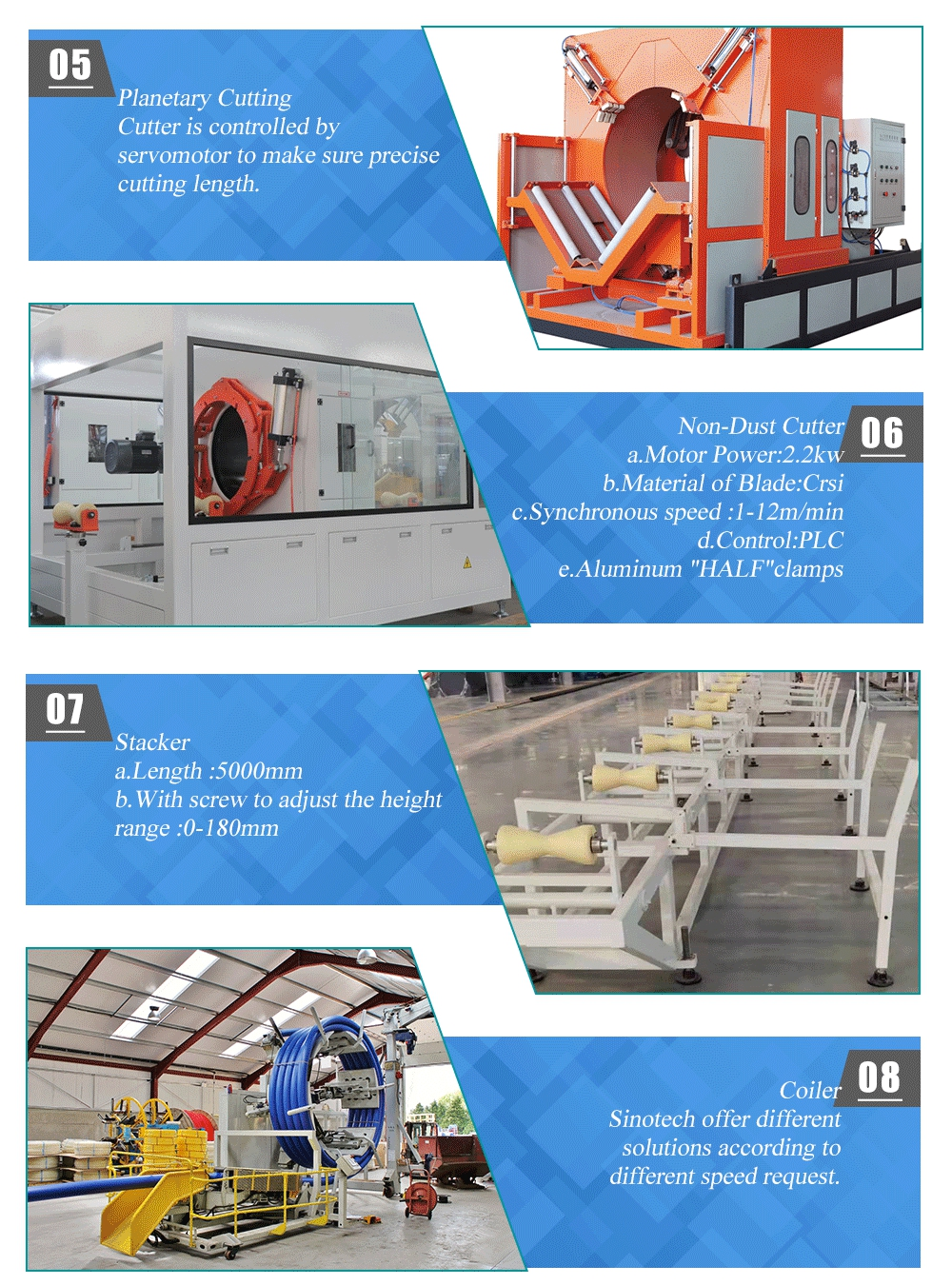

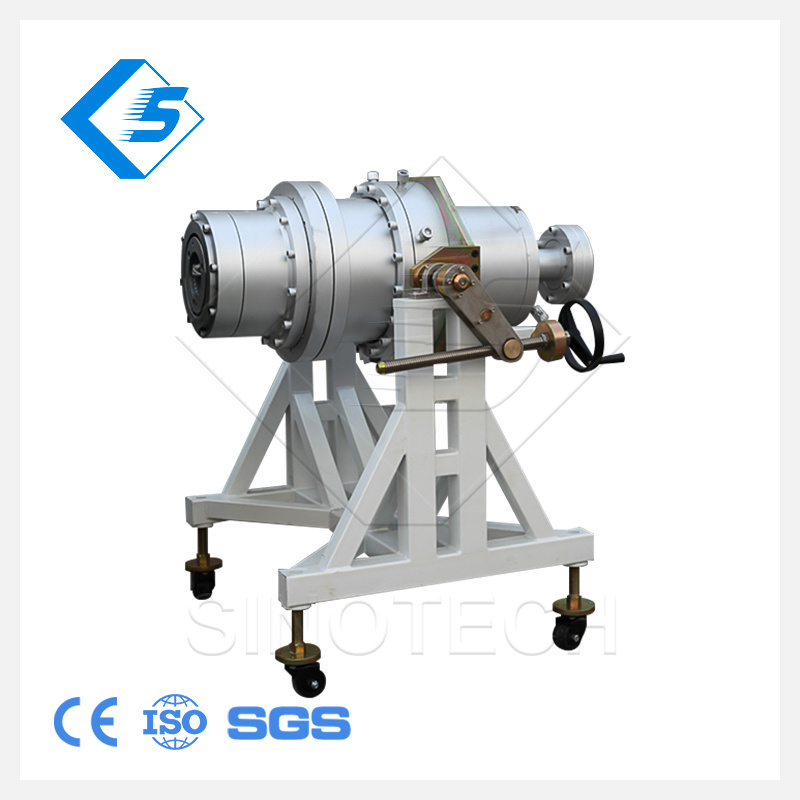

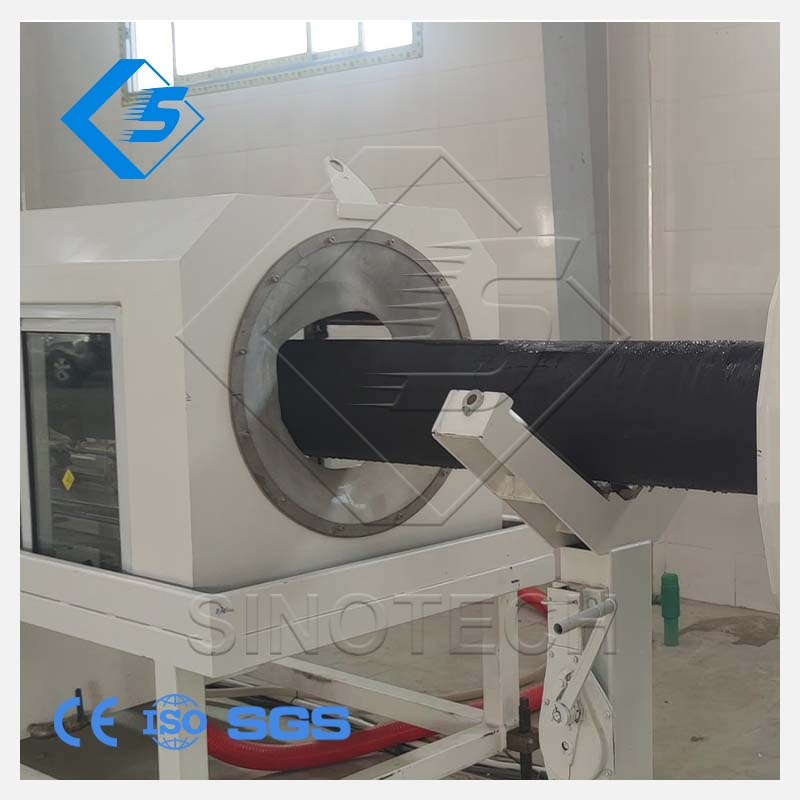

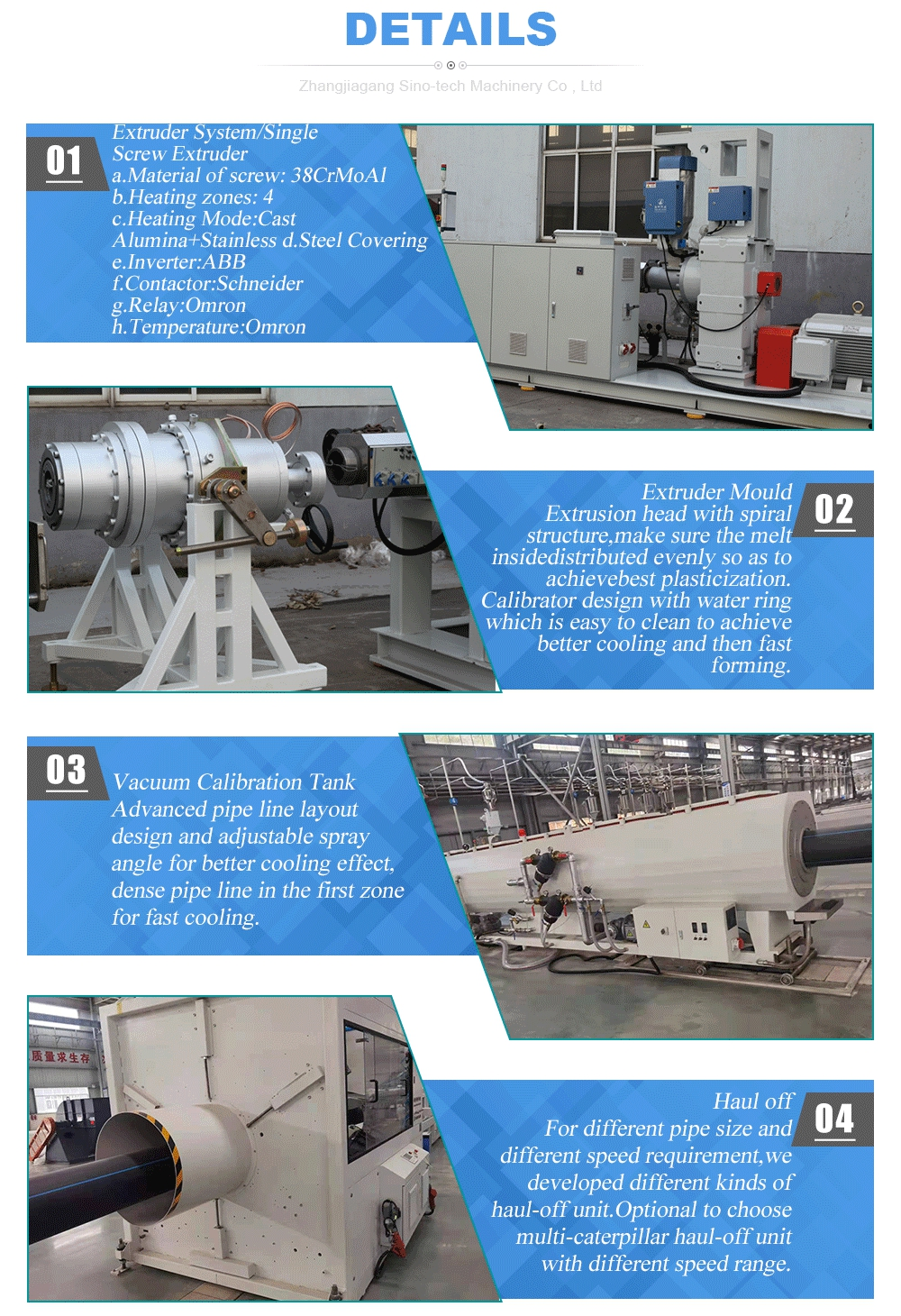

Raw material + master batches →mixing →vacuum feeding → material dryness →single screw extruder → four-color string extruder → basket-style mould → calibrator → spray vacuum calibration tank → spray vacuum calibration tank → spray cooling water tank → spray cooling water tank → color-ribbon printer → belt haul-off → planet cutter → pipe rack → finished product inspecting & packing
Technical parameters of HDPE pipe Extrusion Line:
| Model | Screw diameter (mm) | L/D | Pipe range (mm) | Main motor power(kw) | Total power (kw) | Line length (m) |
| PE-63 | 65mm | 33:1 | 16-63 | 37 | 80 | 24 |
| PE-110 | 65mm | 33:1 | 75-110 | 55 | 110 | 30 |
| PE-160 | 75mm | 33:1 | 90-160 | 90 | 150 | 32 |
| PE-250 | 75mm | 33:1 | 110-250 | 110 | 200 | 42 |
| PE-315 | 90mm | 33:1 | 160-315 | 160 | 240 | 44 |
| PE-400 | 90mm | 33:1 | 200-400 | 185 | 300 | 50 |
| PE-500 | 120mm | 33:1 | 250-500 | 280 | 350 | 56 |
| PE-630 | 120mm | 33:1 | 315-630 | 280 | 480 | 56 |
| PE-800 | 150mm | 33:1 | 400-800 | 315 | 550 | 72 |
