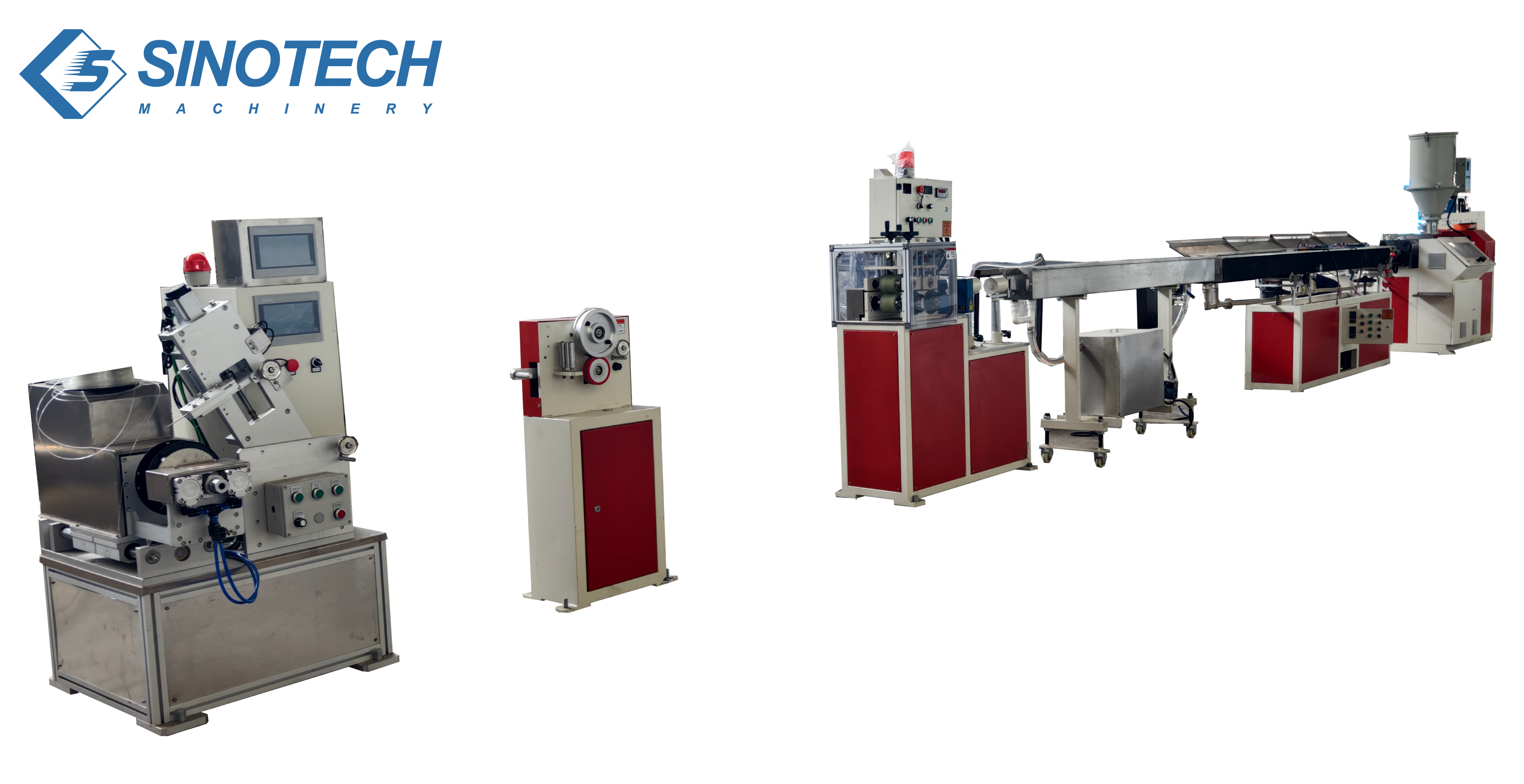

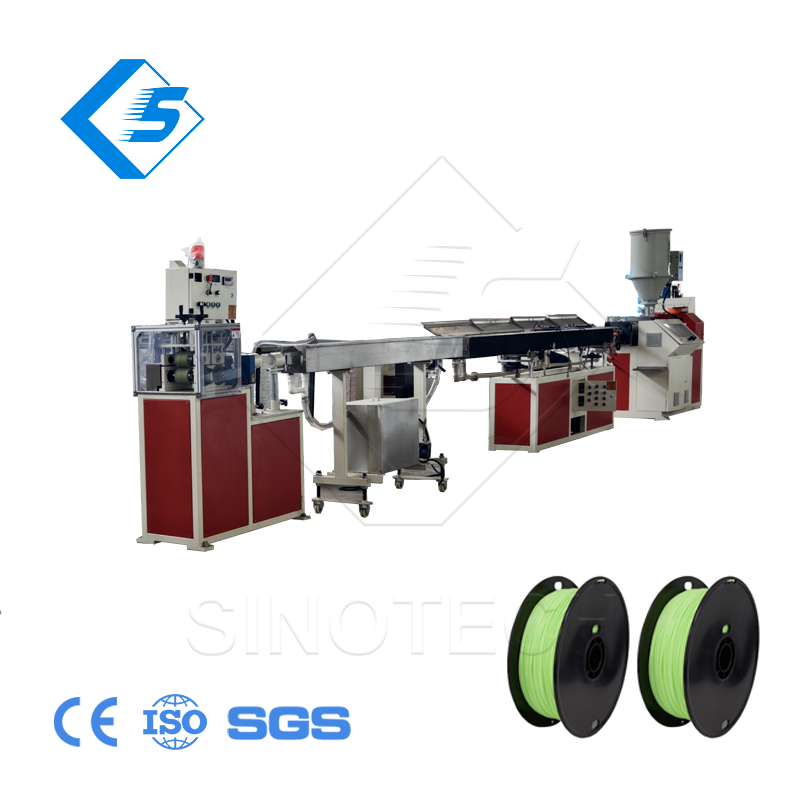

| No. | Machine List | Model | Qty(Set) |
| 1 | Single Screw Extruder Machine | SNSJ-35/28 | 2 |
| 2 | Extruder Co-Mould(2 color) | MJ-01 | 1 |
| 3 | Water Tank(Heating, 2+2m) | JRSC-4000 | 1 |
| 4 | Water Tank(Cooling, 2m) | SC-2000 | 1 |
| 5 | Device for filament storage(8m) | CX-8000 | 1 |
| 6 | Measuring&Tractor n Precision four-wheel tractor n Water blowing device n Laser Measurer(Singe Axis) | YTJ-400T | 1 |
| 7 | Servo Winder(Single Station) n Screen for record n Pneumatic cylinder control | SJ-02 | 1 |
| 8 | Hopper Dryer(50kg) | - | 1 |
| 9 | Vacuum Package Machine | - | 1 |
| 10 | Mixer(50kg) | - | 1 |
| Quantity: | |
|---|---|
1.Machine Request:
The Height of Machine Center: | 1000mm |
The Power of Machine supply: | 380V50Hz3Phase, 45kw |
The Color of Machine(Customized): | RAL3000(Red)+ RAL 9010(White) |
The Capacity of Machine: | 12-18kg/hx2sets+/-10% |
The Technical Training | Provide |
The Remote Techincal support | Provide |
2.Product Request：
Material Application:
| PLA, PLA Modification (ABS, PEFG, PC, PU, PLA, PLA Modification) |
Production Accuracy： | Ø1.75±0.05mm, 12-15 Rolls/h |
Appearance requirements: | Smooth Surface, Uniform Plasticization, Great Roundness, No Bulges, No Bubbles |
Disk Roller Replace: | Opening/Closing the winder Pneumatic Cylinder, Then Replace Disk Roller by manual |
Auxiliary necessary | Hopper Dryer, Vacuum package machine, Mixer |
1.Machine Request:
The Height of Machine Center: | 1000mm |
The Power of Machine supply: | 380V50Hz3Phase, 45kw |
The Color of Machine(Customized): | RAL3000(Red)+ RAL 9010(White) |
The Capacity of Machine: | 12-18kg/hx2sets+/-10% |
The Technical Training | Provide |
The Remote Techincal support | Provide |
2.Product Request：
Material Application:
| PLA, PLA Modification (ABS, PEFG, PC, PU, PLA, PLA Modification) |
Production Accuracy： | Ø1.75±0.05mm, 12-15 Rolls/h |
Appearance requirements: | Smooth Surface, Uniform Plasticization, Great Roundness, No Bulges, No Bubbles |
Disk Roller Replace: | Opening/Closing the winder Pneumatic Cylinder, Then Replace Disk Roller by manual |
Auxiliary necessary | Hopper Dryer, Vacuum package machine, Mixer |
