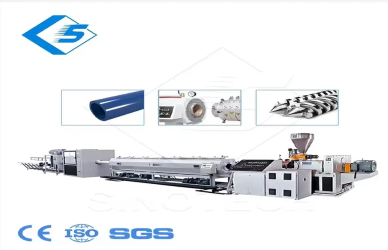

When selecting a Plastic Profile Extrusion Line, one of the most common and most important questions is about profile size range. Manufacturers need to know whether a line can produce small decorative trims, medium cable channels, or larger structural covers without sacrificing quality. This directly affects equipment investment, tooling planning, and product development decisions.
Profile size range also influences productivity and cost. A line that can technically produce a profile may still struggle to do so efficiently if cooling, calibration, or haul-off capacity is insufficient. That is why size range should be evaluated as a production capability, not just a catalog number. In real manufacturing, the practical size range depends on stable long-run operation, not only short test runs.
For this reason, understanding the size limits of a Plastic Profile Extrusion Line helps manufacturers avoid mismatched equipment and plan more reliable production.
In a Plastic Profile Extrusion Line, profile size range mainly refers to cross-section dimensions, including width, height, wall thickness, and cavity structure. Many people focus only on width, but two profiles with the same width can have very different processing difficulty if one is solid and the other is hollow or multi-cavity.
Wall thickness is another key factor. Thin-wall profiles may require precise control to prevent distortion, while thick-wall profiles need more cooling time and stronger dimensional stabilization. This is why profile size range is not simply a “max width” number.
A Plastic Profile Extrusion Line produces continuous profiles that are cut to required lengths, so profile length and profile cross-section should be evaluated separately. In most cases, the line can produce long products as long as downstream handling and cutting systems are properly configured.
The more critical limitation is usually cross-section size and complexity. A line that can cut profiles to any length may still be unable to produce a large or complex cross-section stably. Understanding this distinction helps buyers make better technical evaluations.
Suppliers may provide a theoretical size range for a Plastic Profile Extrusion Line, but actual production often has a narrower practical range. Theoretical capability may be based on ideal conditions, while real production includes material variation, tolerance requirements, and long-run stability concerns.
A profile may be possible during a short test, but not economical or stable in mass production. For this reason, manufacturers should focus on the practical size range under target materials, output speeds, and quality standards.
The extruder is a major factor in determining the size range of a Plastic Profile Extrusion Line. Screw diameter, motor power, and plasticizing capacity determine how much melt can be supplied to the die. Large or thick-wall profiles require more melt volume, while small profiles may require lower and more stable output control.
If the extruder is undersized, large profiles may suffer from unstable output or poor filling. If oversized, small profiles may become harder to control precisely. The best size range is achieved when extruder capacity matches the product family.
Die design directly affects whether a target profile can be produced with stable dimensions. In a Plastic Profile Extrusion Line, die flow channels must balance pressure and melt distribution across the profile cross-section. This becomes more difficult as the profile gets wider, thicker, or more complex.
Poor die design can cause uneven wall thickness, surface defects, or shape distortion, even if the extruder has enough capacity. This is why tooling precision is often as important as machine size when determining usable profile range.
Calibration and cooling systems strongly affect the practical size range of a Plastic Profile Extrusion Line. Large profiles, hollow sections, and thick walls need more support during shaping and more cooling capacity to maintain dimensional stability.
If calibration force is insufficient or cooling is uneven, the profile may warp, shrink irregularly, or lose tolerance. Thin-wall profiles can also be difficult because they are sensitive to vacuum balance and cooling rate. In many cases, calibration and cooling—not the extruder—become the real size-limiting factors.
The haul-off and cutting systems also define what a Plastic Profile Extrusion Line can handle. Large or heavy profiles need adequate pulling force and stable traction, while small or soft profiles require precise tension control to avoid deformation.
Cutting systems must also match profile size, wall thickness, and line speed. A mismatch can cause poor edge quality, vibration, or inconsistent lengths, which affects downstream assembly and product acceptance.
Different materials can change the size range of the same Plastic Profile Extrusion Line. PVC, PP, ABS, PC, and PMMA have different melt strength, shrinkage behavior, and cooling sensitivity. As a result, a profile size that runs well in one material may be difficult in another.
For example, some materials may need slower speeds or longer cooling for larger profiles, while others may handle thin-wall sections more easily. Material selection must therefore be included in any realistic size range evaluation.
A Plastic Profile Extrusion Line can usually be discussed in terms of small, medium, and large profile categories. Small profiles include narrow trims, edge bands, and light-duty channels, often produced at relatively high speed. Medium profiles include cable ducts, appliance trims, and functional channels, which are common in many general-purpose applications.
Large profiles may include wide building trims, structural covers, or multi-cavity sections. These typically require lower line speed, stronger calibration support, and more cooling capacity. The line may still produce them, but output efficiency and stability must be verified.
At the same width and height, thick-wall and thin-wall profiles can behave very differently on a Plastic Profile Extrusion Line. Thick-wall profiles need more melt volume and cooling time, while thin-wall profiles need more precise control to avoid collapse, twist, or uneven thickness.
This means profile size range should always include wall thickness information, not just external dimensions.
Evaluation Item |
Why It Matters |
Typical Risk If Ignored |
Profile width & height |
Defines basic cross-section size |
Profile may exceed tooling/cooling capability |
Wall thickness |
Affects melt demand and cooling time |
Warping, sink, unstable dimensions |
Cavity structure |
Increases forming complexity |
Collapse, poor tolerance control |
Material type |
Changes melt strength and shrinkage |
Instability, surface defects |
Output target (kg/h or m/min) |
Impacts line load and cooling demand |
Cannot reach required capacity |
Tolerance requirements |
Determines needed process precision |
Rejection in assembly/use |
Calibration capacity |
Supports early shape stability |
Deformation after die exit |
Cooling length/capacity |
Controls solidification and shape retention |
Twist, bending, internal stress |
Haul-off force and control |
Matches extrusion output and profile weight |
Stretching or compression defects |
Cutting suitability |
Ensures clean length control |
Burrs, edge damage, length variation |
This checklist helps manufacturers evaluate whether a Plastic Profile Extrusion Line can reliably produce a target profile size under real production conditions.
Before finalizing equipment selection, manufacturers should start with a profile drawing that includes width, height, wall thickness, cavity details, and tolerance requirements. They should also define the material type, target output, and required surface quality. These details allow suppliers to provide a more accurate technical evaluation.
A trial run or sample production is often the best way to confirm the practical size range of a Plastic Profile Extrusion Line. Testing can reveal issues such as cooling bottlenecks, shape instability, or speed limitations before full investment or large-scale production.
Sometimes, but not always efficiently. A line may technically handle both, but tooling, cooling, haul-off control, and output settings usually need significant adjustment.
No. A larger motor increases output capacity, but die design, calibration, cooling, and downstream handling may still limit the maximum practical profile size.
Hollow profiles need more precise die flow balance and calibration support, so complexity increases even when external dimensions are similar to solid profiles.
No. Size range should include cross-section dimensions, wall thickness, cavity structure, material type, and tolerance requirements for a realistic assessment.
ConclusionThe profile size range of a Plastic Profile Extrusion Line depends on much more than extruder size. Die design, calibration, cooling, haul-off, cutting systems, material behavior, and quality requirements all determine what size profiles can be produced stably and efficiently.
For reliable results, manufacturers should evaluate profile size range based on practical production conditions, not only theoretical machine specifications. A detailed technical review and trial testing are the best ways to confirm whether a target profile size is a good fit for a Plastic Profile Extrusion Line.
