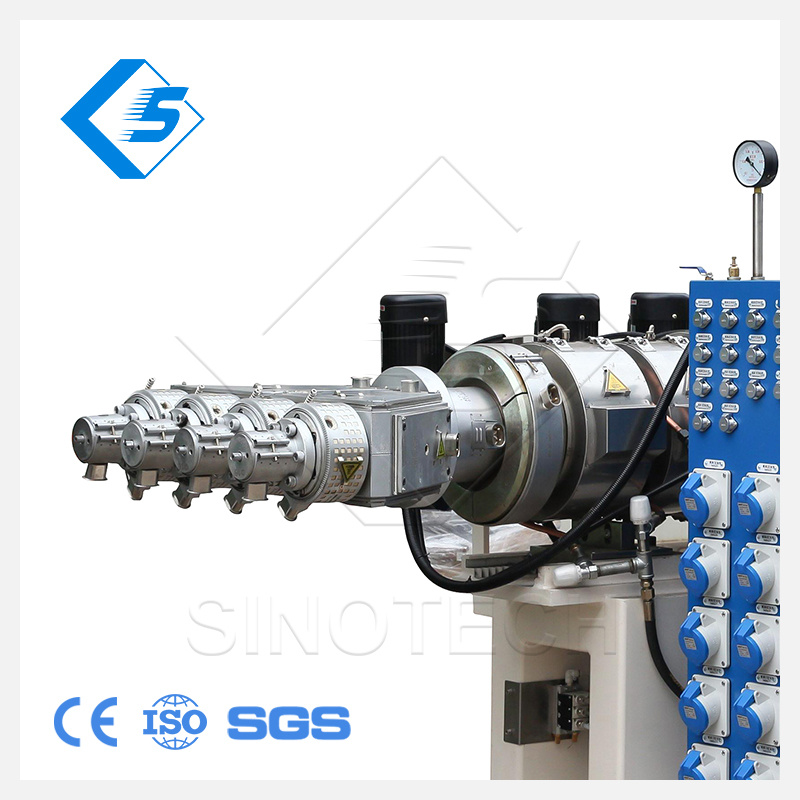

PVC conical twin screw extruder

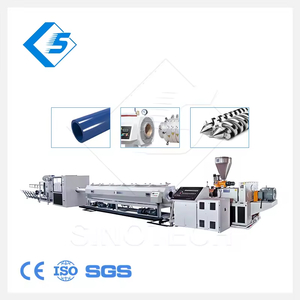

PVC conical twin screw extruder for pipe profile granule sheet

Conical Twin Screw Extruder machine is applicant for PVC powder material, with different mould and downstream equipment; It can produce pipe, profile, plate&sheet, and pelletizing. The extruder features in good plasticization, even melting, high output capacity, wide application and reliable stability, specially designed gearbox and distributor and reinforced thrust bearing realize large transmission torque and long operation time. Electrical control system: Siemens PLC/PCC auto control system or RKC temperature control, and ABB Invert/transducer, Siemens contactor, and several alarm system
  • SJZ45/90 51/105 55/113 65/132 80/156 92/188

  • Sino-Tech

  • 84772090

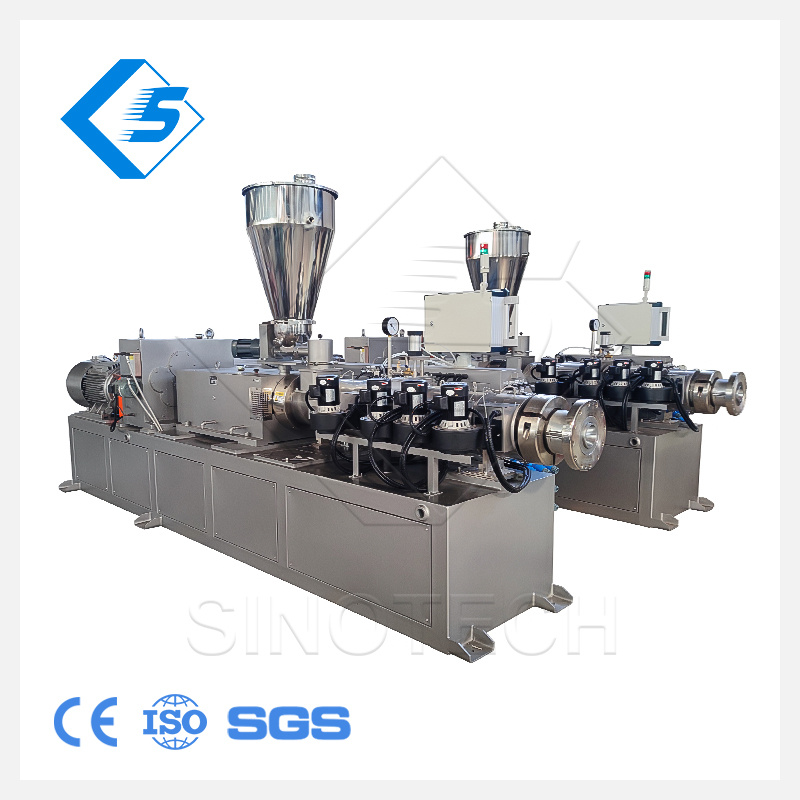

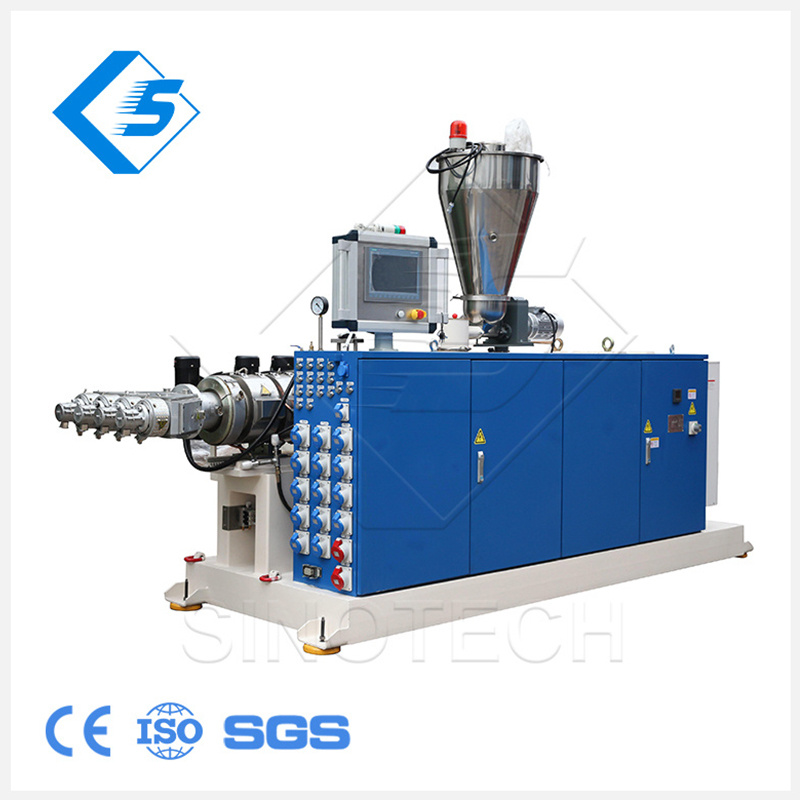

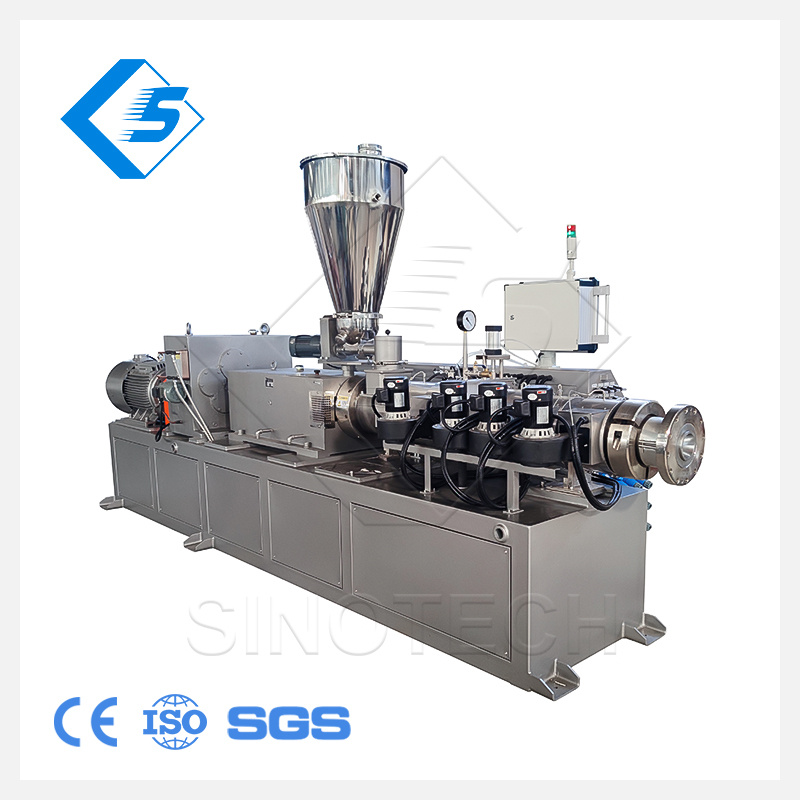

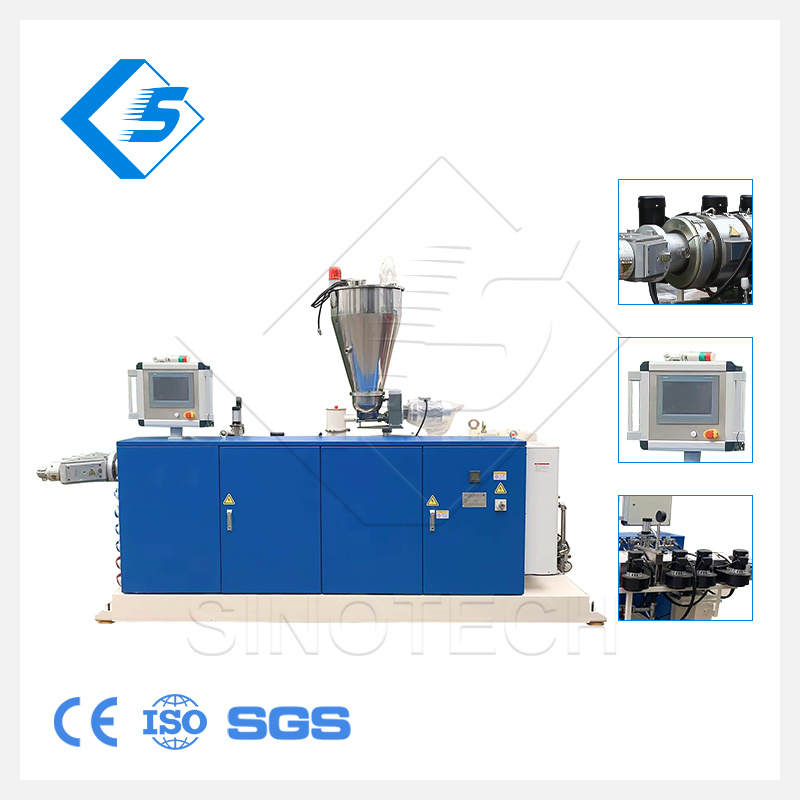

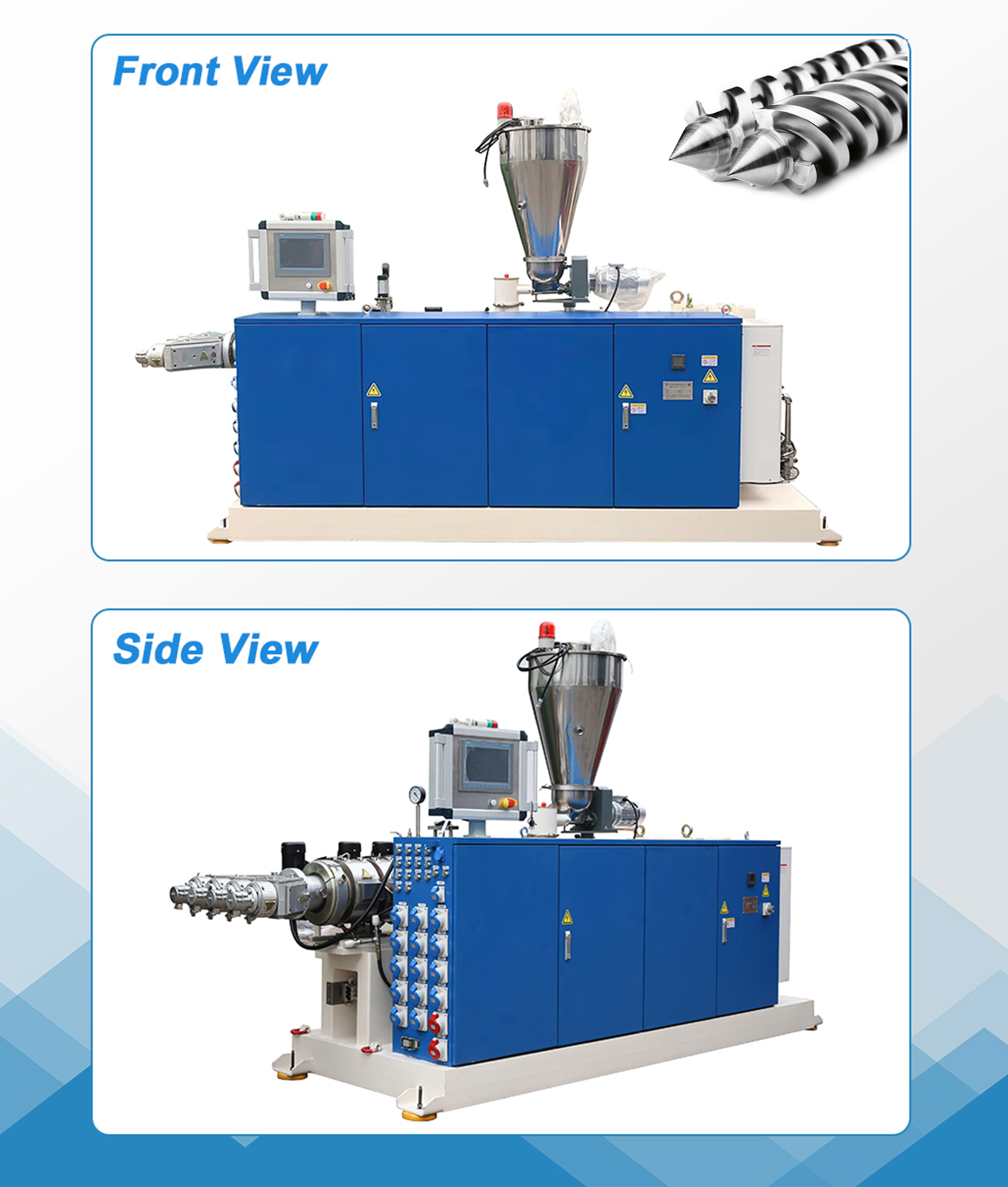

SNJZ Series Conical Twin Screw Extruder
SNJZ Series Conical Twin Screw Extruder Has The Features Of Good plasticization, Good Mixing,Extrusion Stable,high output,wide application and long Service life.

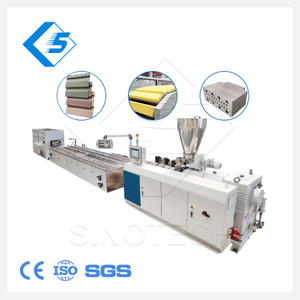

This type Extruder Can Produce PVC pipe,PVC WPC Window Door Profile,PVC floor,PVC Ceiling Wall Panel,PVC Edge Band, PVC Cable Trunking, PVC Foam Board, PVC Granule

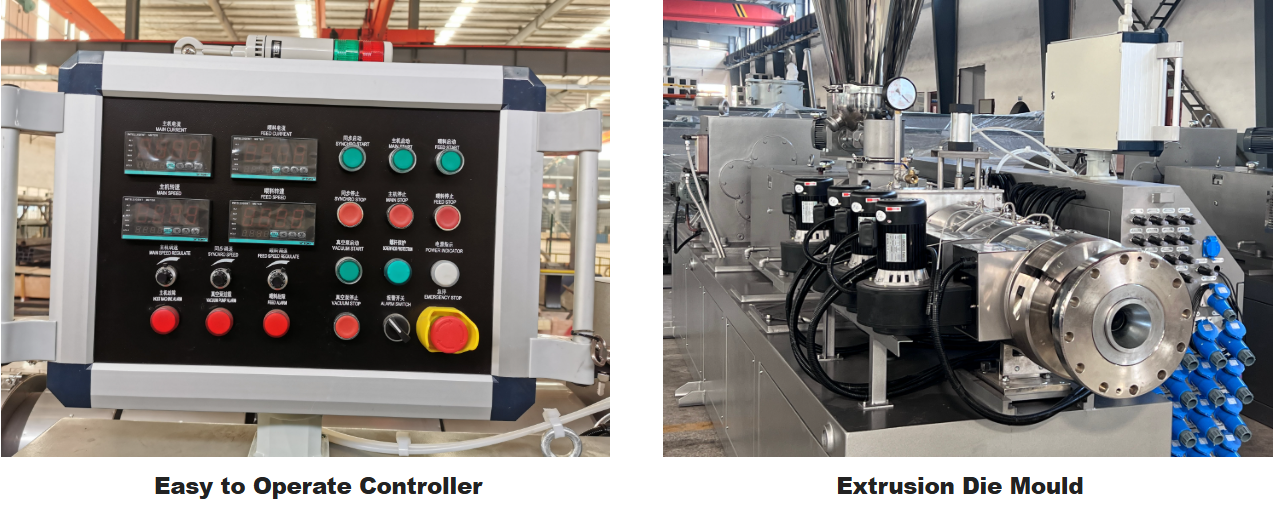

Digtial PLC control or Manual Temperature meter Control

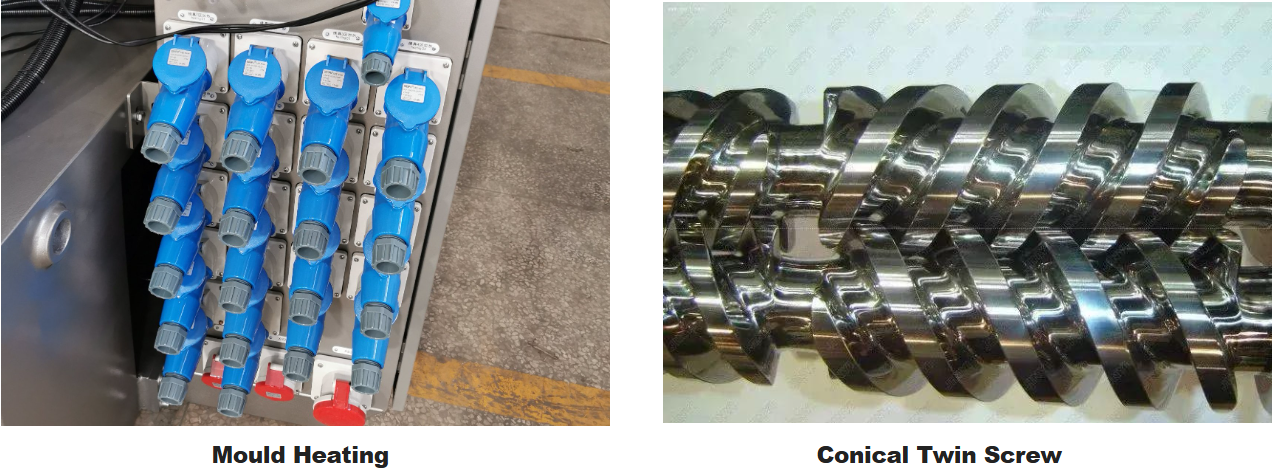

Special designed Scerw and Barrel for different Product and different Percentage Calcium Filler
Advanced Electric control system,Different section Trouble Alarm.
High performance Gearbox System for torque distribution
High efficient and low noise cooling system to to make sure low noise working.
High precise Temperature control system provide good Plasticization
Main Technical Paramter
Model Screw diamter(mm) Main Motor(kw) Feeding Motor(kw) Design Capacity(kg/h)
SNJZ45/90 45/90 15 1.1 70
SNJZ51/105 51/105 18.5 1.1 100
SNJZ55/113 55/113 22/30 1.5 150
SNJZ65/132 65/132 37 2.2 300
SNJZ80/156 80/156 55/75 2.2 400
SNJZ92/188 92/188 90/110 3 700
