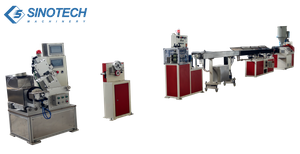

Sinotech ABS PLA PETG Plastic 3D Printer Filament Extrusion Line
Professional Rainbow Colour Filament Making Machine has been used by designers, engineers, and scientists to produce disposable mechanical products and models, and it is already widely used in health care, education, toys, buildings, automobiles, electronics, and the anime field.
Information on the PLA, PA Nylon, PC,and HIPS, and ABS filaments
●ABS filament process temperature is 230-260° C, melting point is 230° C
●PLA 3D printer filament is 210-235°C, melting point is 200°C
●PVA temperature for printer is 180°C-200°C.The melting point is 200°C.
●PA Nylon temperature for printer is 220°C-250°C. The melting point is 260°C
●PC temperature for printer is 230°C-250°CMelting point is 260°C.
●HIPS filaments temperature for printer is 160°C-220°C, Melting point is 230°C.

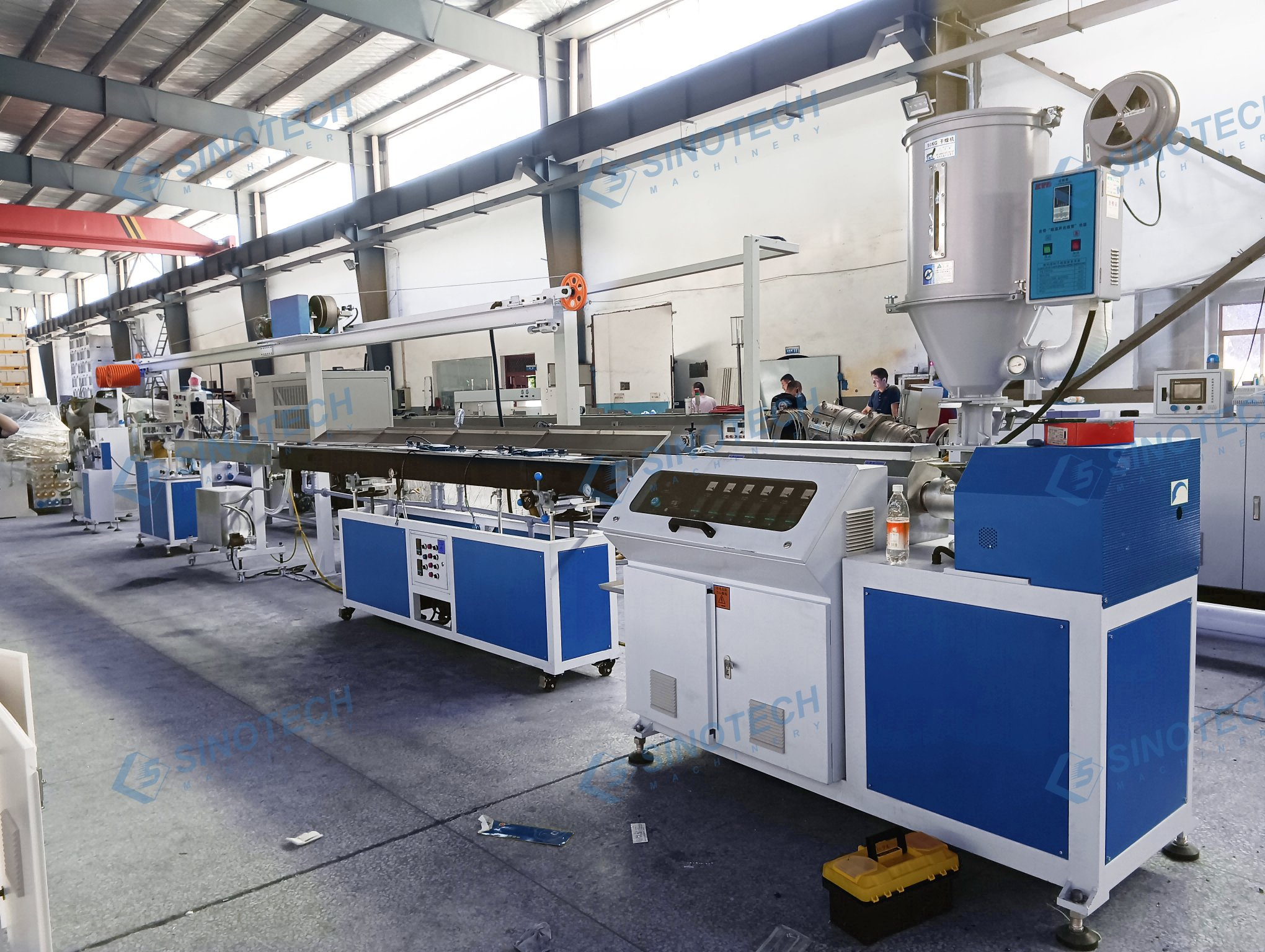

Production Process of 3D Printer ABS PLA Filament Extruder
Raw plastic material is mixed and fed into the extruder. The extruder shapes the material using a mold, and the formed product goes through a hot water tank for further shaping. It then enters a cooling water tank to cool down. A laser gauge is used to measure the diameter of the product for quality control purposes. The traction machine pulls the product, while an accumulator stores the wire. Finally, the winding machine automatically winds the product.
The characteristics of 3D Printer Filament Extruder machine
●The 3D Printing Filament Slik Extruder is equipped with a high-precision Siemens PLC control system.
●The entire line operates with a servo motor and precision gearbox drive, ensuring stable extrusion, smooth running, and accurate speed control.
●The FLD production line incorporates an Automatic Feedback System for improved efficiency.
●All devices on the line are centrally controlled through a computer screen, enabling easy and convenient operation.
Sinotech ABS PLA PETG Plastic 3D Printer Filament Extrusion Line
Professional Rainbow Colour Filament Making Machine has been used by designers, engineers, and scientists to produce disposable mechanical products and models, and it is already widely used in health care, education, toys, buildings, automobiles, electronics, and the anime field.
Information on the PLA, PA Nylon, PC,and HIPS, and ABS filaments
●ABS filament process temperature is 230-260° C, melting point is 230° C
●PLA 3D printer filament is 210-235°C, melting point is 200°C
●PVA temperature for printer is 180°C-200°C.The melting point is 200°C.
●PA Nylon temperature for printer is 220°C-250°C. The melting point is 260°C
●PC temperature for printer is 230°C-250°CMelting point is 260°C.
●HIPS filaments temperature for printer is 160°C-220°C, Melting point is 230°C.
Production Process of 3D Printer ABS PLA Filament Extruder
Raw plastic material is mixed and fed into the extruder. The extruder shapes the material using a mold, and the formed product goes through a hot water tank for further shaping. It then enters a cooling water tank to cool down. A laser gauge is used to measure the diameter of the product for quality control purposes. The traction machine pulls the product, while an accumulator stores the wire. Finally, the winding machine automatically winds the product.
The characteristics of 3D Printer Filament Extruder machine
●The 3D Printing Filament Slik Extruder is equipped with a high-precision Siemens PLC control system.
●The entire line operates with a servo motor and precision gearbox drive, ensuring stable extrusion, smooth running, and accurate speed control.
●The FLD production line incorporates an Automatic Feedback System for improved efficiency.
●All devices on the line are centrally controlled through a computer screen, enabling easy and convenient operation.
Technical Parameters Of 3D Printer Filament making machine
SN-25 Mini 3D printer filament Extrusion | |
Control System | PLC touch screen |
Feed back control system | Between laser gague and screw speed |
power consumption and power supply | 6KW Triphase 380/50 Hz |
Raw Material | ABS/PLA/PETG/WPC |
Filament Diameter: | 1.75 mm. / 3 mm. |
Diameter tolerance | 0.05mm |
Output Capacity | 2.5-3kg/h |
Hopper drier: one set | 12KG Volume |
Main Motor Power | 2.2KW |
Max. Heating Temp. | 300degree |
Heating Power: | 3KW |
Machine Size | 3000*600*1800mm |
Machine net weight | 480KG |
Machine gross weight | 450KG |
Screw | Single screw Extruder |
Diameter | 25 mm. |
L/D | 28:1 |
Raw material | 38CrMoAlA |
surface treatment | Nitrogenization and polished |
Inner surface treatment | Nitrogenization and polished |
Barrel | |
Material | 38CrMoAlA |
Inner surface treatment | Nitrogenization and polished |
The nitride layer thickness | 0.5~0.7 mm. |
The surface hardness | HV850~940 |
Heating control zone | 6 |
Mould, a connecting body | 1 |
Water tank | 1 SET |
Raw material | 304# |
Size | 1200x100x120mm |
Single Axis Laser gauge unit | 1 SET |
Model NO | LST-25 |
Measurement range | 0-25mm |
Fouor wheel puller | 1 SET |
Rated Power | 0.37KW |
Control style: | Inverter control |
Diameter of wheel | Φ80 mm |
Material of wheel | PU rubber coated |
Single Auto winder | 1 SET |
Applicable spool size | Max.diameter : 300 mm. Width:100 mm. |
Power | 0.37W |
Control style | inverter control |
Drive | Timing belt control |
machine frame | SS steel machine frame |
