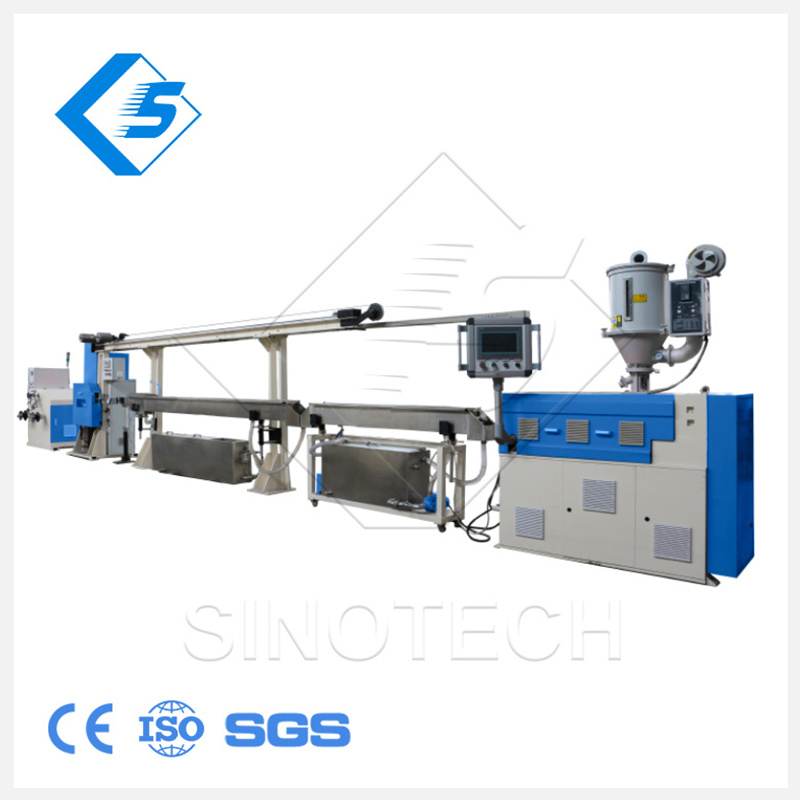

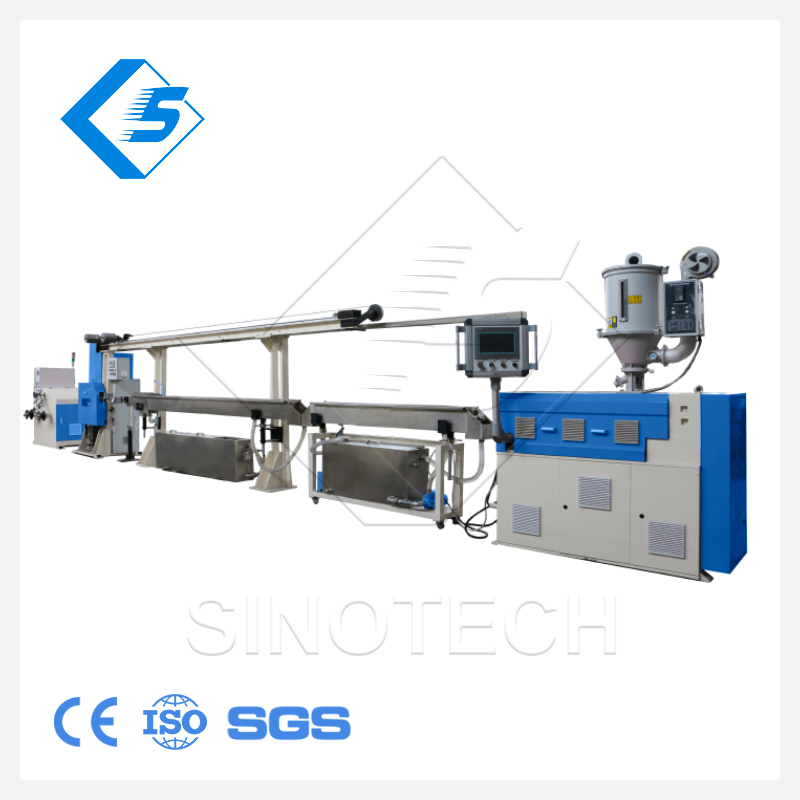

Single Color 3D Printer Filament Extrusion Line
Feature:
1. Information of the PLA, PA Nylon, PC ,and HIPS and ABS filaments,
2. ABS filament process temperature is 230-260° C,melting point is 230° C
3. PLA 3D printer filament is 210-235°C, melting point is 200°C
4. PVA temperature for printer is 180°C-200°C.Melting point is 200°C.
5. PA Nylon temperature for printer is 220°C-250°C.Melting point is 260°C
6. PC temperature for printer is 230°C-250°CMelting point is 260°C.
7. HIPS filaments temperature for printer is 160°C-220°C,Melting point is 230°C.
Detailed information :
1. Produce process
I . Before produce extruding filament ,we will dry ABS and PLA for a enough time (1-1.5 hours).
II. Mix with colors masterbatch or colors powder, all which .
III. Adjust temperature and dragging rate , make filament diameter range at 1.7-1.8mm/2.95-3.05mm, roundness +/-0.05mm, each spool net weight 1kg+/-0.02kg
1.Machine Request:
The Height of Machine Center: | 1000mm |
The Power of Machine supply: | 380V50Hz3Phase 45kw |
The Color of Machine(Customized): | RAL3000(Red)+ RAL 9010(White) |
The Capacity of Machine: | 20-40kg/h+/-10% |
The Technical Training | Provide |
The Remote Techincal support | Provide |
2.Product Request：
Material Application: | (ABS, PEFG, PC, PU, PLA, PLA Modification) |
Production Accuracy： | Ø1.75±0.05mm, 12-15 Rolls/h |
Appearance requirements: | Smooth Surface, Uniform Plasticization, Great Roundness, No Bulges, No Bubbles |
Disk Roller Replace: | Opening/Closing the winder Pneumatic Cylinder, Then Replace Disk Roller by manual |
Auxiliary necessary | Hopper Dryer, Vacuum package machine, Mixer |
FAQ
Q: Can we visit your factory?
Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.
Q: How can we get the exact price of plastic machine?
Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation.
Q: Do you provide any spare parts with machine?
Yes, we offer all necessary spare parts before shipment.(contact us for packing list )
Q: How about your after-sale service ?
We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.
Q: What is the lead time?
For customized machine, it takes about 45-60 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)
Q: What is the warranty period for your machine ?
12 months warranty for components and technical support .
Q: Do you provide custom machines?
Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.
Q: How can we install the machine when it arrives?
We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.
Q: What's the advantage of SINOTECH?
We provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.
