Over 20 years' Experience With Automatic Blow Molding Machine
Email us : sales@sinotechmachine.com
 |
| Quantity: | |
|---|---|
STB-120L
Sino-Tech
84774010

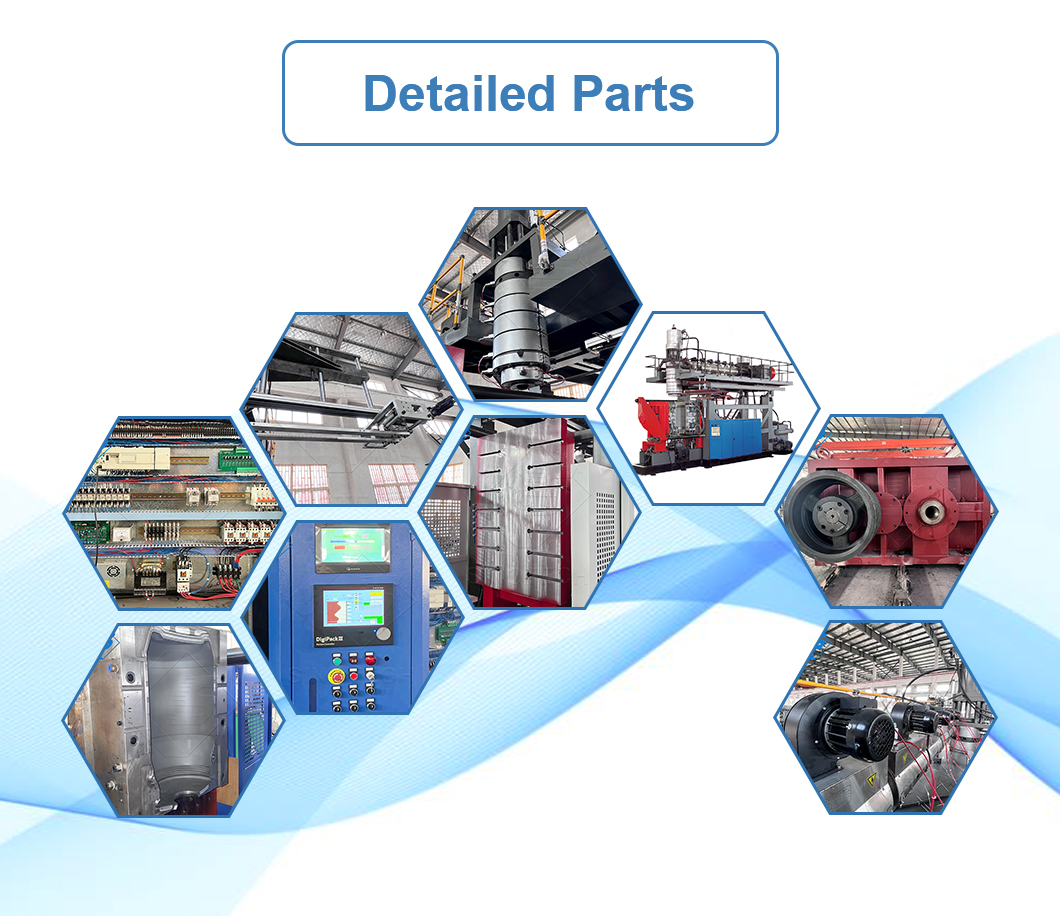

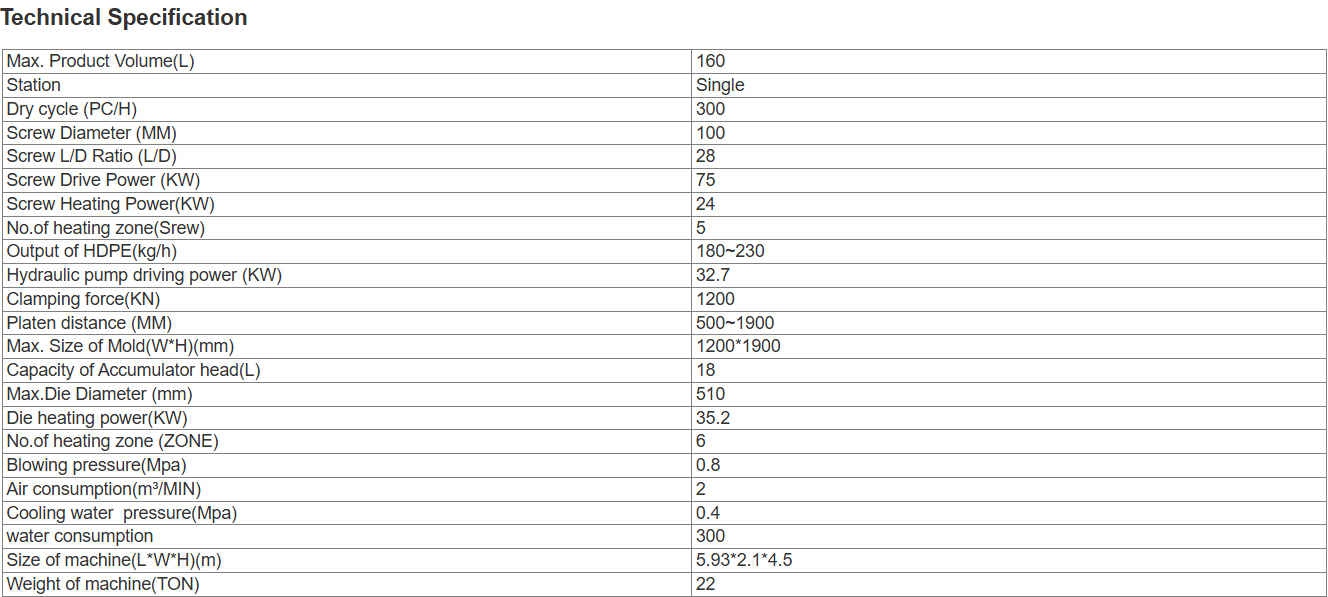

| Item | Code Item | Standard Code | Manual | Note |

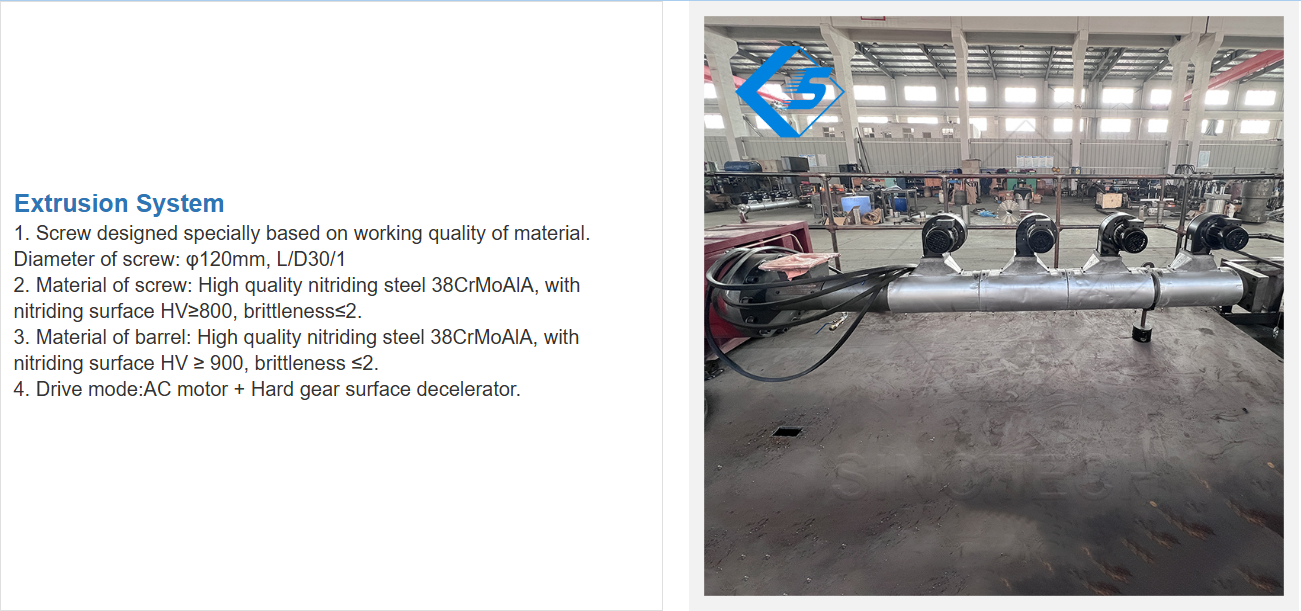

| Extruder | Max. Capacity | 30-120L | Accumulator, single station | |
| | Main screw | Φ90mm | High efficiency of mixing | |
| | Screw L/D | 28: 1 | | |
| | Screw material | | 38CrMoALA | |
| | Max. Extruder consumption | 130~160KG/Hr | Take HDPE for example, change with material density | |

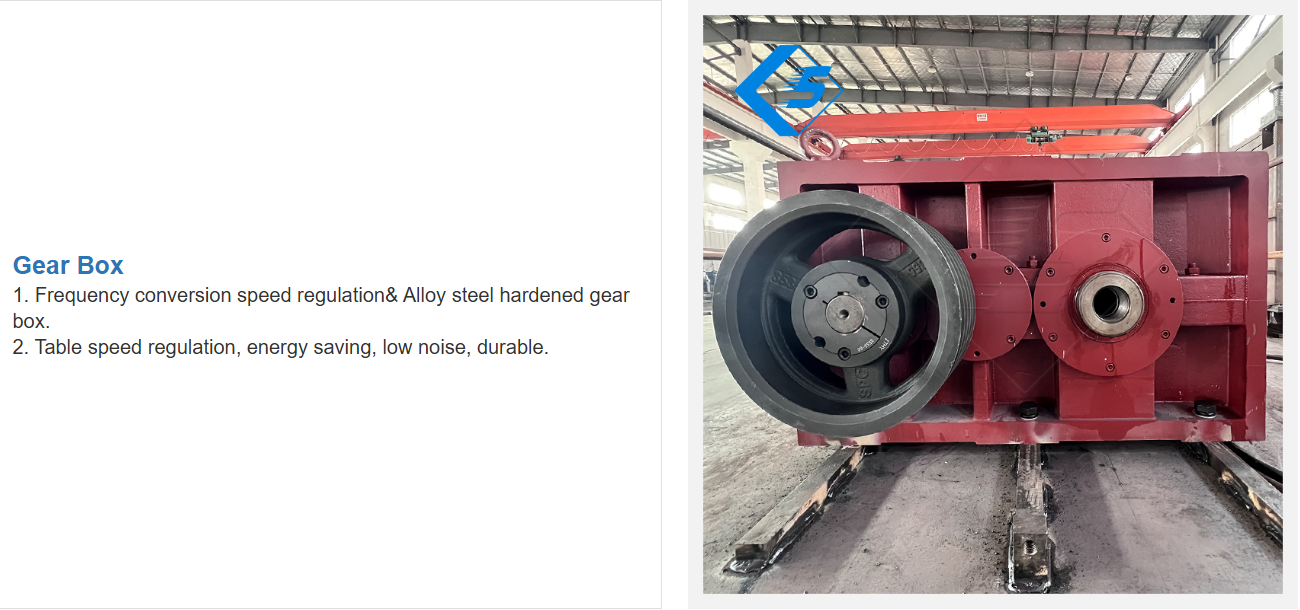

| | Twisting transition method | Electrical machinery, Gear box, Leather belt transmission | Hard gear surface decelerator | |
| | Driving motor | 45KW | | |
| | Screw rotate speed | 10---70V/min | | |
| | Ahead/back adjusting | Yes | | |
| | Up/down adjusting | Yes | | |
| | Temperature control zone | 5 | Japan MTSIUBISHI | |
| | Heating power | 3φ7.3KW | | |

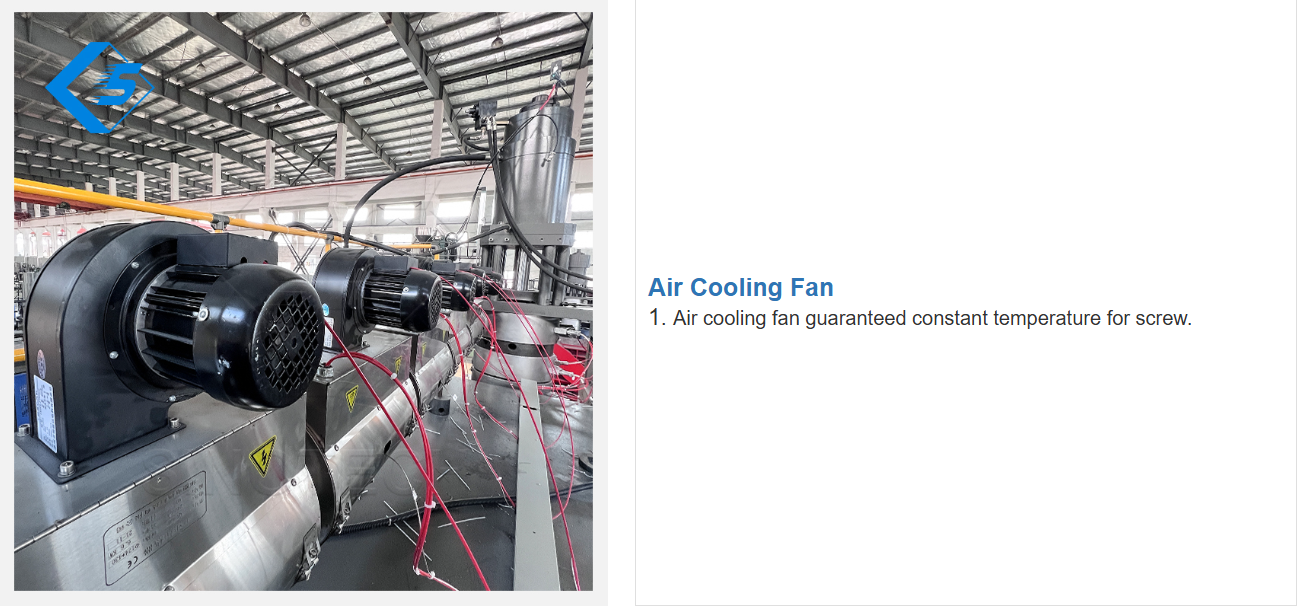

| | Cooling for blower | 5 | | |
| | Cooling function | Yes | Cooling water | |
| Clamping unit | Structure | | With patented TONGDA two-bar timing clamping structure in high speed and high force, to achieve quality products | |
| | Clamping directions | Ball rail | For high precise location for longer service life. | |
| | Clamping speed | 600mm/sce; 42m/min | | |
| | Max. Mold dimension | 700*950mm | W*H | |
| | Mold opening stroke | 450~1000 mm | | |
| | Platen distance | 450~1000 mm | Min.~Max. | |
| | Clamping force | 260 KN | | |
| | Mould thickness scope | 260~400 mm | | |
| | Fixing pattern of mold | Mold press platen | | |
| | Mold opening/closing stroke control | Inducing switch+moving | Discriminate mold opening/ closing end, mold opening/ closing slow speed, | |
| | Light Electric safety protect | FRDTEK | Taiwan | |

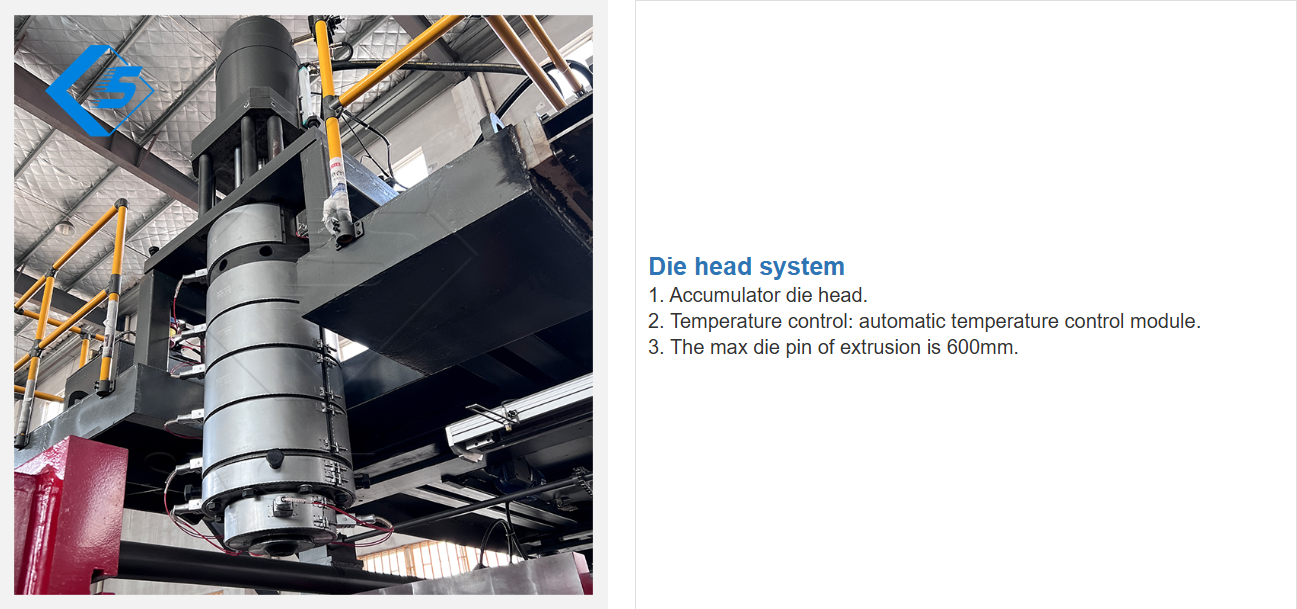

| Die head | Form | Accumulator | First in, first out | |
| | Material | | 38CrMoALA, inner mirror treatment | |
| | Accumulator volume | 6.6L | | |
| | Die dimension size | Φ60~ 350mm | Min.~Max. | |
| | Heating method | | Stainless steel heating ring, precision+ 1% | |
| | Temperature control zone | 4 | | |
| | Blow-air | Yes | | |
| | Adjusting of parison thickness | Yes | MOOG 100-point | |
| | Injecting stroke control | | Accumulator electronic ruler + limit switch | |
| | Adjusting method of thickness | Inner mold adjusting | | |
| | Adjusting output at axial direction | + 2.5mm | | |
| | Injecting pressure | 75~140mm | TongDa 10-point pressure adjusting control | |
| | Max. Injecting speed | 1.6kg/sec | Not sure | |
| Top blowing | Blow-air control method | | Discriminate high/low blow-air | |
| Side blowing | Blow-air control method | | Discriminate high/low blow-air | |

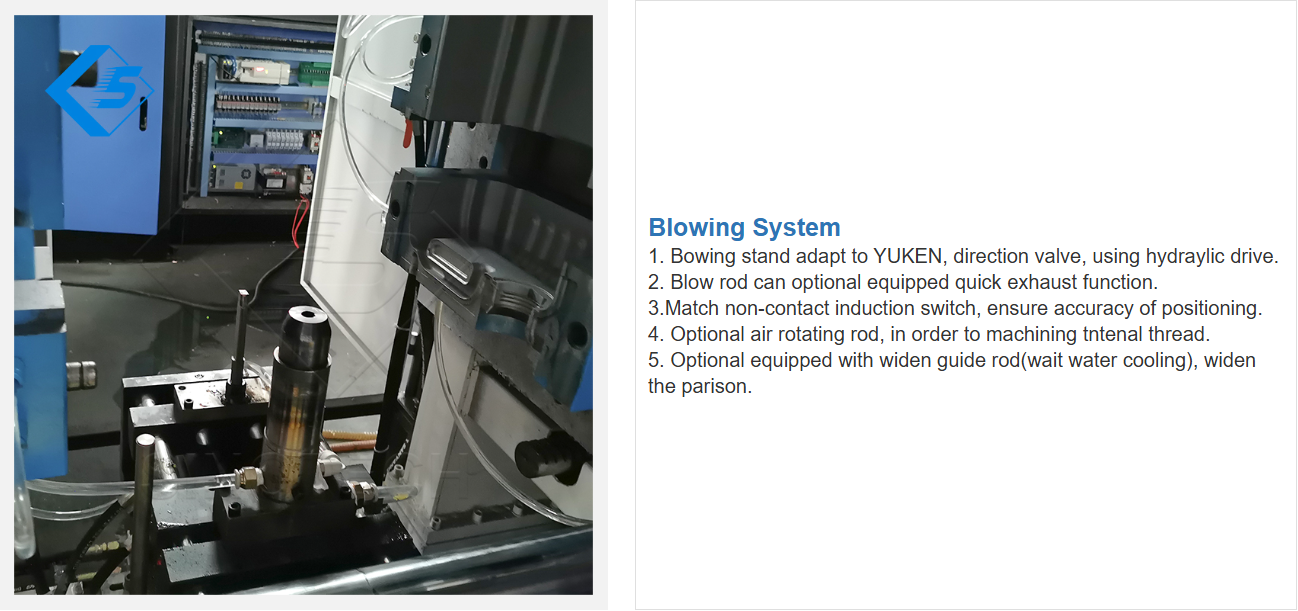

| Bottom blowing | Blow pin stroke control | Inducing switch | Discriminate blow pin up/down end | |
| | Blow-air control method | | Discriminate high/low blow-air | |
| | Blow pin cooling function | Cooling water | 1-in 1-out cooling system | |
| | Blow pin supporting material | Yes | Changeable | |
| | Adjusting of blow pin position | | Ahead/back, left/right, up/down adjusting | |

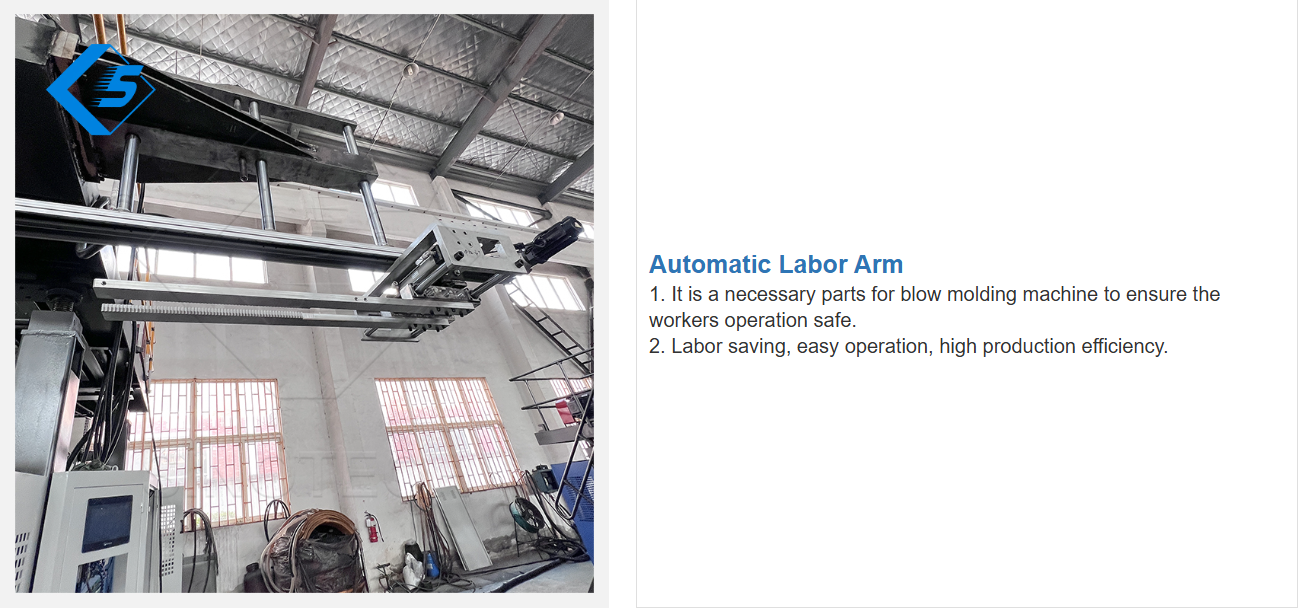

| Mechanical hand | Running method | FESTO | Germany | |
| | Direction control | Ball rail | High precise and speed | |

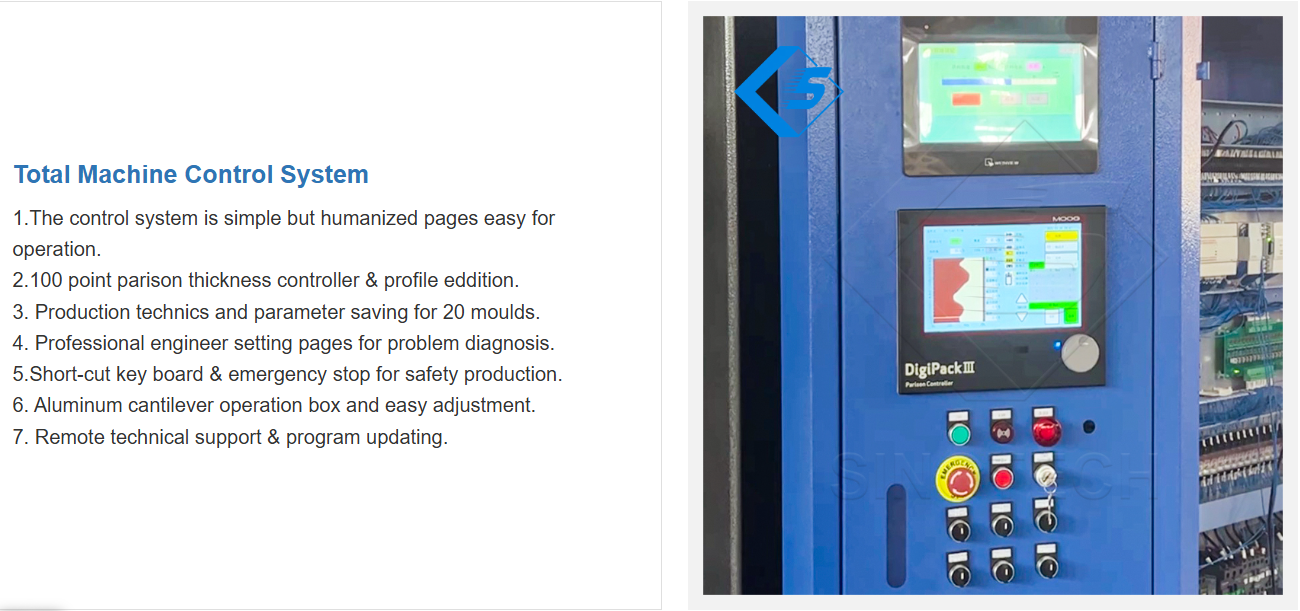

| Electric system | Temperature control | PID control | MITUSBISH | |
| | Load protection | | | |
| | Movement control | MITUSBISH PLC | | |
| | Operation interface | Human-machine interface | HITACH, Taiwan | |
| | Time setting | Touch screen | | |

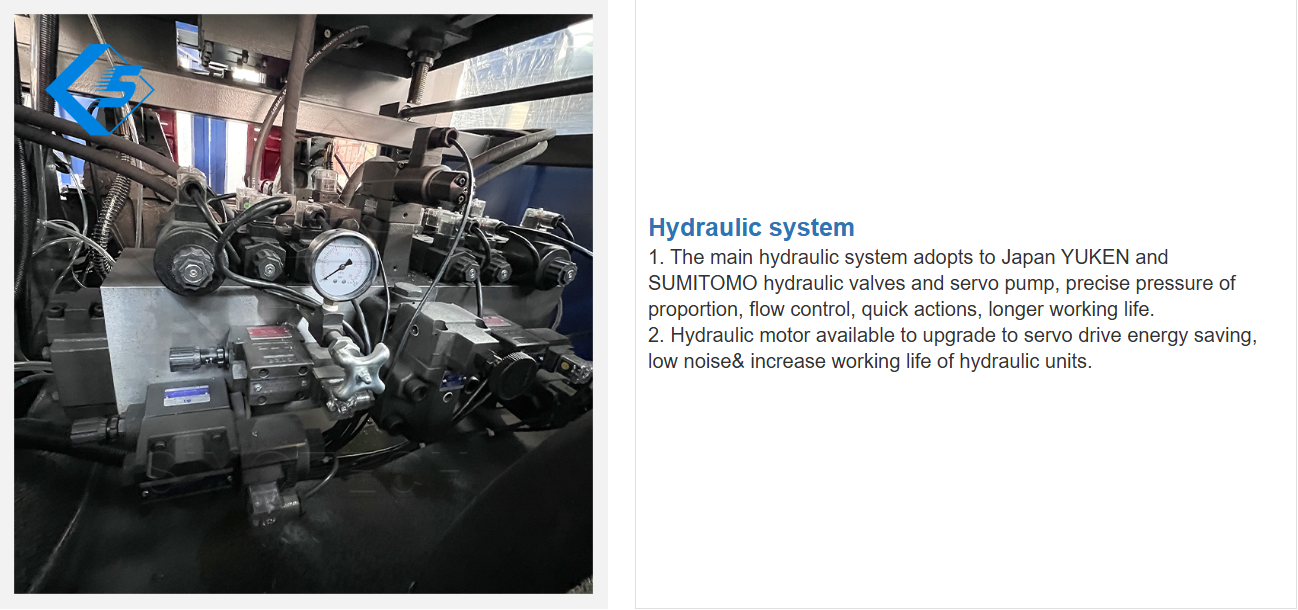

| Oil pressure system | Main motor | 30KW | | |
| | Main oil pump | DENISON | American | |
| | Movement control method | Proportion pressure control | 0~999 | |
| | Direction control | | | |
| | Max. Pressure | 160kg/cm2 | | |
| Air pressure system | Direction control | AIRTEC | Taiwan | |
| | Pressure control | Separated | | |
| | Max. Pressure | 8kg/cm, 1.1m3/min | All air pipes are connected by PU pipe | |
| Other material | Lubrication way | | | |
| | Oil pressure cooling | | Cooling effect is achieved by oil pressure cooling | |

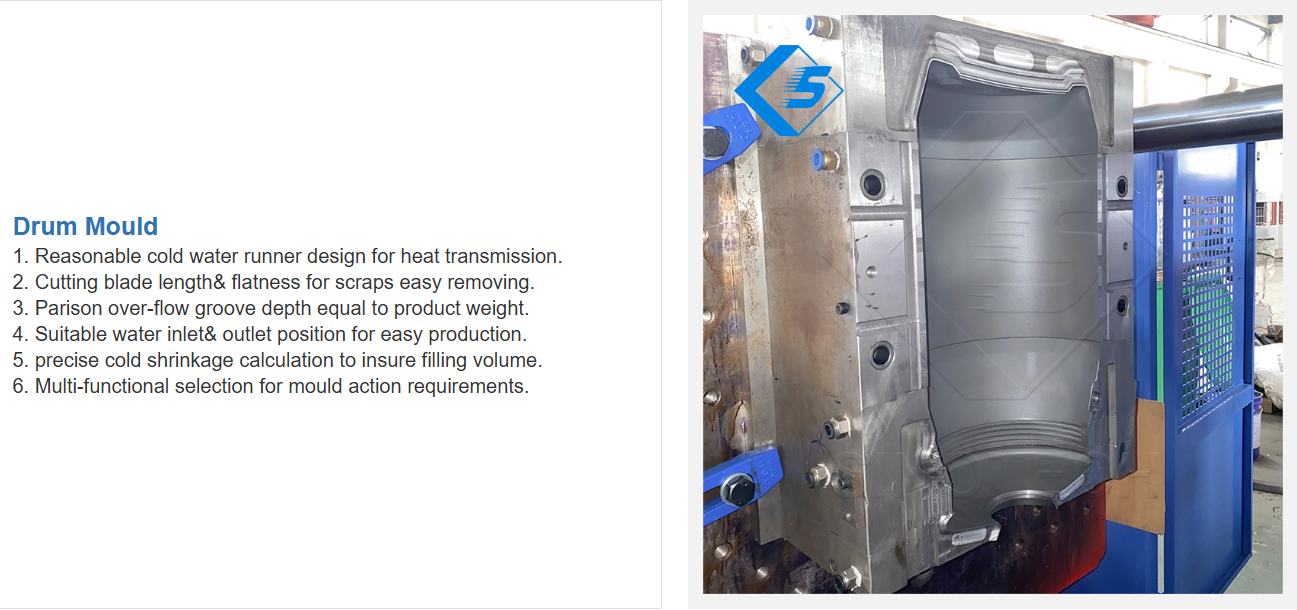

| | Mold cooling | | Separated cooling water resource, use 5-in 5-out fix (single side) | |
| | Gear box, hopper place, die dimension cooling | | Use separated cooling water circuit, insure cooling effect | |
| | Overall dimension | L*W*H | 5000*2400*3800mm | |
| | Weight | TON | 14.0T | |
