| Quantity: | |
|---|---|
PRL500 1000 2000
Sino-Tech
84778000

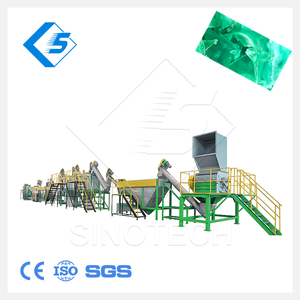

Plastic Pet Bottle Flakes Recycling Line/Washing Machine
PET bottle washing recycling line is a full automatic crushing washing dewatering and drying production line, it is the ideal equipment to waste mineral water bottles, cola bottle, PET bottle sorting, label removing, crushing, washing, dewatering and drying machines.
Product Description:
1.This line is mainly used for recycling the waste PET bottle, PET container etc.
2. To separate PET bottles to flakes from label, cap, oil, garbage.
3. This line is composed of separator, crusher, cold & hot washing system, dewatering, drying, packing system, etc.
4. Easy to operate, Full automatic.
5. Production capacity: 500KG/H, 1000KG/H, 1500KG/H, 2000KG/H, 3000KG/H
Main Advantage:
1. Automotive line for recycling the PET bottles and other waste plastic profile, except the film.
2. The final product is the cleaning flakes, if you want the final product is pellets, we should equip the granulator line again.
Features:
Capacity: 500-3000kg per hour
Moisture of PET Flakes: Less Than 2%
Cap &Label separate with the PET bottle flakes automatically
Bottle Types: PET Bottle, Plastic Bucket, Water Bottle, Coke Bottle,
Application: PET Strap, PET Yarn Fiber, PET Sheet
Detailed Photos
01 Metal chain conveyor
Usage: Cut the bundled PET bottles of wire, through the chain conveyor to the unpacking machine unpacking
02 De-baler
Usage: Manully cut off the packaging steel line of the packaged bottles. then put them into the debaler. The packaged bottles will opened by the running screw blade and run ahead to exit.

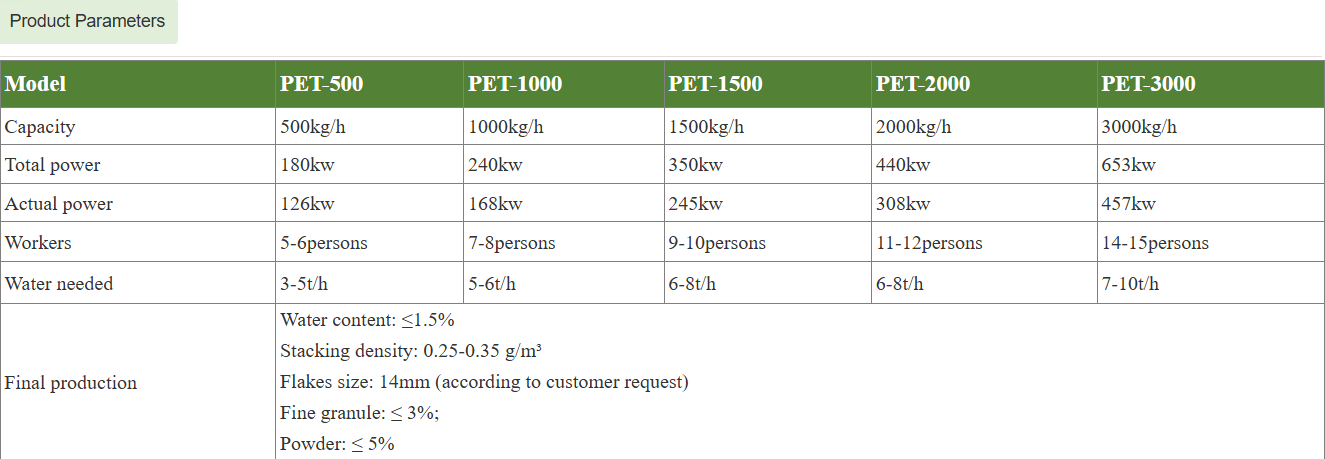

Main parameter of different model of PET recycling machine :
| Input capacity | 500kg/h | 1000 kg/h | 2000 kg/h |
| Workshop(M*M*M) | 42 (L)×10(W)×6(H) | 55(L)×15(W)×6(H) | 70(L)×18(W)×6(H) |
| Ancillary staff | 6Persons | 8 Persons | 12 Persons |
| Installation power | 156KW | 307KW | 420KW |
| Water Consumption: | 2Ton/h | 3.5Ton/h | 5 Ton/h |
| Final product | Moisture: max 1% Bulk density: 0.3G/CM3 Particle size: 14-18mm Metal content: max.20ppm Floatable contamination: less than 200ppm Total impurity: 320ppm | Moisture: max 1% Bulk density: 0.3G/CM3 Particle size: 14-18mm Metal content: max. 20oom Floatable contamination: less than 200ppm Total impurity: 320ppm | Moisture: max 1% Bulk density: 0.3G/CM3 Particle size: 14-18mm Metal content: Max. 20ppm Floatable contamination: less than 200ppm Total impurity: 320ppm |
Main Part of electrical PET bottle Recycling Plant:
| Name | Supplier |
| Microcomputer Control System | Siemens Germany |
| Touch Screen | Siemens Germany |
| Contactor | SCHNEIDER, France |
| Air Switch | SCHNEIDER, France |
| Motor | SIEMENS BEIDE, Germany |
| Power Resource | MEAN WELL, Taiwan |
| Inverter | ABB,Germany |
| Relay | OMRON, Japan |

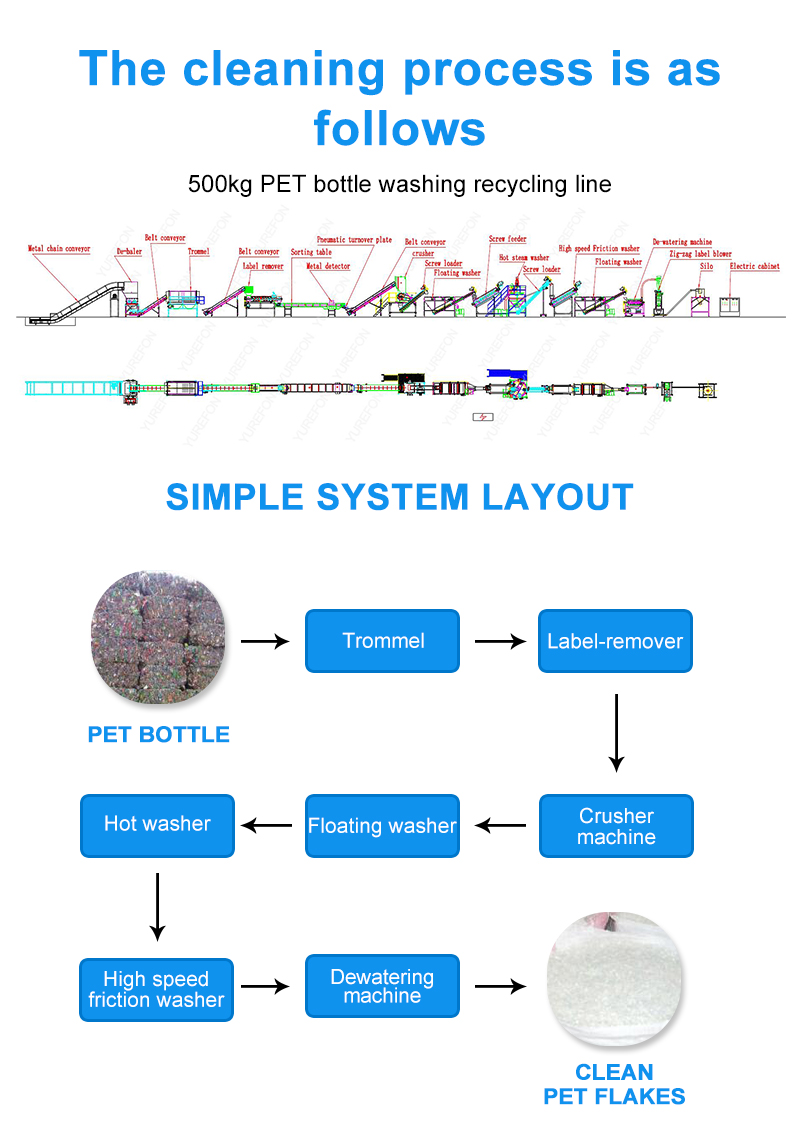

productive process
Certifications
FAQ
Q: How can we get the exact price of plastic machine?
A: Contact us with bottle volume and capacity request. Then we will recommend you suitable model machine soon.
Q: Do you provide any spare parts with machine?
A: Yes, we offer all necessary spare parts together with machine sending and 3 days spare parts delivery after machine sale.(contact us for packing list )
Q: How about your after-sale service?
A: We offer manual instruction and engineer training before loading, after shipment we provide 24 hours online support, video technical support or field installation assist.
Q: What is the lead time?
A: We have standard model machine in stock.It can be delivery within 1 week. If need to make mould, the delivery time need half month after drawing confirmed.
Q: What is the warranty period for your machine?
A: 12 months warranty for components and technical support.
Q: Do you provide custom machines?
A: Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.
Q: What's the advantage of SINO-TECH?
A: We provide customers with turnkey projects. Including plant design, blow molding machine and mold installation, debugging, also we can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time for customer.
Q: How can we get the exact price of plastic machine?
A: Contact us with bottle volume and capacity request. Then we will recommend you suitable model machine soon.
