Plastic PVC Cable Trunking Extrusion Making Machine

    plastic PVC cable trunking extrusion making machine

1.Product Description PVC Cable Trunking Machine
1.PVC cable trunk extrusion line is applied to produce U channel profile which used as PVC electrical cable trunking/cable duct.

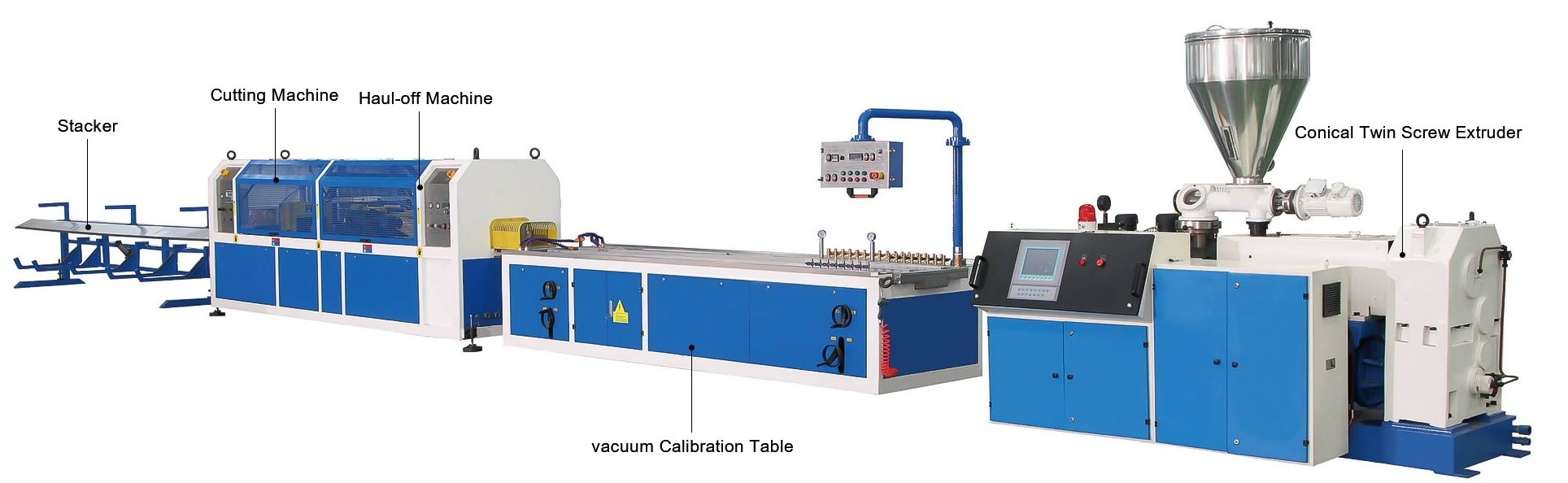

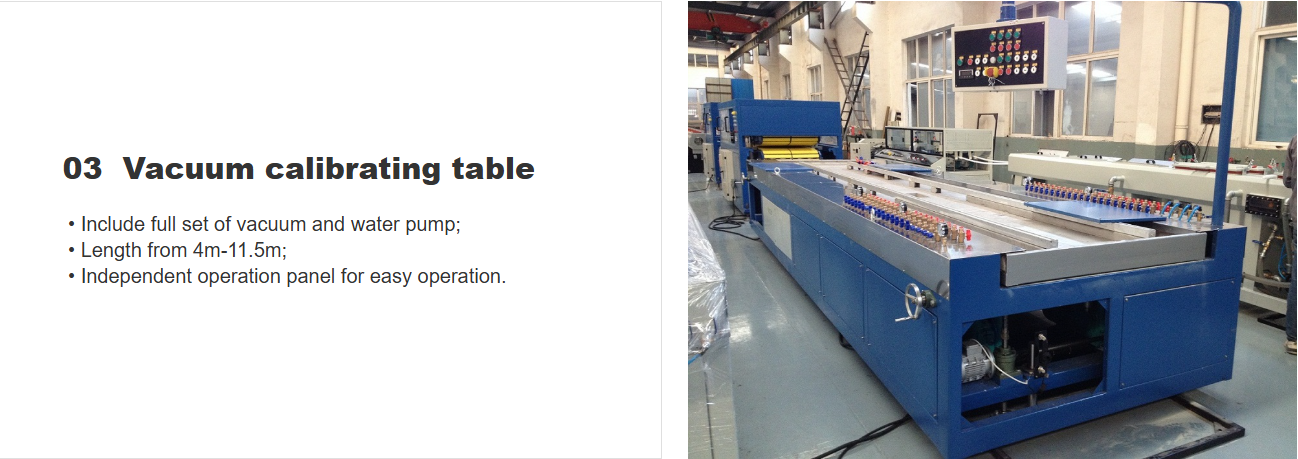

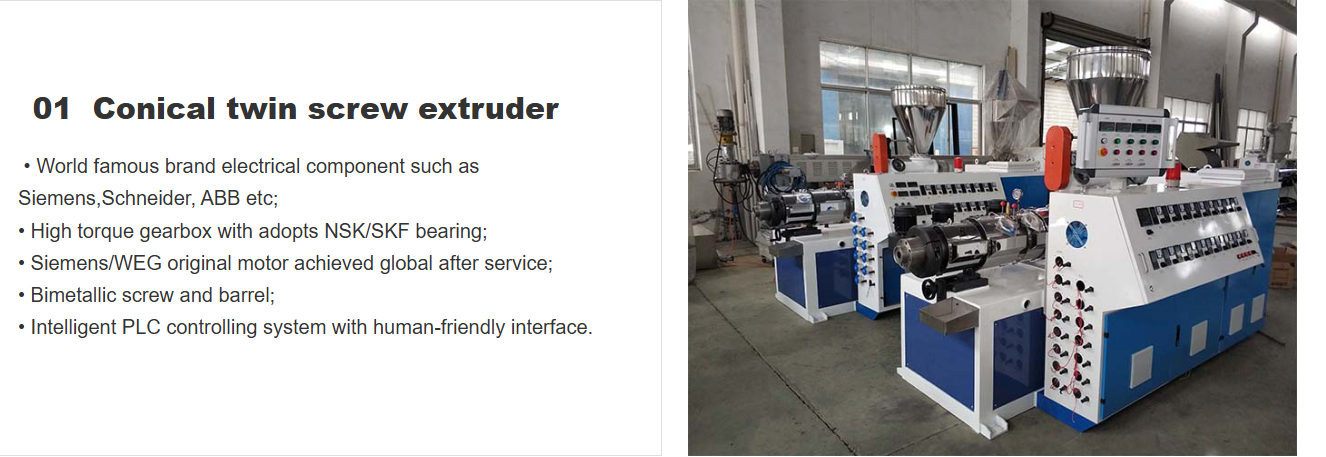

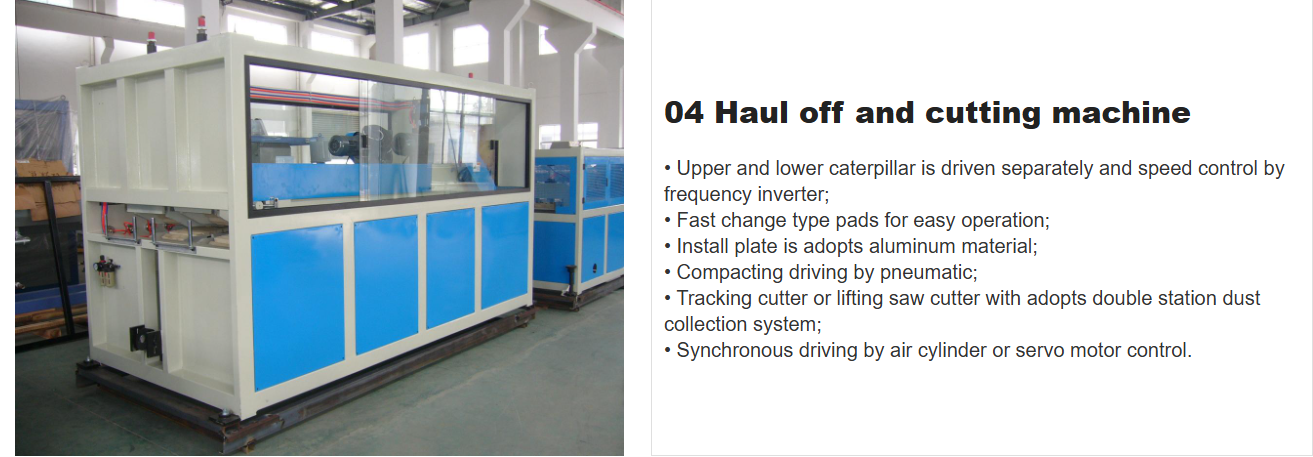

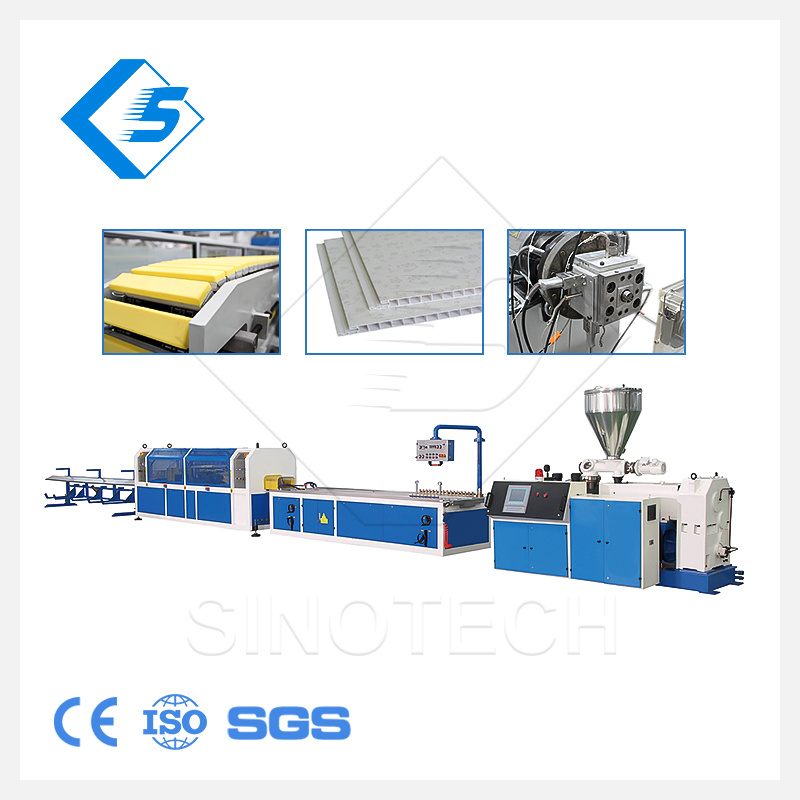

2.This production is composed of conical twin-screw extruder, vacuum calibration table, haul-off, cutter and stacker.

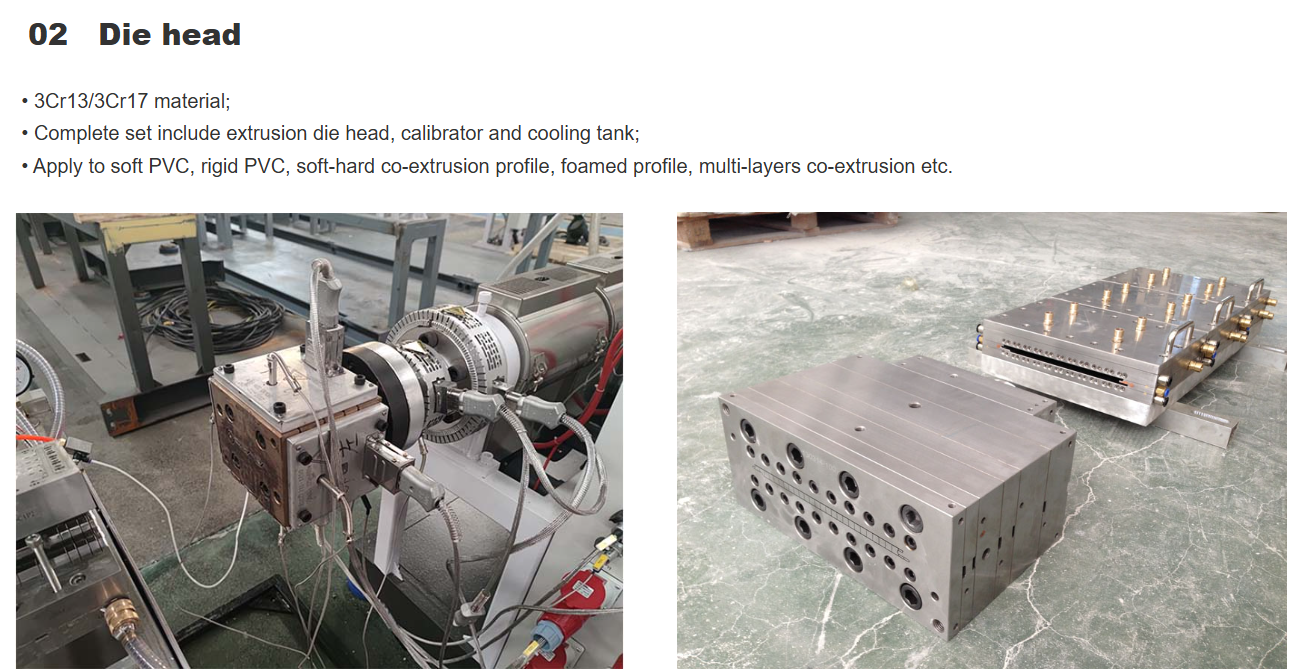

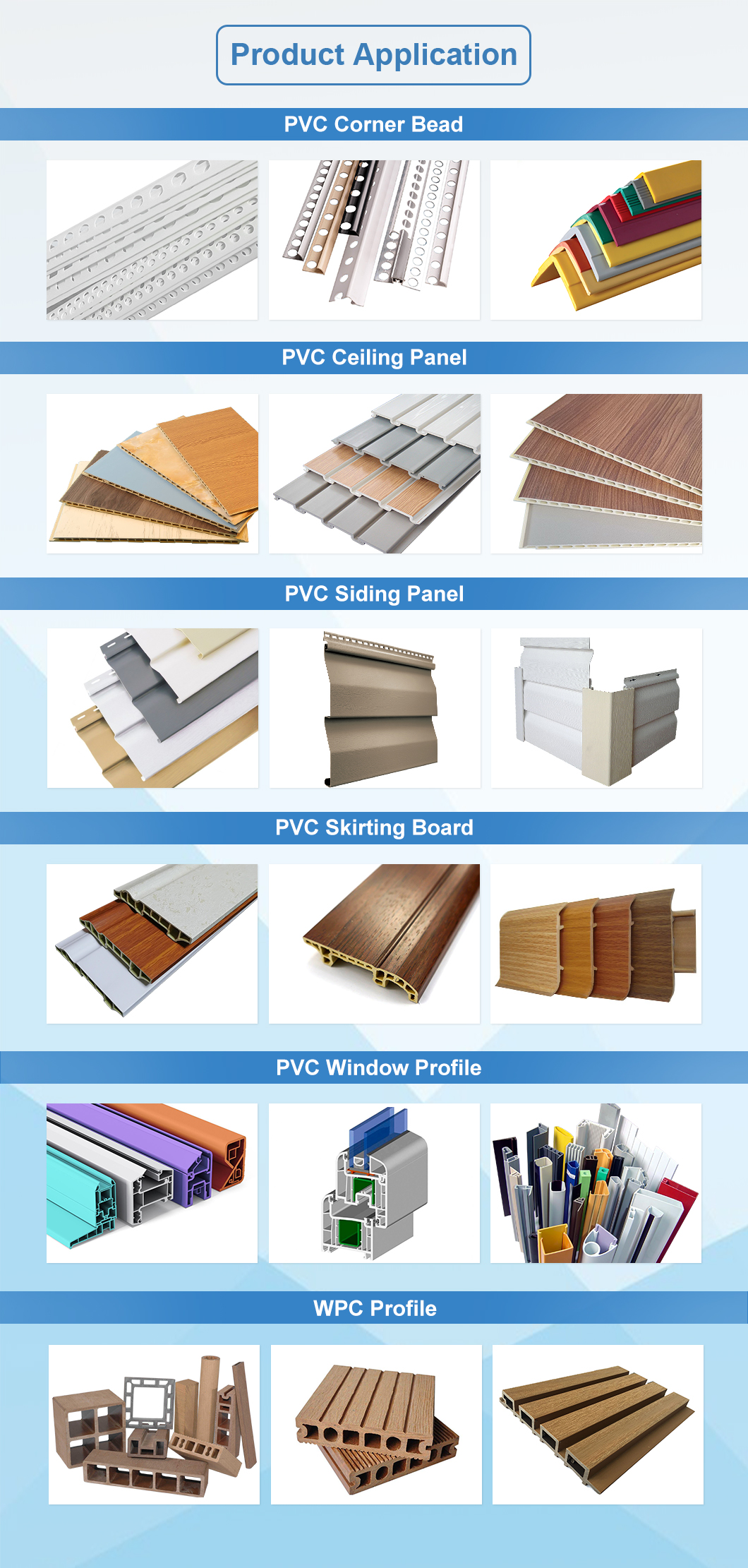

3.Chang different extruding mould,this machine can also produce PVC door & window profiles, foamed special shaped materials profiles, decoration plate material, profile and multi-hole wire plastic products, etc.

2.Main Technical Parameter of PVC Cable Trunking Making Machine

Model	YF120	YF180	YF240	YF300	YF600
Product Max size	120x50mm	180x50 mm	240x100 mm	300x120 mm	550x120 mm
Extruder	SJSZ45/90	SJSZ51/105	SJSZ65/132	SJSZ65/132	SJSZ80/156
Capacity	120 kg/hr	150 kg/hr	300 kg/hr	300 kg/hr	400 kg/hr
Production Length	18 m	20 m	24 m	24 m	28 m


3.Production Flow of Cable Trunking Making Machine
PVC powder + additives → Mixer → Screw feeder → Extruder → Mould → Vacuum forming table→ Haul-off machine→ Cutting machine → Stacker

4.Technical information of PVC Cable Trunking Production Line:

Parts	No.	Name	Brand
1 Screw and barrel	1	Design	German design
	2	Main materials	38CrMoALA
	3	Screw heating	Silicon oil heating
	4	Barrel heater	Cast aluminum heater
	5	Barrel has vacuum exhausting system
2 Driving parts	1	Main motor	Siemens Brand
	2	Gear box	Top brand in China
3 Electric parts	1	Inverter	ABB brand
	2	Contactor	Schneider brand
	3	Relay	Schneider brand
	4	Breaker	Delixi brand
	5	Temperature meter	RKC brand
	6	Hauling motor	Densen brand
	7	Hauling gear box	Hard surface gear box
	8	Vacuum pump	Yvhuang brand
	9	Water pump	Yvhuang brand
	10	Cutting motor	Siemens brand
	11	PLC	Schneider brand
4 Mechanical parts	We use CNC machines to ensure the precision of our mechanical parts
5 Protection system	We have a whole set of protection system for our machines, such as: 1 Current overload protection 2 Torque overload protection 3 Oil path blocking alarm 4 Vacuum overload alarm, and so on.
For more technical information please contact us by email.
