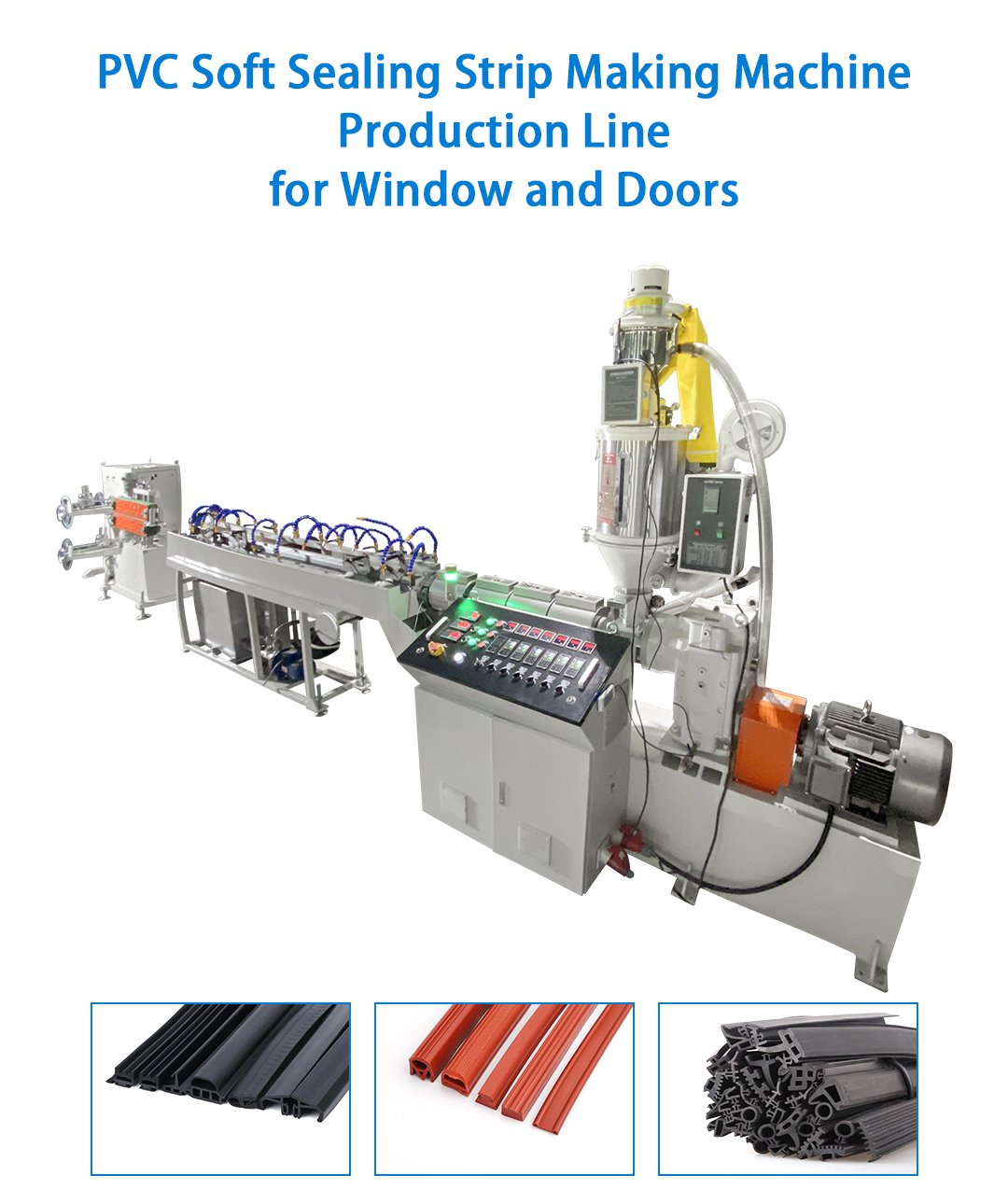

SINOTECH PVC Sealing Strip Extrusion Line
Introduction of PVC Sealing Strip production line:
Plastic Soft Pvc Seal Strip making machine is mainly used to produce Plastic Soft Pvc Seal Strip, Plastic Soft Pvc Seal Strip with kinds of widths with different section shapes and heights.
The PVC Soft Sealing Strip Extruder is equipped with a conical single-screw extruder. The production line has many advantages: material thawing even, low shear rate, high output, long service life, etc. The PVC Soft Sealing Strip Extruder includes an single screw extruder, calibrator unit, haul-off unit, double station winder or stacking unit, etc.
Product features:
●PLC control system in Refrigerator Door PVC Sealing Strip Making Extruder line, with reliable and stable performance.
●The auxiliary equipment includes a vacuum calibration and cooling unit, haul-off unit, cutting machine, and winding machine.

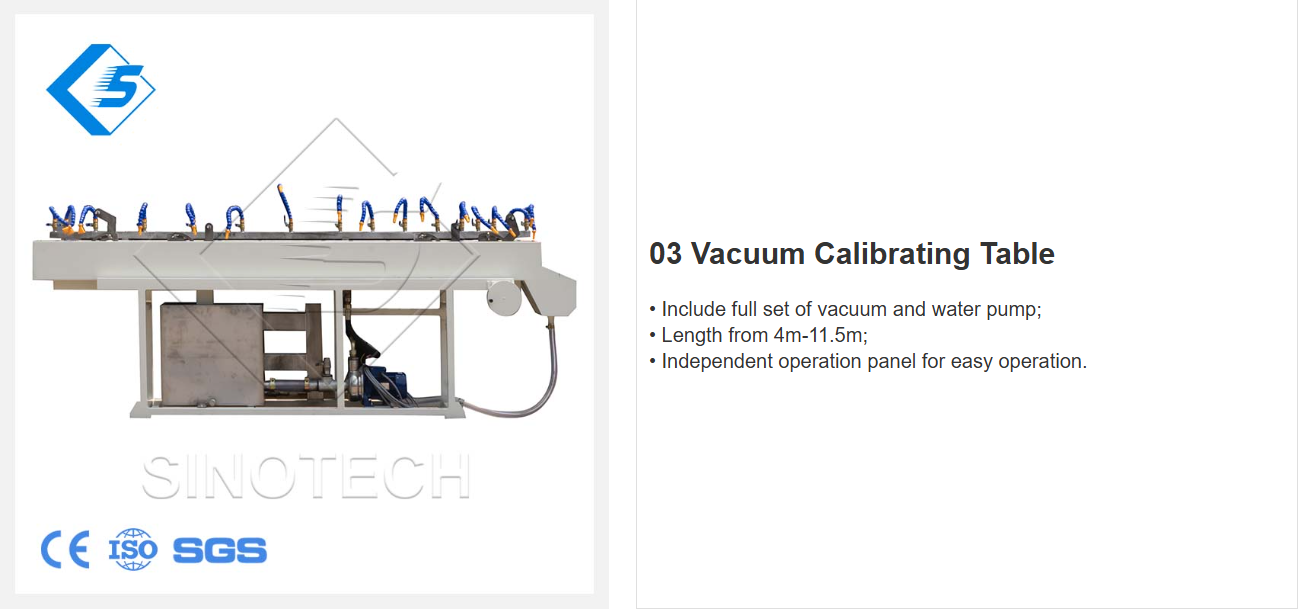

●The calibration unit is equipped with powerful cooling devices so that it can provide a perfect calibration effect.

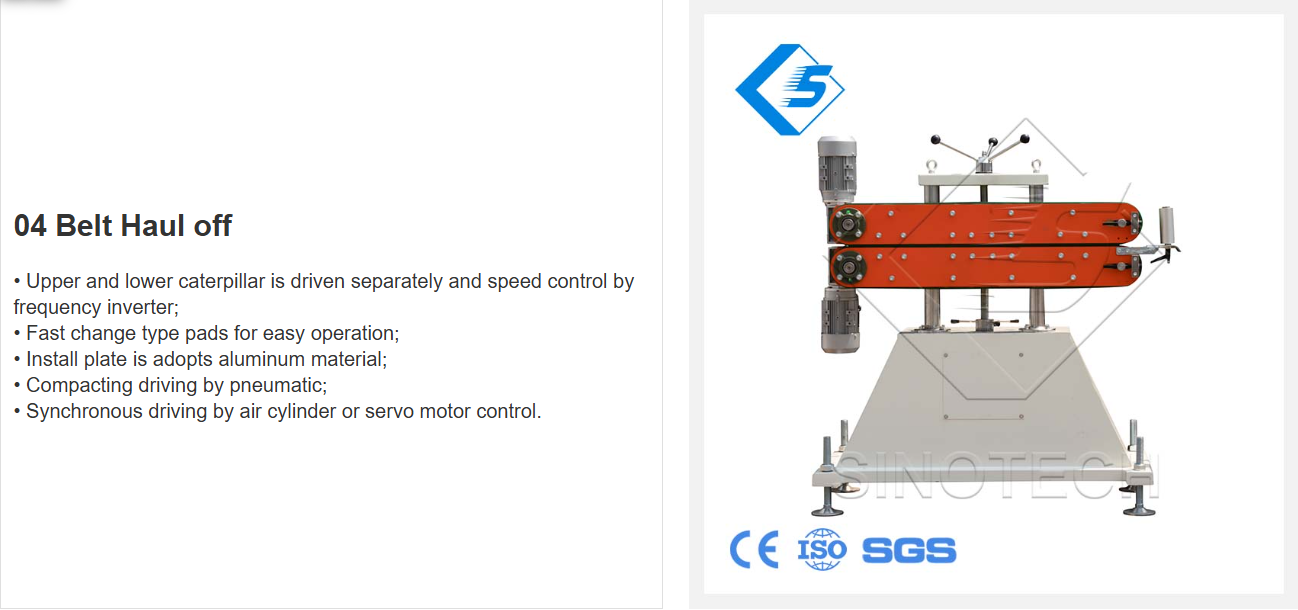

●The haul-off unit is caterpillar style with an AC invertor have the advantages of reasonable structure and big and stable traction.
●The cutting machine can set length and provide accurate automatic cutting.

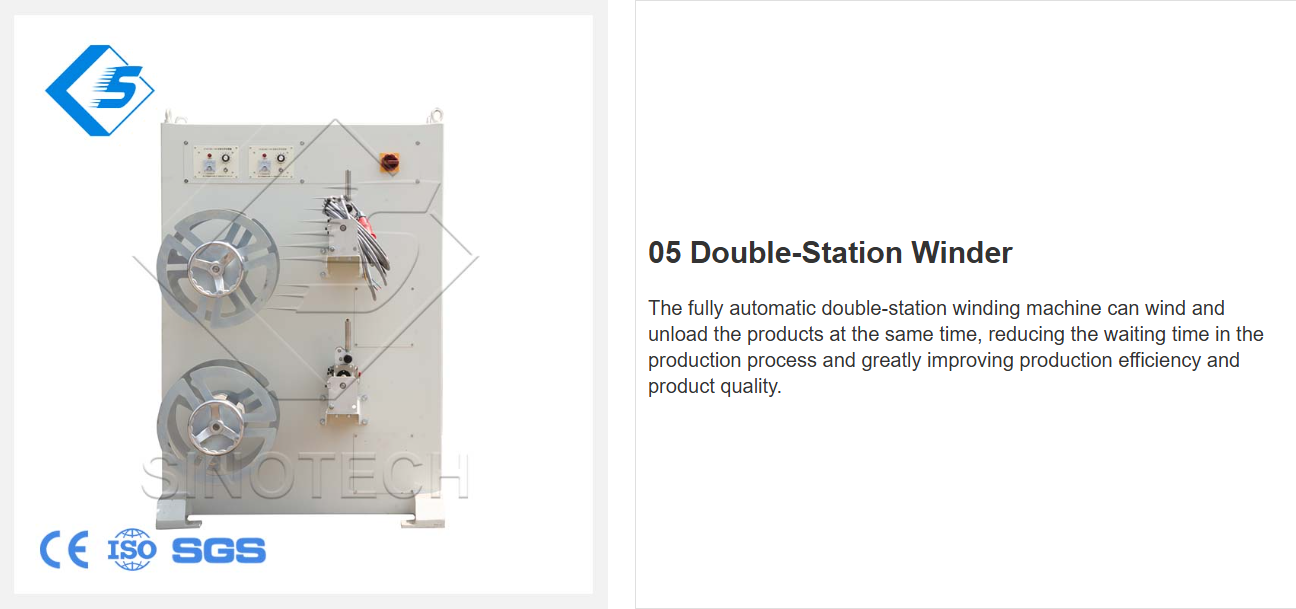

●The winding machine can make final products in a certain length which is also based on customers' requirements.
Product Application

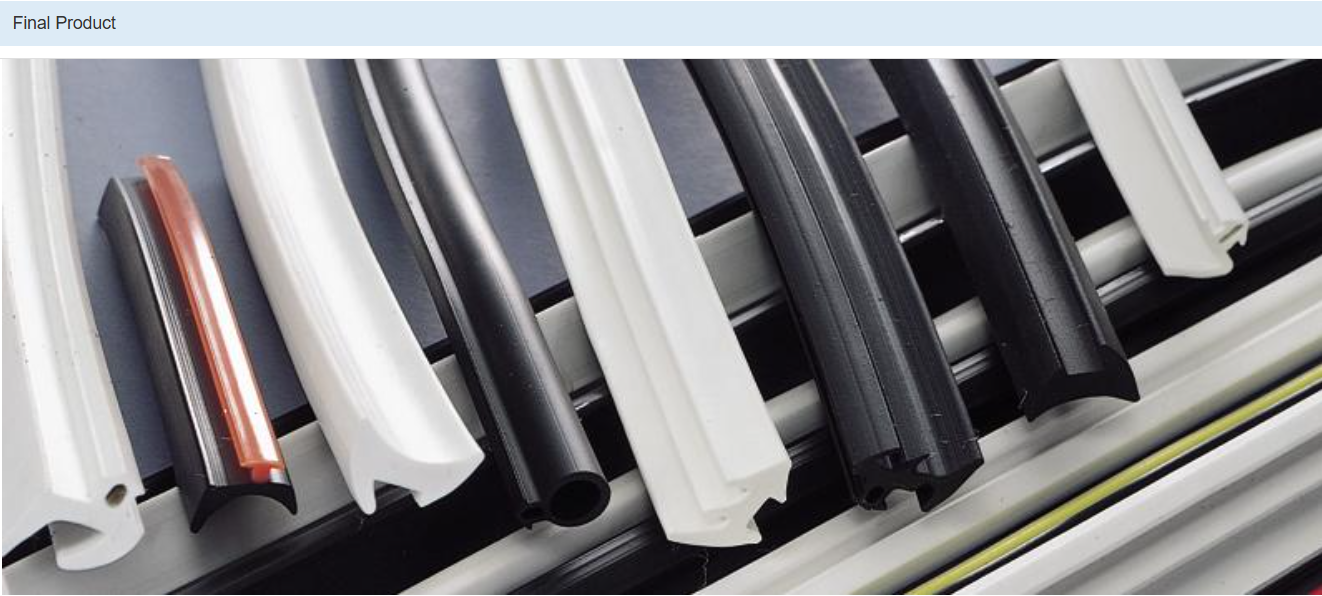

PVC sealing strips have good elasticity, weather resistance, corrosion resistance, and sealing properties, and are widely used in various fields.
●Automotive industry: Installed between the door and the body, and between the window and the window frame, it can effectively prevent dust, rain, and noise from entering the car.
●Construction industry: Used for door and window sealing, it can effectively fill the gap between the door and the wall.
●Home appliance industry: Installed between the refrigerator door and the box body to ensure the tightness of the refrigerator door when it is closed, and prevent cold air leakage and external heat from entering.
●Industrial field: Used for sealing various mechanical equipment, such as pumps, valves, compressors, etc. It can prevent the leakage of liquids, gases, and dust, and protect the normal operation of equipment and the safety of the working environment.
Production Flow

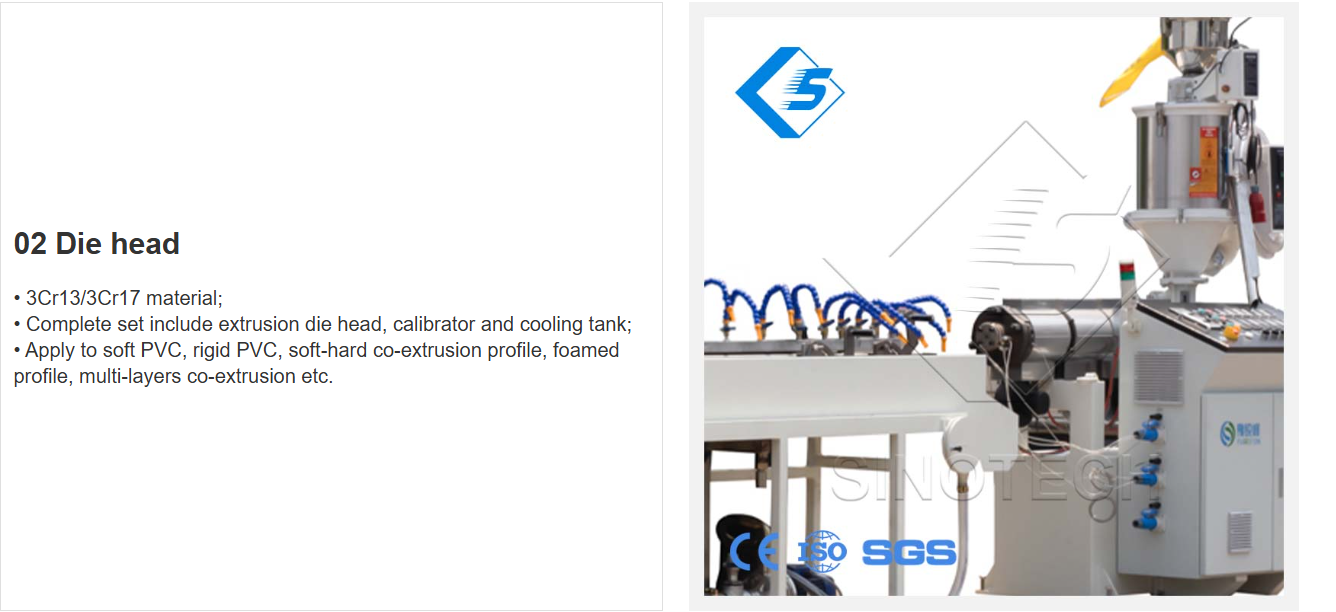

Raw material → Single-screw extruder →Extrusion mould →Vacuum calibration table → Haul-off unit→ Automatic cutter→ Stacker → Finished product inspecting & packing
SINOTECH PVC Sealing Strip Extrusion Line
Introduction of PVC Sealing Strip production line:
Plastic Soft Pvc Seal Strip making machine is mainly used to produce Plastic Soft Pvc Seal Strip, Plastic Soft Pvc Seal Strip with kinds of widths with different section shapes and heights.
The PVC Soft Sealing Strip Extruder is equipped with a conical single-screw extruder. The production line has many advantages: material thawing even, low shear rate, high output, long service life, etc. The PVC Soft Sealing Strip Extruder includes an single screw extruder, calibrator unit, haul-off unit, double station winder or stacking unit, etc.
Product features:
●PLC control system in Refrigerator Door PVC Sealing Strip Making Extruder line, with reliable and stable performance.
●The auxiliary equipment includes a vacuum calibration and cooling unit, haul-off unit, cutting machine, and winding machine.
●The calibration unit is equipped with powerful cooling devices so that it can provide a perfect calibration effect.
●The haul-off unit is caterpillar style with an AC invertor have the advantages of reasonable structure and big and stable traction.
●The cutting machine can set length and provide accurate automatic cutting.
●The winding machine can make final products in a certain length which is also based on customers' requirements.
Product Application
PVC sealing strips have good elasticity, weather resistance, corrosion resistance, and sealing properties, and are widely used in various fields.
●Automotive industry: Installed between the door and the body, and between the window and the window frame, it can effectively prevent dust, rain, and noise from entering the car.
●Construction industry: Used for door and window sealing, it can effectively fill the gap between the door and the wall.
●Home appliance industry: Installed between the refrigerator door and the box body to ensure the tightness of the refrigerator door when it is closed, and prevent cold air leakage and external heat from entering.
●Industrial field: Used for sealing various mechanical equipment, such as pumps, valves, compressors, etc. It can prevent the leakage of liquids, gases, and dust, and protect the normal operation of equipment and the safety of the working environment.
Production Flow
Raw material → Single-screw extruder →Extrusion mould →Vacuum calibration table → Haul-off unit→ Automatic cutter→ Stacker → Finished product inspecting & packing

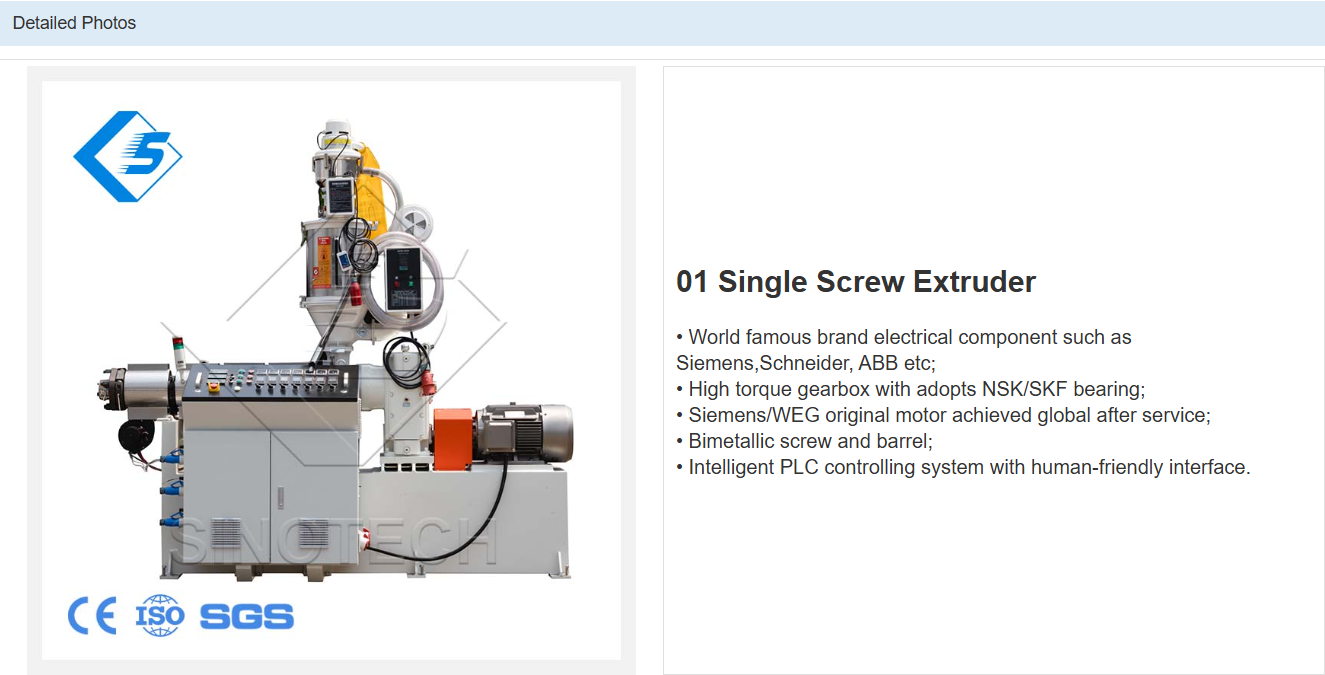

SJ45/28 Single Screw Extruder | |
Screw diameter | 45mm |
L/D | 28:1 |
Motor Power | 11Kw |
Rotating speed of screw | 80r/min |
Heating Power | 8Kw |
Extrusion Capacity | 20 Kg/H |
Center Height | 1000mm |
Weight | 800Kg |
Dimension | 2050*1200*1500mm |
Extruder Speed Adjusting Way | Frequency Conversion |
Barrel Temperature Adjusting Way | Heating: Cast Aluminum Heater |
