SJZ51/105
Sino-Tech
84772090

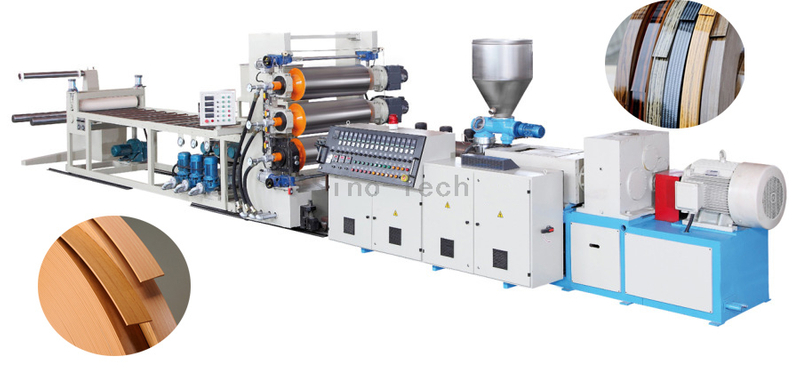

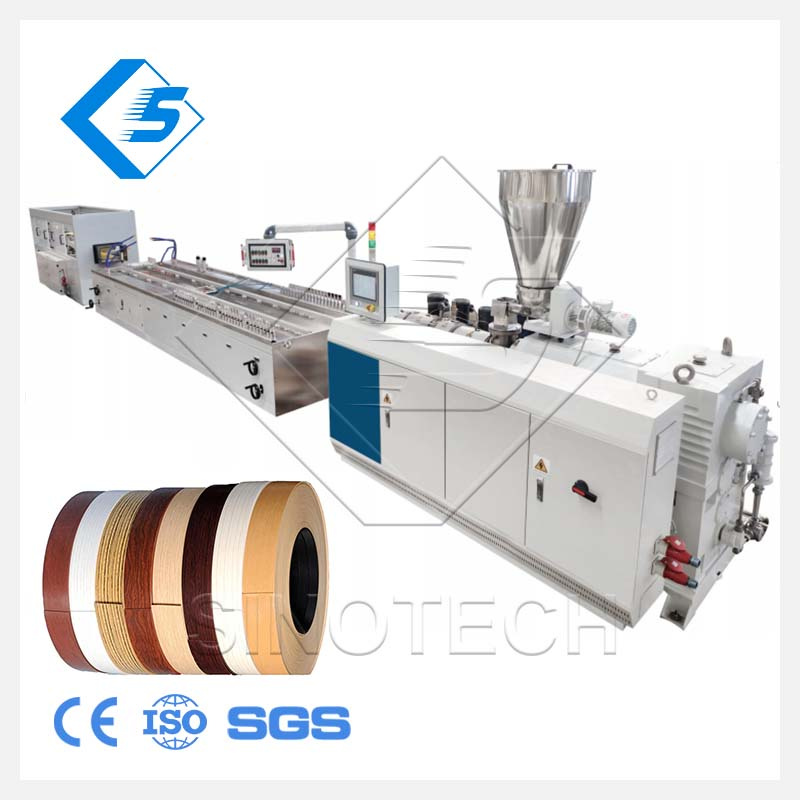

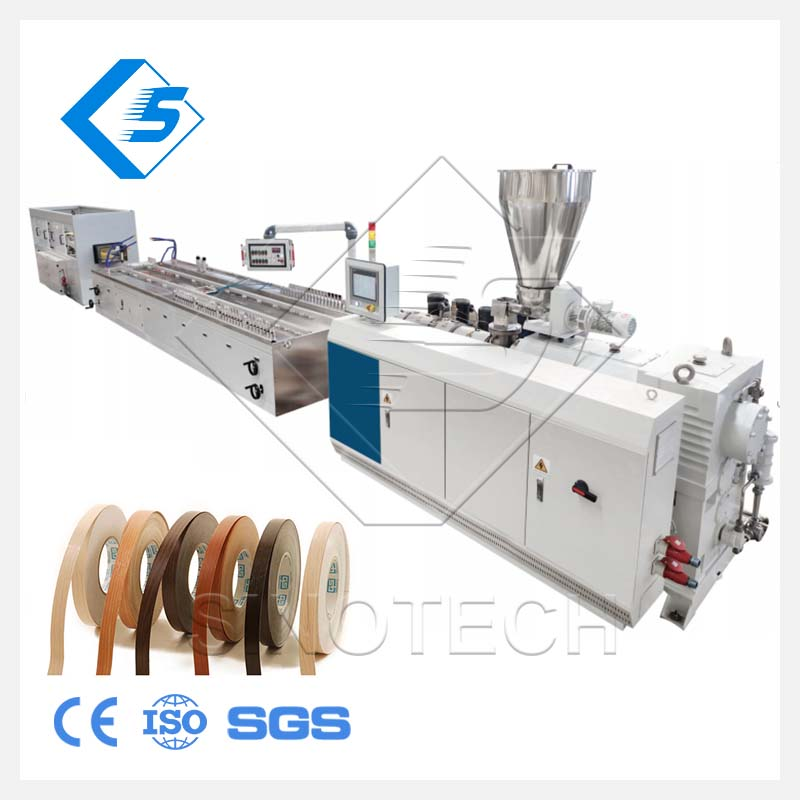

The PVC Edge Banding Extruder Making Machine is designed for the efficient production of PVC edge bands used in furniture finishing and office accommodation. This machine offers high plastification, ensuring smooth material flow and excellent surface finish. With precision control, the machine guarantees high tension and high production rates, making it ideal for businesses looking to replace PVC calendered sheets in edge banding applications. Featuring advanced PLC control and a well-integrated downstream system, it provides reliable and stable performance for continuous operation.
Precision and Reliable Control
Equipped with a PLC control system, the PVC edge band extrusion machine ensures precise and stable operation throughout the production process. This automated control system helps to adjust key parameters efficiently, enhancing overall production consistency and reducing human error.
Integrated Cooling and Calibration Systems
The machine includes both calibration cooling and water cooling units to maintain optimal processing conditions. These cooling units ensure that the PVC edge band retains its desired shape and size while cooling, guaranteeing high-quality output with minimal deformation.
Adjustable Haul-Off Unit
The haul-off unit employs a roller-style design, with the lower roller fixed and the upper one adjustable to accommodate different panel sizes. This flexibility allows for smooth handling of various thicknesses of edge bands, ensuring consistent output.
Flexible Cutting and Winding Options
The cutting machine can be either manual or automatic, depending on the user’s preference, allowing flexibility in production. Additionally, the winding system efficiently winds the edge banding material into rolls, with options for 100m/roll or 200m/roll, making it suitable for both small and large-scale operations.
High-Speed Production with Consistent Quality
The PVC Edge Banding Extruder Making Machine is designed for high-speed production, ensuring continuous output with consistent quality. Its integrated system minimizes downtime and enhances production capacity, making it a highly efficient machine for manufacturers of PVC edge bands.
Durable and Reliable Components
Constructed with German-designed screws and barrels, along with high-quality components from brands like Siemens, ABB, and Schneider, the machine offers durability and ensures long-term reliability. The robust design makes it suitable for continuous production without compromising performance.
Versatile and Customizable Production
This machine’s adjustable settings, including the haul-off unit, cutting machine, and winding system, allow it to handle a variety of edge band sizes and lengths. The versatility of this machine makes it ideal for meeting the needs of different industries, including furniture manufacturing, interior design, and office accommodation.
A: The primary materials used for PVC edge banding production are PVC, calcium carbonate, and various additives that provide the desired durability, flexibility, and chemical stability.
A: Yes, the machine is highly adjustable, and can produce edge bands in various sizes, accommodating different thicknesses and lengths based on the requirements of your production.
A: The machine utilizes forced cooling and water cooling units to ensure proper calibration and cooling of the PVC material as it passes through the extrusion and molding stages, maintaining dimensional stability.
Technical information PVC edge banding making machine:
| Parts | No. | Name | Brand |
| 1 Screw and barrel | 1 | Design | German design |
| 2 | Main materials | 38CrMoALA | |
| 3 | Screw heating | Silicon oil heating | |
| 4 | Barrel heater | Cast aluminum heater | |
| 5 | Barrel has vacuum exhausting system | ||
| 2 Driving parts | 1 | Main motor | Siemens Brand |
| 2 | Gear box | Top brand in China | |
| 3 Electric parts | 1 | Inverter | ABB brand |
| 2 | Contactor | Schneider brand | |
| 3 | Relay | Schneider brand | |
| 4 | Breaker | Delixi brand | |
| 5 | Temperature meter | RKC brand | |
| 6 | Hauling motor | Densen brand | |
| 7 | Hauling gear box | Hard surface gear box | |
| 8 | Vacuum pump | Yvhuang brand | |
| 9 | Water pump | Yvhuang brand | |
| 10 | Cutting motor | Siemens brand | |
| 11 | PLC | Schneider brand | |
| 4 Mechanical parts | We use CNC machines to ensure the precision of our mechanical parts | ||
| 5 Protection system | We have a whole set of protection system for our machines, such as: 1 Current overload protection 2 Torque overload protection 3 Oil path blocking alarm 4 Vacuum overload alarm, and so on. | ||
| For more technical information please contact us by email. | |||
