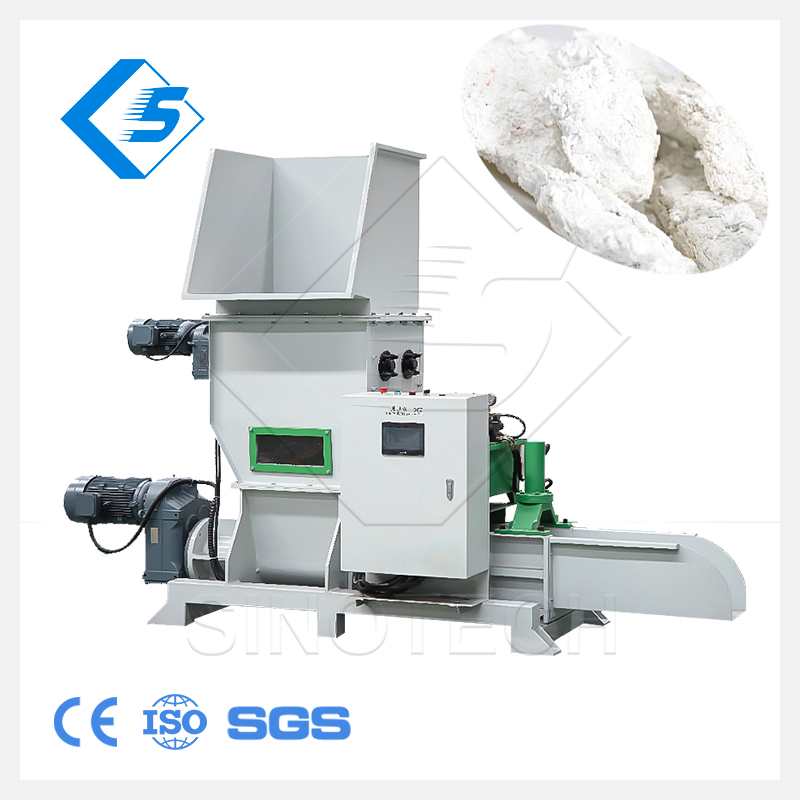

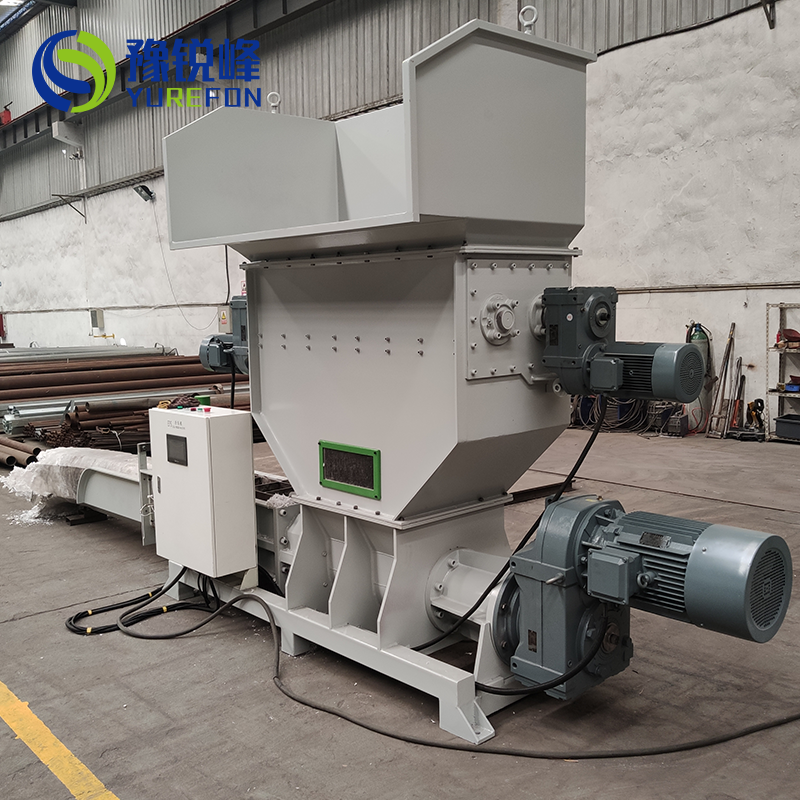

EPS Foam Cold Compactors Machine

1. As a kind plastic foam densifier, it is applied to a wide usage to compress and hot melting machine EPS EPP EPE XPS PUR EVA.
2. The foam compactor could be used in many places, such as super market, schools, hospitals, small-sized warehouse, retail stores, and seafood markets...
3. The foam compactor press the plastic foam from big to small size high efficiently, the compression ratio could arrive at 1:30~1:50, the compressed material block density could be 350kg/m³, and then it is easy to transport and recycle for next step.
4. The foam compactor has excellent performance, compacting dimension, low noise, easily and convenient operating and maintenance…
5. Ingenious designed feeding hopper, one aspect it could prevent the material jumps out when crushed, the aspect it could also to collect all material into one point to push the material direction down and helping to feed the material into extruder.
6. Exquisite structure of blades, especially experienced designing to the angles of all blades, which could guarantee high efficient crushing performance with high capacity, but also could press the crushed material blocks into the extruder to increase the capacity of whole machine.
7. Compacting screw and hydraulic pressing, which makes the compression process high efficient and good performance. All parts compacted into one machine, saving cost, low energy consumption, small space covering, which makes the machine to be portable type.
8. The foam compactor is controlled by PLC automatic controlled, easily operating, stable working performance.
9. The block is usually compressed to be 250*250mm or 380*380mm block.
Availability:
Quantity:
whatsapp sharing button
wechat sharing button
sharethis sharing button

model

YRF-C-300

Yield

250-300kg/h

Screw diameter

Φ400mm

Feed port size

1000mmx600mm

Screw speed

36rpm

Crusher blade

Four axes 10+11+10+11

Crusher speed

120rpm

Main motor

22kw

Crusher motor

5.5kwx2

Hydraulic pump motor

2.2kw

Product Size

380x380mm

Machine dimensions

4800x1500x2500

Weight

2250kg
