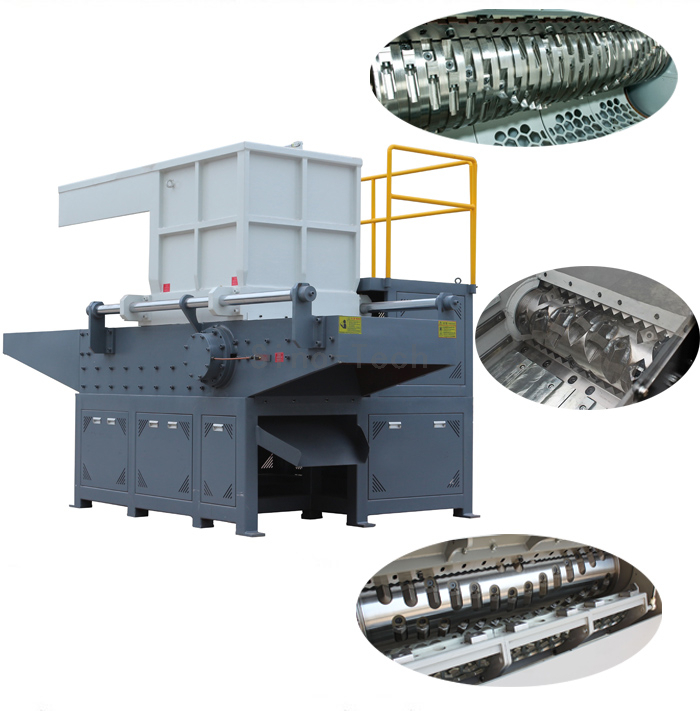

Plastic Single shaft shredder machine

Our shredder is suitable for recycling wide range of material. It is an idea machine for plastic, paper, wood,fiber,rubber, organic waste and a wide range of non metallic material. As for each customer requirement. such as the input size of the material, capacity and final output size etc. We can provide a best suitable solution for our customer. After being shredded by the machine, the output material can be used directly or go into next step of size reduction. With fuction of siemens PLC control system, it is possible to control start,stop, automatic reverse sensors to protect the machine against over loading and jamming
  • SN-3063 SN-3980 SN-48100 SN-57120

  • Sino-Tech

  • 84778000

  • Hard Plastic Shredder

  • Top Feed

  • Solid Knife Roller

  • Single Shaft

  • Bearing

  • SKD-11

  • WN


  • Siemens and Schneider

  • 18months

Waste Plastic Shredder Machine

Application of Plastic Single shaft shredder:
1.Plastic film, Woven bag, PET bottle, Plastic Drum,Plastic pipe, Plastic board, Plastic Pallet Plastic Lump,Fiber, and high strength plastic Like (ABS,PC,PPS)  high capacity shredder
2.Wood including wood timber,Tree Root,Wood Pallet shredder equipment
3. Cable and electrical wire shredding process
4. Paper: Newspaper and Carton box and books
5. Light metal:Aluminum Can,Aluminum Scraps
6. TV Shell, Washing machine shell. Regrigerator Body. Circuit Board.
7. Rubber
8. Texible product, Cloth or Fiber product
9. Glass product

Key features of Garbage shredder machine:
1. Safety Devices in line with european CE certification.
2. The hydraulic Ram pushes material against the rotor
3. Various Screen size for different material.
4. Various Rotating blade for processing different material. Blades are made from hardened DC53 steel. The Blades can be turned 4 times before it does not work.
5. Absorbs vibrations caused by the shredding of the material. this protects the machine and all parts in the machine.
6. Water cooled gearbox guards against overloading. Hardened teeth for the gearbox.
7. Protective bearing covers to avoid foreign contaminations entering the bearing house Also grease points to release oil at intervals to increase service life.
8 The Hydraulic ram pressure and timing can be adjusted to suit different material. The machine be fitted with wind cooled two speed pump.

Main parameter for single shaft shredder:
             Shredder  Model SN-3063 SN-3980 SN-48100 SN-57120
Dimension L/W/H(mm) 3250×1750×2650 4150×2000×2750 4700×2550×2950 5350×2850×3060
Cutting Chamber C/D(mm) 1410×800 1410×1000 1410×1200 1410×1500
Height of discharge port E(mm) 500 500 500 560
Cylinder Stroke(mm) 900 900 900 900
Rotor Diameter(mm) φ300.3 φ390.3 φ480.3 φ570.3
Main Shaft Speed (r/min) 74 74 74 74
Screen Mesh(mm) φ40 φ40 φ40 φ40
Rotor-knives(PCS) 30 39 48 57
Stator-knives(PCS) 2 2 2 2
Main Motor Power(KW) 30 37 45 55
Hydraulic Motor Power(KW) 2.2 2.2 5.5 5.5
Weight(KG) 4500 7000 9500 11500
