| Quantity: | |
|---|---|
SJ120
Sino-Tech
84778000

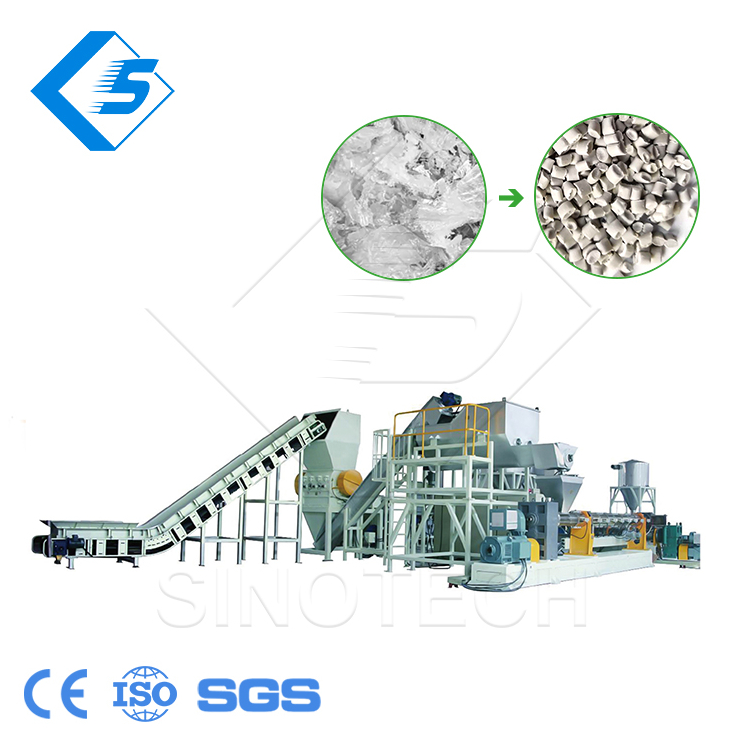

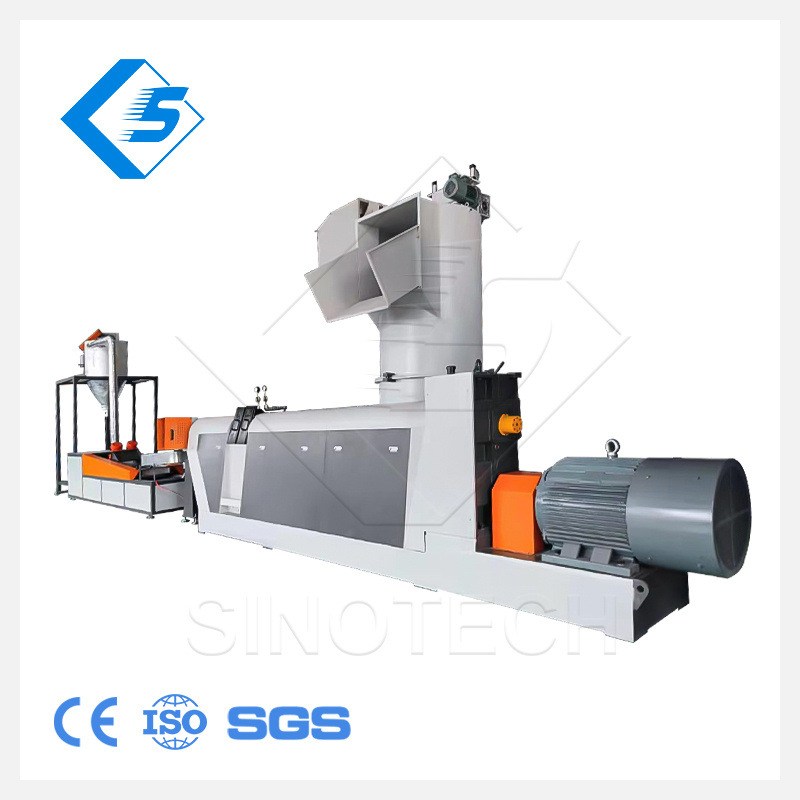

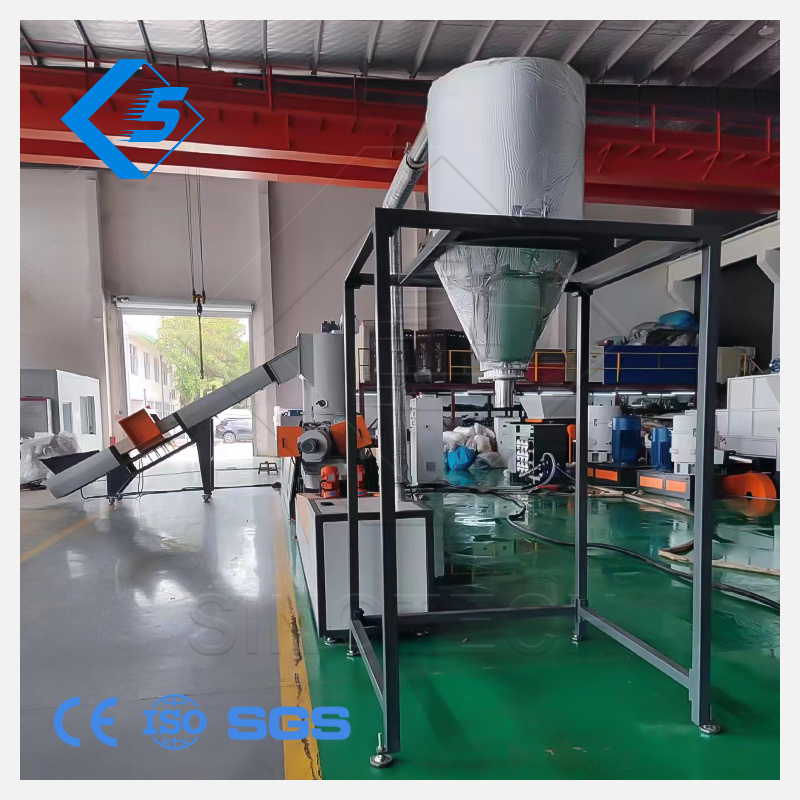

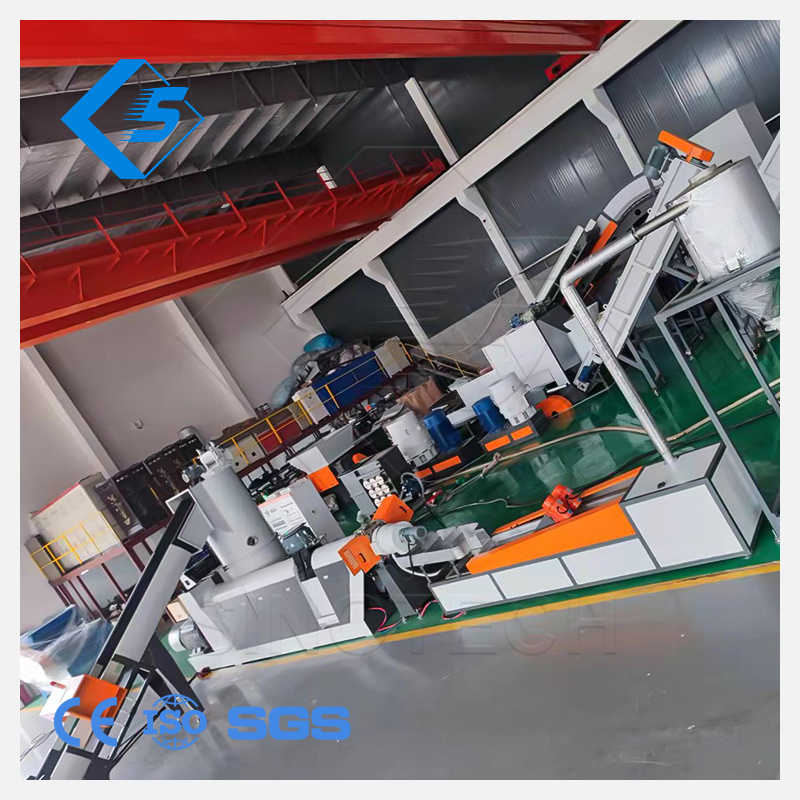

PP PE plastic film pelletizing machine
Main Advantages of PE film pelletizing line:
1. Multifunctions of crushing and granulation. Whole plastic bags can undergo direct granulation without crushing

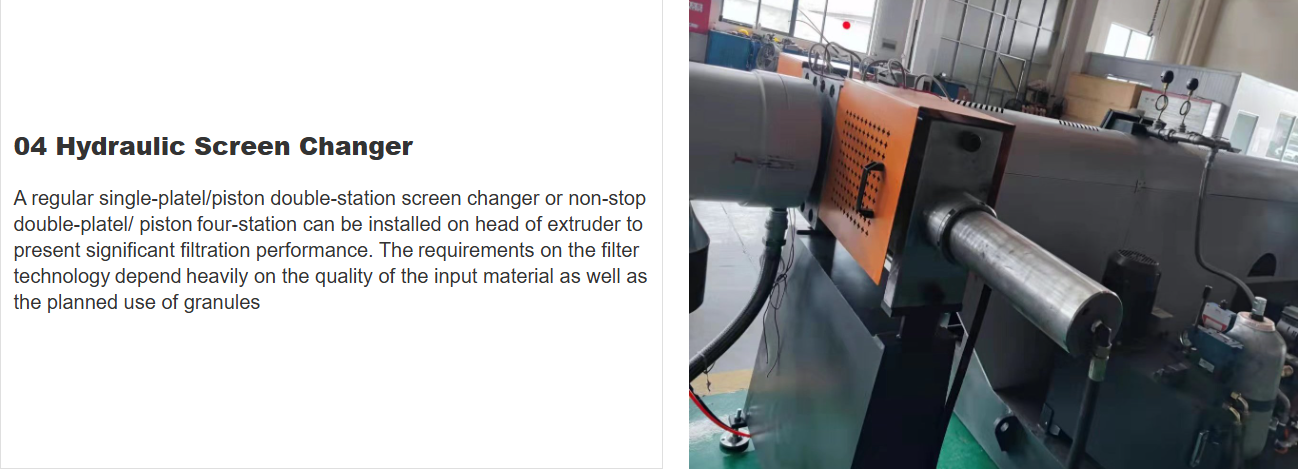

2. Double-column online screen exchanger with larger filtering area.

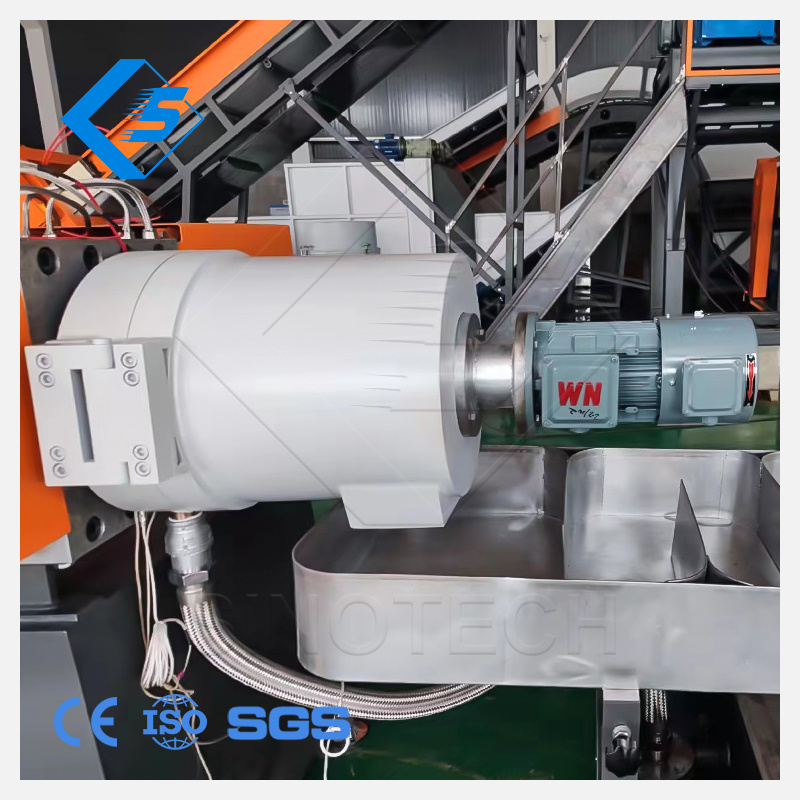

3. Water ring granule cutting avoid material staining.

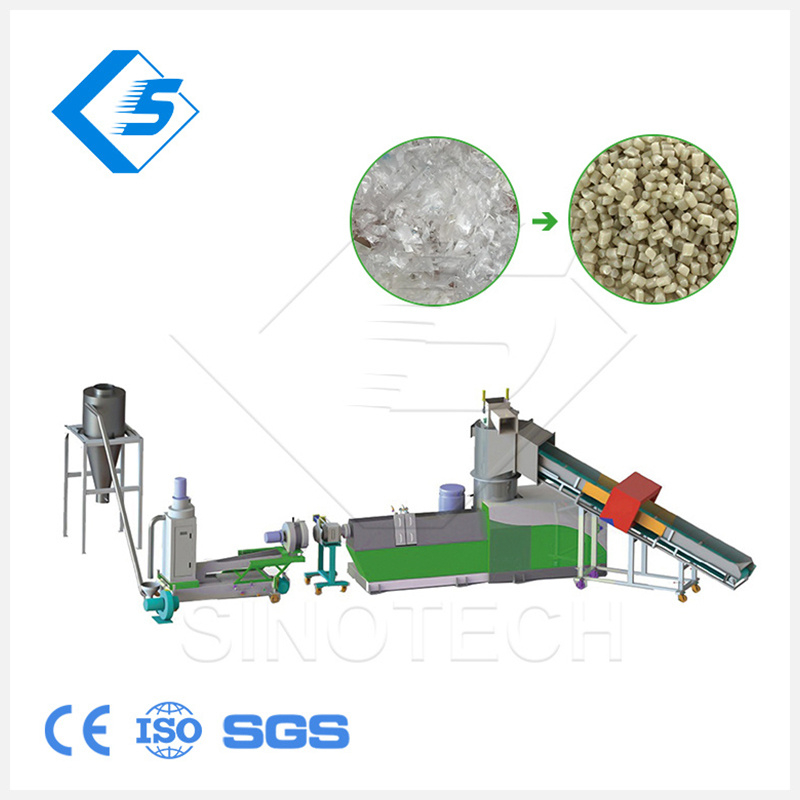

Process Line of PE pelletizing line:

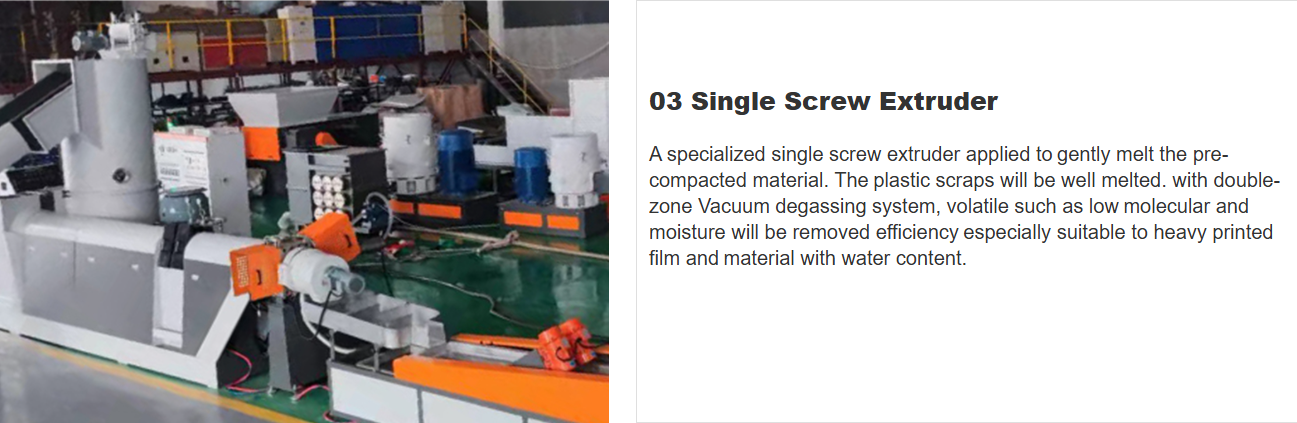

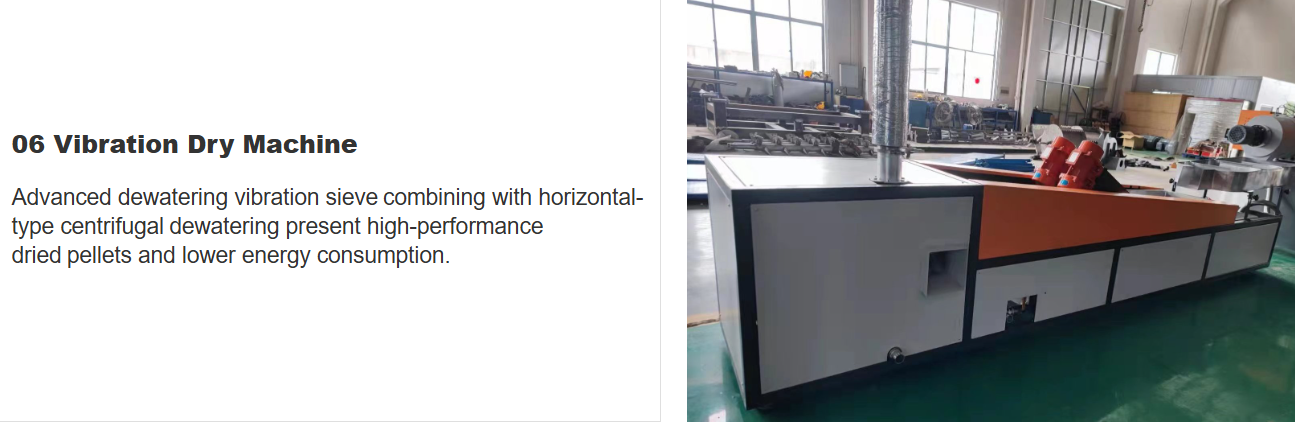

Film → conveying feeding → Metal detector → Film agglomerating → Degassing single screw extruder → Hydraulic screen extruder → Rub surface granulating machine → Slip trough → Dewatering machine→ Librating screener → Blowing system → Storage hopper → Finished product packing

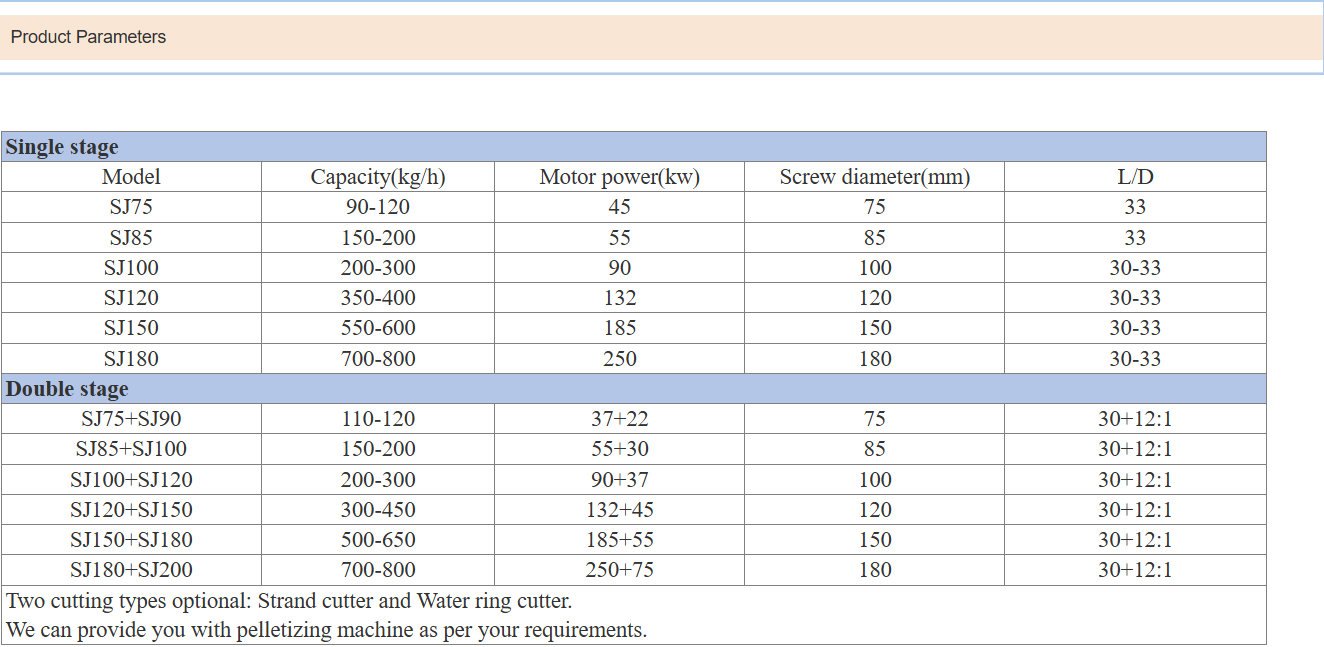

Technical Parameters of Pelletizing Machine:
Model | Screw diameter (mm) | L/D | Capacity (kg/h) | Main motor power (kw) | Agglomerate power (kw) | Line length (m) |
SJ-100 | 100 | 34:1 | 200-250 | 90 | 75 | 12 |
SJ-120 | 120 | 34:1 | 300-350 | 110 | 90 | 15 |
SJ-135 | 135 | 34:1 | 350-400 | 132 | 110 | 16 |
SJ-150 | 150 | 34:1 | 40-500 | 160 | 110 | 18 |
Process flow:

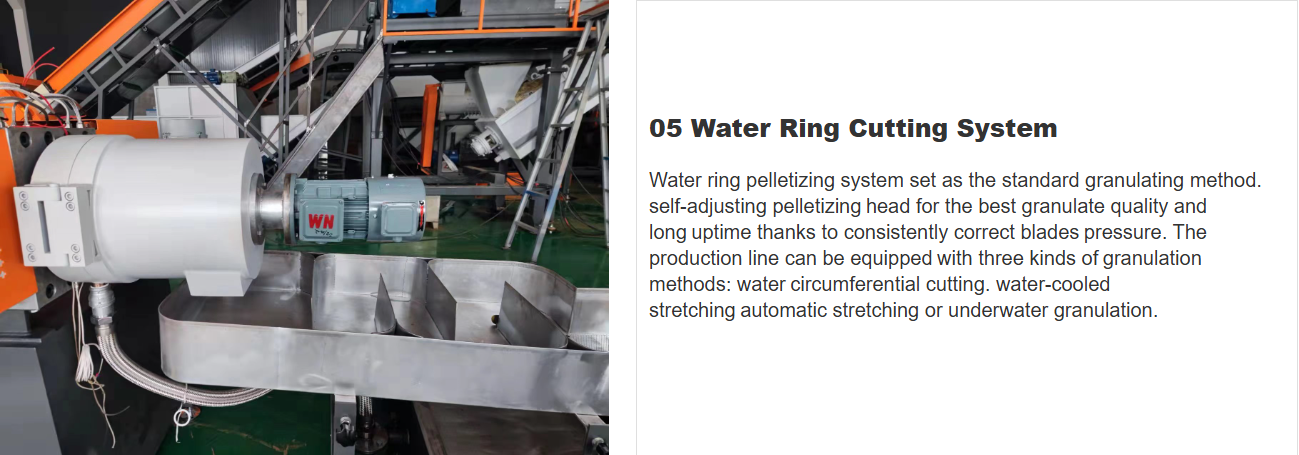

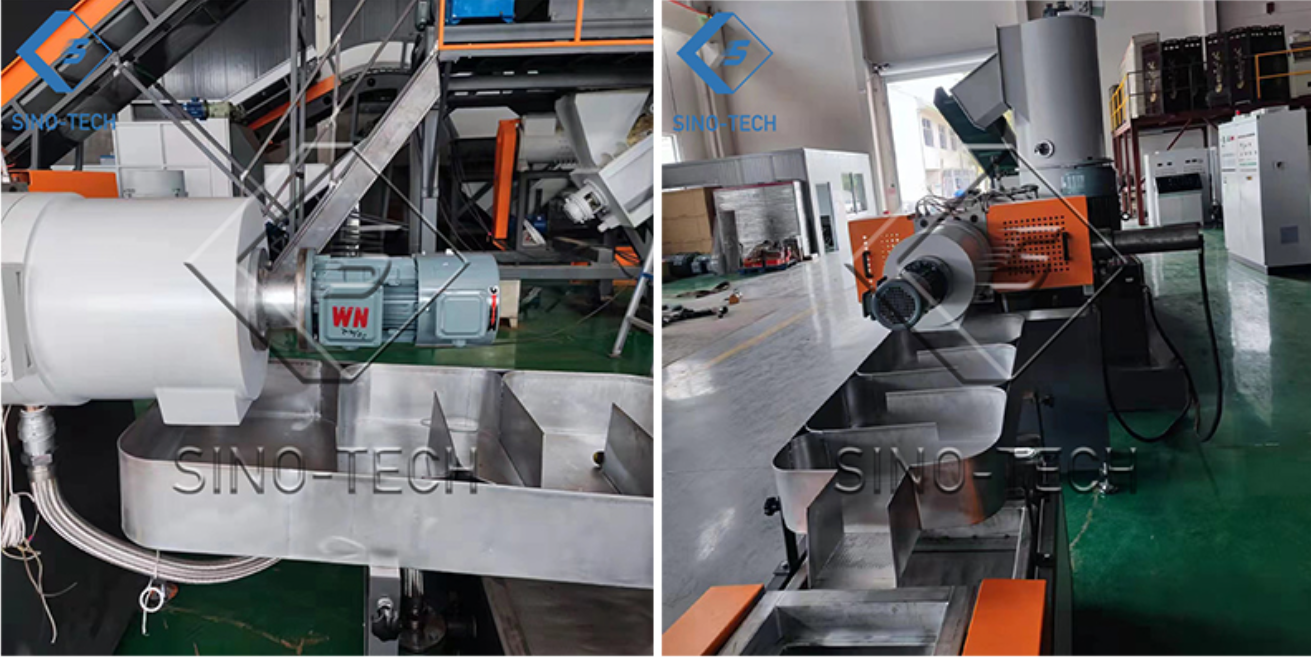

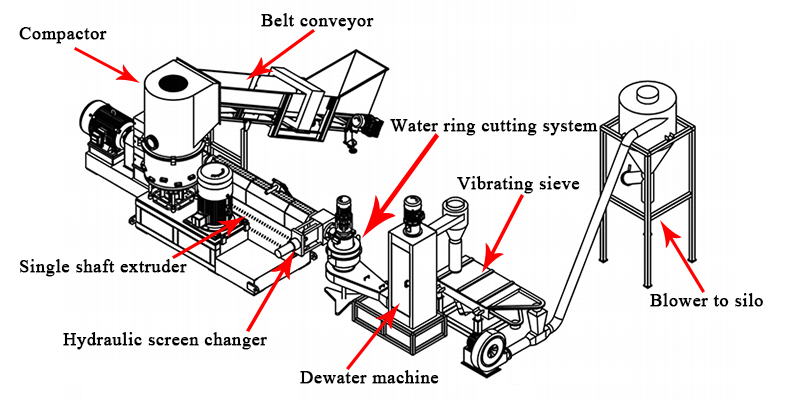

Water ring cutting system:

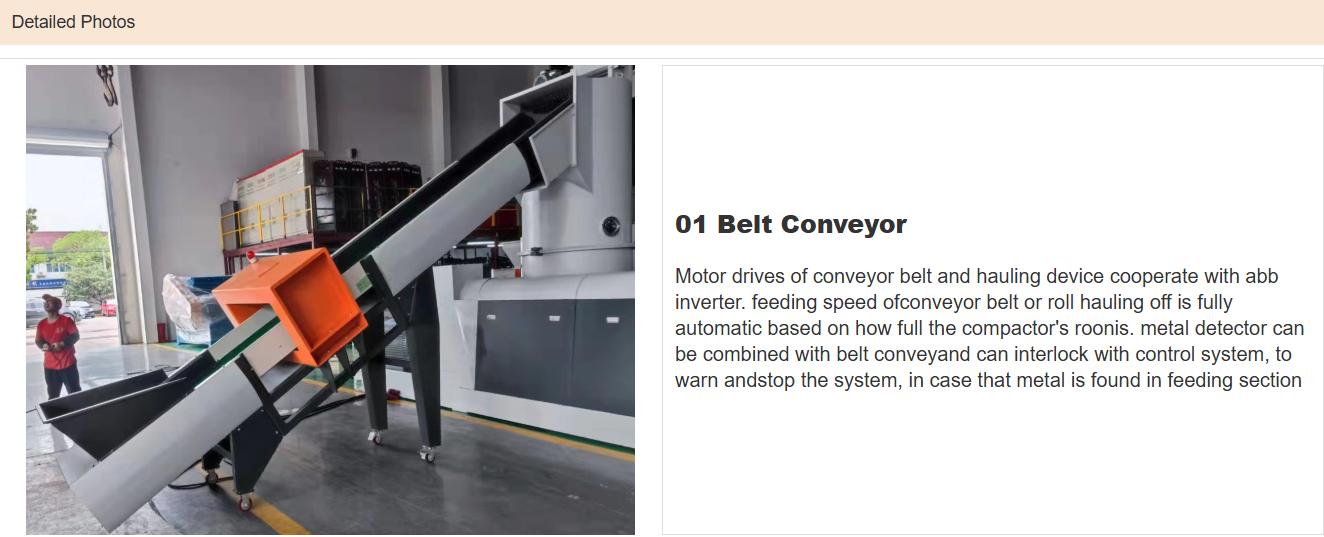

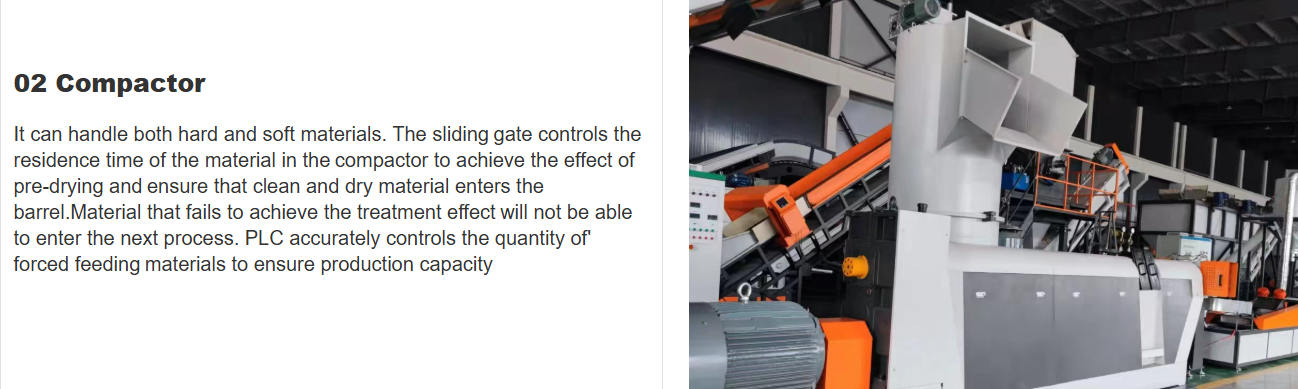

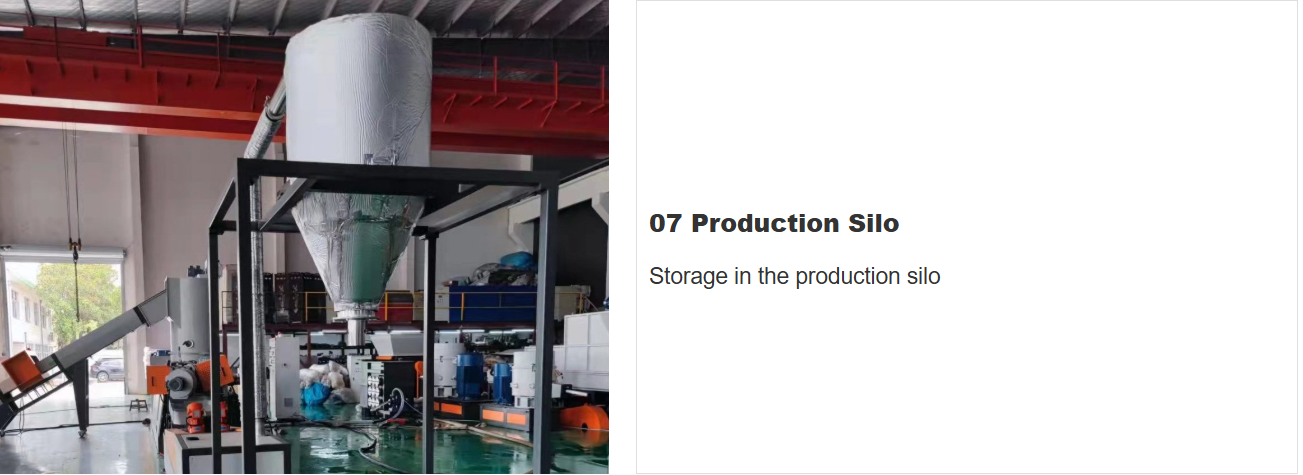

Belt conveyor→Compactor→single shaft extruder→Hydralic screen exchanger→Die mould→Water cooling tank→Dewatering machine→Storage silo
Strand cutting system:
Belt conveyor→Compactor→single shaft extruder→Hydralic screen exchanger→Die mould→Water cooling tank→Air blower→Pelletizer→Storage silo
Company Profile
FAQ
Q: How can we get the exact price of plastic machine?
A: Contact us with bottle volume and capacity request. Then we will recommend you suitable model machine soon.
Q: Do you provide any spare parts with machine?
A: Yes, we offer all necessary spare parts together with machine sending and 3 days spare parts delivery after machine sale.(contact us for packing list )
Q: How about your after-sale service?
A: We offer manual instruction and engineer training before loading, after shipment we provide 24 hours online support, video technical support or field installation assist.
Q: What is the lead time?
A: We have standard model machine in stock.It can be delivery within 1 week. If need to make mould, the delivery time need half month after drawing confirmed.
Q: What is the warranty period for your machine?
A: 12 months warranty for components and technical support.
Q: Do you provide custom machines?
A: Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.
Q: What's the advantage of SINO-TECH?
A: We provide customers with turnkey projects. Including plant design, blow molding machine and mold installation, debugging, also we can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time for customer.
Q: How can we get the exact price of plastic machine?
A: Contact us with bottle volume and capacity request. Then we will recommend you suitable model machine soon.
