| Quantity: | |
|---|---|
SNBL120A
Sino-Tech
84774010

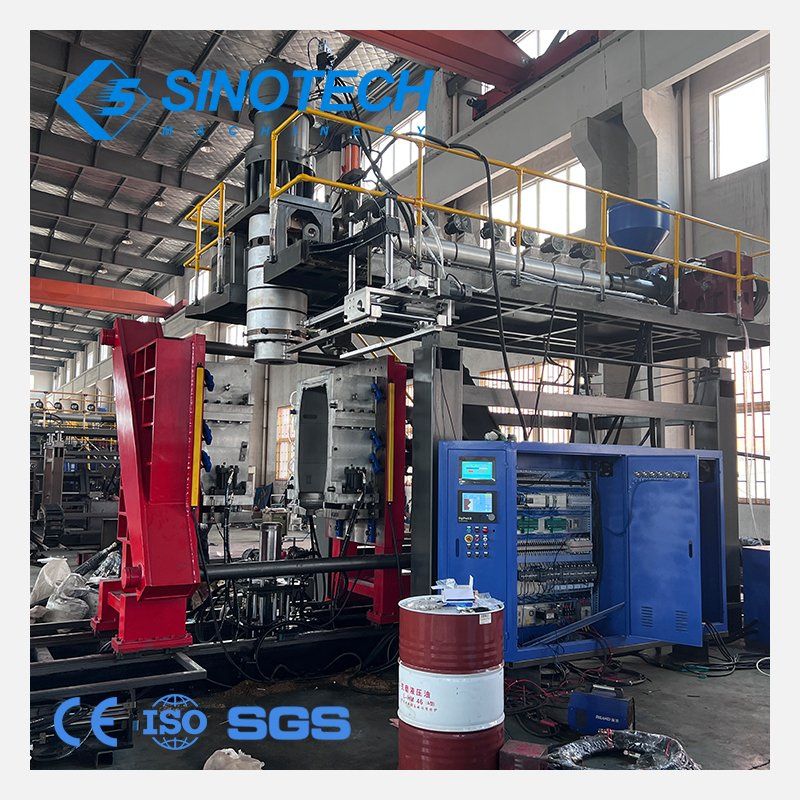

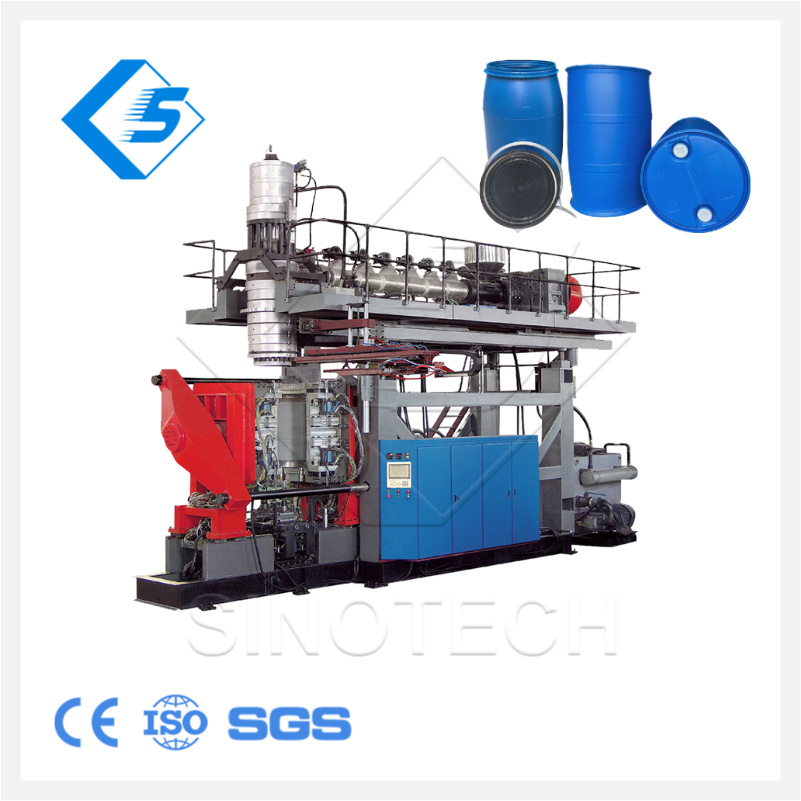

The 60-120L HDPE Plastic Barrel Drum Blow Molding Machine is designed for the high-efficiency production of large plastic barrels and drums. Capable of producing HDPE plastic drums for a variety of applications, including chemical containers, water storage tanks, and industrial packaging, this machine ensures high-quality and durable products. With a clamping force of 440KN and the ability to handle multi-layer extrusion, it is capable of manufacturing barrels with up to 120L volume.
This fully automatic extrusion blow molding machine offers precise molding, high-speed production, and energy efficiency, making it ideal for businesses looking to scale up their production of large HDPE plastic containers. Whether for small batches or large-scale manufacturing, this machine ensures consistent quality with minimal operator input.
Multi-Layer Extrusion Capability: The machine supports single, double, and triple layer extrusion, allowing for the production of high-quality barrels with enhanced durability and barrier properties.
High Plasticizing Capacity: Equipped with a 100mm screw diameter and a plasticizing capacity of 160KG/hr, this machine offers high output while maintaining material consistency for large-volume production.
Advanced Temperature Control: The Mitsubishi temperature control module ensures precise temperature management across four heating zones, providing consistent and high-quality results.
Flexible Production: The machine can produce barrels of varying sizes, from 60L to 120L, making it highly adaptable to different market demands.
Precision Molding: The patented TONGDA dual-bar timing clamping structure ensures high-speed, high-force mold closing, achieving precision and quality in every barrel produced.
Efficient Operation: With a high-speed clamping cycle and proportional hydraulic control, the machine optimizes energy use, reducing operational costs while maintaining high throughput.
| Parameter | Value |
|---|---|
| Screw Diameter | φ100mm |
| Screw L/D Ratio | 25:1 |
| Plasticizing Capacity | 160 KG/Hr |
| Clamping Force | 440 KN |
| Max. Product Volume | 120L |
| Platen Dimension | 800×1000 mm |
| Platen Distance | 500~1200 mm |
| Heating Power | 3φ7.7KW |
| Max. Working Pressure | 160 kg/cm² |
| Blowing Pin Stroke | Adjustable |
| Overall Dimensions | 5420×2450×3900 mm |
| Machine Weight | 16.0 tons |

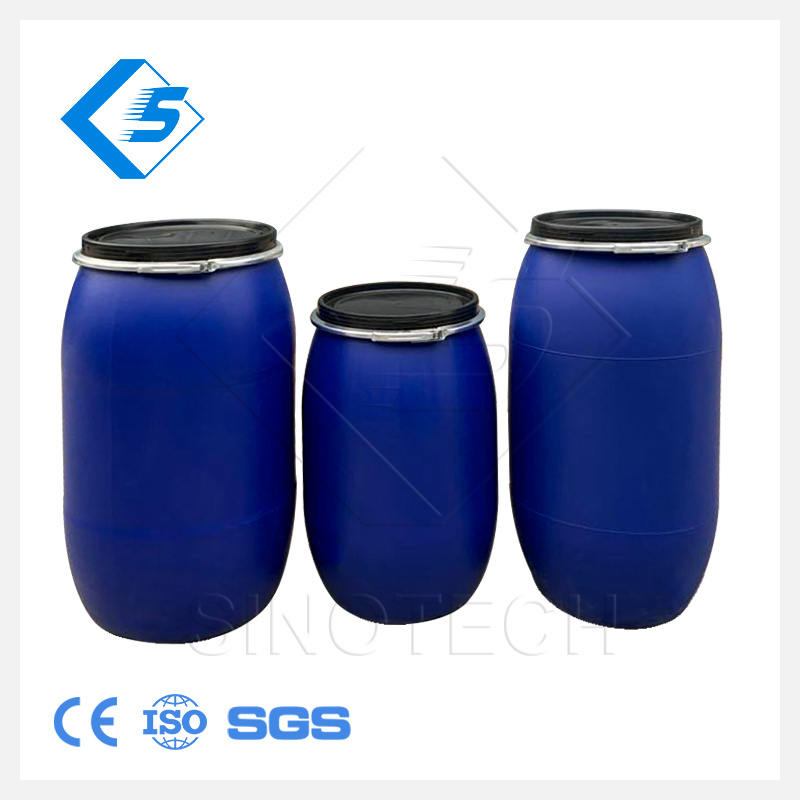

The 60-120L HDPE Plastic Barrel Drum Blow Molding Machine is designed for high-volume production of large plastic containers used in various industries, including:
Chemical Industry: Ideal for producing chemical drums and storage barrels used for industrial chemicals.
Water Storage: Suitable for manufacturing water tanks and liquid storage barrels for both industrial and residential use.
Food and Beverage Industry: Can also be used for producing bulk containers for liquids such as oils, syrups, and juices.
Q: What is the maximum capacity of the barrels produced by this machine?
A: This machine is capable of producing plastic barrels up to 120L in volume, catering to industries that require large container production.
Q: What materials can be used with this machine?
A: The machine works with materials such as HDPE, LDPE, PP, and PVC, making it versatile for different plastic container applications.
Q: How fast can this machine produce barrels?
A: With high clamping speed and optimized hydraulic control, this machine can produce barrels with a high output rate, ideal for large-scale manufacturing.
Technical parameter of TDB-80A
| Item | Code Item | Standard Code | Manual | Note |
| Extruder (Main extruder) | Max. capacity | 120L | ||
| Main screw | φ100mm | High efficiency of mixing | ||
| Screw L/D | 25: 1 | |||
| Screw material | 38CrMoALA | |||
| Max. extruder consumption | 160KG/Hr | Take HDPE for example, change with material density | ||
| Twisting transition method | Electrical machinery, Gear box, Leather belt transmission | Hard gear surface decelerator | ||
| Driving motor | 55KW | |||
| Screw rotate speed | 10---70r/min | |||
| Ahead/back adjusting | Yes | |||
| Up/down adjusting | Yes | |||
| Temperature control zone | 4 | Japan MTSUBISHI | ||
| Heating power | 3φ7.7KW | |||
| Cooling for blower | 4 | |||
| Cooling function | Yes | Cooling water | ||
| Clamping unit (Mold opening/closing unit) | Structure | With patented TONGDA two-bar timing clamping structure in high speed and high force, to achieve quality products. | ||
| Clamping directions | Ball rail | For high precise location for longer service life. | ||
| Clamping speed | 550mm/sce; 33m/min | |||
| Max. mold dimension | 800*1000 mm | W*H | ||
| Mold opening stroke | 600 mm | |||
| Platen distance | 500~1200 mm | Min.~Max. | ||
| Clamping force | 440 KN | |||
| Mould thickness scope | 510~600 mm | |||
| Fixing pattern of mold | Mold press platen | |||
| Mold opening/closing stroke control | Inducing switch+moving | Discriminate mold opening/ closing end, mold opening/ closing slow speed, | ||
| Light Electric Safety protect | Taiwan FOTEK | |||
| Die head | Form | Accumulator | First in, first out | |
| Material | 38CrMoALA, inner mirror treatment | |||
| Accumulator volume | 12L | |||
| Output of injecting | 8.7Kg | HDPE, density: 0.75g/cm3 | ||
| Die dimension size | φ120~ 420mm | Min.~Max. | ||
| Heating method | Stainless steel heating ring, precision + 1% | |||
| Temperature control zone | 4 | |||
| Blow-air | Yes | |||
| Adjusting of parison thickness | Yes | MOOG 100-point | ||
| Injecting stroke control | Accumulator electronic ruler + limit switch | |||
| Adjusting method of thickness | Inner mold adjusting | |||
| Adjusting output at axial direction | ±3.5mm | |||
| Injecting pressure | 75~140kg | TongDa 10-point pressure adjusting control | ||
| Max. injecting speed | 1.6kg/sec | Not sure | ||
| Top blowing | Blow-air control method | Discriminate high/low blow-air | ||
| Side blowing | Blow-air control method | Discriminate high/low blow-air | ||
| Bottom blowing | Blow pin stroke control | Inducing switch | Discriminate blow pin up/down end | |
| Blow-air control method | Discriminate high/low blow-air | |||
| Blow pin cooling function | Cooling water | 1-in 1-out cooling system | ||
| Blow pin supporting material | Yes | Changeable | ||
| Adjusting of blow pin position | Ahead/back, left/right, up/down adjusting | |||
| Mechanical hand | Running method | FESTO | Germany | |
| Direction control | Ball rail | High precise and speed | ||
| Electric system | Temperature control | MITUSBISH | MITUSBISH, PID control | |
| Load protection | ||||
| Movement control | MITUSBISH PLC | |||
| Operation interface | Human-machine interface | Taiwan HITECH | ||
| Time setting | Touch screen | |||
| Oil pressure system | Main motor | 37KW | ||
| Main oil pump | DENISON | American | ||
| Movement control method | Proportion pressure control | 0~999 | ||
| Direction control | Taiwan | |||
| Max. pressure | 160kg/cm2 |
