| Quantity: | |
|---|---|
SJ35 45 55 65 75 90 110 120 135 150
Sino-Tech
84772090

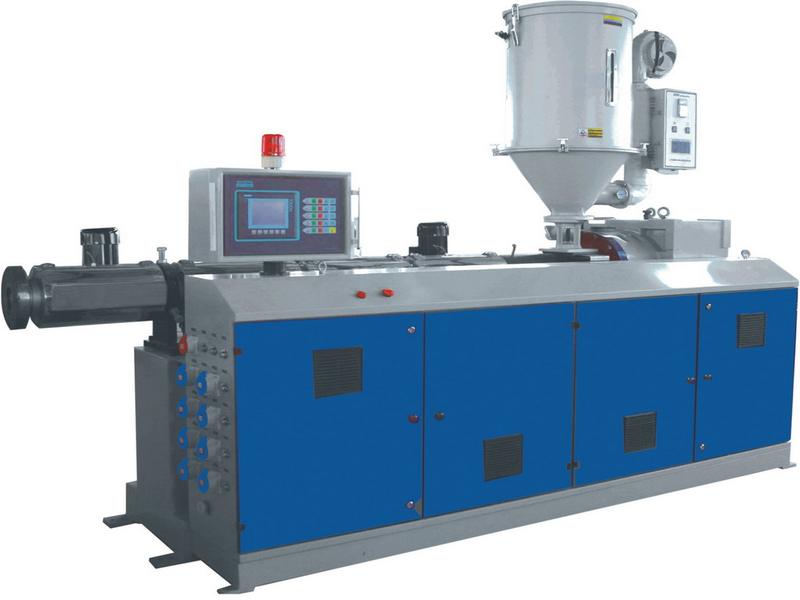

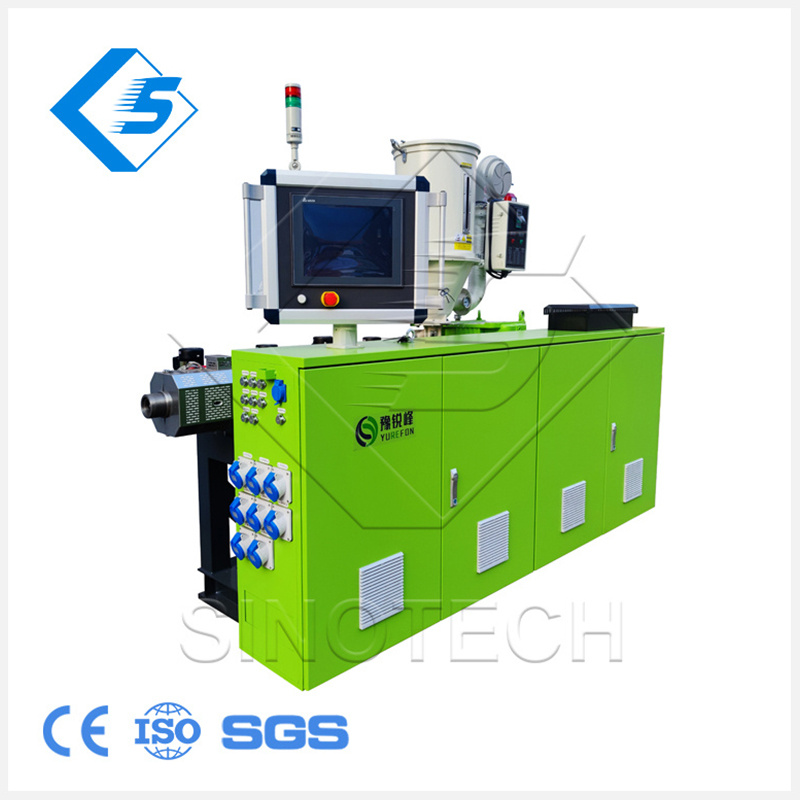

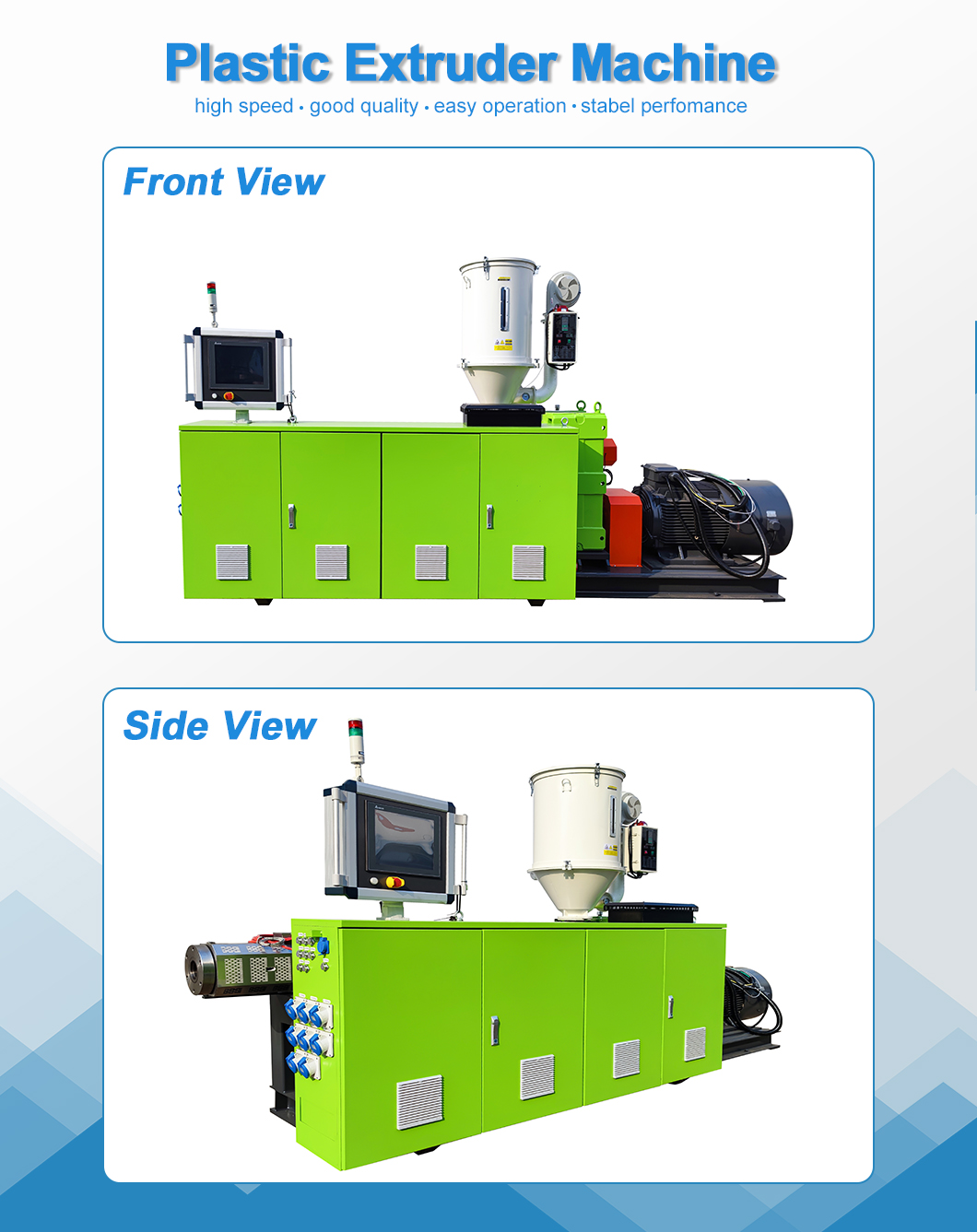

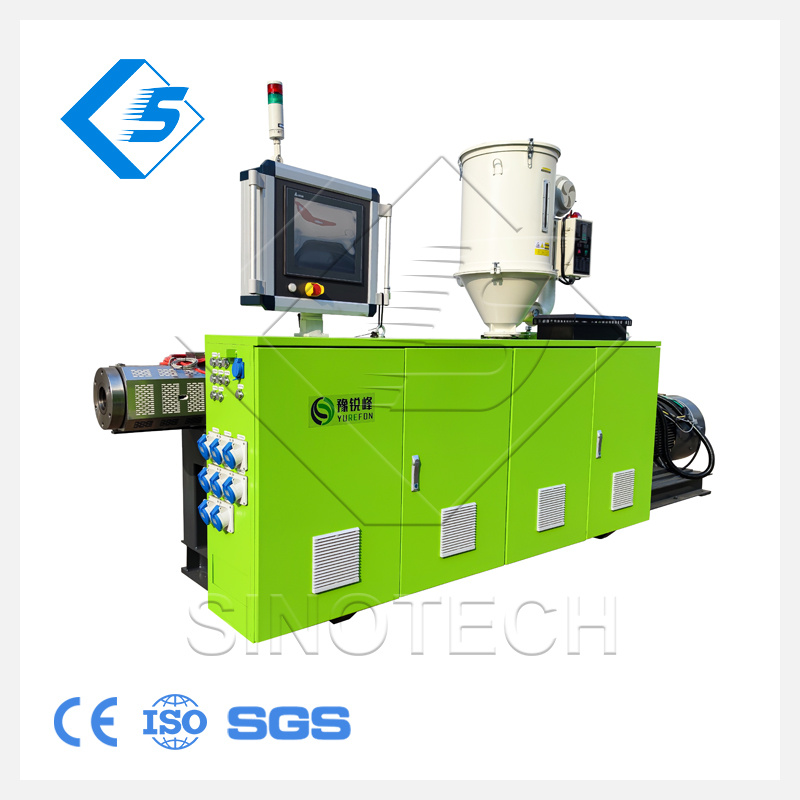

Plastic Single Screw Extruder
Characteristic&Application of Plastic Single Screw Extruder
SNJH Series Single Screw Extruder is specially used for Thermo Plastic like PE PP PB PS PC ABS PMMA. Also can produce the pipe, sheet, board, bar and Extrusion Blowing product.

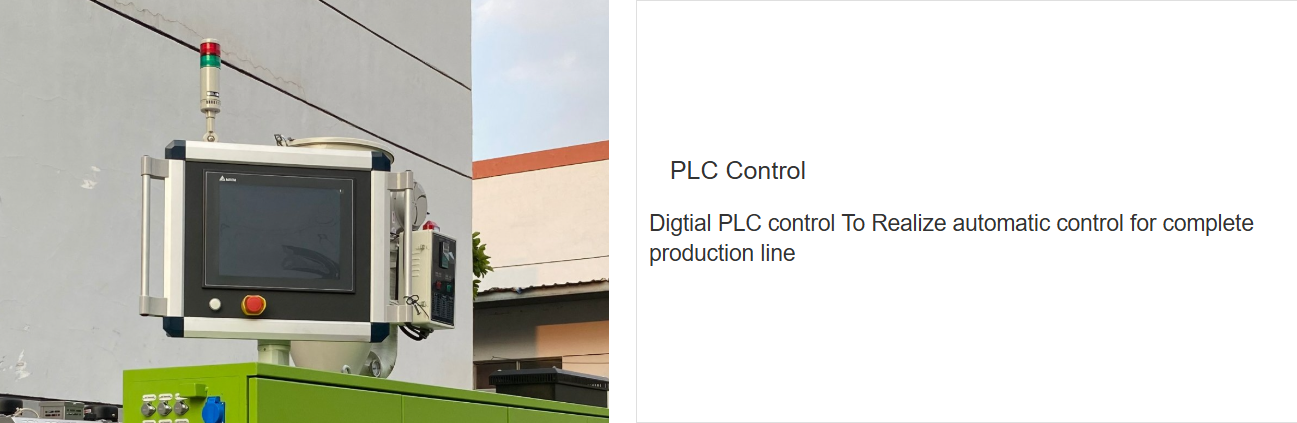

Digtial PLC control To Realize automatic control for complete production line
Special designed Scerw and Barrel for low abrasion high fusion stable fusion Process
Advanced Electric control system,Different section Trouble Alarm.

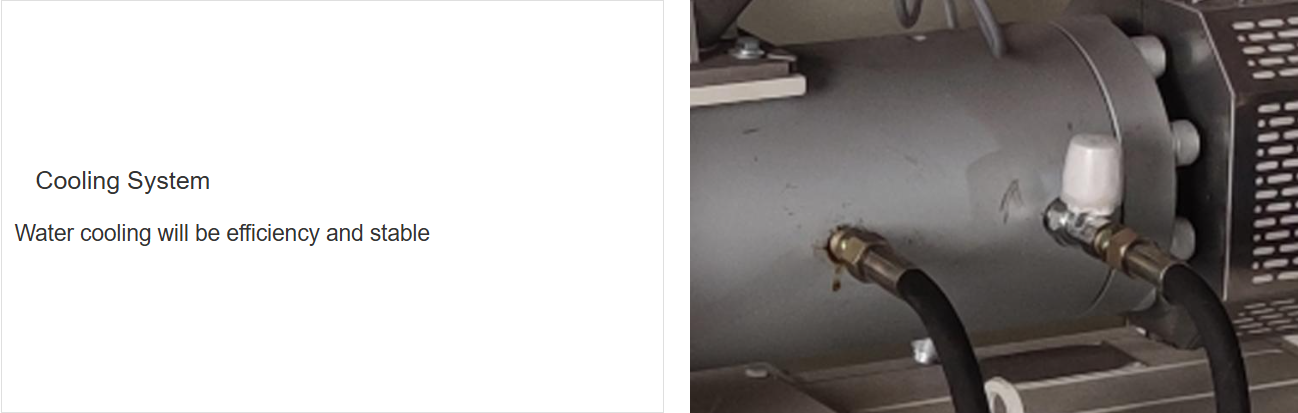

Water cooling Screw and Feeding Grooved Sleeve Gurantee Extrusion Stable
High performance Gearbox System for torque distribution
High efficient and low noise cooling system to to make sure low noise working.
Main Technical Paramter of Main Model Single Screw extruder
| Model | Screw diamter(mm) | L/D Ratio | Main Motor(kw) | Design Capacity(kg/h) |
| SNJH 25 | 25 | 25 | 2.2 | 5 |
| SNJH 30 | 30 | 25 | 3 | 8 |
| SNJH 45 | 45 | 33 | 22 | 50 |
| SNJH 55 | 55 | 33 | 37 | 100 |
| SNJH 65 | 65 | 33 | 75 | 300 |
| SNJH 75 | 75 | 33 | 110 | 400 |
| SNJH 90 | 90 | 33 | 160 | 500 |
| SNJH 110 | 110 | 33 | 185 | 600 |
| SNJH 120 | 120 | 33 | 280 | 800 |
| SNJH 150 | 150 | 33 | 355 | 1000 |

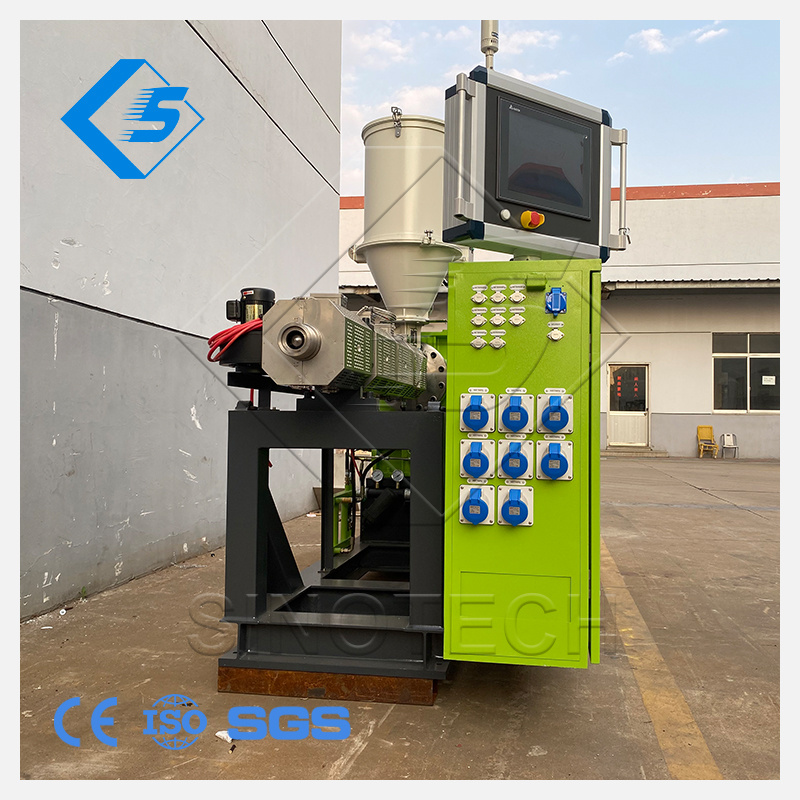

Detailed Photos

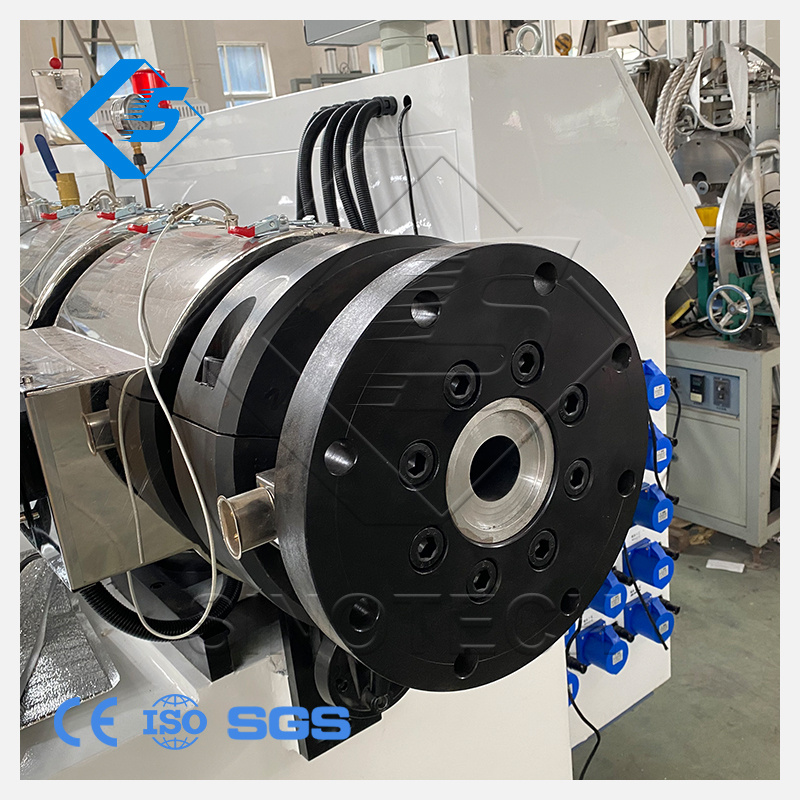

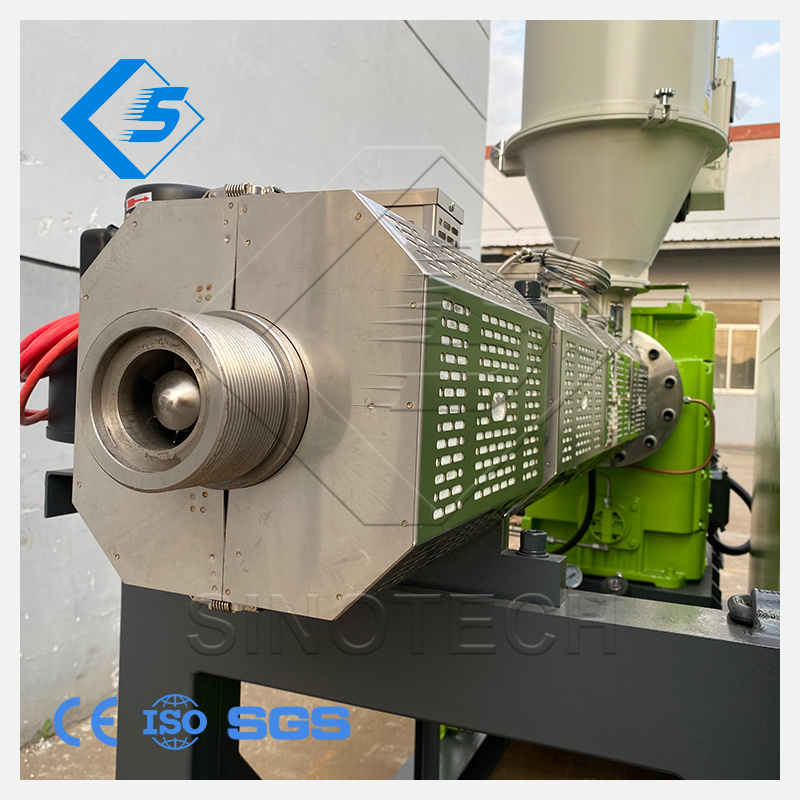

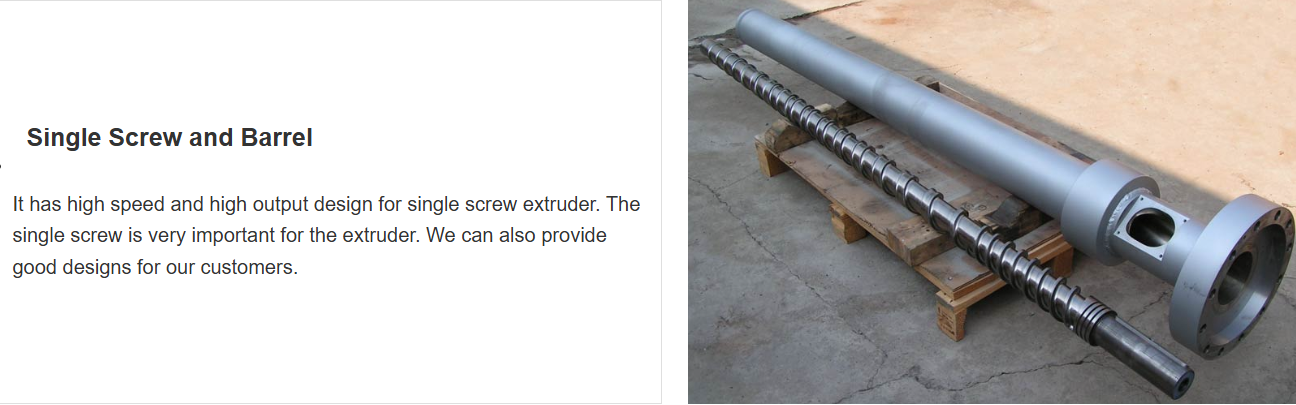

1. Euro-style retangle barrel, reflux refrigerationchannel is optimized and disposed, which makes temperature difference in C areas smaller. Innovated design of heater tightened style insures high efficiency of heat tansfer and high longevity of heater. The barrels are equipped with bimetallic liners( 45# steel + α101), processing heat treatment. HRC is between 60 and 62.
2. The screw elements and kneading blockes are designed accurately, precised processed by our workers in our plant. The material of screw elements is high-speed steel W6Mo5Cr4V2, or 38CrMoAlA , under nitrogen treatment, HRC is between 58 and 60.

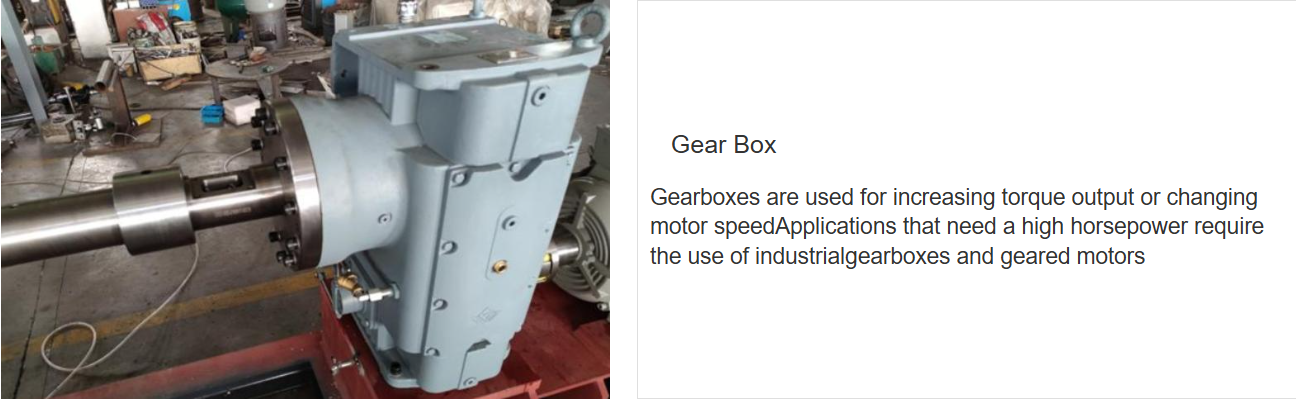

3. Reducing and distributing gearbox of extruder reduces the motor speed to the speed of the screw shafts and distributes it to the two output shafts.
The gearbox consists of:

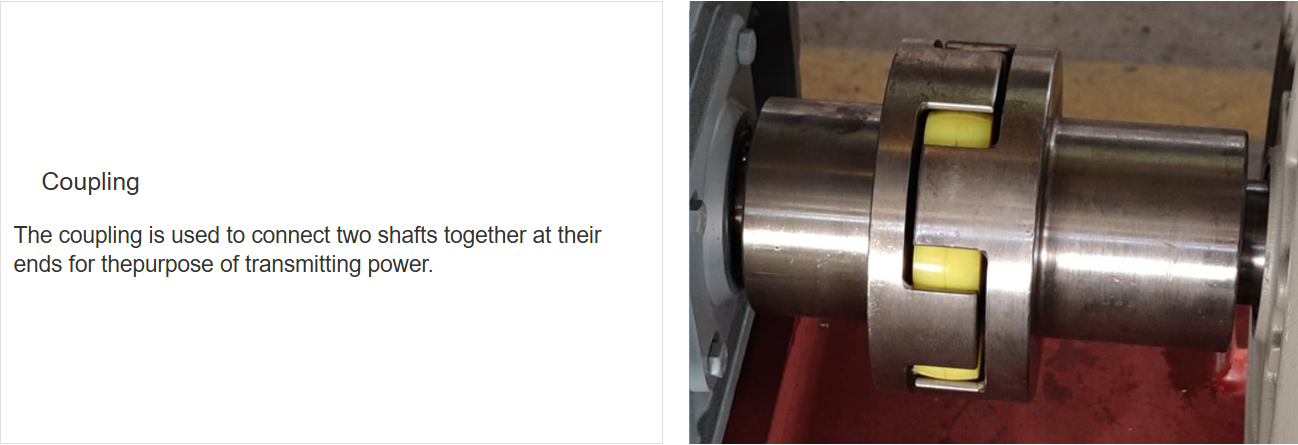

Involute gear teeth couplings between the output shafts and screw shafts
Integrated thrust bearings assembly, radial bearings of the output axis are NSK products.
4. PLC or PCC controller.
Application
Plastics filling and modification, general and fibre color masterbatch, blending modification (rubber and plastic blending, plastic alloy), functional masterbatch, glass fibre or carbon fibre reinforcement, various cable material, reactive extrusion, handling after venting and dewatering, special material, powder coating
1,Mixing nature-changing:
PE, PP, PS+SBS; PP+NBR; PA+EPDM;EVA+Sillicon rubber, etc.
PE, PA, PC, CPE+ABS(Alloy); ABS+TPU; PBT+PET; PP+PE,etc.
2,Filling nature-changing:
PE, PP, EVA, etc.+Calcium Carbonate, talcum powder, titanic powder; ABS, PC, PS, etc.+aluminum hudroxide, magnesium hydroxide, antimony oxide.
3,Functional machine pellets:
PP, PA, PS etc.+ starch :de-composing machine pellets;
PE+fog-preventing dipper, stabilizer: dual-prevention machine pellets;
PE, EVA, ABS etc. +carbon black: black machine pellets.
4,Colored machine pellets:
PE, PP, ABS, AS, PA, EVA, PET +pigment and auxiliary.
5,Intensified glass fibres and carbon fibres:
PP, PBT, ABS, AS, PA, PC, POM, PPS, PET, etc.+long fires, carbon fibres, crystals and so on etc.
6,Various cables:
HDPE. LDPE, LLDPE, MDPE, EVA, PVC, PP ,etc. insulating cables , coatings; PE peroxide , silicon alkyl crossing cables; radialization crossing cables.
7,Special materials:
EVA heat-melting glue, polyurethane ,fluorin rubber, fluofin plastics, PP cigarette filtering material and TPR sole material.
8,Reaction extrudinig:
Polystyrene oxide, high -absorbing reshin , chlorine sulphur polyethylene;
9,Powder paint :
Polyster , ring oxide, lactide , polyurethane , acrylate
Company Profile
FAQ
Q: Can we visit your factory?
Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.
Q: How can we get the exact price of plastic machine?
Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation.
Q: Do you provide any spare parts with machine?
Yes, we offer all necessary spare parts before shipment.(contact us for packing list )
Q: How about your after-sale service ?
We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.
Q: What is the lead time?
For customized machine, it takes about 45-60 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)
Q: What is the warranty period for your machine ?
12 months warranty for components and technical support .
Q: Do you provide custom machines?
Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.
Q: How can we install the machine when it arrives?
We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.
Q: What's the advantage of SINOTECH?
We provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.
