PVC advertising coloth flex Banner sheet extrusion making machine

  This PVC banner flex production line equipment adopts the 3-in -one structure of film--glass fiber mesh cloth--film or 2 in one with films and glass fiber mesh cloth structure, which can be made into flex banner , inkjet Print, AD print etc,which can be used everywhere for public projects, such as the exhibition hall, museum, library, gymnasium, art, display hall, opera, university, middle school; besides, it can also be used for AD sales. For more important, its function can appear for the public lighting system, such as the square, parks, construction display project for the airport and railway stations; Additionally, it can beautify the whole wall, which make people feel warm and beautiful, such as the hotels, canteens, teashops, sack houses, bars, balls, gym etc.

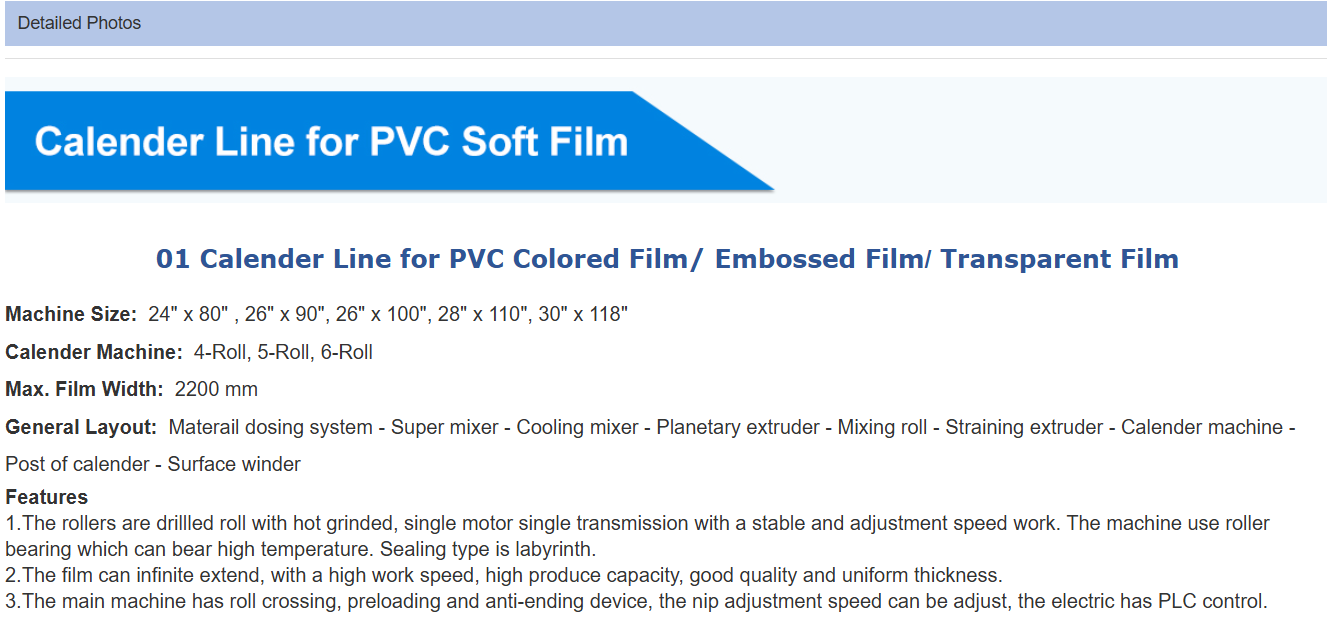

Features:

1.The rollers are drilled rolls with hot-grinded, single motor single transmission with a stable and adjustment speed work. The machine use roller bearings which can bear high temperature. Sealing type is labyrinth.
2.The film can infinite extend, with a high work speed, high produce capacity, good quality and uniform thickness.
3.The main machine has roll crossing, preloading and anti-bending device, the adjustment speed can be adjusted, the electric parts has PLC control.

Application:
It is used to produce PVC flex banner, PVC advertisement banner, PVC flex banner material
1. With equal thickness, having good ink absorption and strong color appearance
2. High density for the connection of PVC and mesh cloth.
3. Heating by mirror rollers
4. No need to paste glue, compound with hot pressing.
5. With automatic winder, easy for operating.
6. Correct   temperature   control, equal control for tension.
7. All heating  rollers  has been process precisely, with high precision and good balance for the concentricity and coaxality.
8. With good temperature protection for the heating rollers, with low loss of power.
9. Main electrical parts adopt famous foreign brand, with good stability and credibility 10. This equipments have the advantages of big capacity, high efficacy, stable quail , easy operation and etc, it is the best choice for Ad customers.

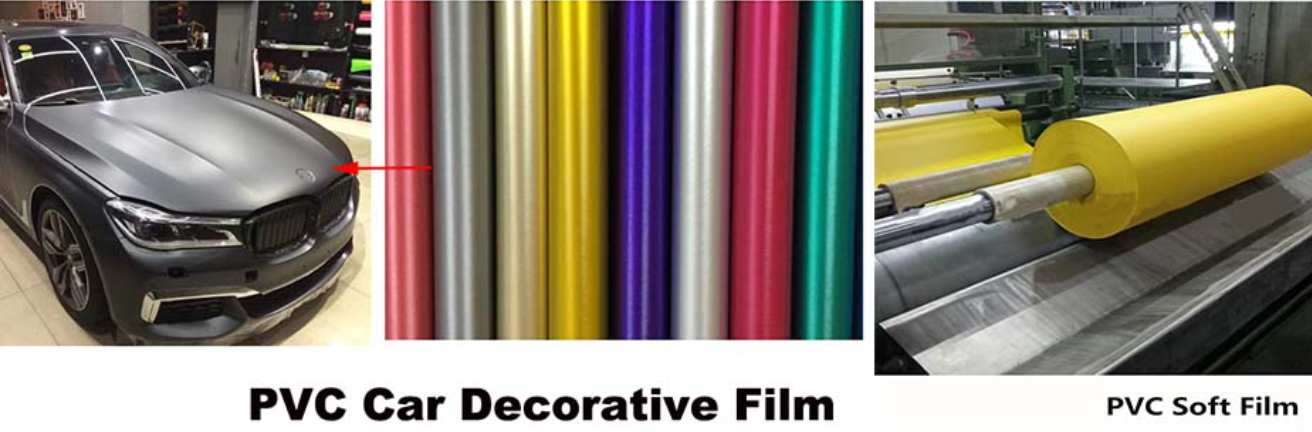

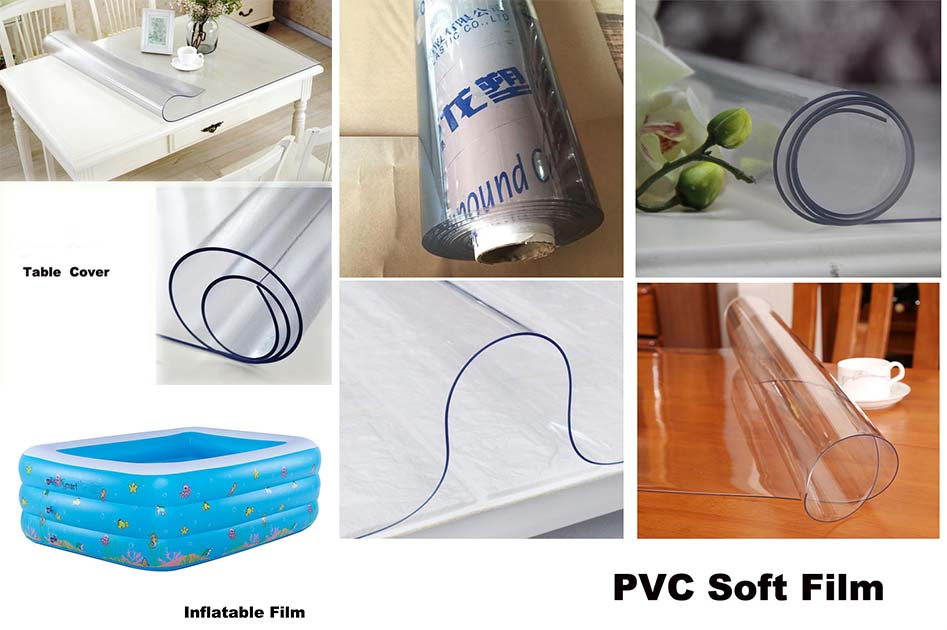

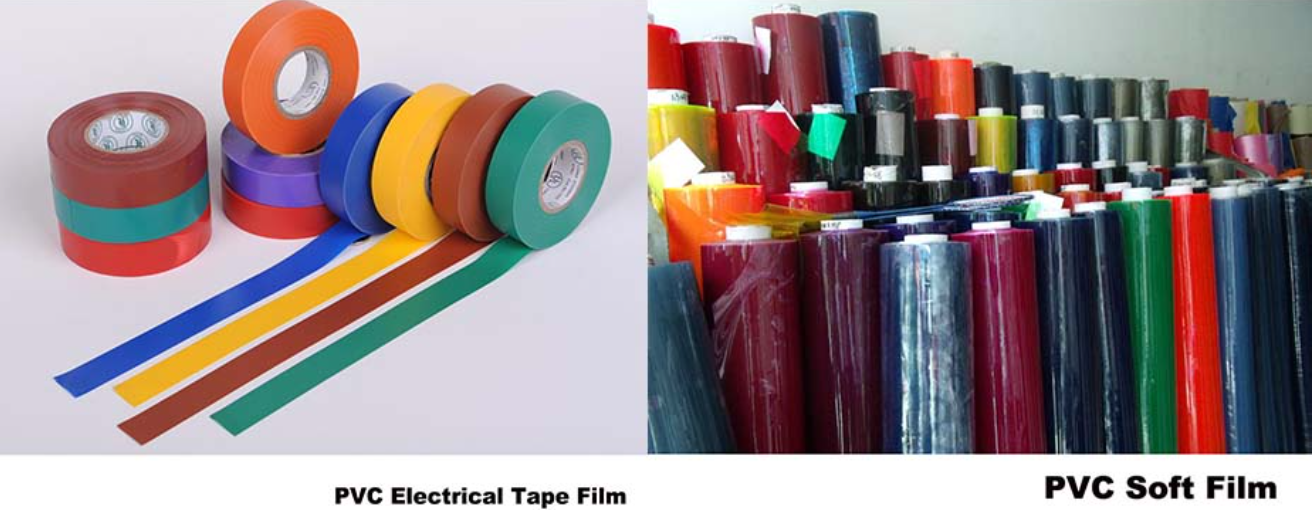

Calender line for PVC transparent film include PVC normal clear film line and PVC super clear film line

02 Calender Line for Artificial Leather

Artificial Leather by calender process with high output, stable quality, durable, scratch-resistant and flame resistant

Machine Size:  Φ610mm x 1830mmL, Φ610mm x 2030mmL,

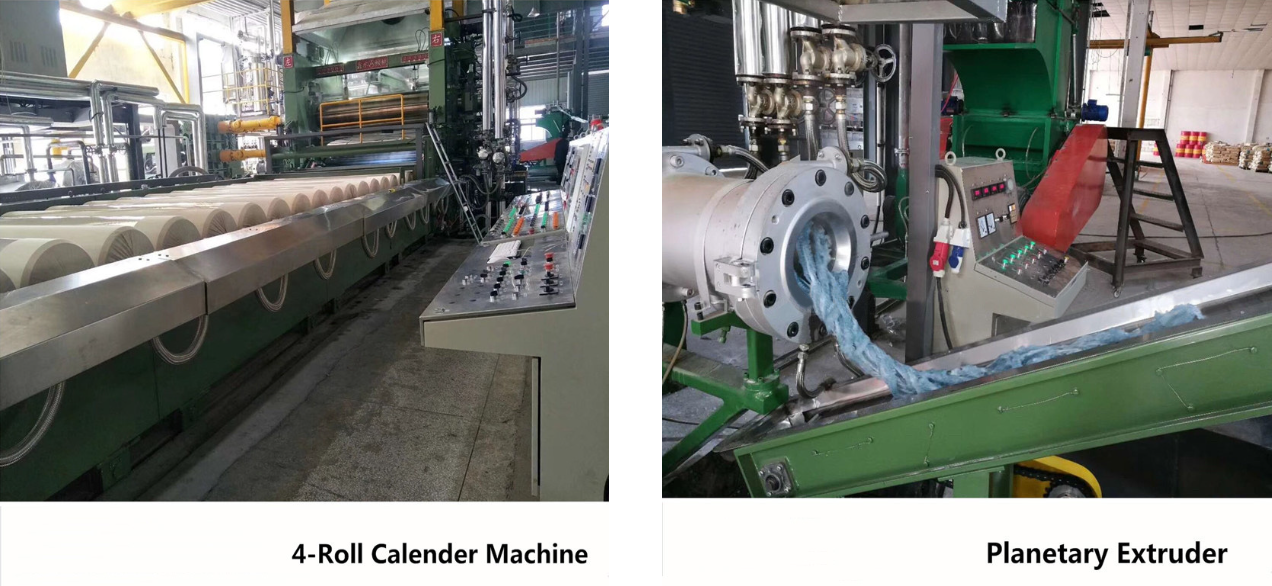

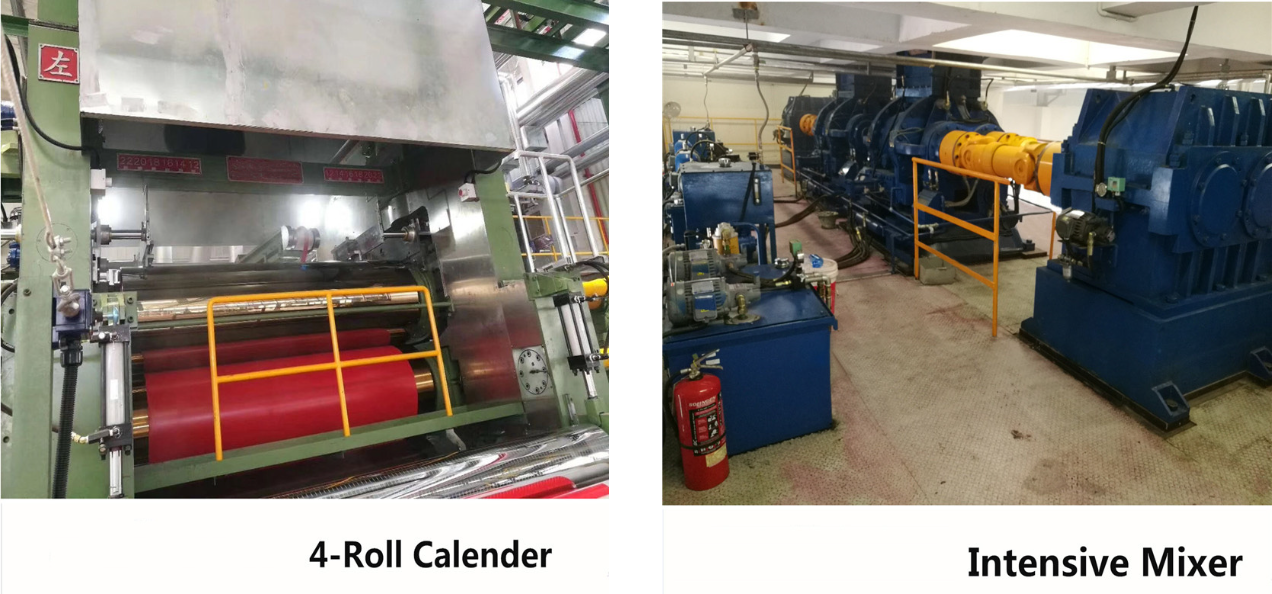

Calender Machine:  4-Roll

Max. Film Width:  1540 mm

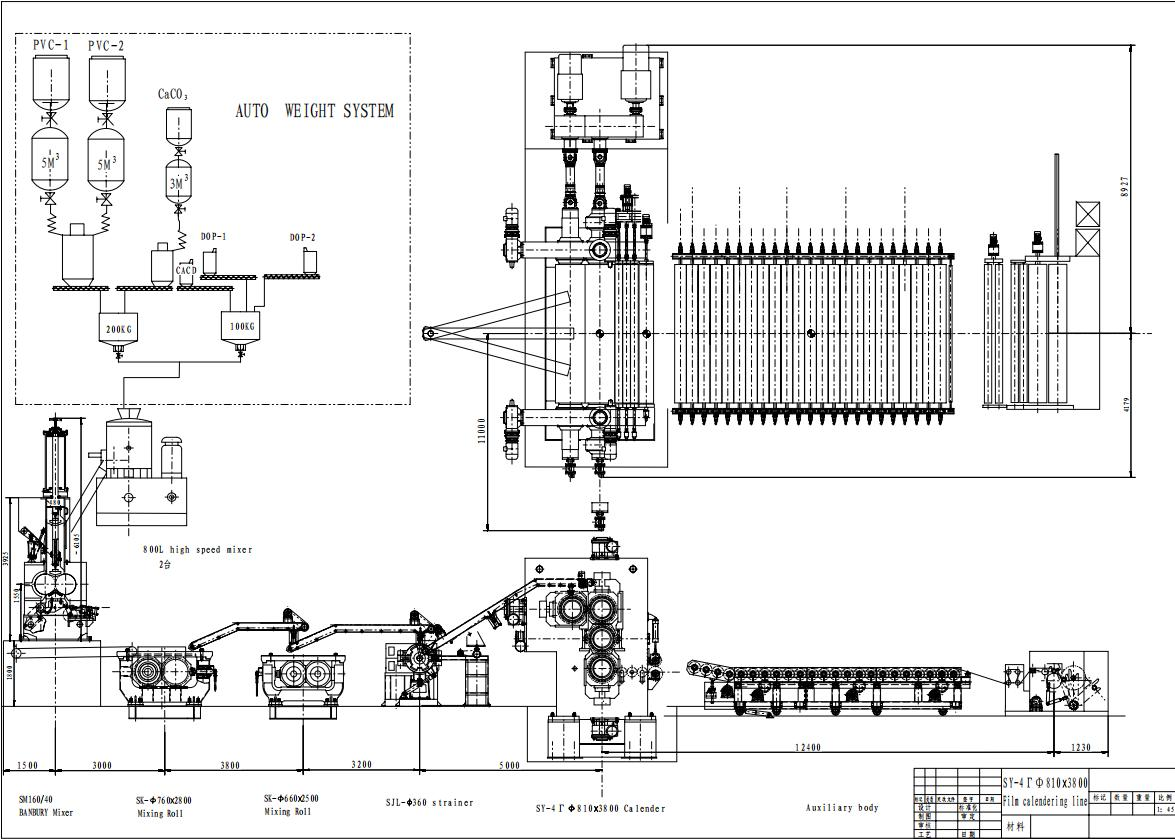

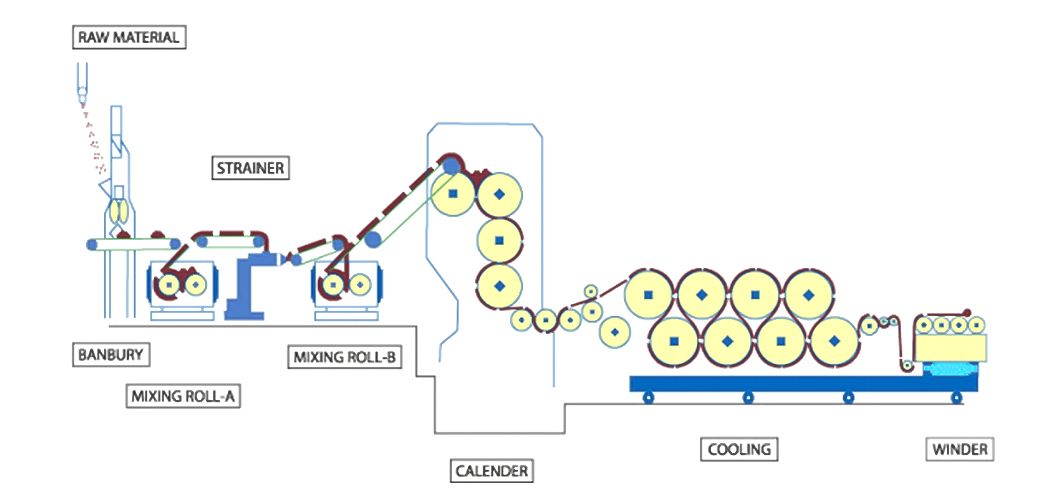

General Layout:  Materail dosing system - Super mixer - Intensive mixer - Mixing roll #A - Mixing roll #B - Straining extruder - Calender machine - Post of calender -  Central winder

03 Calender Line for PVC Flooring Film

Calender line for PVC flexible banner film include calender line for ware layer and printing layer of resilient flooring, base sheet of multilayered flooring, base sheet of LVT flooring and so on

a. Calender line for ware layer and printing layer of resilient flooring

Machine Size:  Φ760mm x 2800mmL, Φ610mm x 2030mmL,

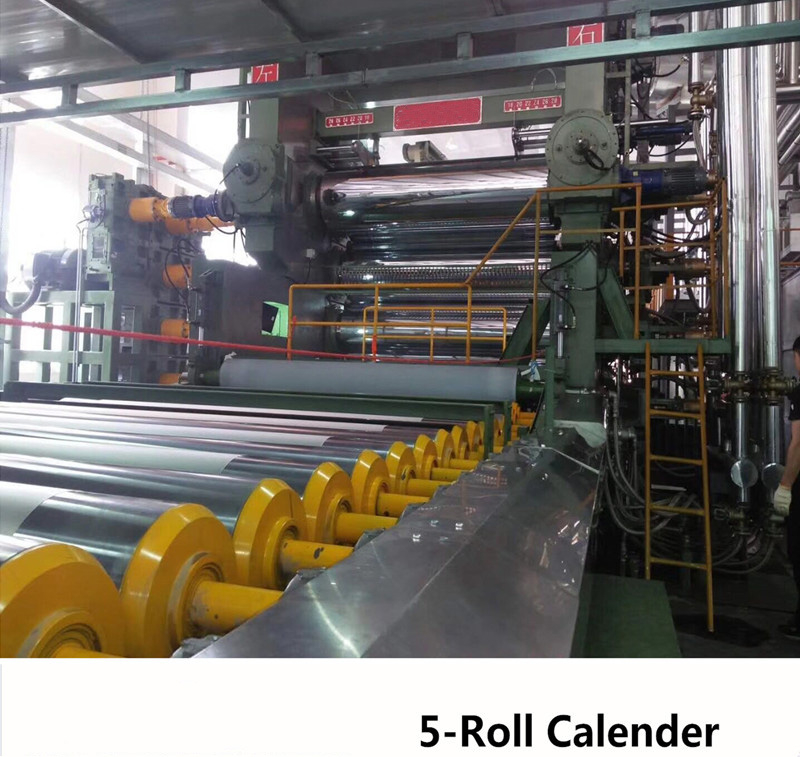

Calender Machine:  4-Roll, 5-Roll

Max. Film Width:  2000mm, 1540 mm

General Layout:  Materail dosing system - Super mixer - Cooling mixer - Planetary extruder- Mixing roll - Straining extruder - Calender machine - Post of calender - Surface winder/Central winder

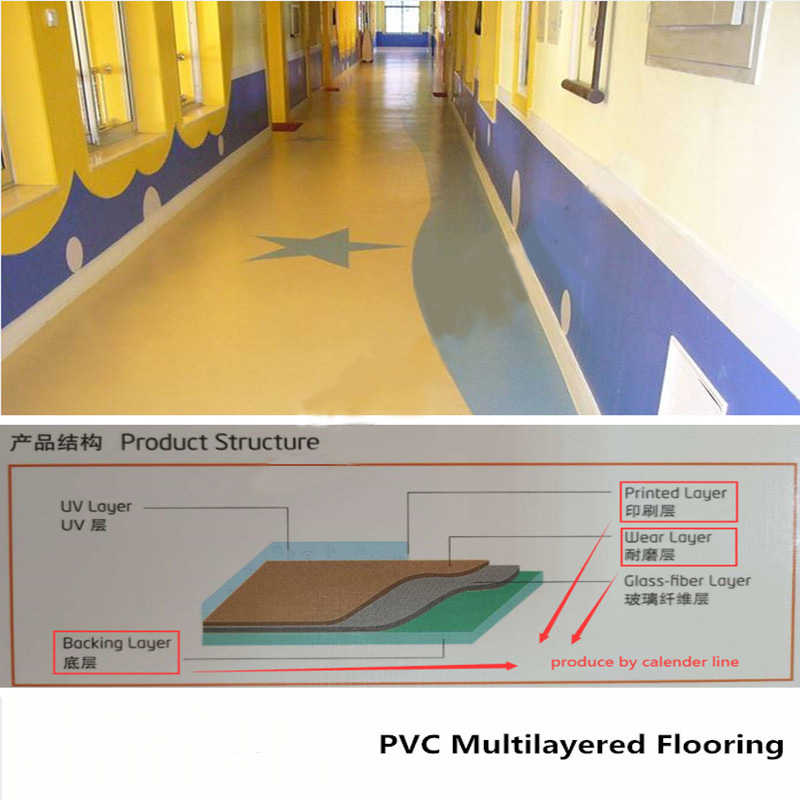

b. Calender line for base sheet of multilayered flooring

Machine Size:  Φ760mm x 2800mmL

Calender Machine:  4-Roll

Max. Film Width:  2000 mm

General Layout:  Materail dosing system - Super mixer - Intensive mixer - Mixing roll #A - Mixing roll #B - Straining extruder - Calender machine - Post of calender - Surface winder/Central winder

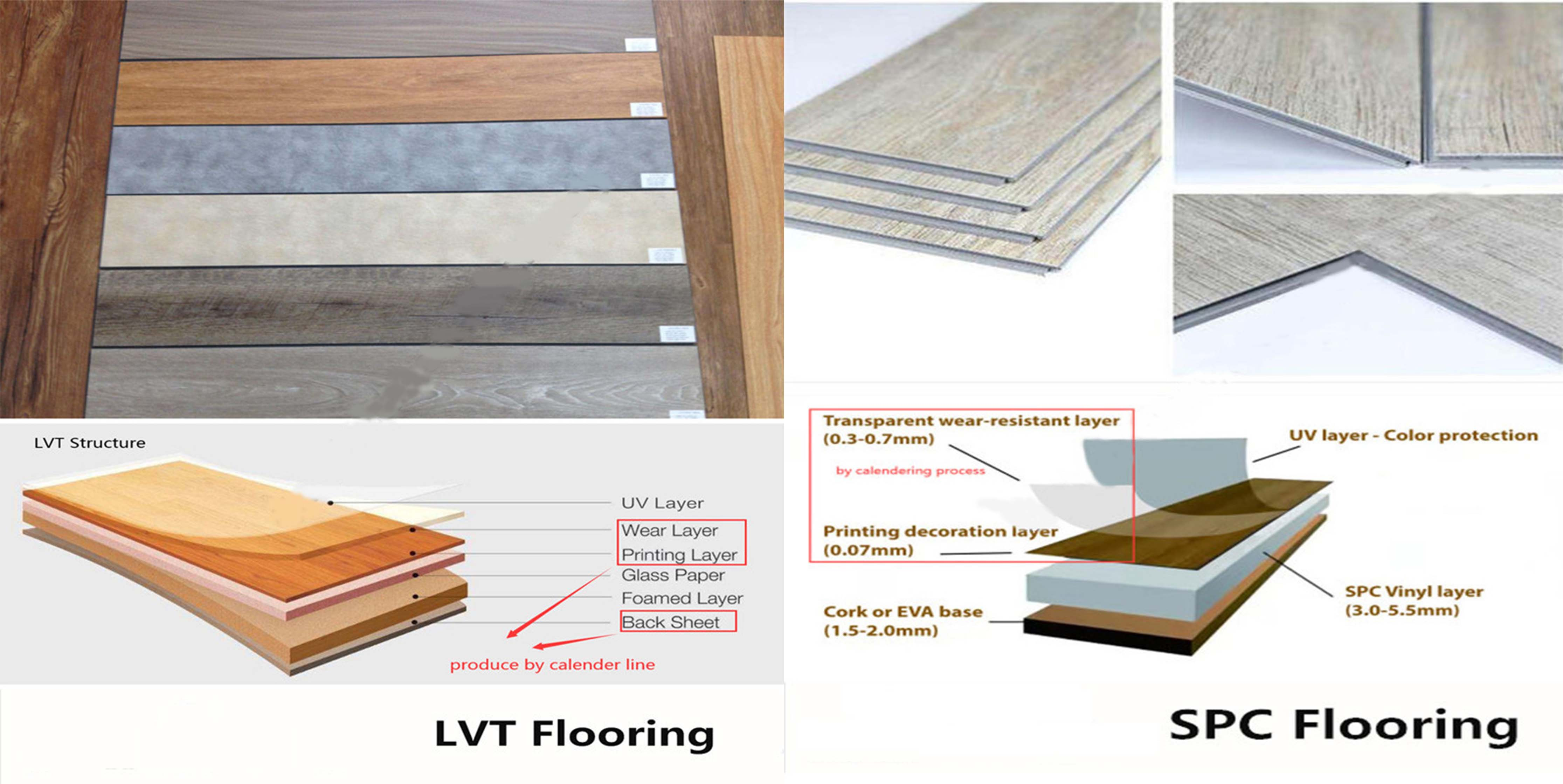

c. Calender line for base sheet of LVT

Machine Size:  Φ610mm x 2030mmL,

Calender Machine:  3-Roll

Max. Film Width:   1540 mm

General Layout:  Materail dosing system - Super mixer - Intensive mixer - Mixing roll #A- Mixing roll #B - Calender machine - Post of calender - Slicer

04 Calender Line for PVC Flexible Banner Film

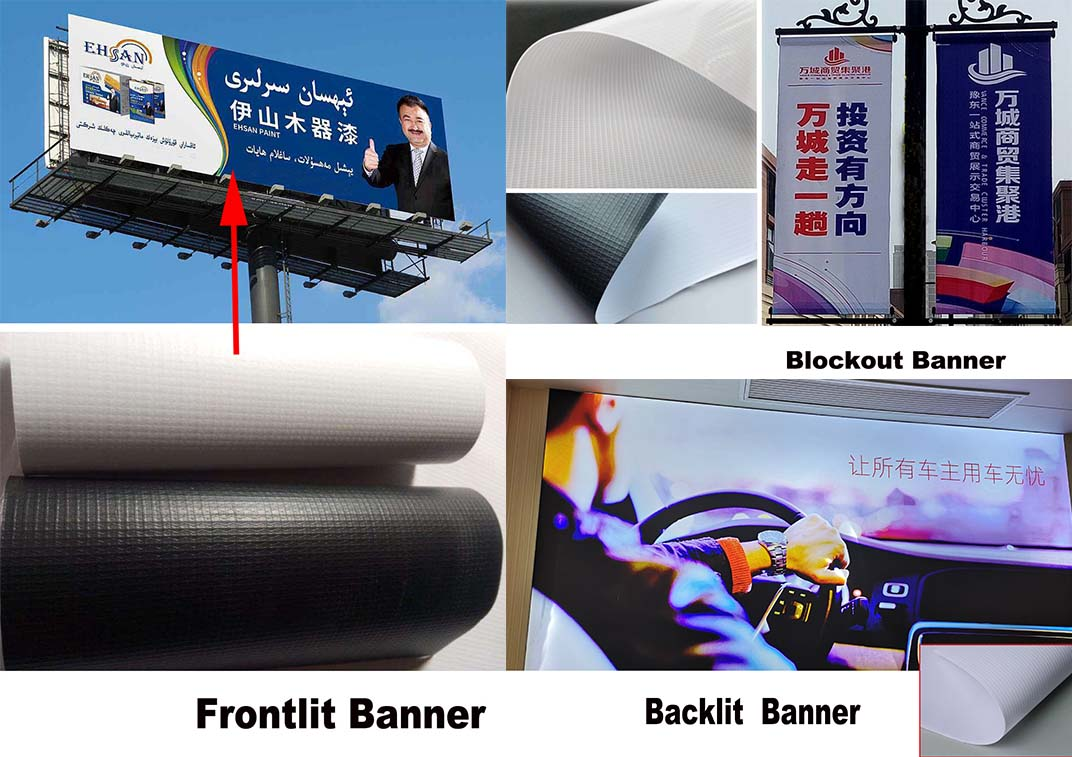

Calender line for PVC flexible banner film include calender line for PVC frontlit banner, PVC backlit banner and PVC blockout banner, PVC inflatable film and so on

Machine Size:  Φ860mm x 4250mmL, Φ860mm x 4250mmL stretch to 6500mm, Φ1350mm x 7200mmL

Calender Machine:  4-Roll

Max. Film Width:  3200 mm

General Layout:  Materail dosing system - Super mixer - Intensive mixer - Mixing roll #A -  Mixing roll #B - Straining extruder - Calender machine - Post of calender - Surface winder
