One-Step Injection Stretch Blow Molding Machine

Availability:
Quantity:
whatsapp sharing button
wechat sharing button
sharethis sharing button

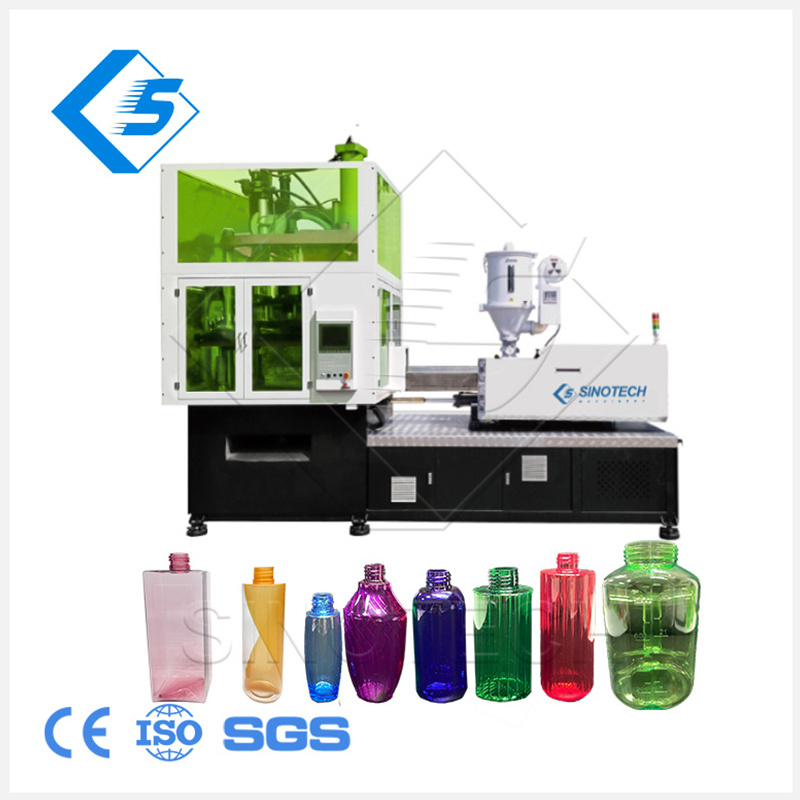

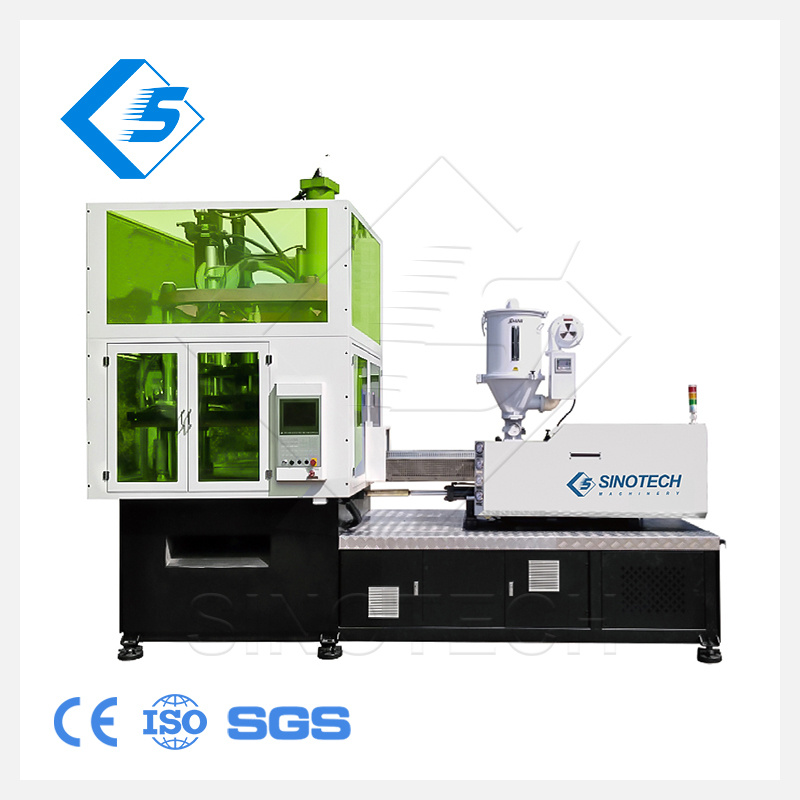

Sinotech Isbm One-Step Pet Cosmetic Bottle Injection Stretch Blow Molding Machine

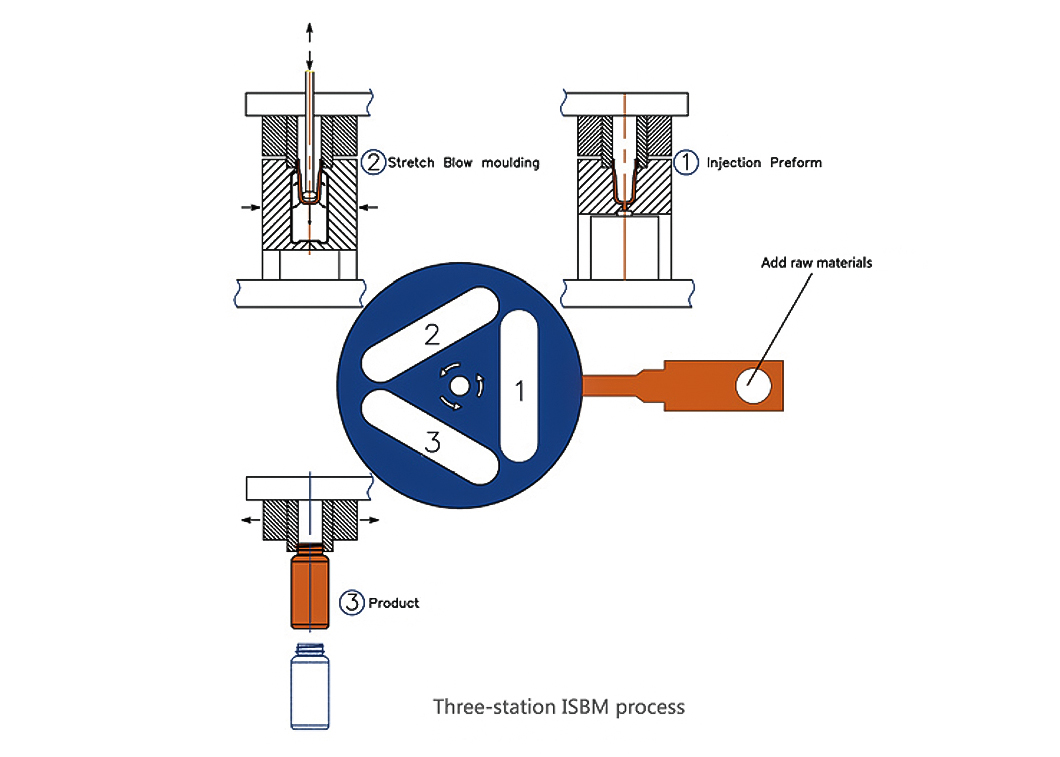

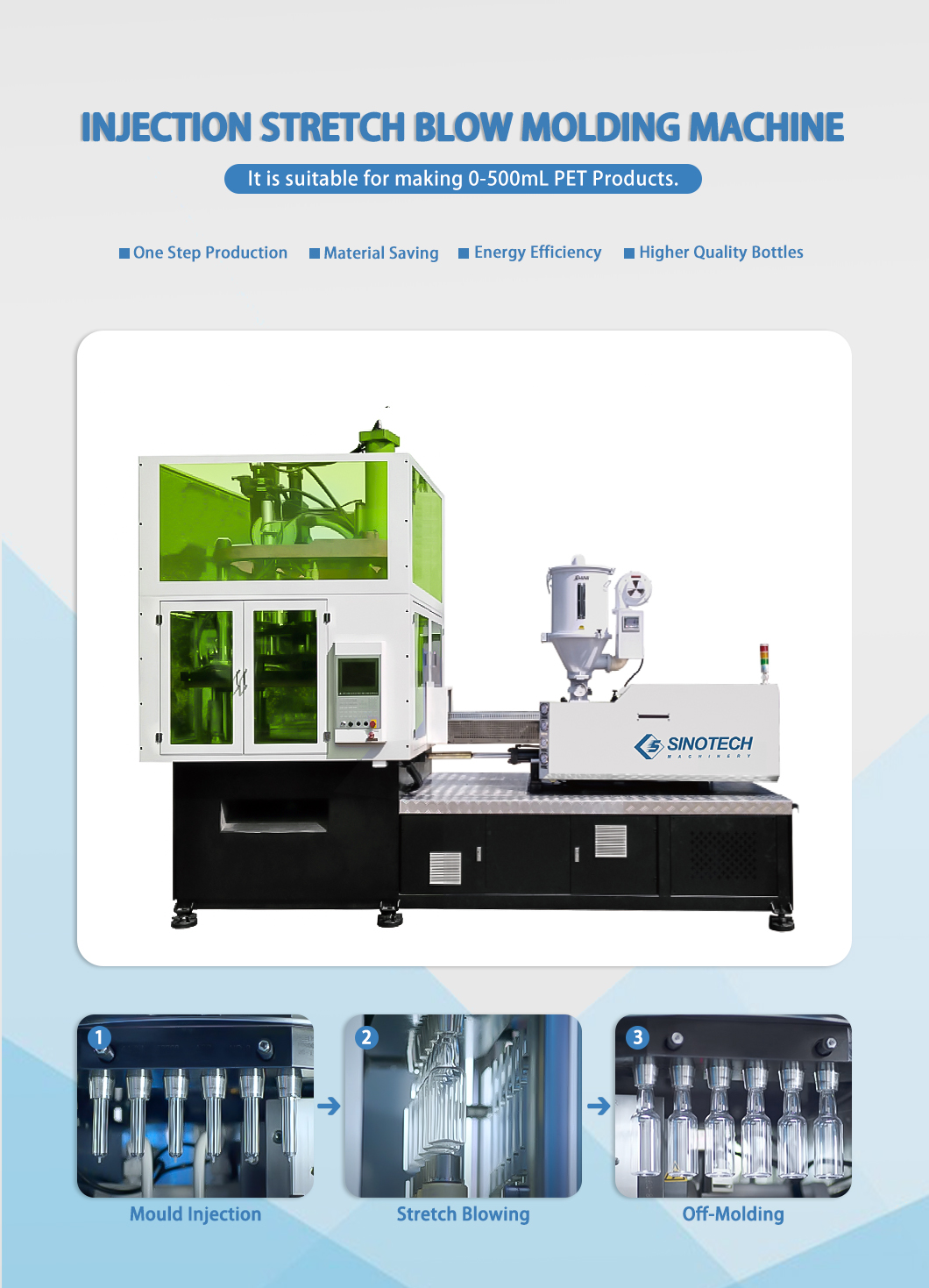

SINOTECH One-Step Injection Stretch Blow Moulding Machine has three stations, injection preform, blowing & stretch, and product release. The raw material comes from the hopper to the injection screw to inject preform; the plate rotates preforms to blow/stretch the blow station with themselves heat, without any reheating for blowing, then the product will rotate to the release station and drop down, It's fully automatically cycle rotation working mode, no need to buy bottle preform, no waste, high degree of automation, finished products smooth and beautiful.

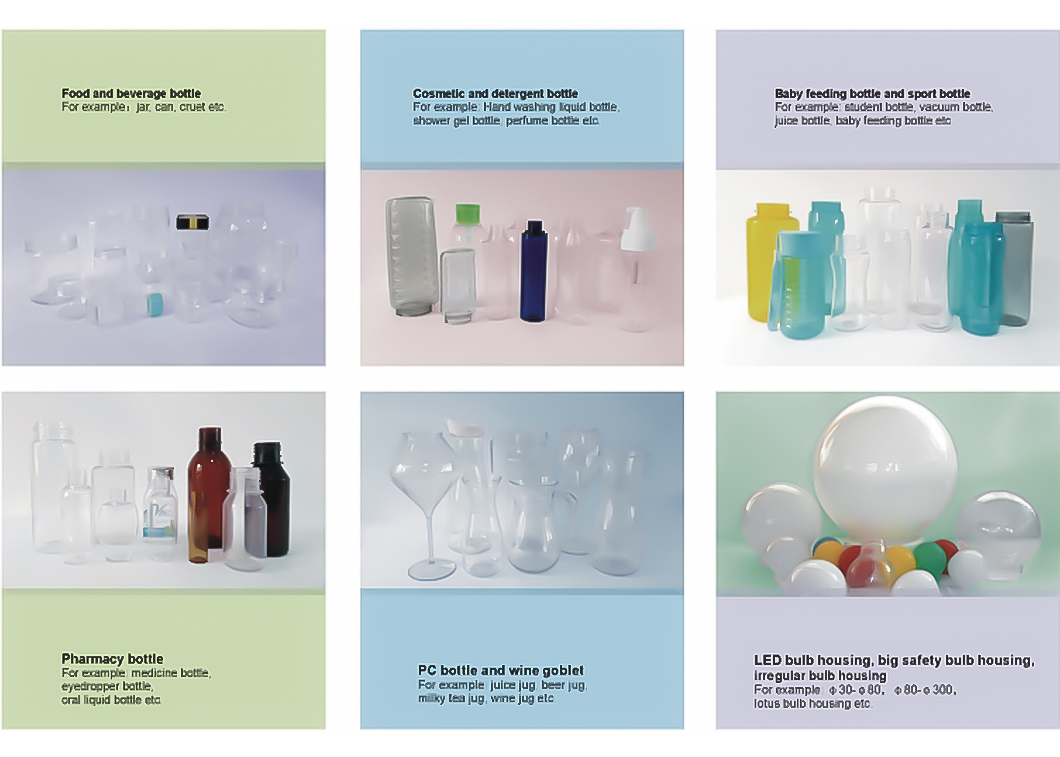

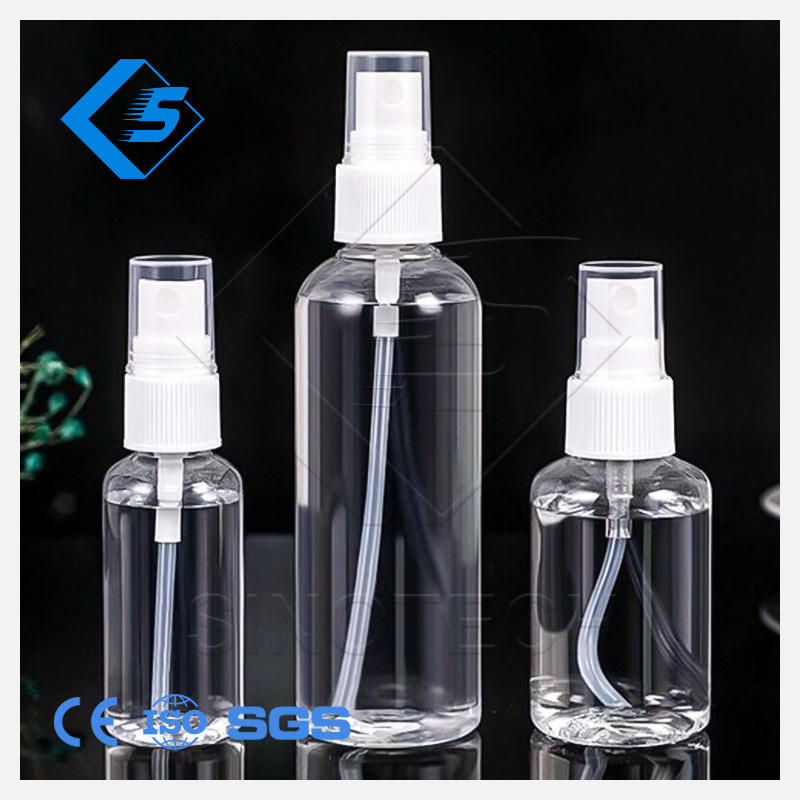

Injection Making Stretch Blow Moulding Machine is Commonly used in 10-1000 ml PET cosmetic bottles, milk bottles, sports water bottles, pharmaceutical packaging, PC bottles, red wine cups LED lampshades, etc.

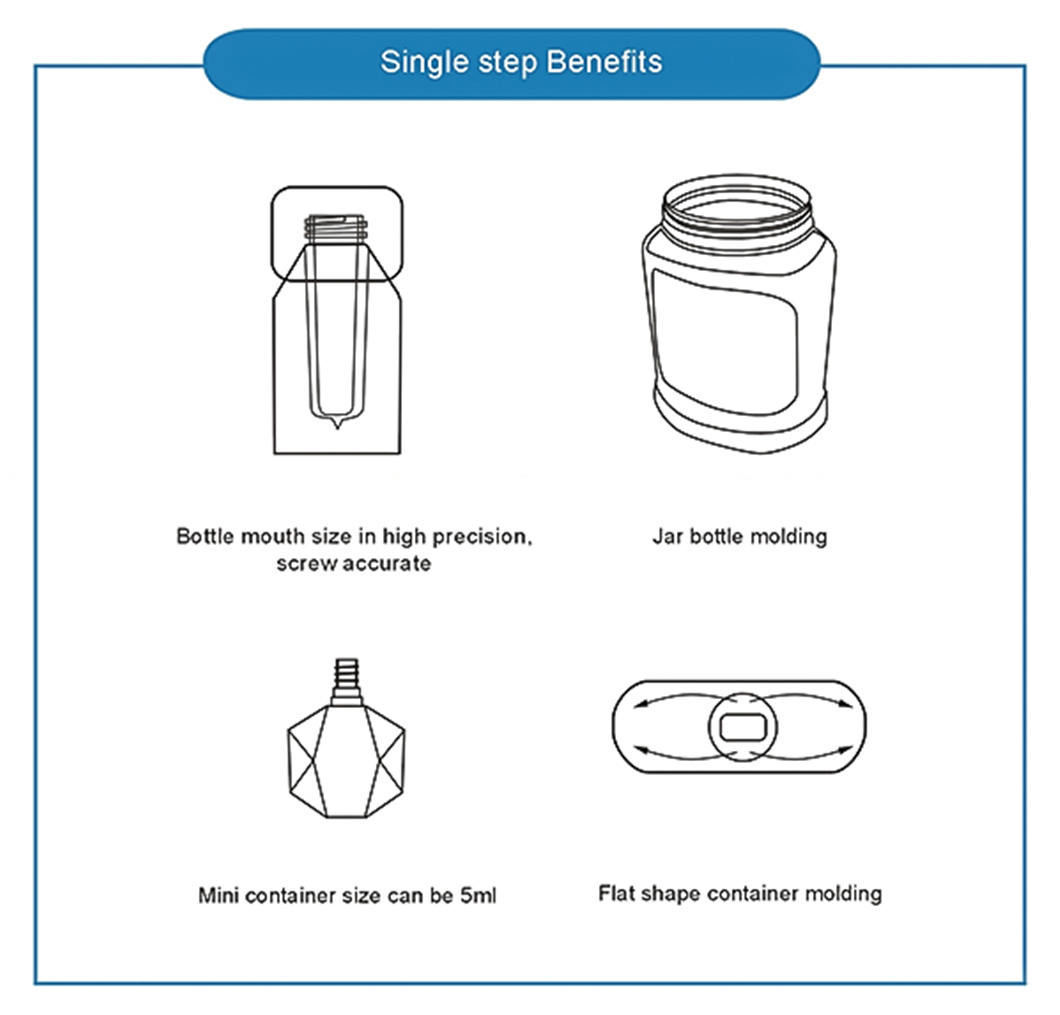

The characteristics of 6 Cavities Full Servos Automatic Injection Stretch Blowing Machine

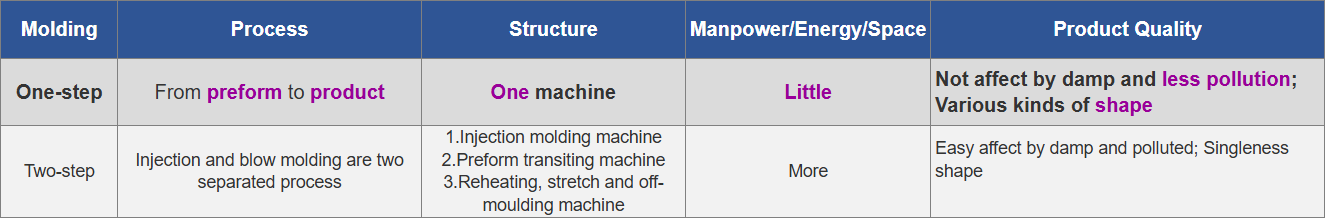

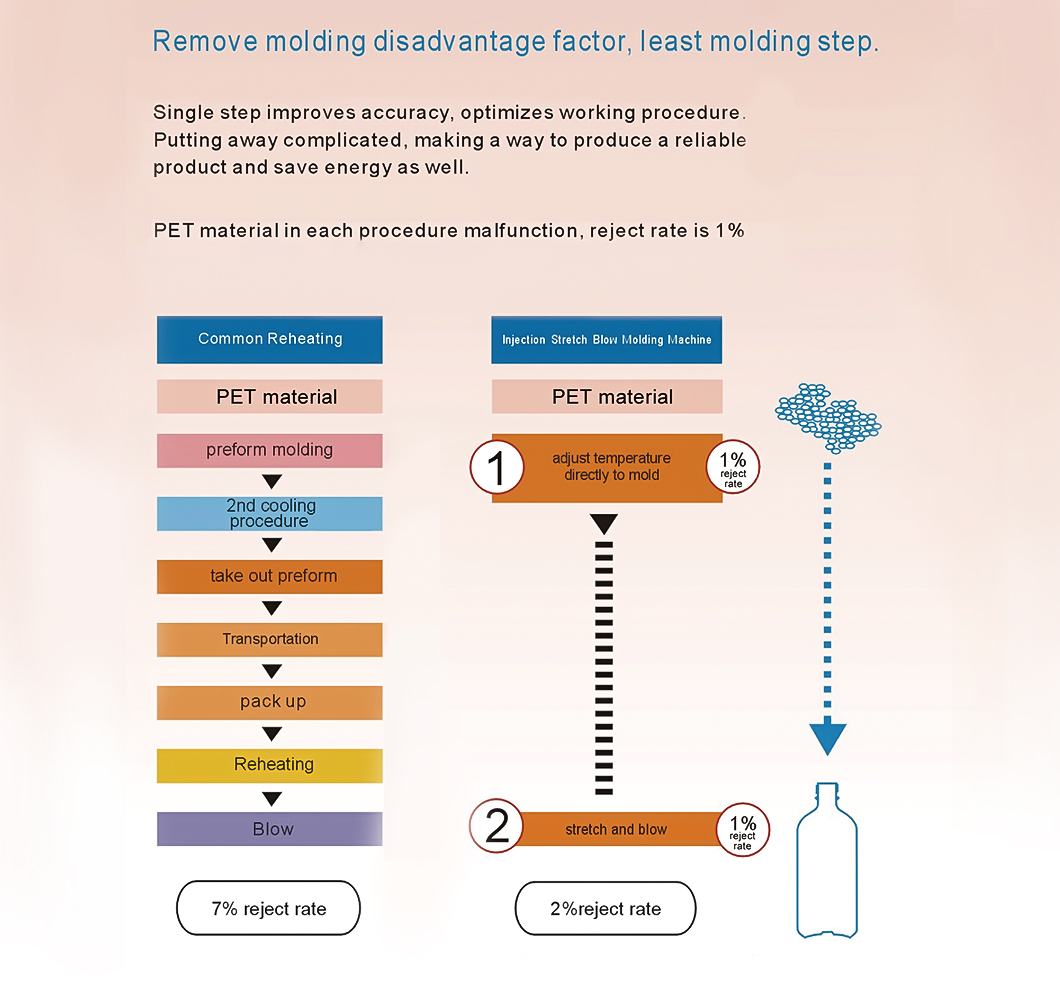

The whole process including mold injection stretch blowing and off-molding can be finished within one step, which means more energy efficiency and high quality for the product. The injection-blowing molding products are thinner and have better uniformity than old-style ones, which can save 50% of materials. Meanwhile, the hyaienic requirement is guaranteed.

Compact structure covers small floor coverage which can save more cost than traditional machines.

Widely used for manufacturing bottles for pharmaceutical healthcare, food beverages cosmetics lampshades, and other applications.

Can use recycling material with the lowest cost.


Appliance

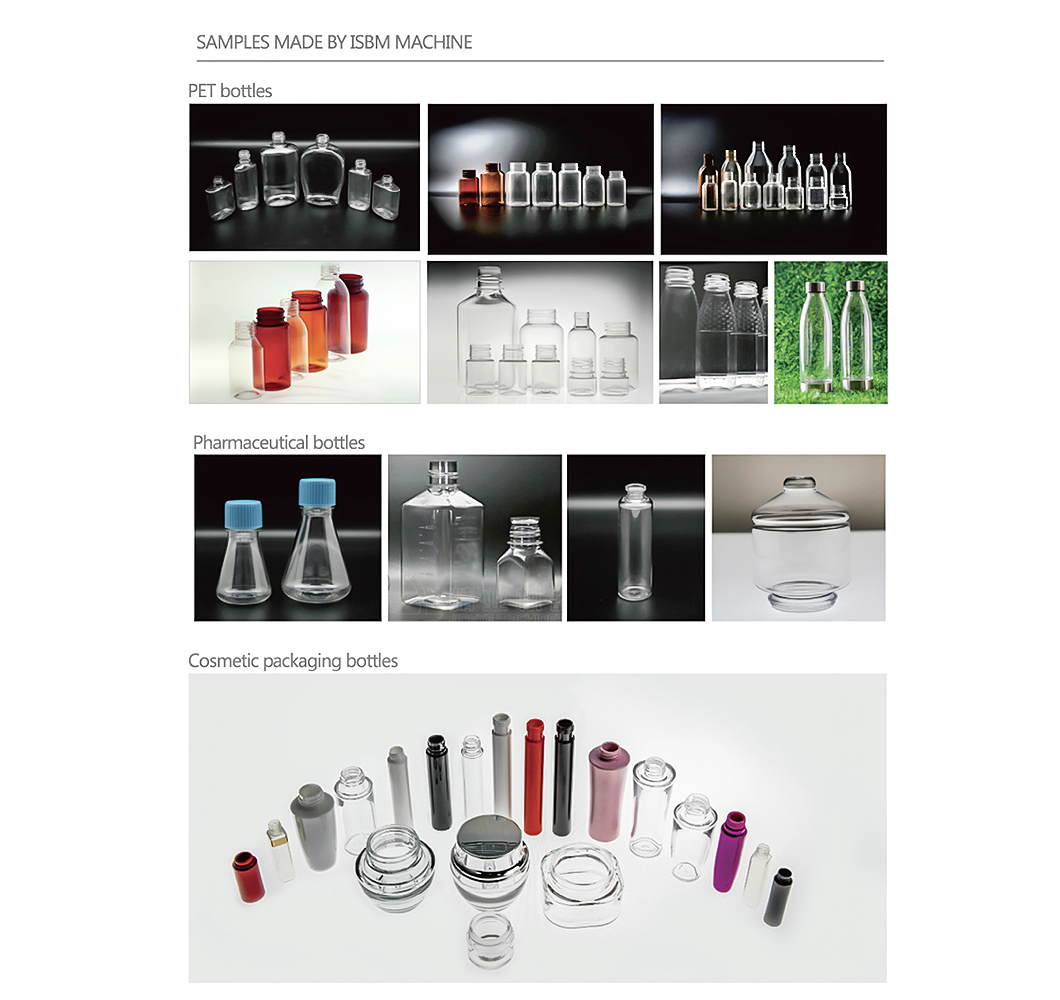

For PC, PS, PMMA lamp cover, LED light lampshade, Christmas flash light, garden and street light.

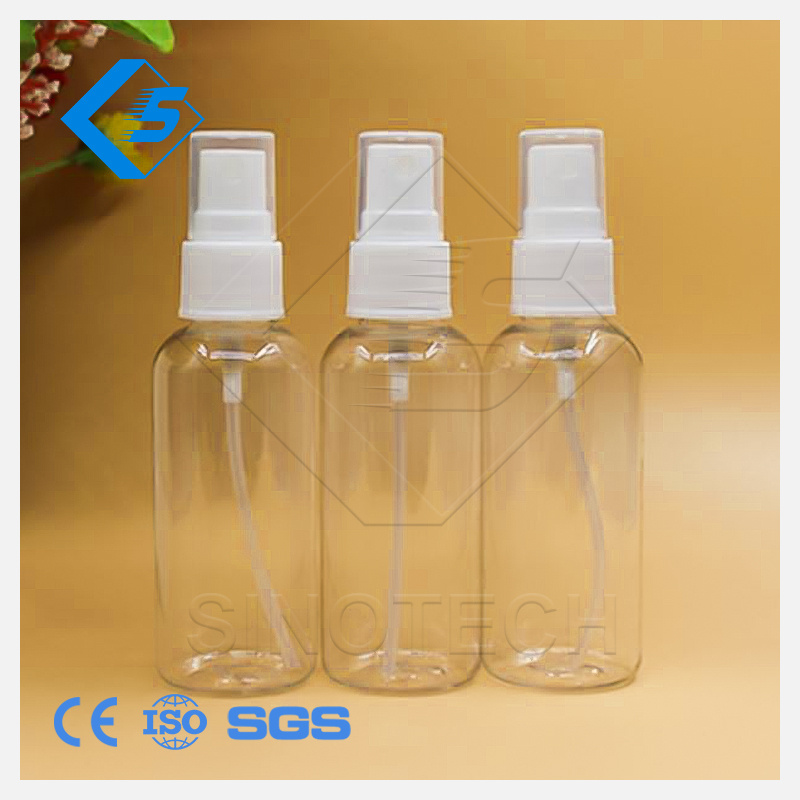

For PET high transparent, much thinner wall, cosmetic bottle 10ml to 500ml, PET wide neck jar, PET pharmaceutical bottle.

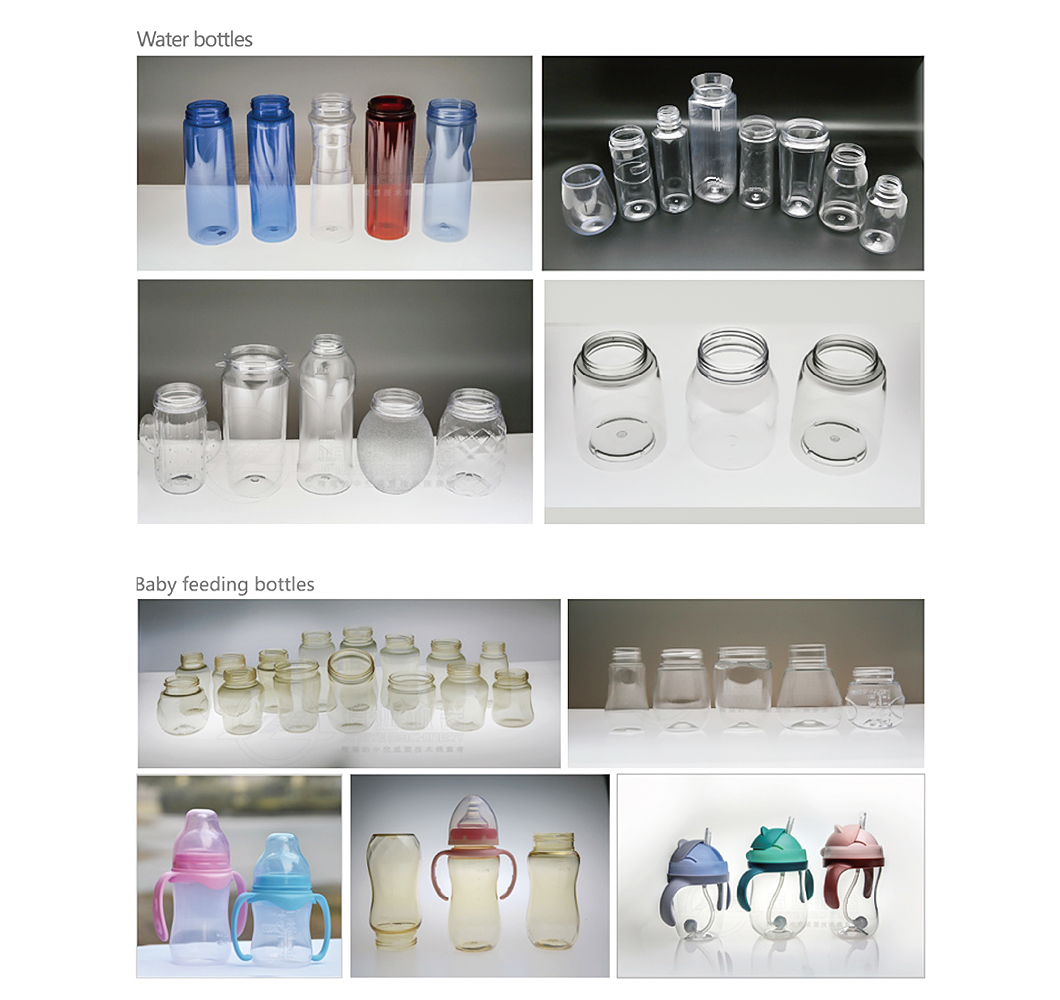

For PP high transparent, baby feeding bottle, sports bottle.

For PCTG, Tritan drinking water bottle, sports bottle.

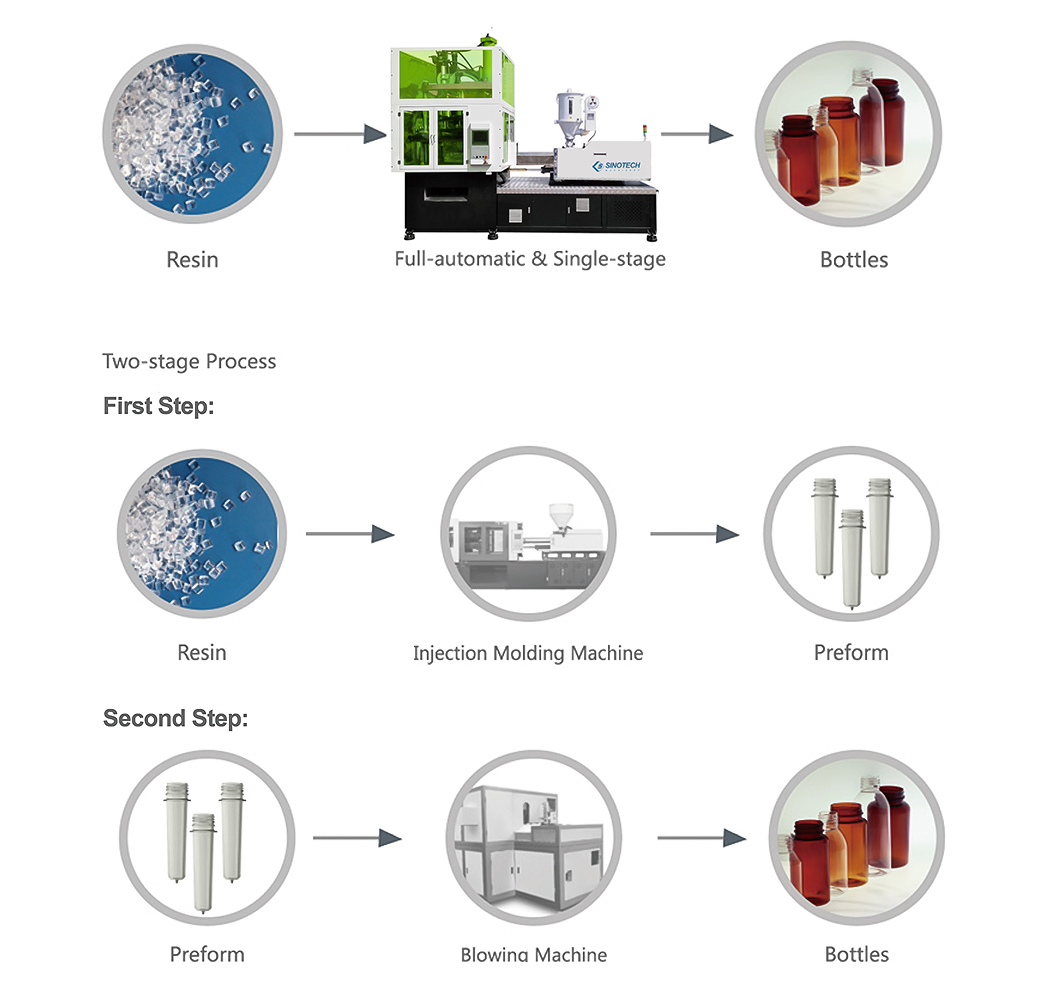

Production Process

1

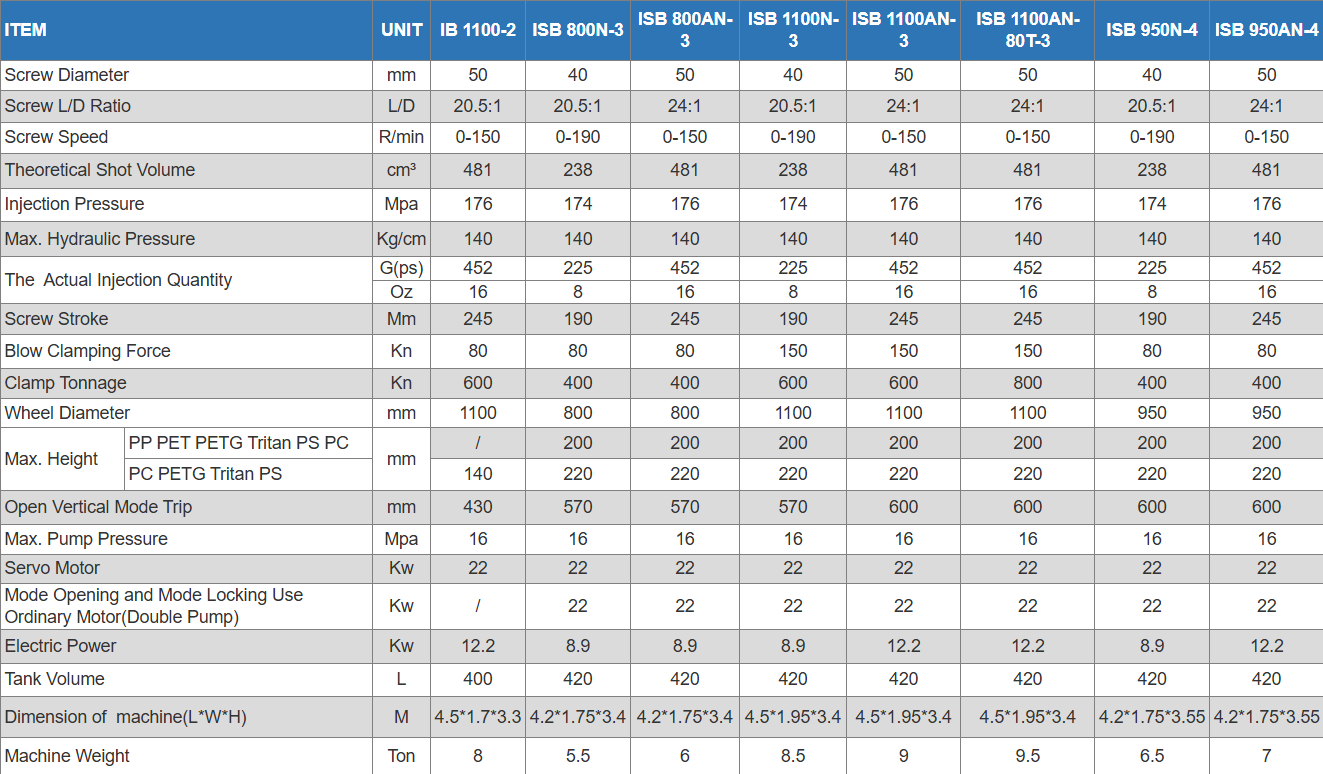

ITEM


UNIT

ISB 800AN-3

Screw Diameter


mm

50

Screw L/D Ratio


L/D

24:1

Screw Speed


R/min

0-150

Theoretical Shot Volume


cm³

481

Injection Pressure


Mpa

176

Max. Hydraulic Pressure


Kg/cm

140

The  Actual Injection Quantity
G(ps)

452


Oz16

Screw Stroke


Mm

245

Blow Clamping Force


Kn

80

Clamp Tonnage


Kn

400

Wheel Diameter
mm800
Max. HeightPP PET PETG Tritan PS PCmm200
PC PETG Tritan PS220

Open Vertical Mode Trip


mm

570

Max. Pump Pressure

Mpa

16

Servo Motor


Kw

22

Mode Opening and Mode Locking Use Ordinary Motor(Double Pump)

Kw

22

Electric Power


Kw

8.9

Tank Volume


L

420

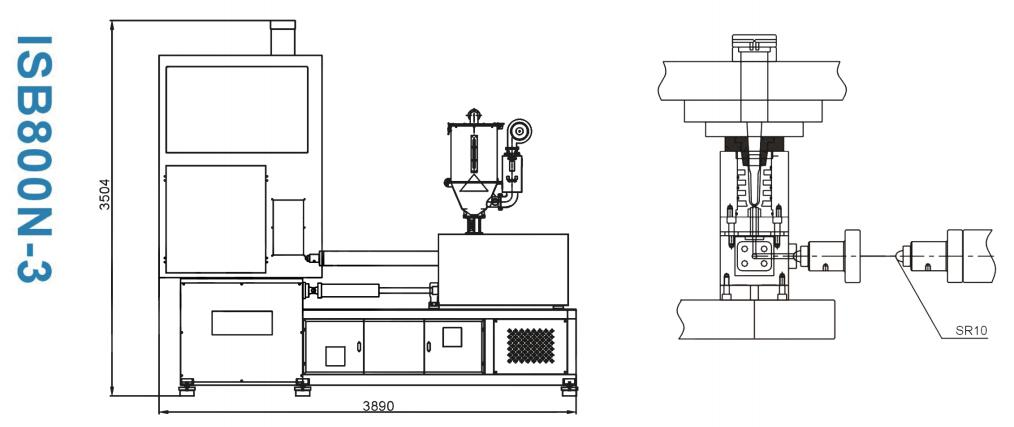

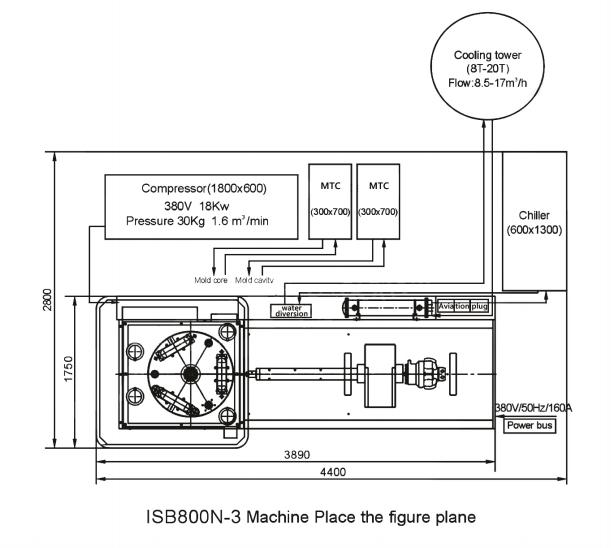

Dimension of  machine(L*W*H)


M

4.2*1.75*3.4

Machine Weight
Ton6
