In the chemical industry, the packaging of liquids, powders, and corrosive substances is not merely a matter of convenience—it is a matter of safety, stability, and compliance. Chemical barrels must meet a range of rigorous performance standards, particularly when it comes to chemical resistance, barrier effectiveness, mechanical strength, and compatibility with various substances.
These demanding requirements have led to the widespread use of blow molding technology in the production of chemical barrels. Blow molding allows manufacturers to work with a variety of high-performance plastics and create single-layer or multi-layer containers tailored to specific packaging needs.
Selecting the right material for a chemical barrel is critical for ensuring product safety, durability, and compliance with industrial and regulatory standards. The choice depends on the chemical nature of the contents, storage conditions, and the intended use of the container.
High-Density Polyethylene (HDPE) is the most widely used plastic for blow-molded chemical barrels. Known for its excellent chemical resistance, HDPE can withstand a wide range of aggressive substances including acids, alkalis, detergents, and solvents. It also offers high tensile strength, durability, and impact resistance—qualities that are vital during transportation and handling.
HDPE is relatively easy to process through blow molding and offers a good balance of performance and cost-efficiency. Its rigidity and structural integrity make it ideal for 20L to 200L+ drums used in chemical, pharmaceutical, and industrial applications.
Low-Density Polyethylene (LDPE) is softer and more flexible than HDPE, and while it doesn't provide the same chemical resistance, it is suitable for less aggressive formulations, additives, or lubricants. LDPE’s flexibility makes it valuable for barrels that require some deformation under pressure or temperature fluctuations.
Polypropylene (PP), on the other hand, provides better heat resistance than both HDPE and LDPE, which makes it suitable for packaging that might be exposed to higher temperatures during storage or filling. PP also has strong resistance to organic solvents and certain acids.
These materials are often used selectively based on the contents and are especially common in specialty chemical and additive packaging.
In cases where the chemical contents are volatile, reactive, or sensitive to oxygen and moisture, standard polyolefin materials are not enough. This is where barrier resins like Ethylene Vinyl Alcohol (EVOH) come into play. EVOH is known for its exceptional gas barrier properties, and is often incorporated into multi-layer co-extruded barrels.
These multi-layer containers usually sandwich a thin EVOH layer between HDPE outer and inner layers, sometimes adding adhesive tie-layers to ensure proper bonding. This structure not only improves product shelf life but also reduces the risk of gas or chemical leakage.
In addition to EVOH, other barrier resins like polyamide (PA) or polyvinylidene chloride (PVDC) may be used depending on the desired performance. These are especially useful in drums designed for agricultural chemicals, pharmaceuticals, or solvents with strong evaporation characteristics.
As chemical packaging demands grow more sophisticated, single-layer containers often fail to meet the performance expectations for barrier protection, recyclability, and regulatory compliance. This has driven the industry toward multi-layer blow molding—a technology that integrates several material layers into one seamless container structure.
One of the most significant advantages of multi-layer blow molding is its improved barrier performance. By incorporating materials like EVOH or PA (polyamide) into the middle layers, these containers offer superior resistance to oxygen, vapor, and solvent permeation. This is essential for packaging chemicals that are volatile, reactive with air, or sensitive to environmental moisture.
For example, a chemical drum used to store pesticides or industrial solvents can benefit from a three-layer structure: an inner HDPE layer for chemical contact, a middle EVOH layer for barrier function, and an outer HDPE layer for mechanical protection. This layered approach extends shelf life, reduces loss through evaporation, and enhances safety during transport and storage.
Multi-layer chemical barrels are often engineered with three to six layers, each with a specific function:
Inner layer: Direct contact with the chemical. Typically made from virgin HDPE for purity and compliance.
Barrier layer: Made from EVOH or PA to block gases and moisture.
Tie layers: Bonding agents that help the barrier and structural layers adhere.
Recycled core layer: A cost-effective middle layer using recycled HDPE or PP.
Outer layer: Provides mechanical strength and allows for color customization, branding, or UV protection.
This structure allows manufacturers to combine sustainability, performance, and market appeal, all in one container.
Multi-layer barrels can also contribute to eco-friendly manufacturing goals. By using recycled plastics in non-contact layers, manufacturers reduce raw material costs and lower their carbon footprint, while still complying with safety and quality standards.
Moreover, the inclusion of barrier layers can allow for downgauging—reducing overall plastic usage while maintaining performance—helping to meet international sustainability targets such as EU Packaging and Packaging Waste Regulation (PPWR).
To produce these sophisticated containers, manufacturers need advanced multi-layer blow molding machines equipped with co-extrusion systems. Unlike standard single-layer machines, multi-layer models involve precise control of multiple material streams, each feeding into a shared die head.
Multi-layer blow molding machines rely on co-extrusion technology, where each layer is extruded separately through independent extruders before being joined at a common die. The process requires extreme precision, as any deviation in layer thickness can compromise barrier integrity or lead to material waste.
The layer ratio must be accurately controlled depending on the barrel’s function. For instance, barrier layers like EVOH are often just 1–5% of the total wall thickness, but even a slight inconsistency can cause performance failure.
To achieve this, modern blow molding machines are equipped with:
Servo-driven extruders for accurate material flow
Gravimetric feeders for precise dosing of additives and resins
Automatic thickness profiling systems (parison programming) to ensure uniform wall thickness, even at complex shapes or handles
In multi-layer blow molding, process variables must be finely synchronized:
Pressure: Must be balanced across layers to prevent delamination or uneven flow.
Temperature: Varies by material; barrier layers often require tighter thermal control than polyolefins.
Speed: Affects cooling time, fusion between layers, and overall cycle time.
SINOTECH’s multi-layer blow molding machines feature closed-loop monitoring systems that automatically adjust parameters in real time, ensuring consistent quality and minimizing downtime.
As market demands evolve and chemical safety regulations become more stringent, manufacturers are looking for high-performance blow molding machines that can meet the diverse requirements of multi-layer barrel production. SINOTECH Machinery Co., Ltd. offers tailored solutions that combine advanced technology with industry-specific insights to serve the chemical packaging industry effectively.

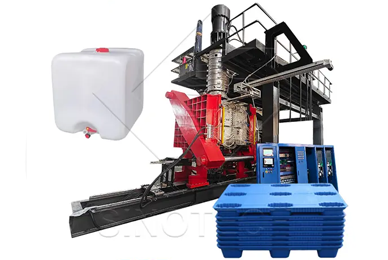

SINOTECH’s blow molding machines are equipped with multi-cavity co-extrusion systems that allow for the simultaneous processing of up to six or more material layers. These systems are engineered with:
Independent extruders for each layer to ensure precise material distribution.
High-performance die heads that maintain consistent parison flow and accurate layer bonding.
Gravimetric dosing and parison programming for exact thickness control across the barrel surface.
Whether for small-volume hazardous chemical containers or large-volume chemical barrels (30L–250L), SINOTECH machines ensure uniform wall thickness, seamless barrier integration, and long-term structural stability.
The company’s equipment is particularly suited for hazardous substances, agrochemicals, and pharmaceutical intermediates, where both containment and safety are mission-critical. SINOTECH blow molding machines enable the production of:
UN-certified chemical drums with multi-layer barrier protection.
Inner anti-corrosion lined barrels for acids, solvents, or oxidizers.
UV-resistant outer layers for outdoor chemical storage.
By integrating smart controls, modular design, and energy-saving components, SINOTECH ensures that clients not only meet regulatory and market demands but also benefit from cost-effective and scalable production.
In today’s high-stakes chemical packaging landscape, material selection plays a pivotal role in ensuring product integrity, safety, and regulatory compliance. From single-layer HDPE to complex multi-layer structures incorporating EVOH and recycled cores, the right material combination directly influences the durability, barrier performance, and environmental impact of chemical barrels.
Multi-layer blow molding is a powerful solution for manufacturers seeking to elevate their packaging to the next level. When paired with reliable, advanced equipment, this technology allows for greater control, reduced material waste, and improved safety.
SINOTECH Machinery Co., Ltd. stands out as a trusted provider of customized blow molding machines engineered specifically for the chemical packaging sector. Their commitment to innovation, precision, and energy efficiency makes them an ideal partner for businesses looking to enhance their packaging systems.
To explore machine specifications, receive expert consultation, or request a competitive quote, visit www.sinotechmachine.com and discover how SINOTECH’s multi-layer blow molding technology can transform your chemical barrel production.
