Quantity: | |
---|---|
SINO-PS5
SINO-TECH
8441809000
paper straw making
45m/min
3 layer paper straw
5 to 12 mm
biodegradable
12 month

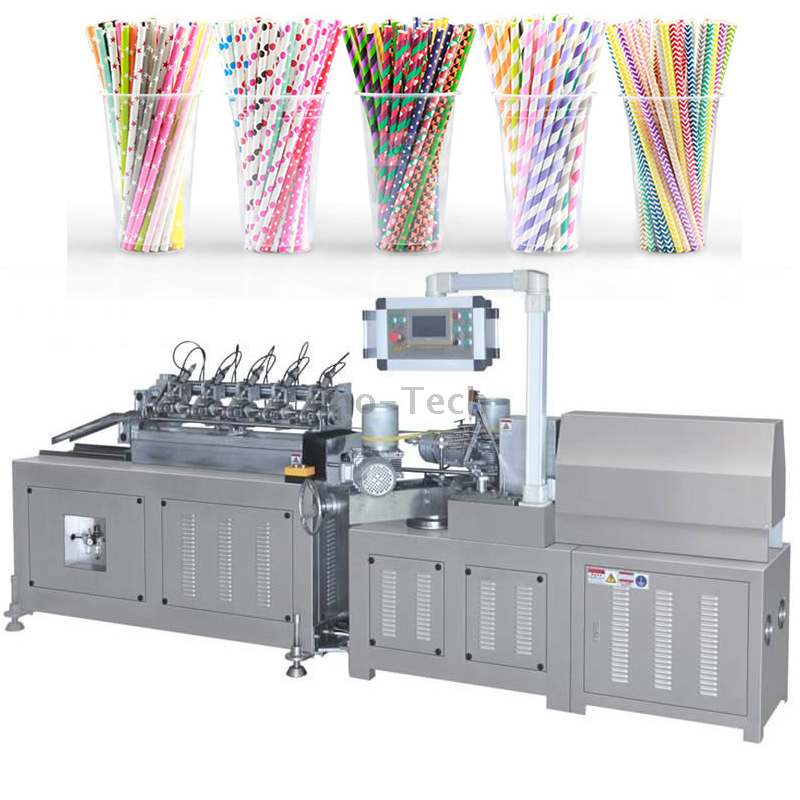

Stainless Steel High Speed Paper Straw Making Machine
The man-machine interface is a touch screen, adopted with PLC controller, simple setting and convenient operation.
main motor is equipped with variable frequency speed regulation; touch screen man-machine interface. Easy for parameters setting & operating.

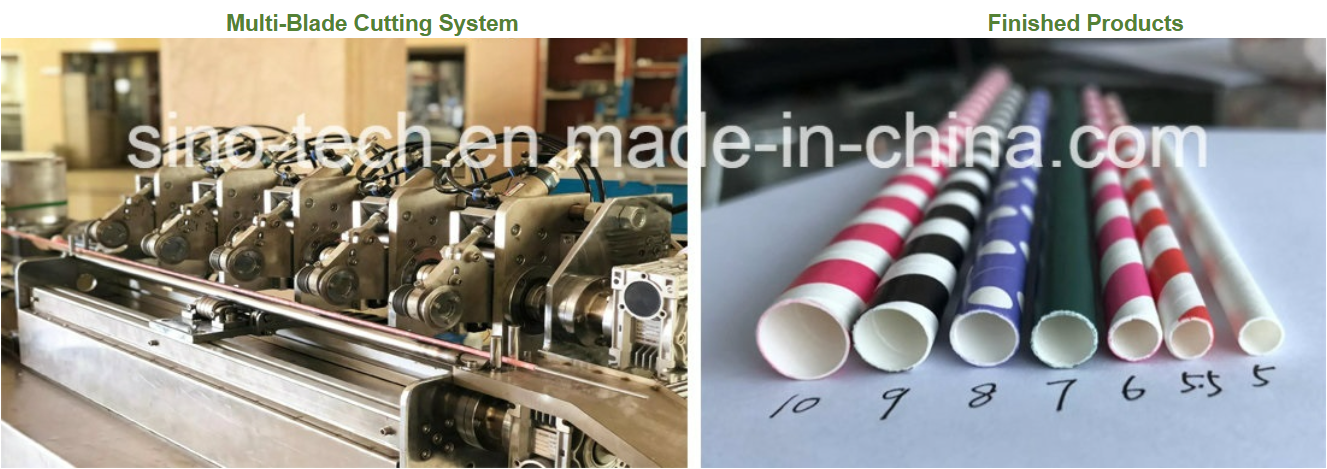

Cutting section adopted with numerical multi-blades cutting system, can make any size paper straw, like the size 6mm,8mm,10mm,etc.
Servo synchronous tracking cutting system makes it high precision and multi-blades cutting makes time-saving efficiency.
Machine body and main spare parts made of stainless steel. Ensure the hygiene and environmental protection of the products.

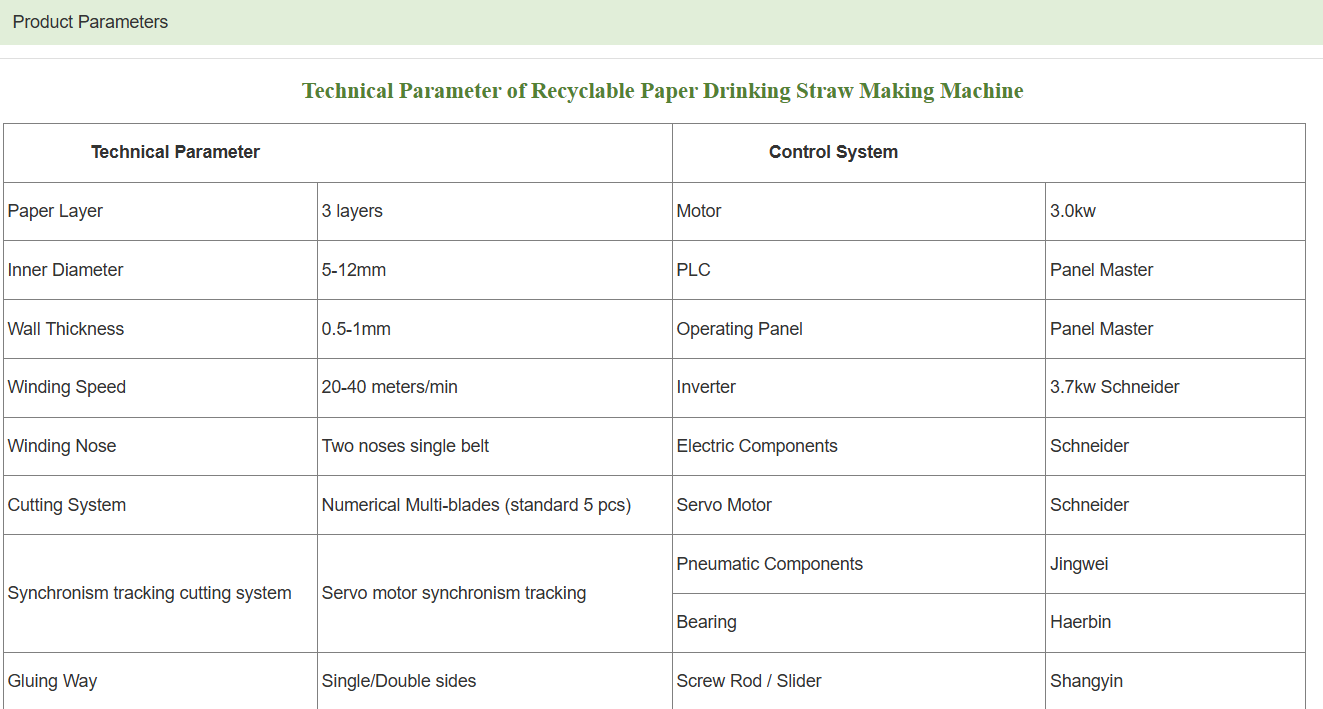

Configuration of High Speed Paper Straw Making Machine
Technical Parameter | Number of roller | 3 layer |
Tube diameter | 5-12 mm | |
Wall-thickness | 0.5-1 mm | |
Core mould fixed | Flange chuck | |
Winding head | 2 | |
Cutting way | 6 multi-blade | |
Gluing way | Single side | |
Operator | 1-2 person | |
Winding speed | 30-45 m/min | |
Speed control | Inverter | |
Cutting control | Servo Sync | |
Air pressure | 0.6Mpa | |
Power supply | 380V*3P/50Hz | |
Straw collecter | Auto | |
Angel correction | Auto by motor | |
Language | English |
Control system | Main motor | 3 KW |
Reducer type | RV110-1:15 | |
Conveyor reducer | RV 30/40-1:7.5 | |
Servo motor | Teco, Taiwan | |
Servo driver | Teco, Taiwan | |
PLC controller | Siemens | |
Touch screen | Siemens | |
Inverter | ABB Switzerland | |
Electric part | Siemens | |
Single part | ABB | |
Pneumatic part | AIRTAC | |
Fix length way | Encode |

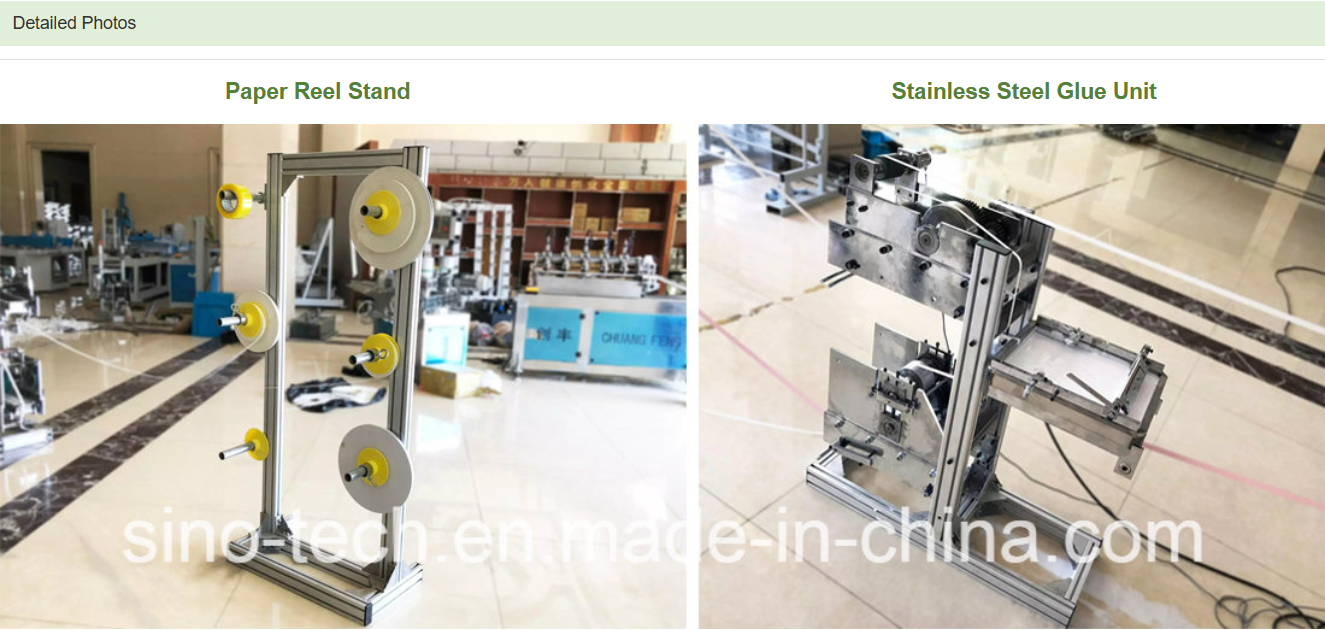

Configuration | Paper reel stand | 3 layers |
Glue system | 3 layers | |
Conveyor | 1 set | |
Blades | 6 pieces | |
Belts | 5 pieces | |
Core mould | 2 set | |
Useful tool | 1 set |
Measurement weight | Mainframe size | 3000*1400*1450 |
Area space | 6000*6000 mm | |
Weight | 2000 KGS |

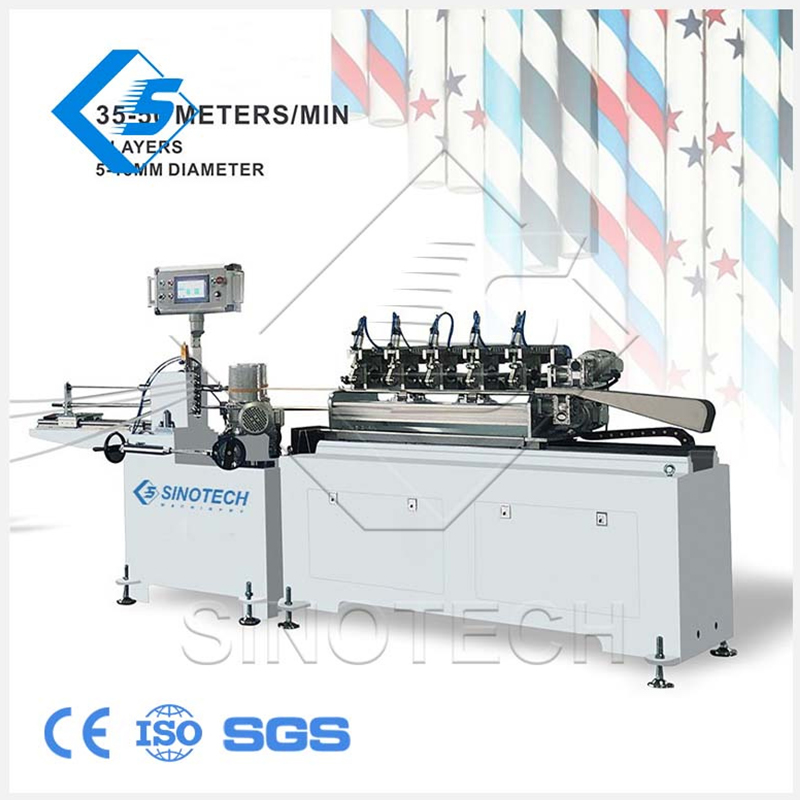

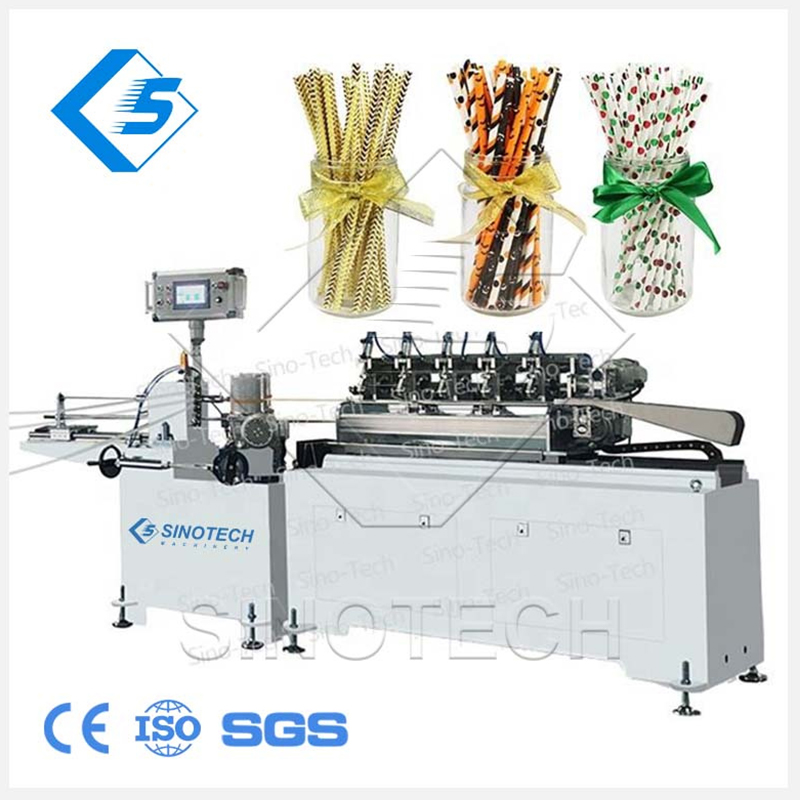

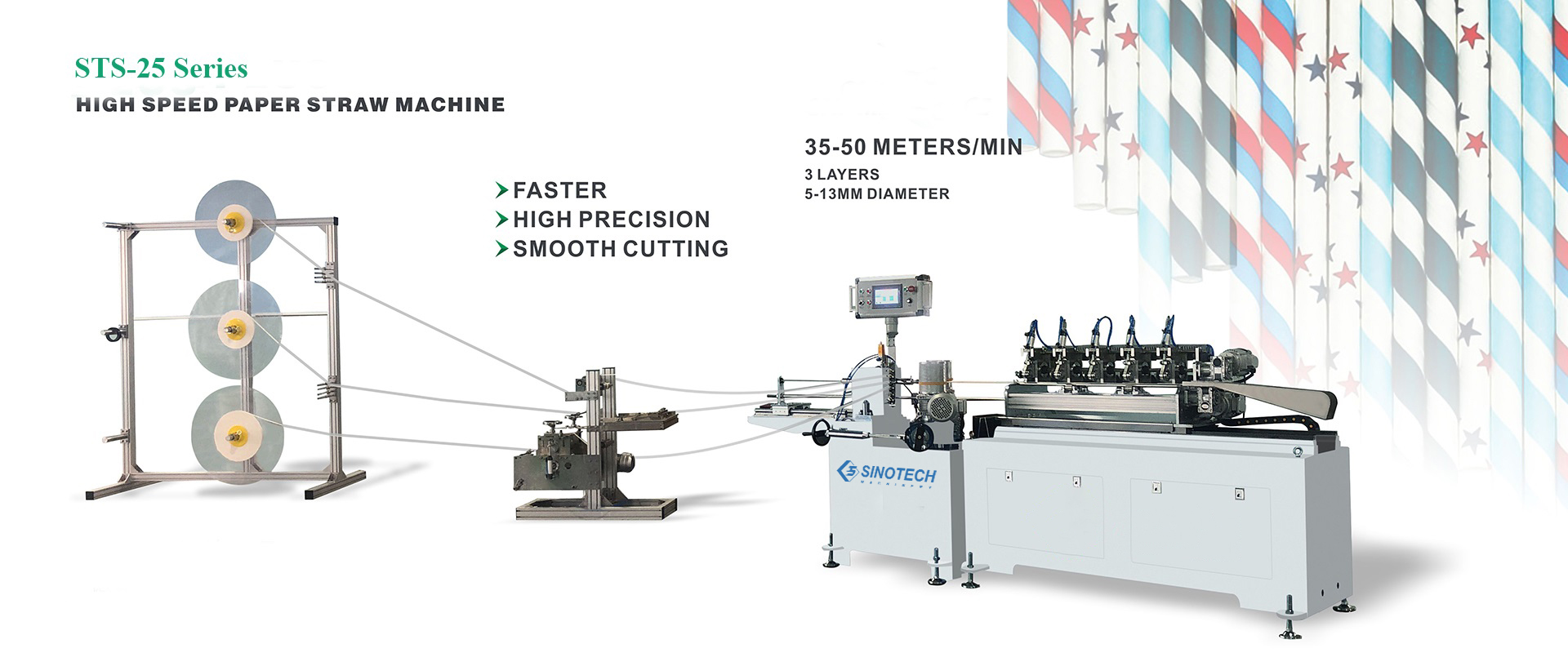

Sino-tech paper straw making machine as a ideal equipment for paper straws, with a high speed and stable capacity it is specially dedicated to spiral wind paper tubes of very small diameters.
The papaer straw making machine easy operating, and low maintenance cost and great flexibility make this machine perfectly suited for all paper tube manufacturer.
Sino-tech all machines equipped with top quality famous electrical parts and mechanical parts, such as Schneider, Siemens, Airtac etc. We also accept fully customizable according to your request.
Sino-tech paper straw making machine as a ideal equipment for paper straws, with a high speed and stable capacity it is specially dedicated to spiral wind paper tubes of very small diameters.
The papaer straw making machine easy operating, and low maintenance cost and great flexibility make this machine perfectly suited for all paper tube manufacturer.
Sino-tech all machines equipped with top quality famous electrical parts and mechanical parts, such as Schneider, Siemens, Airtac etc. We also accept fully customizable according to your request.
