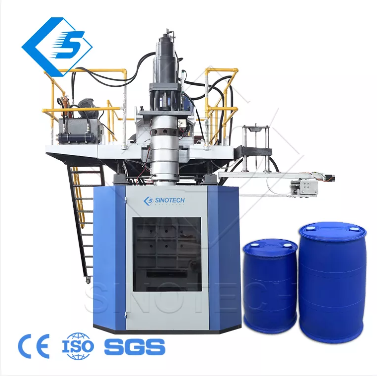

Hollow plastic bottles and containers can be produced rapidly with an extrusion blow molding machine. This equipment efficiently shapes heated plastic into hollow products for many manufacturing applications.
In this article, we’ll explain what an extrusion blow molding machine is and why it matters. You’ll learn how it works, its key parts, and its uses in manufacturing.
Extrusion blow molding forms hollow plastic products by extruding a parison, clamping it inside a mold, inflating it, cooling it, and ejecting the finished part.
Machine performance depends on coordinated control of the extruder, die head, clamping system, air supply, cooling system, and ejector.
Equipment configuration should match the polymer, product size, design complexity, production volume, and required wall thickness.
Preventive maintenance and real-time process control help reduce defects, material waste, unplanned downtime, and inconsistent output.
Automation, smart monitoring, recycled materials, and energy-efficient systems are shaping the future of extrusion blow molding production.
The extrusion blow molding process begins by melting plastic pellets in the extrusion unit. The molten plastic is pushed through a die to form a hollow tube called a parison. This parison drops between two halves of a mold that close tightly around it. Next, compressed air inflates the parison, pressing it against the mold walls. After the plastic cools and hardens, the mold opens, and the finished product is ejected.
The extrusion unit is the heart of the machine. It heats and melts plastic pellets, turning them into a uniform molten state. A screw inside the extruder pushes this molten plastic forward at a steady rate. This steady flow ensures the parison has consistent thickness, crucial for product quality.
The die shapes the molten plastic into a tube, the parison. The machine controls the parison’s length and thickness by adjusting extrusion speed and die gap. Once the parison forms, the mold closes around it. The mold halves clamp tightly to prevent leakage during blowing.
After clamping, the machine injects compressed air into the parison. This air inflates the plastic, forcing it against the mold’s interior. The plastic takes the shape of the mold cavity. Cooling channels in the mold circulate water or coolant to solidify the plastic quickly. Proper cooling ensures dimensional stability and surface finish.
When the plastic fully cools, the mold opens. An ejector mechanism pushes the molded part out of the mold cavity. The part may then move to trimming or finishing stations. The machine resets for the next cycle, repeating the process continuously or intermittently depending on the setup.
The extruder is the powerhouse of the machine. It melts plastic pellets using heat and mechanical shear. Inside, a screw rotates to push molten plastic forward steadily. This steady flow is essential for forming a uniform parison. The screw design affects melting efficiency, pressure, and output rate. Different screw profiles suit various polymers and production speeds.
At the extruder’s end sits the die head. It shapes molten plastic into a hollow tube called a parison. The die gap and extrusion speed control parison thickness and length. Precise control here ensures the final product’s wall thickness is consistent. Some machines use adjustable dies or accumulator heads for better parison profile control.
The mold creates the product’s shape. It consists of two halves that open and close around the parison. The mold cavity matches the product design exactly. A clamping system holds the mold shut tightly during blowing. Proper clamping prevents air leaks and parison escape. Mold materials and cooling channels also impact cycle times and product quality.
Once the mold clamps, compressed air inflates the parison inside the cavity. The blowing system must deliver air at the right pressure and volume quickly. This inflates the plastic against the mold walls, forming the product shape. Air supply systems include compressors, valves, and control units to regulate blowing parameters precisely.
Cooling solidifies the plastic quickly to maintain shape and dimension. Mold cooling channels circulate water or coolant to absorb heat. Efficient cooling shortens cycle times and improves surface finish. After cooling, an ejector mechanism pushes the finished product out of the mold. This system must operate smoothly to avoid product damage or cycle delays.
Extrusion blow molding machines come mainly in two configurations: single-stage and two-stage.
Single-stage machines perform extrusion, mold clamping, blowing, cooling, and ejection all in one continuous cycle. The parison is extruded directly into the mold, then inflated and cooled before ejection. This method suits simpler products and smaller production runs. It offers faster cycle times but less control over parison thickness.
Two-stage machines separate the extrusion and blowing steps. First, the parison is extruded and cut, then transferred to a separate blowing station. This allows for better parison thickness control and higher precision in complex shapes. Two-stage machines handle larger, more intricate parts and often provide higher product quality.
Machines also differ in how they handle the extrusion and molding cycles:
Continuous extrusion blow molding involves a nonstop parison extrusion process. The parison moves continuously through the die, and the mold clamps intermittently to capture and blow the parison. This method increases throughput and is ideal for high-volume production.
Intermittent extrusion blow molding extrudes the parison in discrete steps. The extrusion pauses while the mold clamps and blows the parison. This approach offers better parison control and is better suited for lower-volume or specialty products.
Extrusion blow molding machines vary based on the materials they process and the size of products they produce:
Machines designed for different polymers like HDPE, LDPE, or PP may have tailored screw designs, temperature controls, and die heads to optimize melting and parison formation.

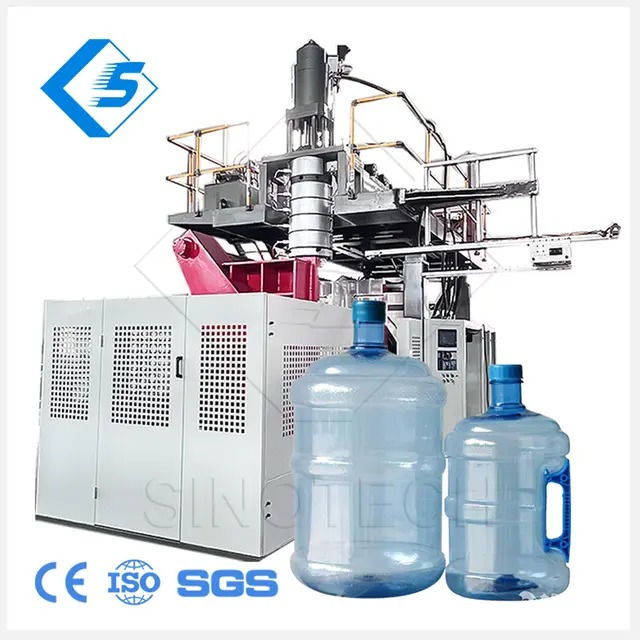

For small products such as bottles and containers, machines typically have smaller molds and faster cycle times.
For large hollow products like drums or tanks, machines feature larger molds, higher clamping forces, and longer cooling times.
Manufacturers often select machines based on product complexity, material type, and production volume to balance cost, speed, and quality.
Extrusion blow molding mainly processes thermoplastics that can form a stable parison and expand inside a mold. Material selection depends on strength, flexibility, heat resistance, barrier performance, and chemical compatibility.
Polymer | Main Properties | Typical Applications |
|---|---|---|
HDPE | Strong, rigid, impact-resistant, and chemically resistant | Bottles, containers, fuel tanks, and industrial drums |
LDPE | Flexible, lightweight, and resistant to impact | Squeezable bottles and flexible containers |
PP | Stiff, lightweight, and resistant to higher temperatures | Food containers, automotive ducts, and technical parts |
PVC | Available in rigid or flexible formulations | Selected bottles, medical products, and specialty containers |
PVC requires careful temperature control because it is more sensitive to heat during processing. Material formulations and machine components must also be compatible with its processing requirements.
Property | Importance in Blow Molding |
|---|---|
Thermoplastic behavior | Allows the material to soften when heated and solidify during cooling |
Melt strength | Helps the suspended parison retain its shape before molding |
Suitable melt flow | Supports stable extrusion through the die |
Stretchability | Allows the parison to inflate without tearing |
Thermal stability | Reduces material degradation during processing |
Impact resistance | Helps the finished product withstand handling and use |
Chemical compatibility | Ensures the container performs safely with its intended contents |
Additive | Function |
|---|---|
Antistatic additive | Reduces static buildup and dust attraction |
Antifogging agent | Limits condensation on transparent surfaces |
UV stabilizer | Protects products from sunlight degradation |
Plasticizer | Increases flexibility, especially in selected PVC formulations |
Colorant | Adds color, opacity, or visual identification |
Filler | Modifies stiffness, cost, weight, or mechanical performance |
Processing aid | Improves melt behavior and surface quality |
All additives should be compatible with the base polymer, intended contents, processing temperature, and regulatory requirements. Proper formulation helps prevent weak weld lines, uneven walls, surface defects, and parison instability.
Extrusion blow molding machines offer a highly cost-effective solution for manufacturing hollow plastic products. The process uses relatively simple tooling compared to other molding methods, reducing upfront costs. Cycle times are typically fast, allowing high production output. For example, producing bottles or containers can happen in seconds per unit. This speed suits mass production and lowers per-unit costs. Additionally, the continuous extrusion method supports nonstop operation, further boosting productivity. Manufacturers benefit from lower labor costs and energy consumption per part, improving overall profitability.
These machines provide excellent design flexibility. They can create a wide range of hollow shapes, from simple bottles to complex containers with handles or multiple chambers. The parison thickness can be adjusted during extrusion to reinforce stress points or reduce material use. This capability helps optimize product strength and weight. Moreover, extrusion blow molding accommodates various sizes, from small medical vials to large drums. The ability to use different polymers and additives expands possibilities for product properties like flexibility, clarity, or chemical resistance. This versatility makes extrusion blow molding ideal for many industries, including packaging, automotive, and consumer goods.
Despite its advantages, extrusion blow molding has some limitations. It generally does not achieve the same precision or surface finish quality as injection molding or injection blow molding. Wall thickness can vary slightly due to parison control challenges, affecting dimensional accuracy. Surface textures may be rougher or less detailed because the parison forms by extrusion rather than injection. These factors limit its use for products requiring tight tolerances or smooth, intricate surfaces. Secondary finishing processes like trimming, painting, or coating might be necessary to improve appearance and fit. For highly detailed parts, other molding methods may be better suited.
Compared to injection blow molding, extrusion blow molding is simpler and less expensive. Injection blow molding injects molten plastic directly into a preform mold, yielding more precise parts with better surface finish. However, it requires more complex tooling and longer cycle times, raising costs. Extrusion blow molding excels in speed and lower tooling expenses but trades off some precision. Other methods like rotational molding or stretch blow molding serve niche applications. Rotational molding handles large, thick-walled parts but is slower. Stretch blow molding produces clear, strong bottles but needs preforms and extra steps. Choosing the right method depends on product requirements, volume, and budget.
Maintaining extrusion blow molding machines regularly is crucial to keep production smooth and avoid costly downtime. Key routine tasks include:
Cleaning the extruder and die head: Remove any plastic residue or debris to prevent clogging and ensure consistent parison formation.
Inspecting and lubricating the screw and barrel: Proper lubrication reduces wear and maintains melting efficiency.
Checking mold condition: Examine mold surfaces for damage, wear, or buildup that could cause defects.
Verifying clamping system: Ensure mold halves close tightly and evenly to prevent air leaks.
Maintaining the blowing system: Inspect air compressors, valves, and hoses for leaks or pressure drops.
Cooling system upkeep: Clean cooling channels and check coolant flow to avoid overheating.
Ejector mechanism check: Ensure ejectors operate smoothly to prevent product damage during removal.
Scheduling these tasks daily, weekly, or monthly depending on usage helps keep machines in optimal condition.
Operators often face challenges that can affect product quality or machine efficiency. Common issues include:
Inconsistent parison thickness: May result from screw wear, die damage, or incorrect extrusion speed. Regularly inspect and adjust these parameters.
Air leaks during blowing: Caused by poor mold clamping or damaged seals. Tighten clamps and replace seals as needed.
Surface defects on products: Could stem from mold contamination, improper cooling, or material issues. Clean molds and optimize cooling cycles.
Cycle time delays: Often due to cooling inefficiencies or ejector malfunctions. Check coolant flow and ejector operation.
Material degradation: Overheating or prolonged residence time in the extruder can degrade polymers. Monitor temperature settings closely.
Troubleshooting involves systematic checks of machine components and process parameters. Keeping detailed logs of issues helps identify recurring problems.
Effective process control is vital for consistent product quality in extrusion blow molding. Key practices include:
Monitoring extrusion speed and temperature: Ensures uniform parison thickness and prevents material degradation.
Controlling mold temperature: Balances cooling rate to maintain dimensional stability without prolonging cycle time.
Regularly sampling products: Check dimensions, wall thickness, and surface finish to detect defects early.
Using statistical process control (SPC): Track key parameters and product measurements to identify trends and prevent defects.
Employee training: Skilled operators can spot issues early and adjust settings promptly.
Quality assurance protocols reduce scrap rates, improve customer satisfaction, and optimize production costs.
Automation is transforming extrusion blow molding machines. Modern systems now include robotic arms for mold handling, parison cutting, and product removal. These reduce manual labor, improve safety, and increase throughput. Smart sensors monitor temperatures, pressures, and cycle times in real time, enabling automatic adjustments to maintain product quality. Data collected feeds into manufacturing execution systems (MES) and industrial IoT platforms, allowing predictive maintenance and minimizing downtime. Artificial intelligence (AI) algorithms analyze process data to optimize parameters for consistent output and energy savings. This integration helps manufacturers respond quickly to production changes and reduces waste.
Sustainability is a major focus in extrusion blow molding innovation. Machines are designed to consume less energy through improved heaters, better insulation, and optimized cooling systems. Variable frequency drives (VFDs) control motor speeds, reducing electricity use during idle or low load periods. On the materials side, recycled polymers and bio-based plastics are increasingly processed on extrusion blow molding lines. New formulations maintain performance while lowering environmental impact. Some machines incorporate closed-loop water systems to conserve water used in cooling molds. These advancements help manufacturers meet stricter environmental regulations and consumer demand for greener products.
Mold technology continues to evolve for better precision and faster cycles. New mold materials and coatings improve heat transfer and durability, allowing quicker cooling and longer service life. Modular mold designs enable faster changeovers between product runs, increasing flexibility. Computational fluid dynamics (CFD) and finite element analysis (FEA) tools help engineers optimize mold geometry and cooling channels for uniform wall thickness and reduced cycle time. Process optimization software integrates with machine controls to fine-tune extrusion speed, air pressure, and cooling profiles. These improvements enhance product quality, reduce scrap, and lower production costs.
Extrusion blow molding machines create hollow plastic products by melting, shaping, inflating, and cooling polymers. Understanding this process helps manufacturers improve quality and efficiency. Selecting the right machine depends on product size, complexity, and material. Proper maintenance and process control ensure consistent results. Advanced extrusion blow molding machines can combine precision, speed, and durability to enhance production capabilities and support diverse manufacturing needs.
A: An extrusion blow molding machine is equipment that melts plastic pellets, forms a hollow tube called a parison, inflates it inside a mold using compressed air, and cools it to create hollow plastic products.
A: It melts plastic, extrudes a parison, clamps a mold around it, blows air to shape the plastic, cools the product, and ejects the finished part.
A: It offers cost-effective, fast production of hollow plastic items with design flexibility and suitable for various polymers.
A: Prices vary by size, type, and features but generally range from tens to hundreds of thousands of dollars.
