The Plastic Extruder Machine is a cornerstone in the manufacturing of plastic products, playing a pivotal role in industries ranging from automotive to consumer goods. It operates by melting plastic materials and forcing them through a die to create continuous specific shapes. Such as Pipe, Profiles, Sheet, Fliament.
Understanding the intricacies of this type machine is essential for professionals aiming to enhance production efficiency and product quality. This article delves deep into the mechanisms, applications, and advancements of the plastic extruder machine, providing a comprehensive overview for industry stakeholders. For a detailed selection of these machines, visit the Plastic Extruder Machine product line.
At its core, plastic extrusion is a process where raw plastic materials, typically in the form of pellets or granules, are transformed into continuous profiles. The plastic extruder machine is designed to handle this transformation through a combination of heat, pressure, and mechanical work. The machine's main components include the hopper, barrel, screw, heaters, and die.
The process begins when raw plastic material is fed into the hopper, which directs it into the barrel. Inside the barrel, a rotating screw moves the plastic material forward. As the material advances, it is subjected to increasing temperatures due to both external heaters and the friction generated by the screw's rotation. This causes the plastic to melt and become a viscous fluid.
Once molten, the plastic is forced through a die, shaping it into a continuous profile that solidifies upon cooling. The design of the die determines the cross-sectional shape of the final product, allowing for a wide variety of profiles ranging from simple rods, tubes and pipe to complex window frames, profile, sheet and molding strips.
The hopper serves as the entry point for raw plastic materials. It's designed to hold a significant volume of material, ensuring a continuous feed into the extruder. Some hoppers are equipped with drying systems to remove moisture from hygroscopic materials, preventing defects in the final product.
The barrel houses the screw and is typically made of hardened steel to withstand high temperatures and pressures. The screw is a critical component that conveys, melts, and mixes the plastic. It can be divided into three zones:
Feed Zone: The initial section where the plastic is conveyed from the hopper and starts to heat up.
Compression Zone: The middle section where the plastic melts and begins to homogenize.
Metering Zone: The final section that ensures a consistent molten plastic flow to the die.
Precise temperature control is crucial in the extrusion process. Heating elements, usually ceramic band heaters, are placed along the barrel to gradually increase the temperature of the plastic. Cooling systems, such as air or water cooling, are also essential to prevent overheating, which can degrade the plastic material.
The die shapes the molten plastic into the desired profile. It's a custom-designed component that can create a vast array of shapes and sizes. The die must be precisely engineered to ensure uniform flow and prevent defects such as warping or uneven wall thickness.
Single screw extruders are the most common type, featuring a single rotating screw within the barrel. They are versatile and suitable for melting and homogenizing a variety of plastic materials. Their simplicity makes them cost-effective and easy to operate, ideal for general-purpose extrusion processes.
Twin screw extruders come in two configurations: co-rotating and counter-rotating. They offer better mixing and are capable of processing materials that require thorough blending. Twin screw machines are often used for compounding, where additives are mixed into the base plastic to enhance properties.
Plastic extruder machines can process a wide variety of thermoplastic materials, each with unique properties suited to different applications. Common materials include:
Plastic Filament
--FDM 3D filament: Polyethylene Terephthalate Glycol - modified(PETG), Acrylonitrile - Butadiene - Styrene(ABS)
--Textile Fibers: Polyethylene Terephthalate(PET)
Plastic Pipes
--Water supply pipes: Polyethylene (PE), Polyvinyl Chloride (PVC),Polypropylene(PP)
--Gas pipes: Polyethylene (PE)
--Drainage pipes: Polyethylene (PE), Polyvinyl Chloride (PVC)
--Electrical conduit: Polyvinyl Chloride (PVC)
Plastic Special profiles
--Door and window profiles: Polyethylene (PE),Polyvinyl Chloride (PVC)
--Decorative profiles: Polyethylene (PE),Polyvinyl Chloride (PVC), Polyethylene Terephthalate(PET),Polystyrene (PS)
--Wire and cable Insulation layer: Polyethylene (PE), Polyvinyl Chloride (PVC)
--Wire and cable Sheath: Polyethylene (PE), Polyvinyl Chloride (PVC)
Plastic Sheet
--Packaging sheet: Polyethylene (PE), Polyvinyl Chloride (PVC), Polyethylene Terephthalate(PET)
--Decorative sheet: Polyethylene (PE), Polyvinyl Chloride (PVC)
The versatility of plastic extruder machines allows for a broad spectrum of applications across various industries. Some notable applications include:

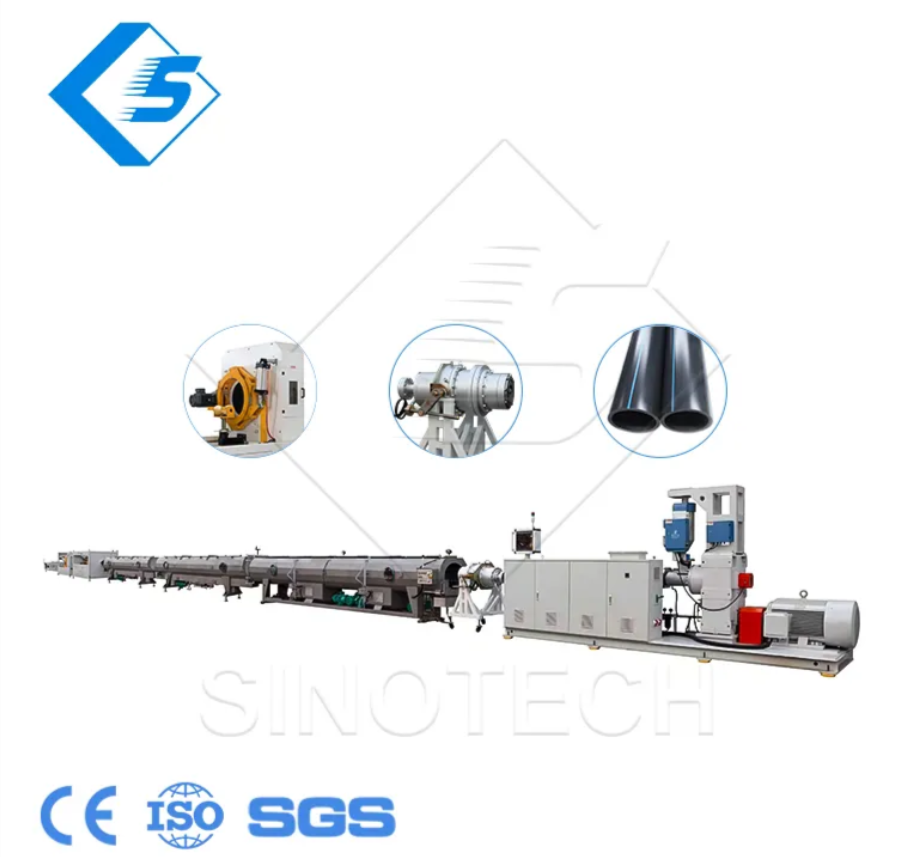

Extruded plastic pipes and tubes are essential in plumbing, irrigation, and medical devices. The ability to produce long, continuous lengths makes extrusion ideal for these products.
Thin plastic films are produced through blown or cast film extrusion methods. These films are used in packaging, garbage bags, and agricultural coverings. Sheets produced are utilized in thermoforming processes to create packaging trays, cups, and containers.
Profiles such as window frames, door seals, and decorative trims are made using profile extrusion. The precision of the die design allows for complex shapes to meet specific installation requirements.
The plastic extrusion industry continuously evolves with technological advancements aimed at improving efficiency, product quality, and sustainability.
Modern extruders are designed with energy-saving features such as improved barrel insulation, energy-efficient motors, and advanced screw designs that require less energy to melt and process plastics.
Integration of computerized control systems allows for precise monitoring and adjustment of process parameters. This leads to consistent product quality and reduces waste due to defects.
Extrusion technology now incorporates recycled plastics, reducing environmental impact. Machines are equipped to handle recycled materials, promoting circular economies in the plastics industry.
Designing a plastic extruder machine involves meticulous planning to ensure optimal performance. Key considerations include:
The screw's diameter, length-to-diameter ratio (L/D), and helix angle significantly affect the melting and mixing efficiency. For example, a higher L/D ratio provides better melting but may require more power and space.
The screw is typically divided into zones:
Feed Zone: Where the plastic is introduced and preheated.
Compression Zone: Where melting occurs, and the material is compressed.
Metering Zone: Ensures uniform melt and pressure before the die.
Precise temperature management is crucial to prevent degradation of the plastic and ensure product quality. Advanced temperature controllers and sensors are used to maintain optimal processing temperatures for different materials.
Regular maintenance of the plastic extruder machineis vital for prolonging its lifespan and maintaining product quality. Key maintenance practices include:
Cleaning the Screw and Barrel: Prevents material build-up that can cause defects.
Inspecting the Die: Ensures the die is free from obstructions and wear.
Monitoring Wear Parts: Replacing worn components like screws and heaters before failure.
Optimization involves adjusting process parameters to improve efficiency and product quality. This includes fine-tuning screw speed, temperature profiles, and material feed rates.
The plastic extruder machine is an indispensable tool in the plastics manufacturing industry, offering versatility and efficiency in producing a wide array of products. Understanding its operation, components, and the materials it can process is crucial for optimizing production and driving innovation. With ongoing advancements in technology, these machines are becoming more efficient, sustainable, and tailored to specific industry needs.
For industries looking to enhance their plastic production capabilities, investing in a high-quality Plastic Extruder Machine is a strategic move. As the market continues to evolve, staying informed about the latest developments and leveraging advanced machinery will position businesses for success in a competitive landscape.
