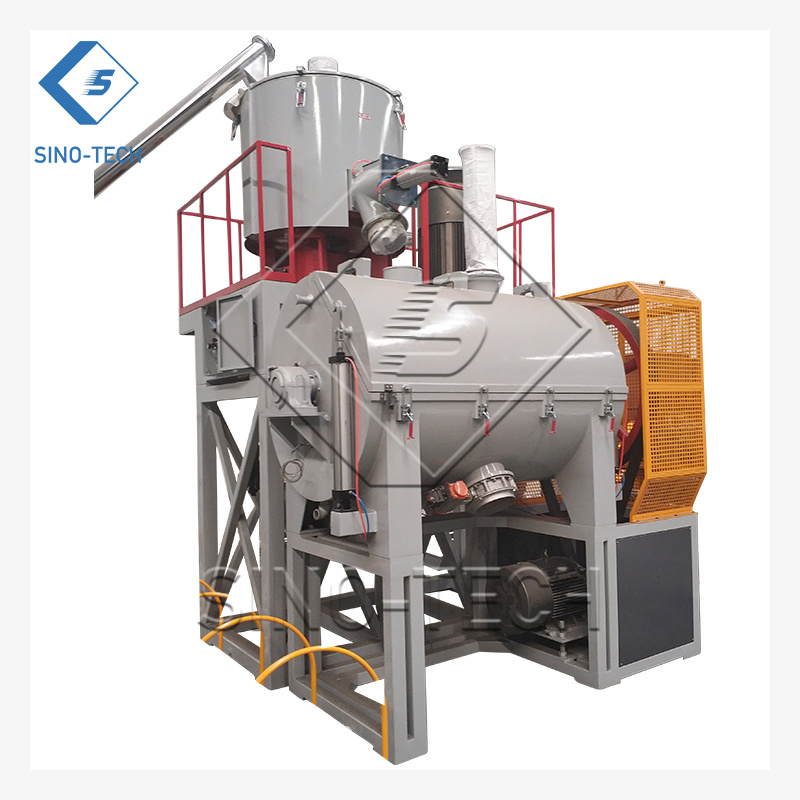

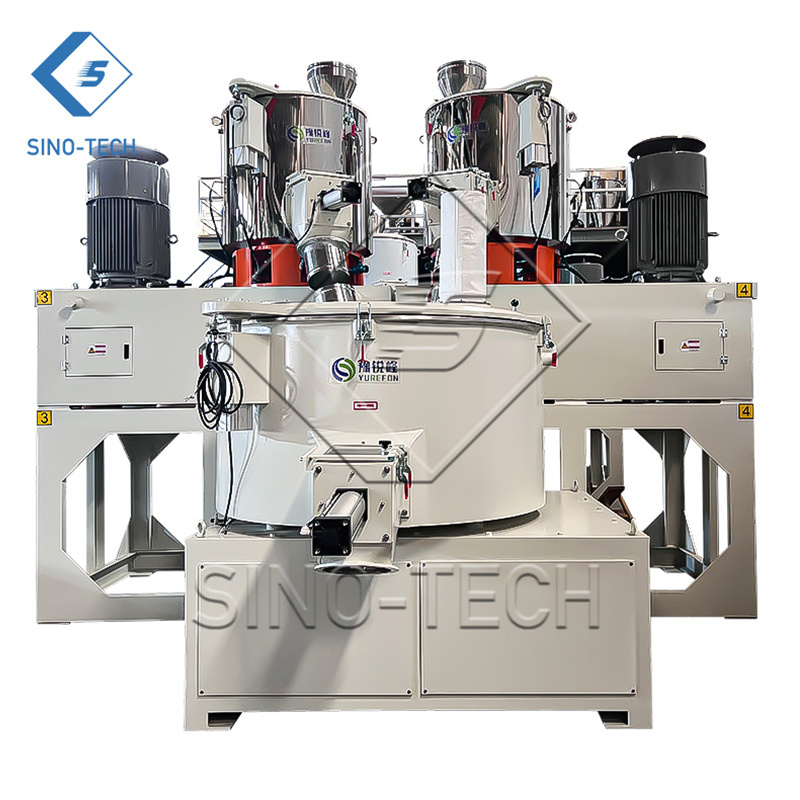

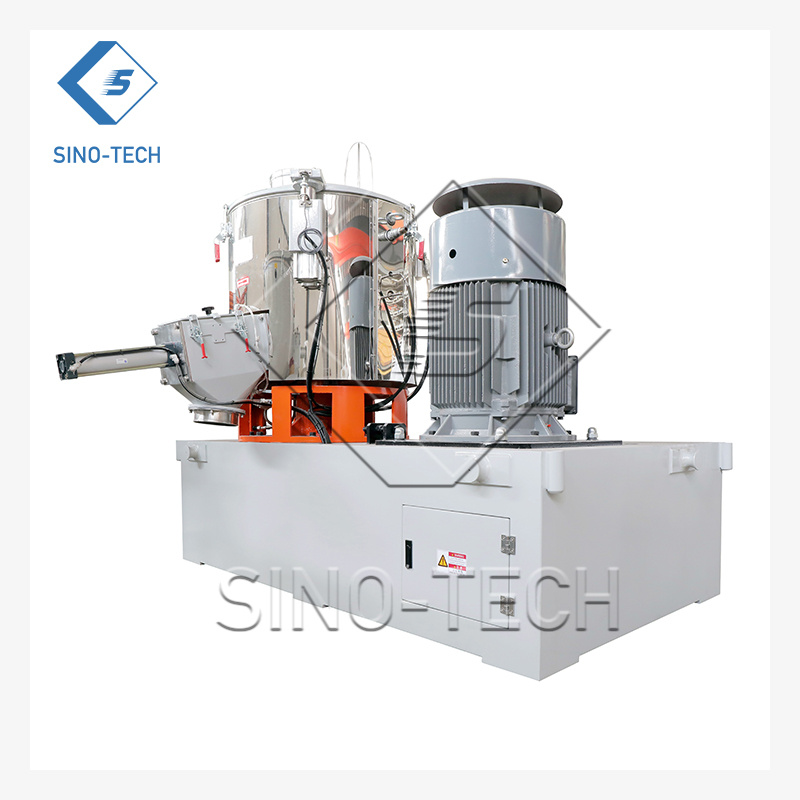

PVC Plastic mixer machine/mixing unit

the high speed PVC mixing machine can make power package conveying, features easy operation, and doesn't need to move and add raw material at Mixer elevaterial platform. It's very easy to add the raw material. There is no power dust leakage problem, saving labor and time, and helping lower down processing cost. It is of environment protection and is an economic saving conveyor system, which can increase the productivity by 30%. This is an ideal model for the plastic industry.
Quantity:
whatsapp sharing button
wechat sharing button
sharethis sharing button
  • SRL-Z

  • Sino-Tech

  • 84743900

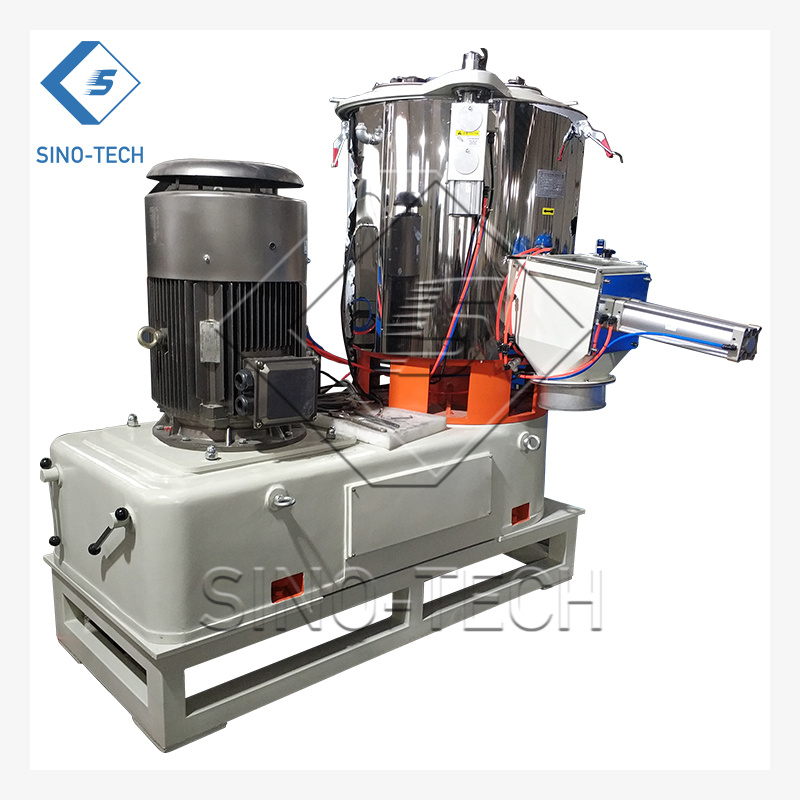

PVC Raw Material plastic mixer machine

Product Feature PVC powder mixer:

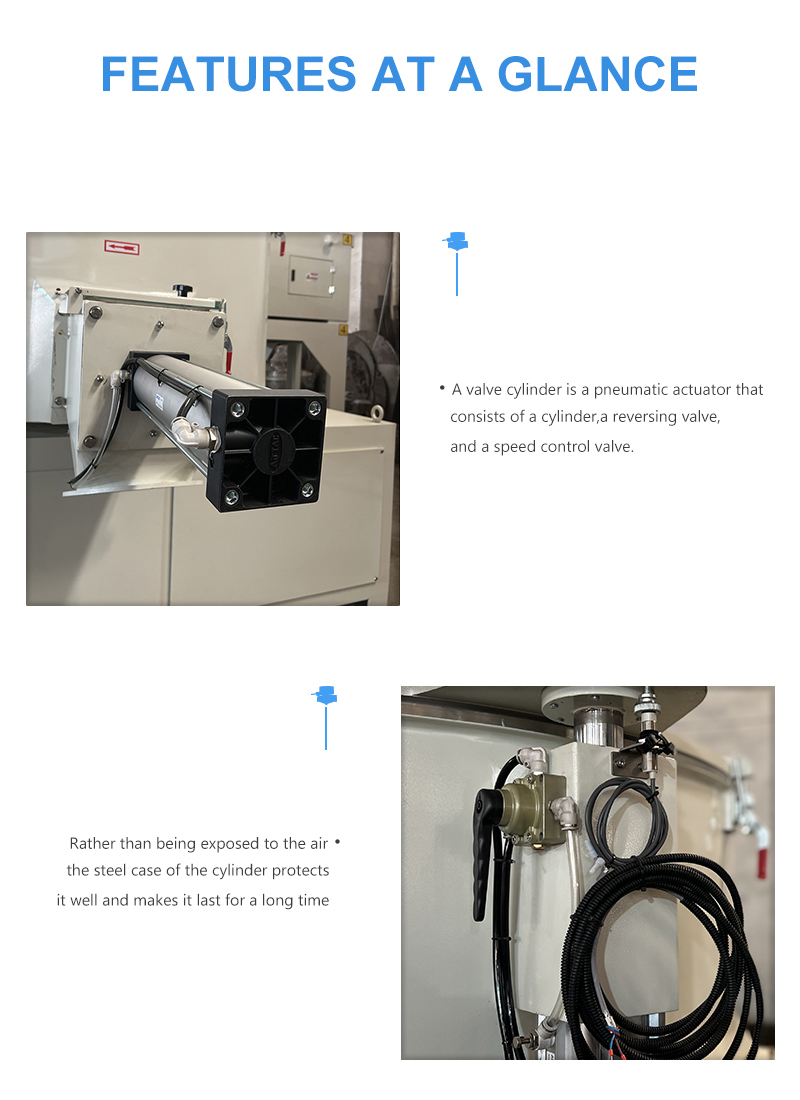

1. The seal between container and cover adopts double seal and pneumatic open for
easy operation; It makes better sealing Compare with traditional single seal

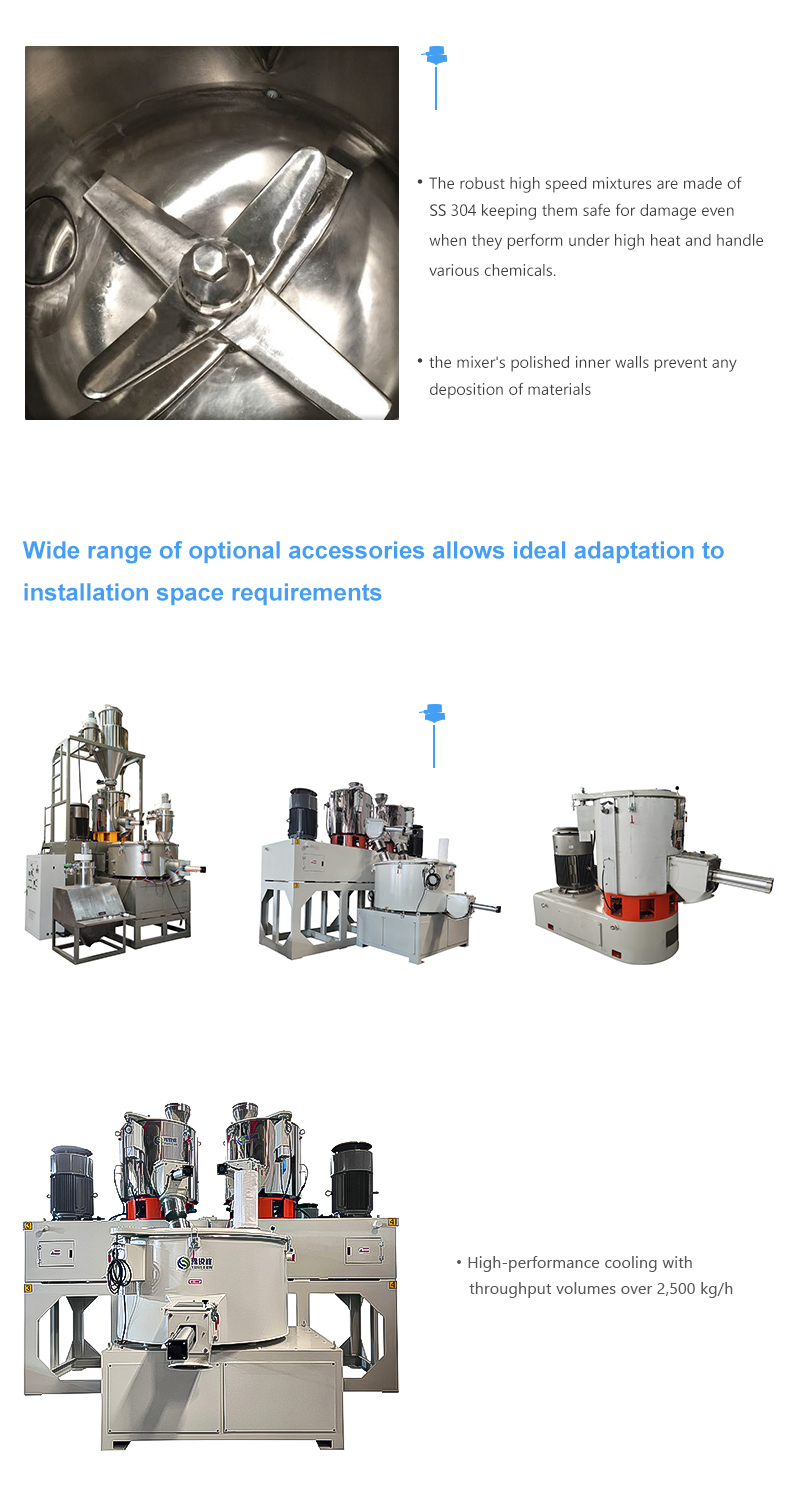

2. The vane adopt big tilt angle and single layer palm, which make the material go up
along the inside wall of container, and realize the aim of sufficient cooling by falling
through cooling jacket

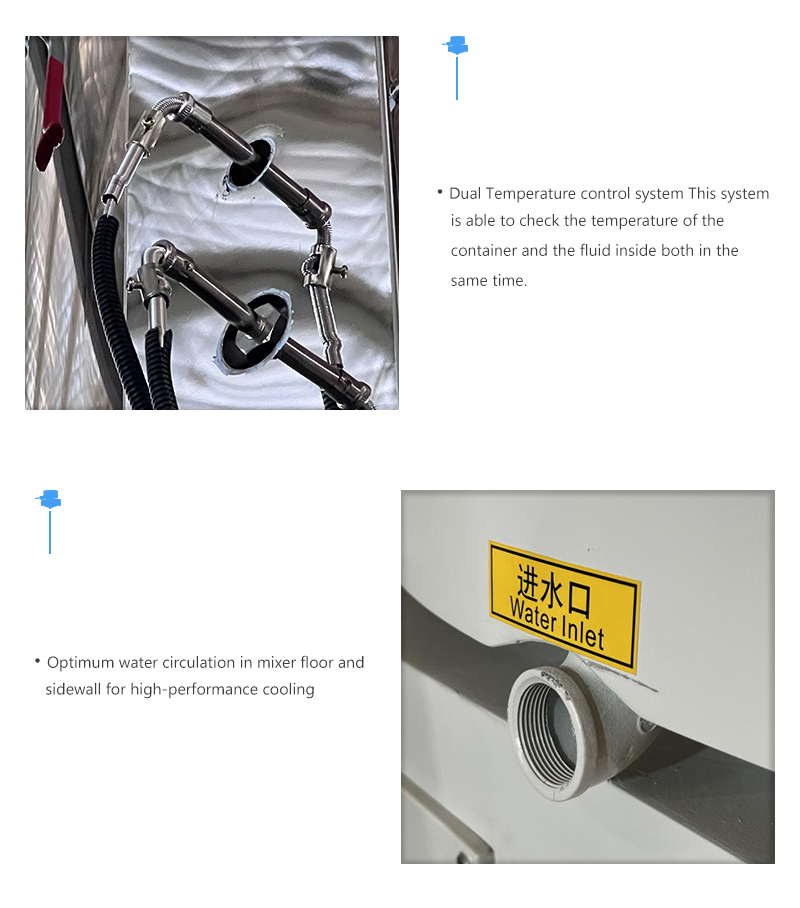

3. To ensure quality of products and improve production flexibility, safety and reliability
Accurately measurement is a big step, Grace specially designed to set The temperature
point inside container caused directly contact with the material which avoid material
feeding running when material temperature is lower or higher than setting to realize
heating and cooling mixer

4. To avoid material leakage and improving quality of final product,discharging valve
adopt plunger type gate and axial seal
The internal surface of the gate is strict with the internal wall of the container which
make no dead angle

5. Top cover has degassing device, it can get rid of water vapor in the course of hot
mixing and avoid undesirable effects on the material. PVC drying mixer

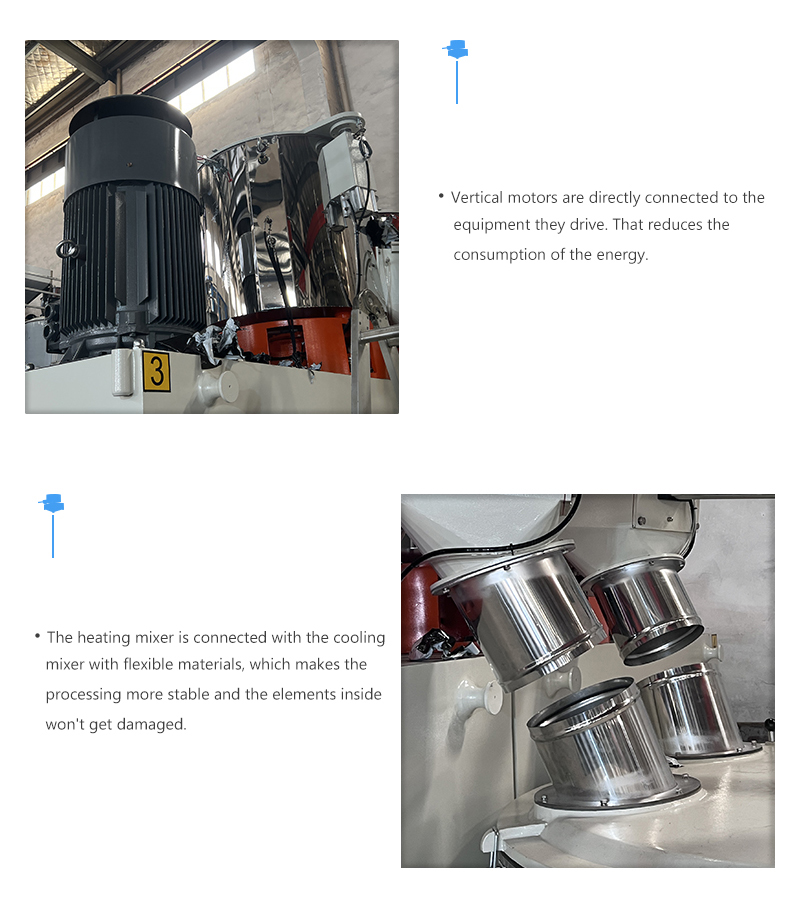

6. Adopting frequency conversion speed regulator, the starting and speed regulation
of motor is controllable, it preventing the large current produced when starting high
power motor, which produces impact on the power grid, and protect the safety of the
power grid, and achieve the speed control

Technical data of High Speed Mixer:
Z series vertical type mixer unit
Model Total volume(L) Effective capacity(L) Stirring speed
(Rpm/Min)
Mixing time(minute) Motor power(Kw) Capacity(Kg/h)
SRL-Z 100/200 100/200 70/130 650/1300/200 8-12 12/22/4 175
SRL-Z 200/500 200/500 140/320 475/950/130 8-12 30/42/7.5 350
SRL-Z 300/600 300/600 225/380 475/950/100 8-12 40/55/7.5 500
SRL-Z 500/1250 500/1250 330/750 430/860/70 8-12 55/75/15 850
SRL-Z 800/1600 800/1600 600/1050 370/740/50 8-12 83/110/18.5 1320

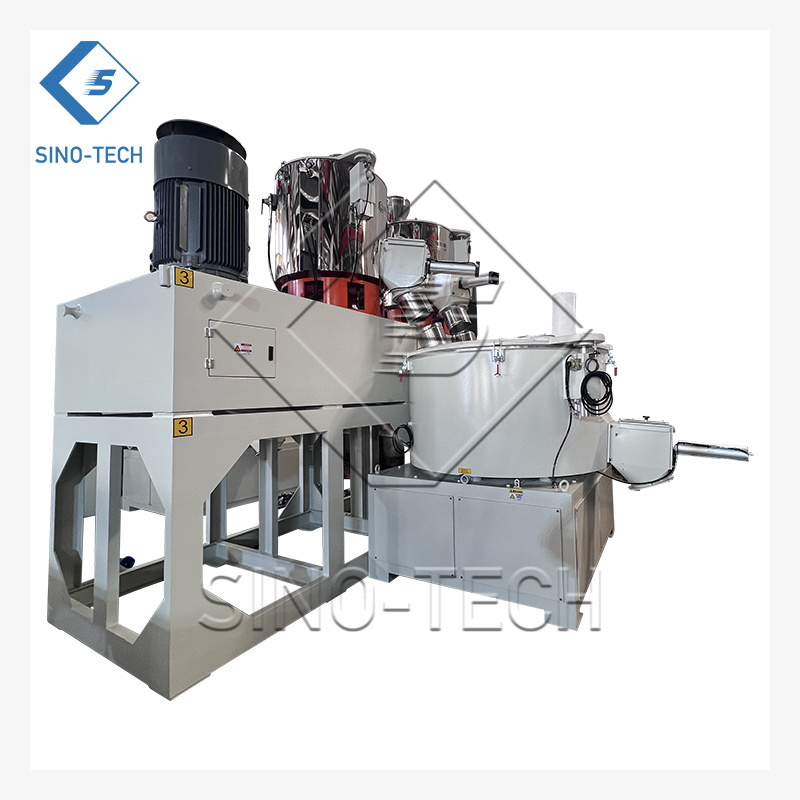

W series horizontal type mixer unit
Model Total volume(L) Effective capacity(L) Stirring speed
(Rpm/Min)
Mixing time(minute) Motor power(Kw) Capacity(Kg/h)
SRL-W 300/1000 300/1000 225/700 475/950/80 475/950/80 40/55/7.5 500
SRL-W 500/1500 500/1500 330/1000 430/860/70 8-12 55/75/15 850
SRL-W 800/2000 800/2000 600/1500 370/740/60 8-12 83/110/22 1320
SRL-W 1000/3000 1000/3000 700/2100 300/600/50 8-12 110/160/30 1650
SRL-W 800×2/4000 800×2/4000 1200/2700 350/700/65 8-12 83/110×2/30 2640
