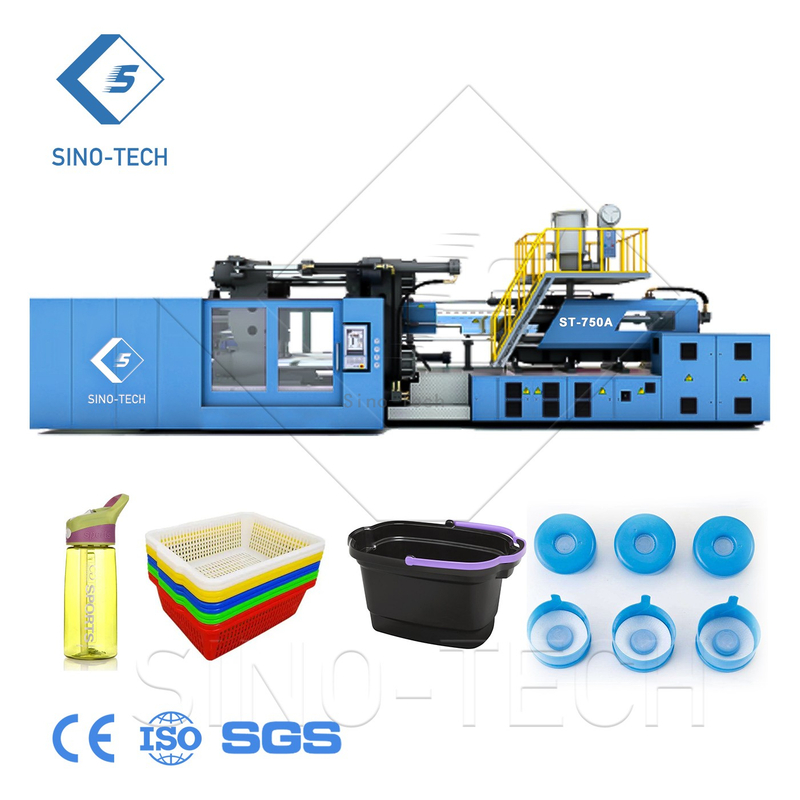

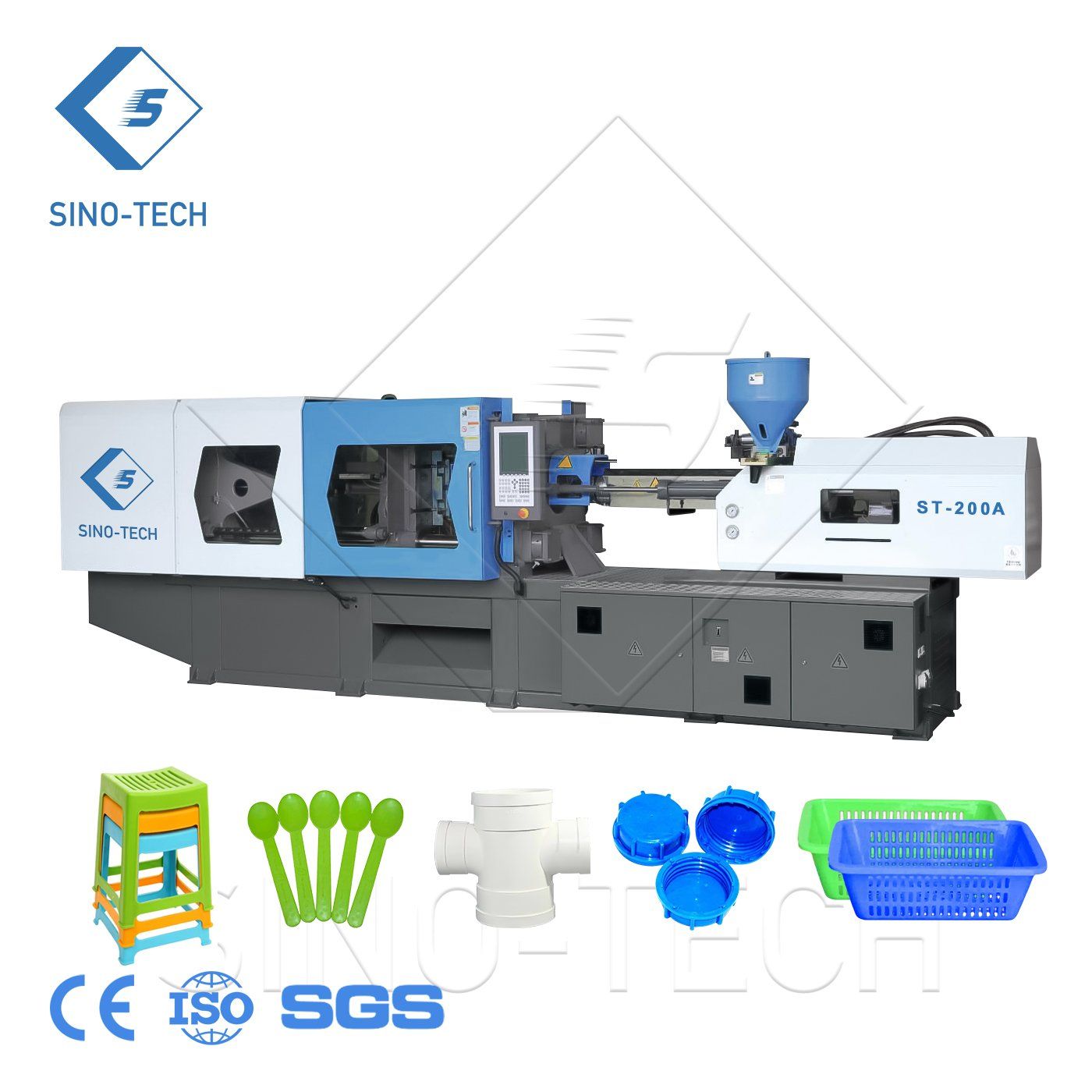

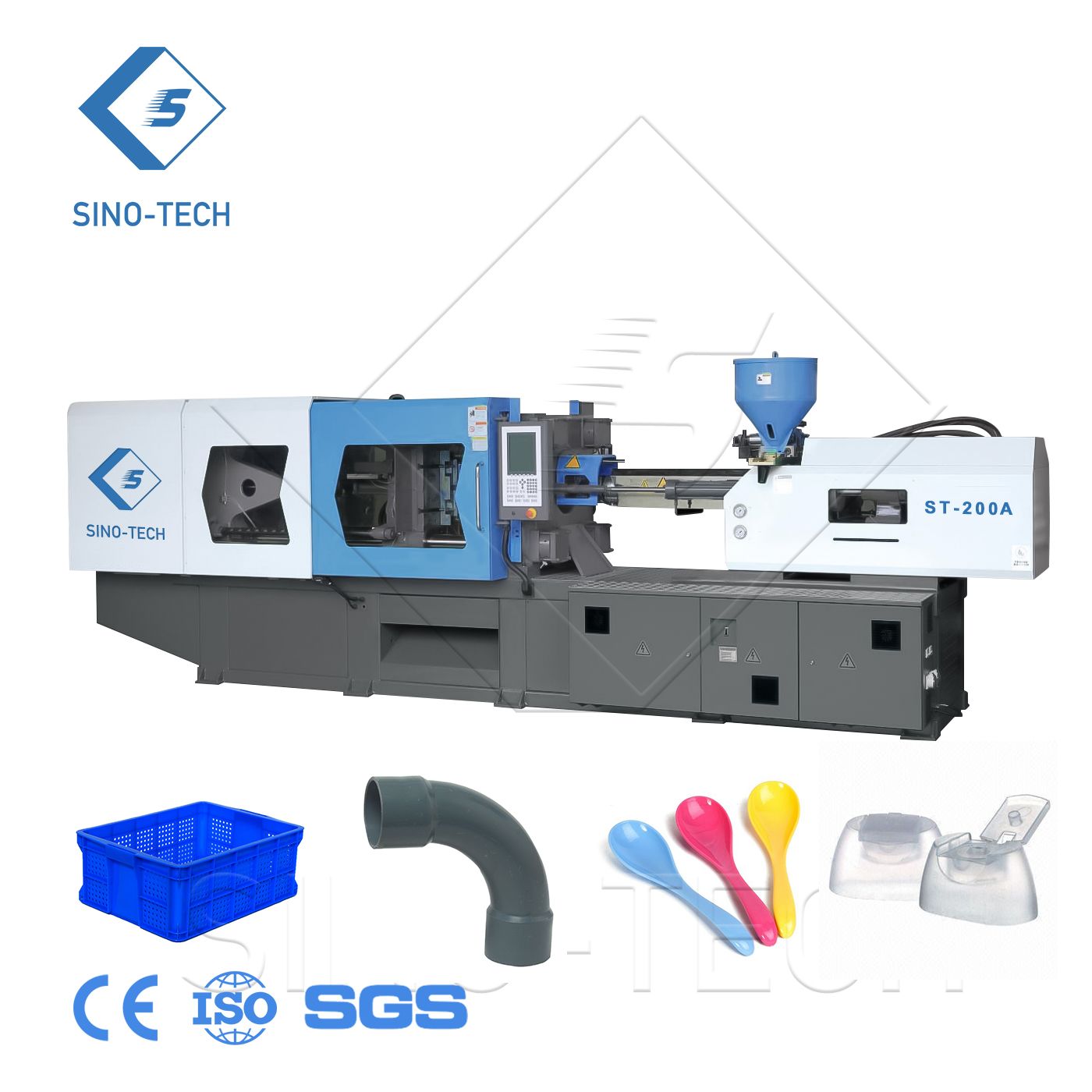

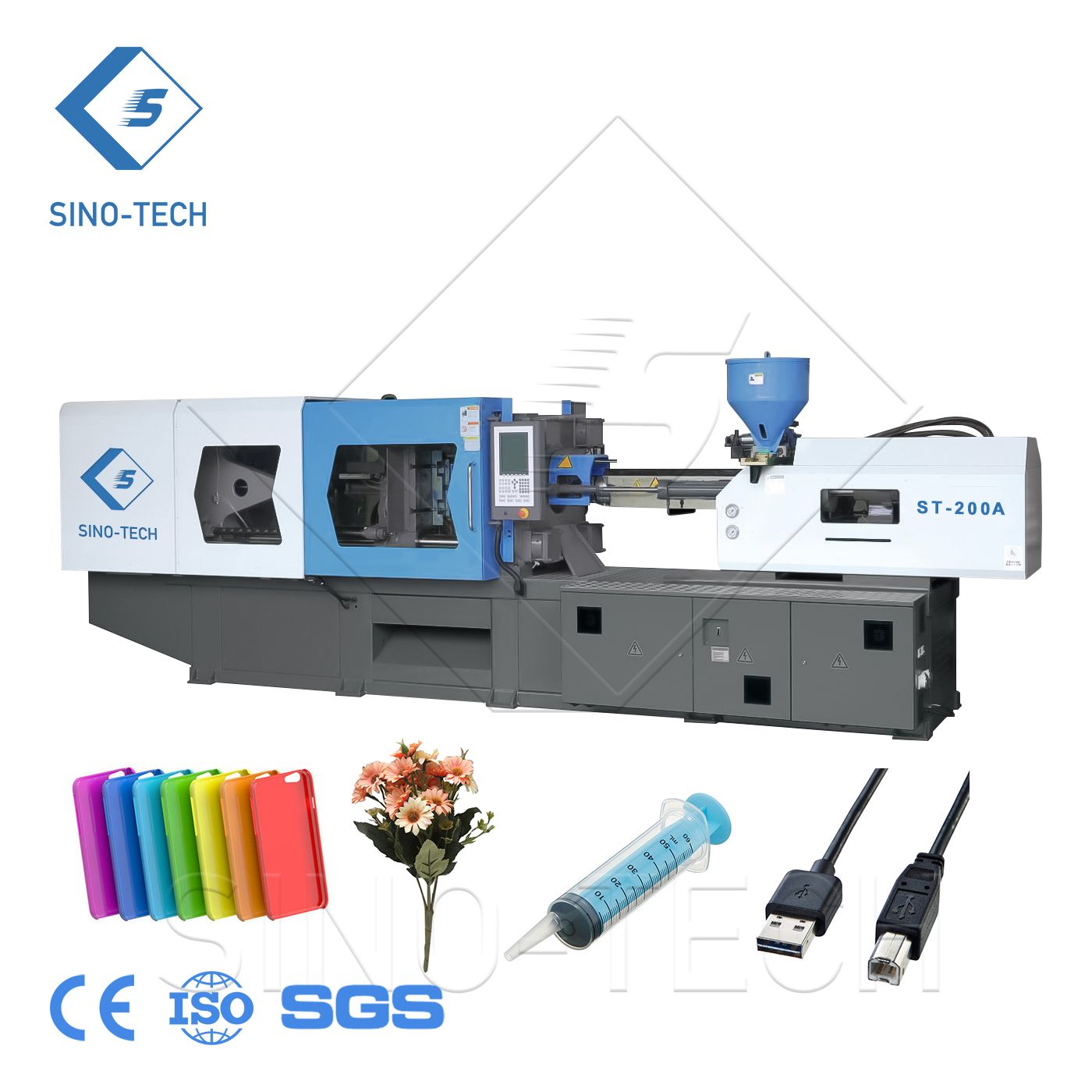

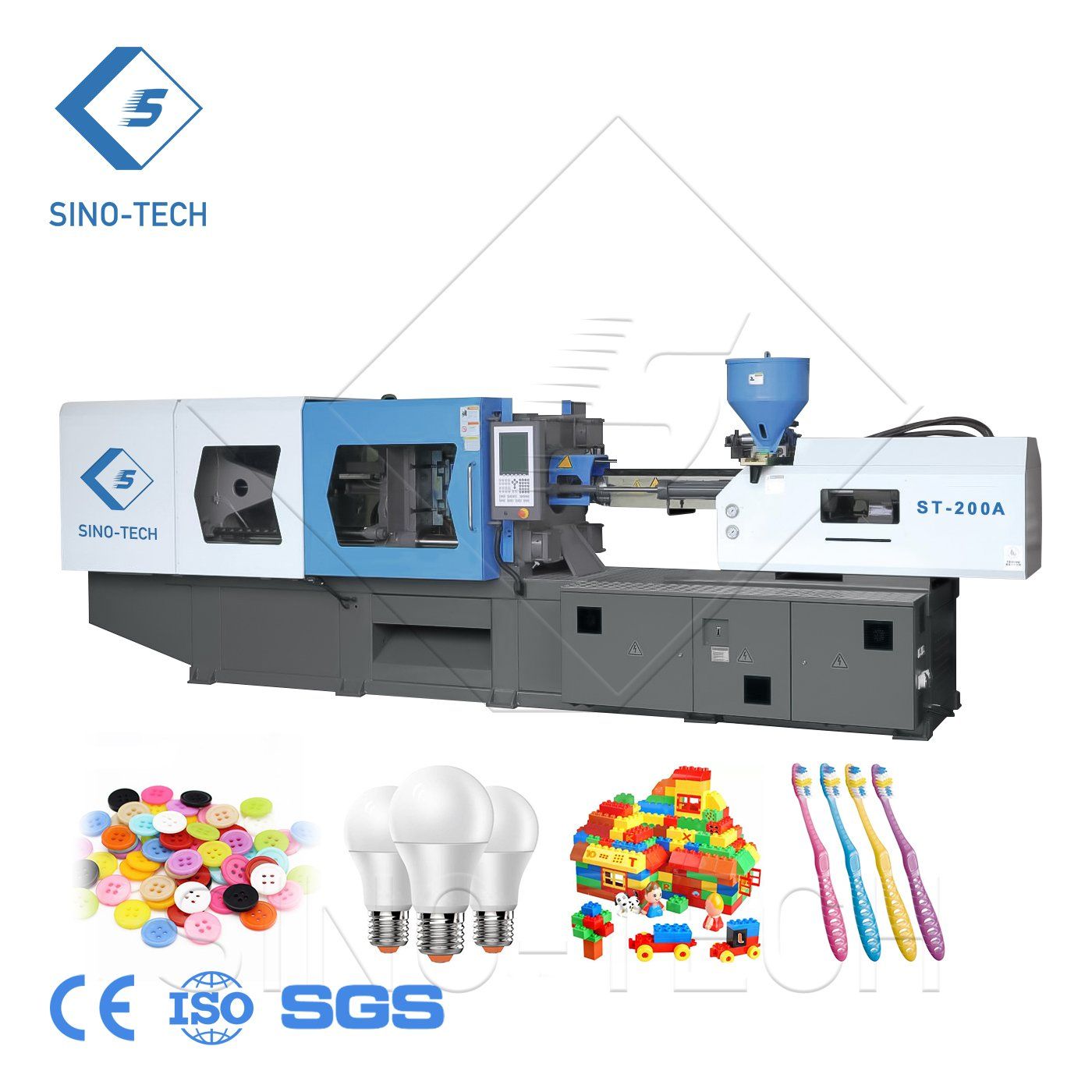

Plastic Cup Making Injection Molding Machine

SINO-TECH injection molding machine is designed for plastic dustbin, chairs, car bump pallet etc. It is with demoulding linkage which shorten the plastic parts cycle time. Machines with high speed, stable performance and it is energy-saving. Our customers can get higher production with same labor and cost.
Quantity:
  • ST-1000JSell
  • SINOTECH
  • 8474809090
  • 125mm
  • 154g/s
  • 115rpm
  • 490mm
  • 105.2kW
  • 17.5 22.1MPa
  • 197.2A
  • 45.5Ton
Injection detail1

We use a new generation of upgraded high-performance injection molding machines:
01-Opening Stroke
Increased by up to 15%
02-Ejector stroke
Increased by up to 20%
03-Mould thickness
Increased by up to 15%
04-Max. Daylight
Increased by up to 55%
05-Ejector Force
Increased by up to 40%

The injection molding machine uses Sellll upgraded components to achieve additional durability through an optimized clamping structure, a new and optimized injection unit design to meet various production needs, and uses an efficient and stable servo hydraulic system and high-performance European B&R control system.

Features
01-30% higher energy saving than using traditional variable pump
02-Stable and smooth movement supported by AC servo motor
03-Effective reduction of energy consumption due to reduced oil and cooling water attained by hydraulic system
04-High performance European B&R control system

Item
1000JSell
Screw diameter mm 100 110 125
Theoretical shot volume cm⊃3; 3848 4657 6013
Shot weight (PS) g 3646 4191 5412
Length/Diameter ratio L/D 22.3 20.0 17.7
Injection pressure(high pressure and low speed) MPa 215 178 138
Injection pressure(low pressure and high speed MPa 156 129 100
Injection rate(high pressure and low speed) cm⊃3;/sec 671 812 1048
Injection rate(low pressure and high speed) cm⊃3;/sec 925 1119 1445
Plasticizing capacity (PS) g/s 93 118 154
Injection stroke mm 490
Screw speed rpm 115
Injection unit force Ton 20.0
Carriage stroke mm 920
Clamping force Ton 1000
Opening force Ton 106.1
Opening force Ton 34.7
Max. daylight mm 2400
Clamping stroke mm 1200-1800
Distance btwn. Tie bars mm 1210*1060
Min mould dimension mm 840*740
Mould thickness range mm 600-1200
Ejector force Ton 21.5
Ejector stroke mm 300
No. of ejector pins unit 21
Dry Cycle(Euromap 6) S 5.7
Major motor kW 105.2
System pressure MPa 17.5 22.1
No. of heater zones unit 5+1
Heater input power kW 56
Ultimate capacity kw 162.2
Current A 197.2
Net weight Ton 45.5
Oil filling capacity L 1800
