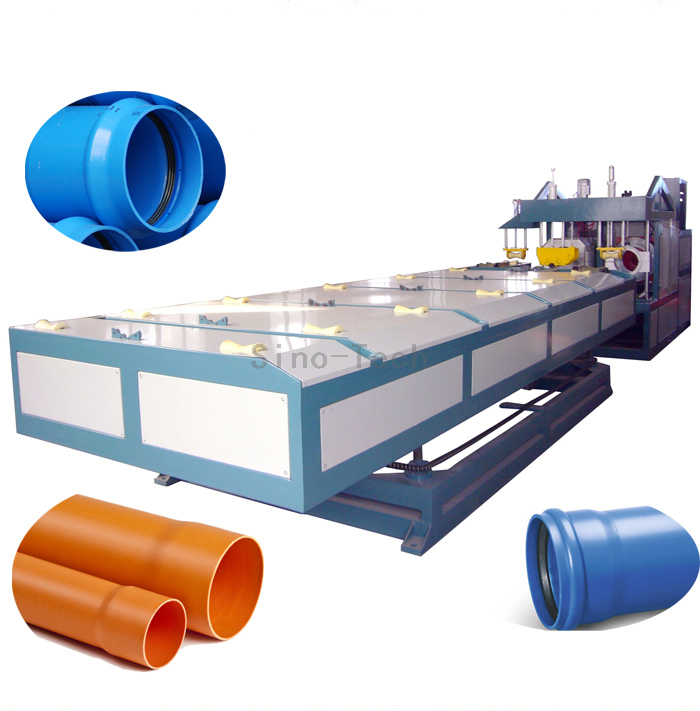

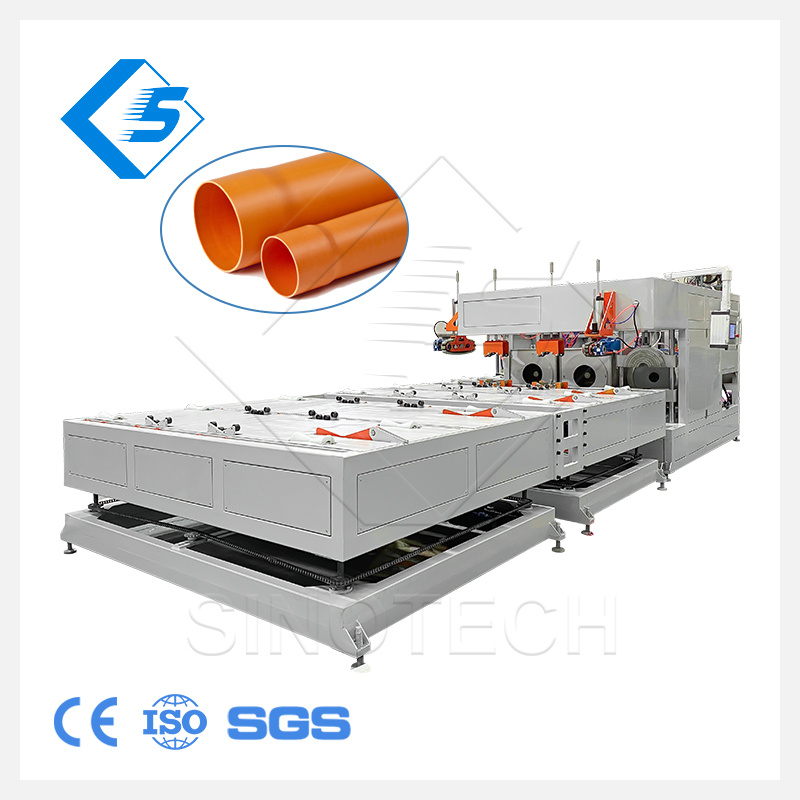

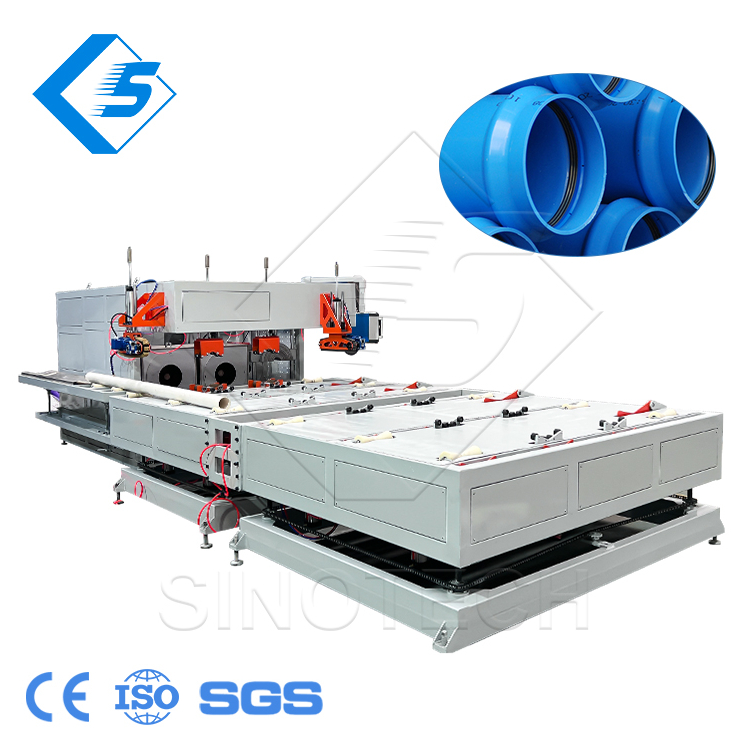

Automatic Plastic PVC Pipe Socketing Machine

This machine is suitable for the R type and U type belling machine plastic pipes. It can not only used in line with the pipe production line but also can be used as a single machine. The characteristics of this machine is full automatic, stable and reliable, easy to operate. It adopts vacuum calibration inside the mould.

Quantity:
  • SGK250
  • Sino-Tech
  • 84778000
  • PVC Pipe socketing Machine
  • RR& U type
  • One or Two
  • Vacuum Pump Suction Forming
  • 3gr13
  • 40-800mm
  • 3-6m
  • Water Cooling or Air Cooling
  • Siemens Schneider
  • Siemens
Features of Plastic PVC pipe belling machine / PVC pipe socketing machine:

1. Machine frame is welded of cold drawn rectangle steel tube with features of good structure and strength and without shaking when machine running.

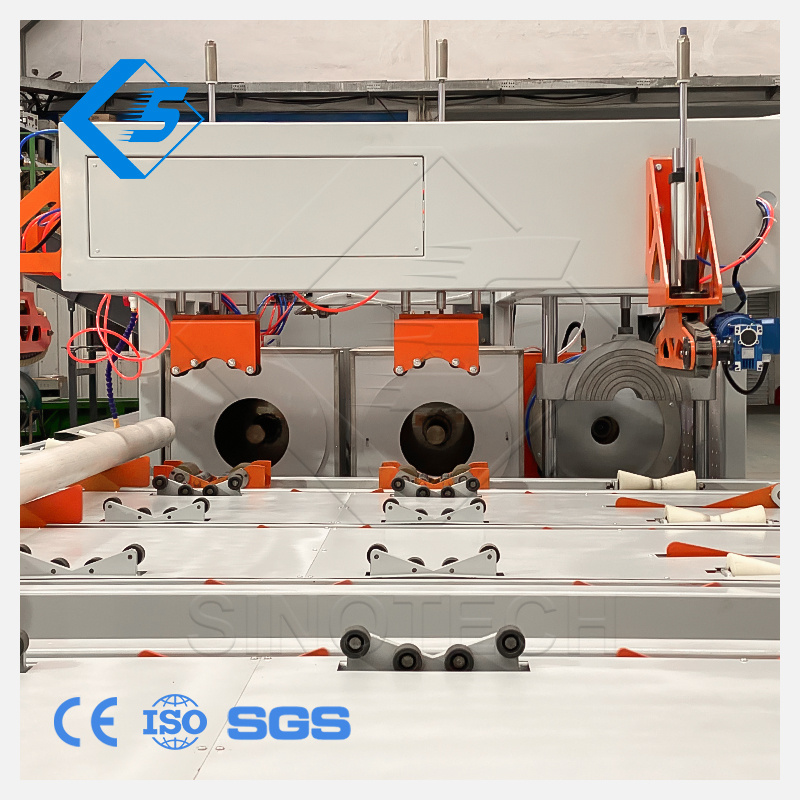

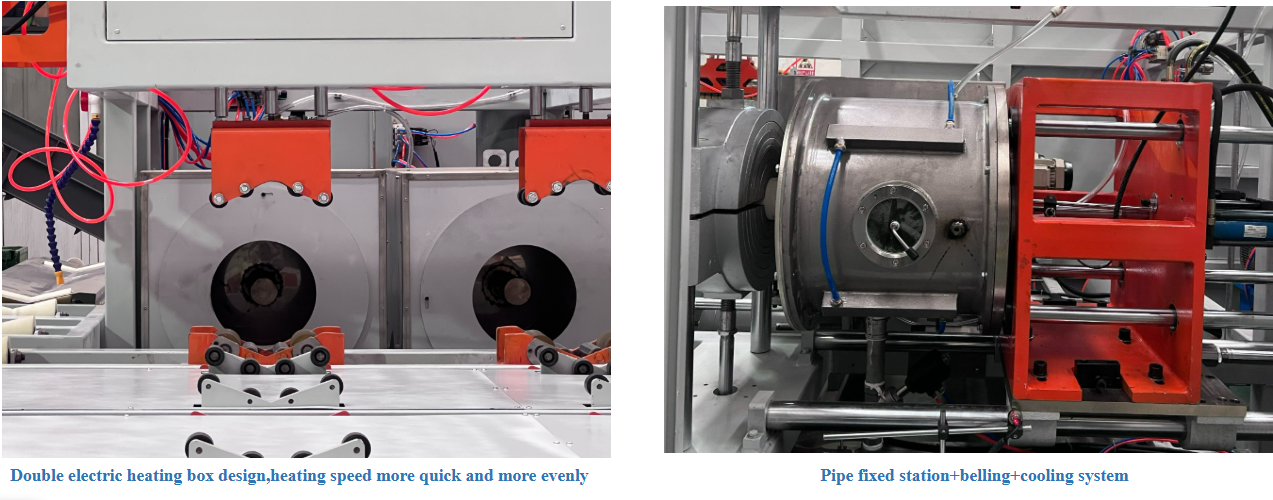

2. Heating oven adopt force balanced circle air flue design with features of heating fast, evenly; the pipe can rotate positive and negative, lower consumption.

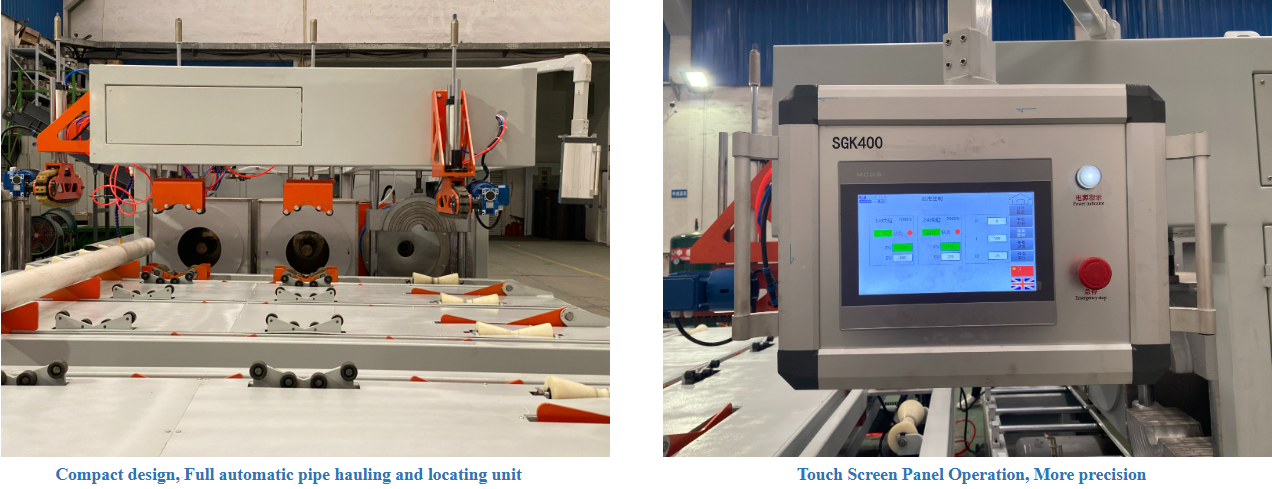

3. High automatic level, PLC touch screen control, all actions are pre-setting, machine will work automaticlly.
4. Electric parts adopts famous brand, the touch screen adopts Delta, contactors adopts Siemens, photo electric adopts Autonics
5. Adopts water cooling and out pressure forming for water supply pipes, make sure pipe socket shape accurate.

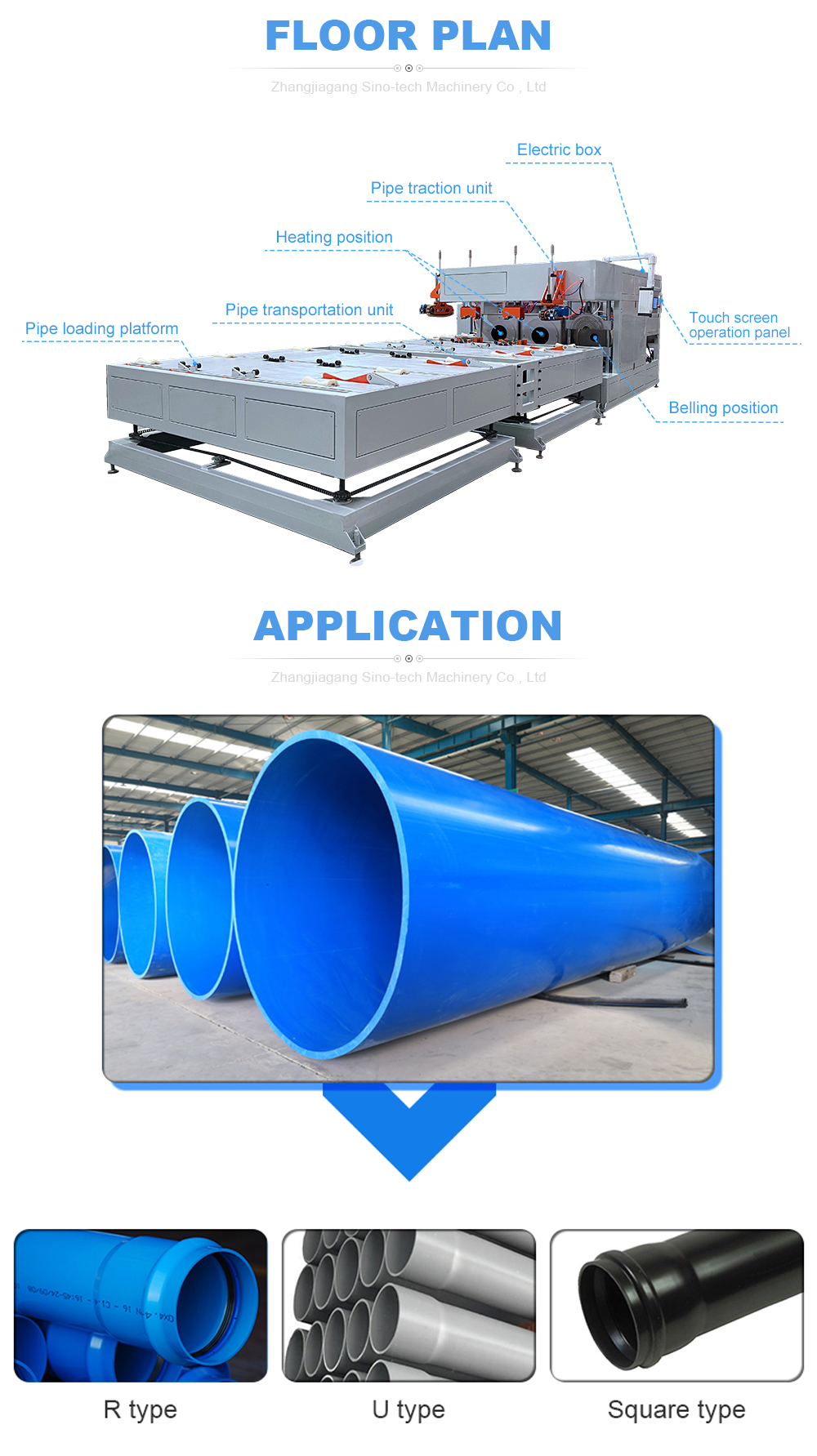

Plastic PVC pipe belling machine / socket making machine is equipped with relevant mould could bell the plastic PVC pipe into U type, R or square type socket automatically.
Belling range: Φ16mm-Φ630mm.

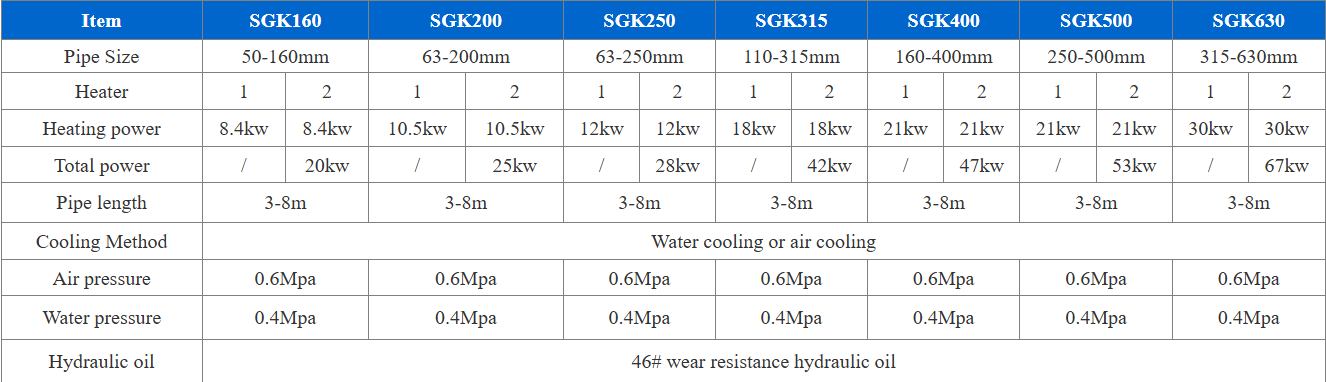

Model

Pipe Diameter

Heating Method

Belling Method

Heating power

Dimension

SGK110

50-110mm

Electric heating

Mould physical expansion

10.5kw

7500x1400x1750mm

SGK160

50-160mm

Electric heating

Mould physical expansion

10.5kw

7500x1400x1750mm

SGK200

50-200mm

Electric heating

Mould physical expansion

10.5kw

7855x1350x1900mm

SGK250

110-250mm

Electric heating

Mould physical expansion

10.5kw

7830x1620x1700mm

SGK315

160-315mm

Electric heating

Mould physical expansion

14kw

8050x1750x1900mm

SGK450

200-450mm

Electric heating

Mould physical expansion

18kw

8290x2090x2080mm

SGK500

315-500mm

Electric heating

Mould physical expansion

18kw

8500x3050x2100mm

SGK630

400-630mm

Electric heating

Mould physical expansion

22.5kw

8615x3125x2500mm
