3 gallon 5 gallon PC bottle blowing making machine

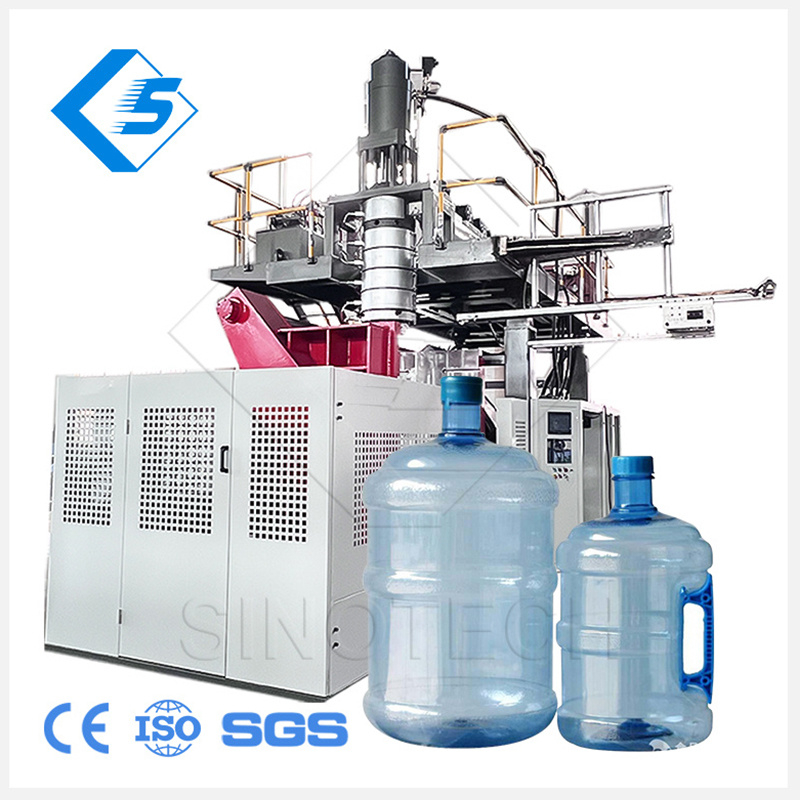

SNBL-25PC 3 gallon 5 gallon PC bottle blowing making machine

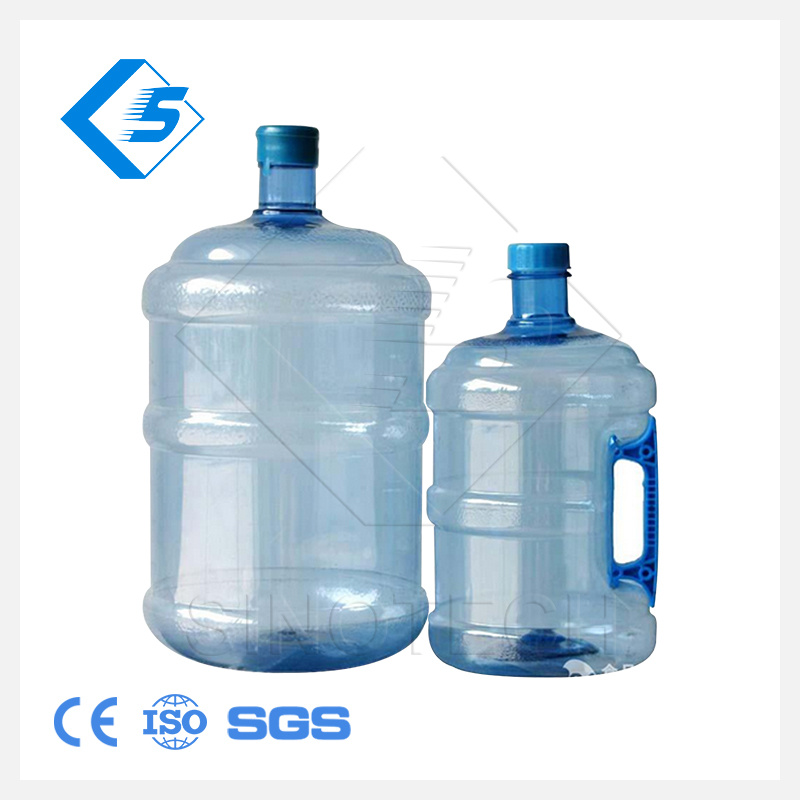

Product Available: 3GALLON 5 GALLON PC bottle barrel etc.
Max. product volume: 25L
Plastic material: PC
Head No.: single
Multi-extrusion layer possible: 1 layer
Auxiliary equipments: blow mould, mixer, vacuum auto-loader, mixer, dryer, crusher, water & fans chiller, air compressor, conveyor system for deflashing parts, conveyor system for finished product delivery, leakage tester… - See more at: http://www.sinotechmachine.com/5L-fully-Automatic-extrusion-blow-moulding-machine-pd442982.html#sthash.y31saS5X.dpuf

Quantity:
  • SNBL-25PC
  • Sino-Tech
  • 84774010
Features of machine 5 gallon PC Bottle Making Machine:
1. Electric system: Mitsubishi PLC from Japan and human-machine interface
2. Hydraulic system: YUKEN hydraulic valves and pump from Japan
3. Plastisizing system: Effective, energy-saved screw

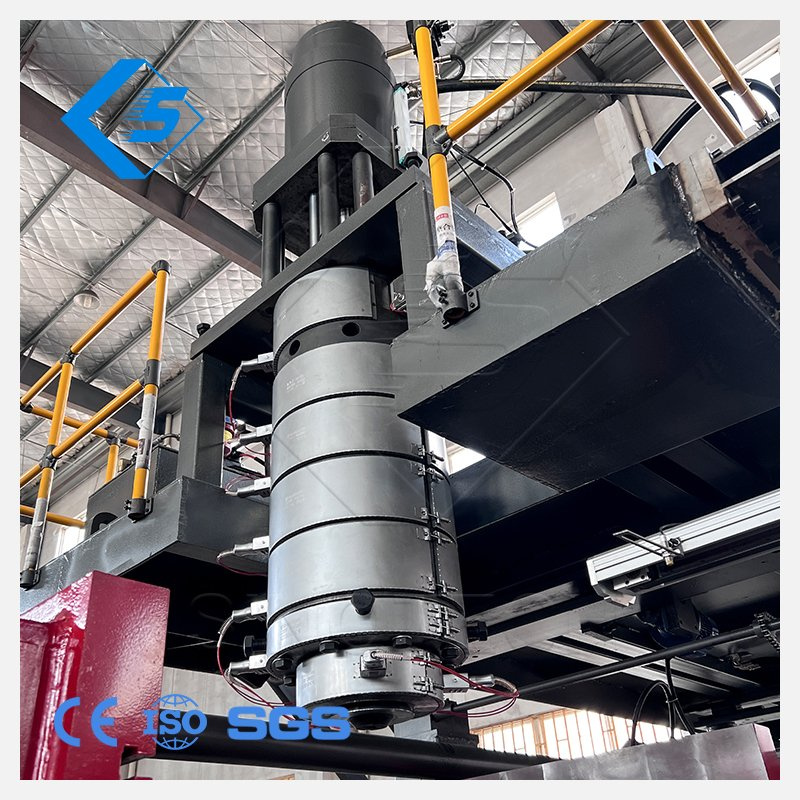

4. Die head specially designed for PC material
5. Clamping unit: Adopting linear slide way with precision up to um grade
6. Parison injecting: Single hydraulic cylinder without non-synchronization
7. Mould changing: Extruding cover can be adjusted up and down, diehead can be moved by hydraulic, and mould changing is very easy.

Technical Parameters of 5 Gallon PC Bottle Blowing Machine:

unit
item specification discription note

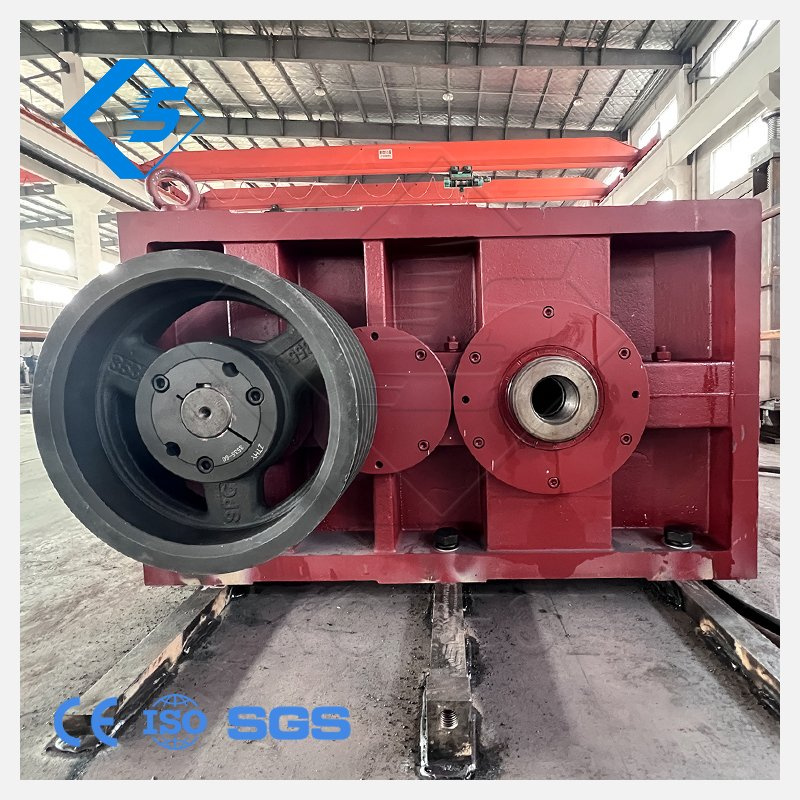

Extruding
(Main extruding)
Screw diameter φ82mm Special exhaust screw for PC
Screw L/D 30:1

Material of screw and barrel
38CrMoALA
Plasticizing capacity 130~160KG/Hr Based on LG grand, changeable with different density of material
Extruding method Oil motor Low speed, big pitch of strand
Front-back adjusting Yes

Up-down adjusting  Yes Chain and turbine running with oil motor
Temperature control zones 8 Temperature, Mitsubishi
Blowers 4 Power 120W
Cooling Yes Put cooling water through entrance of screw

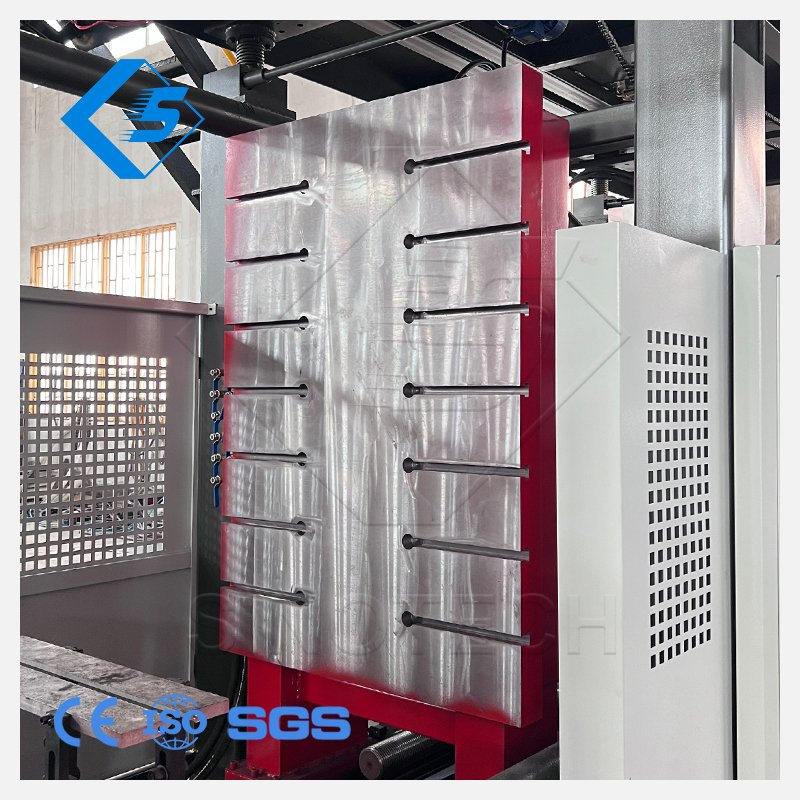

Mold closing unit  Structure


Without bar, bilateral synchronization center-mold closing, with large and average clamping force Patent
Mold-moving guide Ball bearing beeline guide Small resistance, high speed, high precision, scuff resistance
Platen dimension 550×650 mm Max.
Platen distance 350~780mm

Clamping force 215KN

Fixing mold Mold pressing platen Make screw hole on platen, mold pressing platen
Clamping stroke control

Inductive switch & moving Discriminate end of mold opening, low-speed of mold opening, end of mold closing and low-speed of mold closing
Electric protect


Taiwan FOTEK electric protect switch with six-zone
Diehead Structure Centre-feed Average press, be able to oppugn
Material
38CrMoALA inner mirror
Accumulator 4L

Die mouth Φ80~Φ120 mm Min~Max
Parison thickness controlling Available MOOG 100-point
Injecting stroke conmtrol
Accumulator electric ruler & limit switch
Parison adjustment method Outer mandral

Temperature zone 4

Standard bottom blowing unit Blow pin stroke control Inductive switch Discriminate end of blowing pin up, end of blow pin down
Blowing control mode
Discriminate high pressure blowing and low pressure blowing
Blowing pin cooling function Cooling water 1-in, 1-out cooling system


Blowing pin position adjusted
Front, back, left, right, three way displacement adjusting
Electricity Controlling system Temperature Medule Mitsubishi, alarm for up-limit and down-limit, P.I.D control
Load protect
Set electric protect according to different zones, prevent from destroy when abnormal electricity
Programmer Mitsubishi The movement programmer composed in general language, and movement control may be revised according to the users' special demand
Operating screen Human interface screen HITECH, Taiwan
Timing setting Touch screen Set pressure and timing on the screen to manage and control the movement
Hydraulic Oil motor power 60HP

Mail oil pump
USA DENISON OR SUNNY
Controlling Proportional Setting data from 0 to 999
Max. working pressure 140 kg/cm2

Pneumatics Direction
AIRTEC, Taiwan
Pressure controlling Separate style Separate two adjusters for high and low pressure
Max. pressure 8kg/cm2  All air pipes are connected by PU pipe
Other information Lubricative method
Fill lubricate oil by hand on mold opening & closing basement
Oil cooling
Using heating exchanger from Taiwan
Mold cooling
Separated cooling water resource, use 5-in 5-out fix (single side)
Gear box, hopper basement, die head cooling
Use separated cooling water circuit, insure cooling effect
Overall dimension L*W*H 6300*2200*3800mm
Weight TON 12
