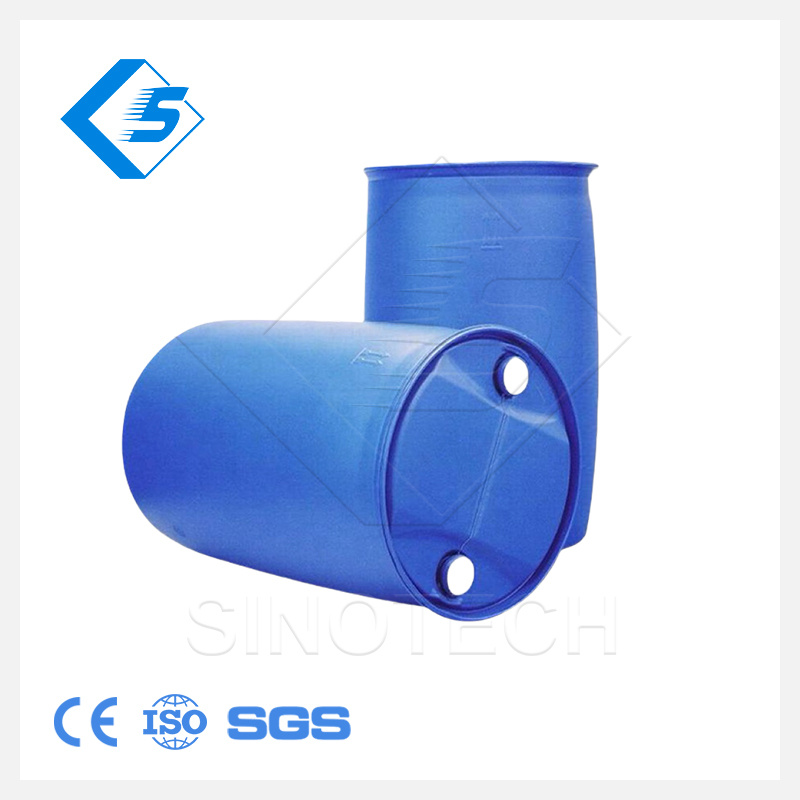

120L 160L 200L Plastic Oil Barrel Extrusion Blow Molding Machine/Drum Blowing Machines

Share to:

120L 160L 200L Plastic Oil Barrel Extrusion Blow Molding Machine/Drum Blowing Machines

The machine adopts the latest die change system and hydraulic hybrid design, which makes the machine run faster and more energy-efficient. It adopts a linear structure and is easy to install and maintain. The large setting platen is suitable for molds of various sizes.

Quantity:



Inquire Add to Basket

Model:
STB-160F
Brand:
SINOTECH
Code:
84223090
Material:
PE、PP、ABS
Max.Container Capacity:
160L
Machine Weight:
22T
Machine Weight:
7.5*3.5*5.7M
Max.mold size(W*H):
1200*1900mm
Total Power:
206KW
Melting capacity:
320Kg/hr
Max. Die-pin diameter:
500mm
Accumulator capacity:
20L

Product Description

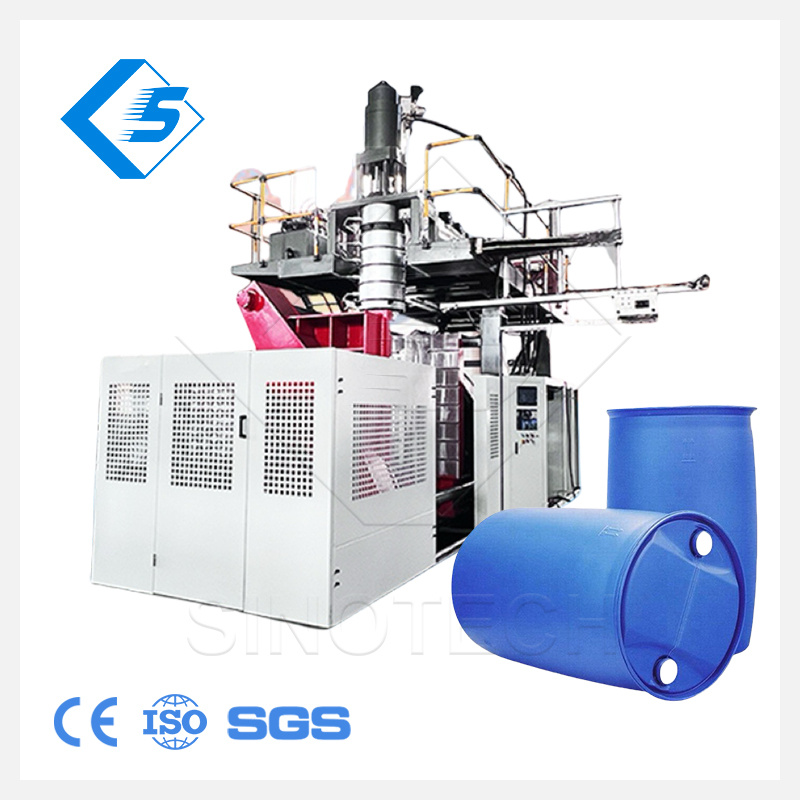

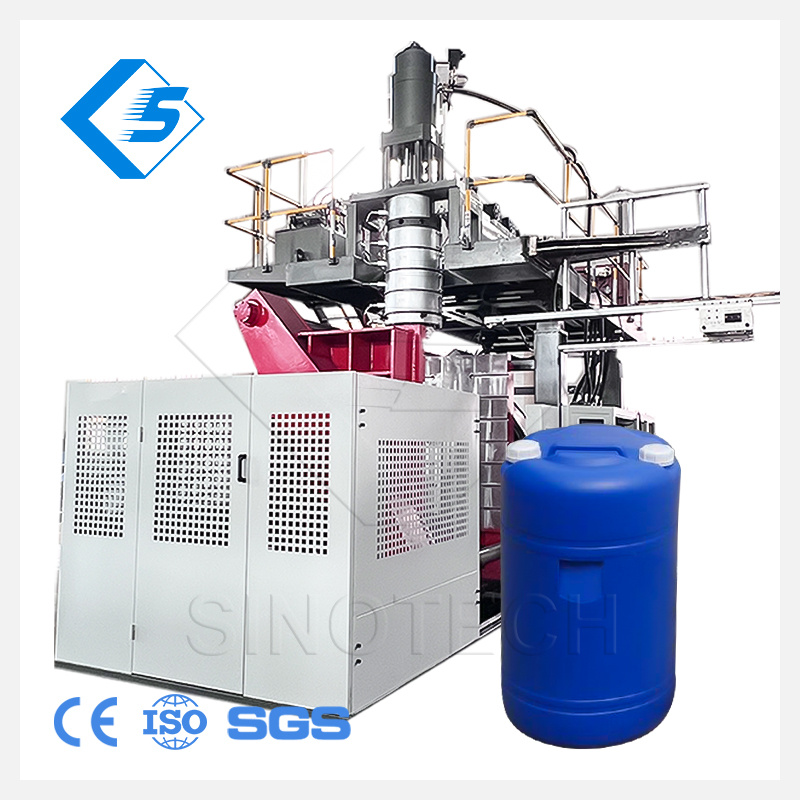

STB-160F Accumulator Extrusion Blow Molding Machine
Machine Features

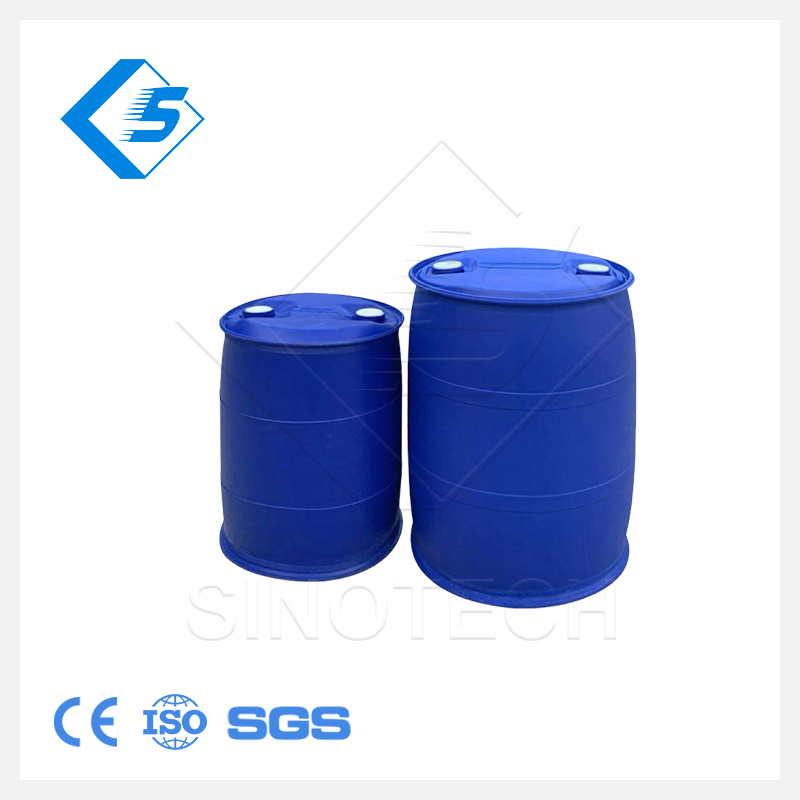

1. Special design for 120L, 160L ,200L PE/PP/ABS... Barrels

2. Die head design with easy to change the material and color.
3. Latest mold changing system, much faster and easier.
4. Optimized hydraulic system, proportional pressure control
5. Adopts two pull-rod type closing-mold devices by rack and pinion system. The large setting platen is suitable for various sizes of molds
6. Simple structure in linear type, easy in installation and maintenance.
7. Servo system
8. With robot arm take out the finished product
9. One to three multi-layers choose

10. Hydraulic and electric hybrid power design, makes the machine run more speed and more energy-saving
11. Full Servo system control.
12. Simple structure in linear type, easy in installation and maintenance.
13. With a robot arm take out the finished product.
14. Single die-head and Single station.

Technical Specification
Specifications		STD-100N series	STD-120N series
Material		PE、PP、ABS	PE、PP、ABS
Max.Container Capacity	L	120	160
Output(Dry Cycle)	pc/hr	300	300
Machine Weight	T	19	22
*Machine Dimension(LWH)*	M	6.83.35.0	7.53.55.7
Clamping system
Clamping force	KN	440/880	680/1360
Platen opening stroke	mm	600-1400	600-1400
*Platen size(WH)**	mm	1100*1100	1400*1600
*Max.mold size(WH)**	mm	900*1400	1200*1900
Mould thickness	mm	610-750	610-750
Power
Max drive	KW	90	135
Total Power	KW	108	206
Fan power for screw	KW	0.6	0.72
Air pressure	Mpa	0.8	1
Air consumption	m⊃3;/min	0.8	1
Average energy consumption	KW	51	95
Extruder system
Screw diameter	mm	100	120
Screw L/D ratio	L/D	24	30
Melting capacity	Kg/hr	150	320
Number of heating zone	zone	5	5
Extruder heating power	KW	25	32
Extruder driving power	KW	45	90
Accumulator head
Number of heating zone	zone	5	6
Power of die heating	KW	26	39
Max. Die-pin diameter	mm	450	500
Accumulator capacity	L	12/15	20
